OP97BIEP datasheet, PDF - EEWORLD Datasheet

OP97BIEP: DescriptionOperational Amplifier, 1 Func, 60uV Offset-Max, BIPolar, PDIP8, MINI, PLASTIC, DIP-8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size656KB，10 Pages; ManufacturerPrecision Monolithics Inc

Download Datasheet Parametric View All

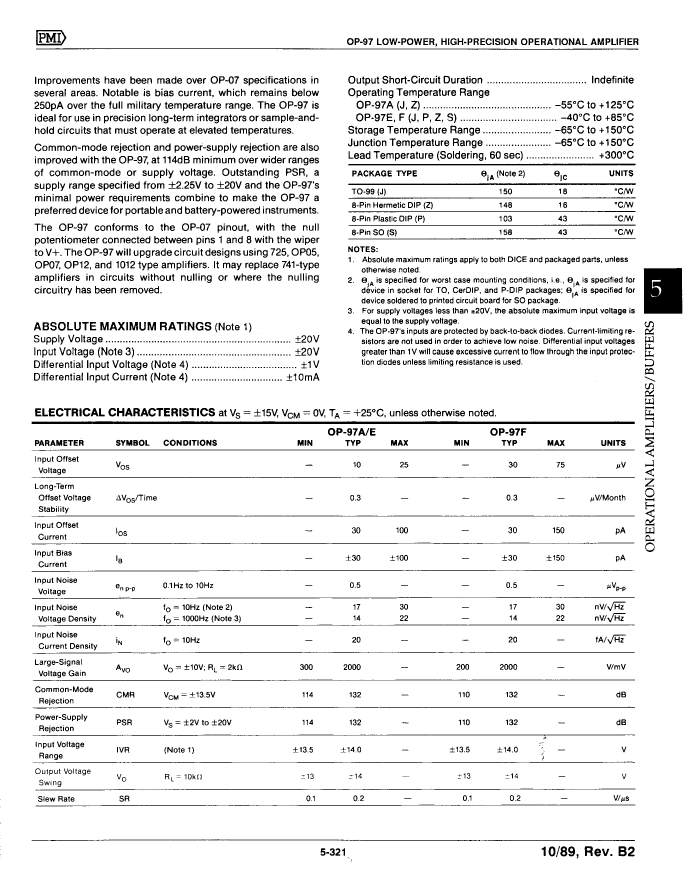

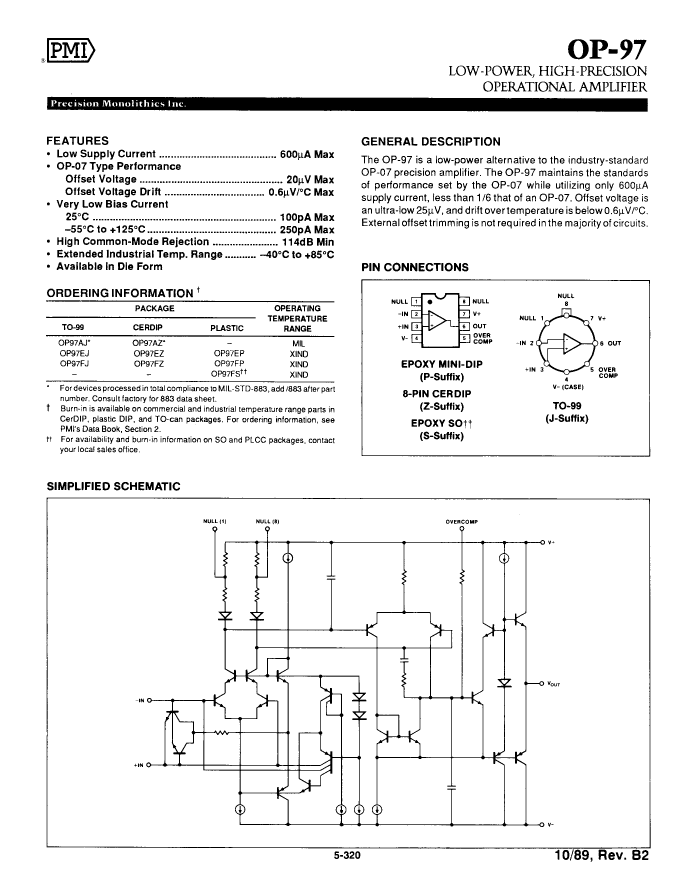

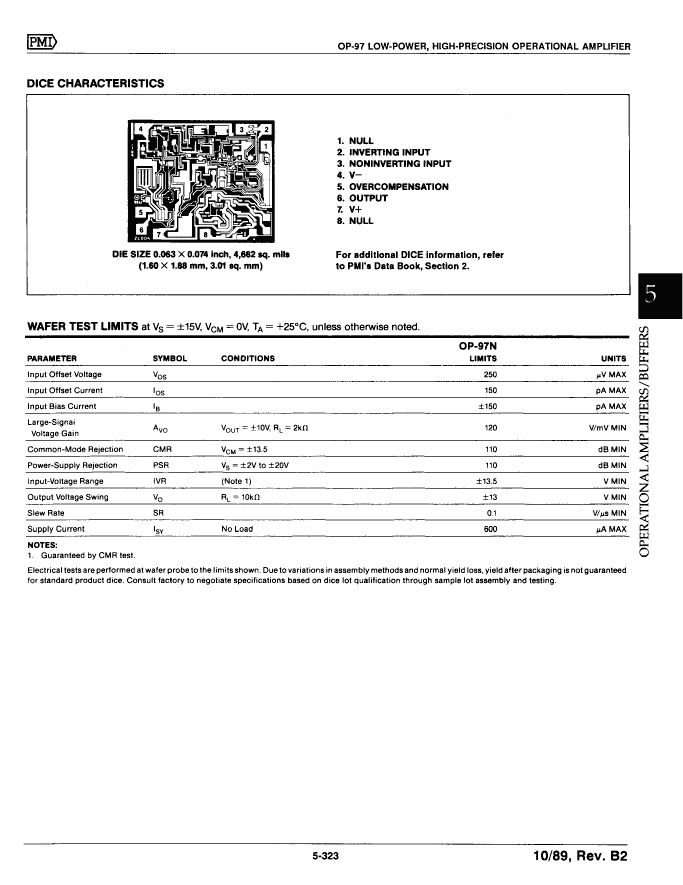

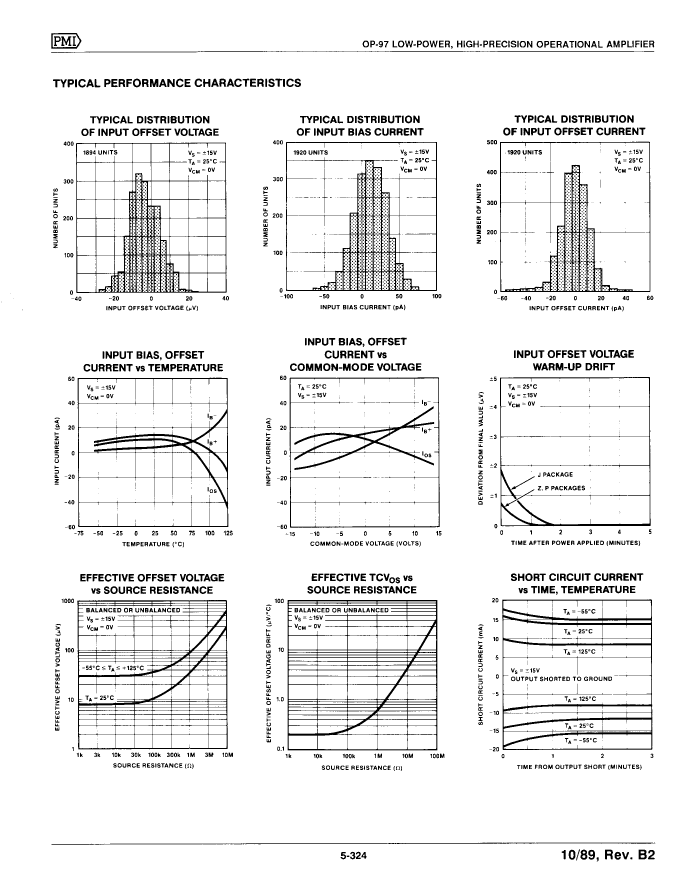

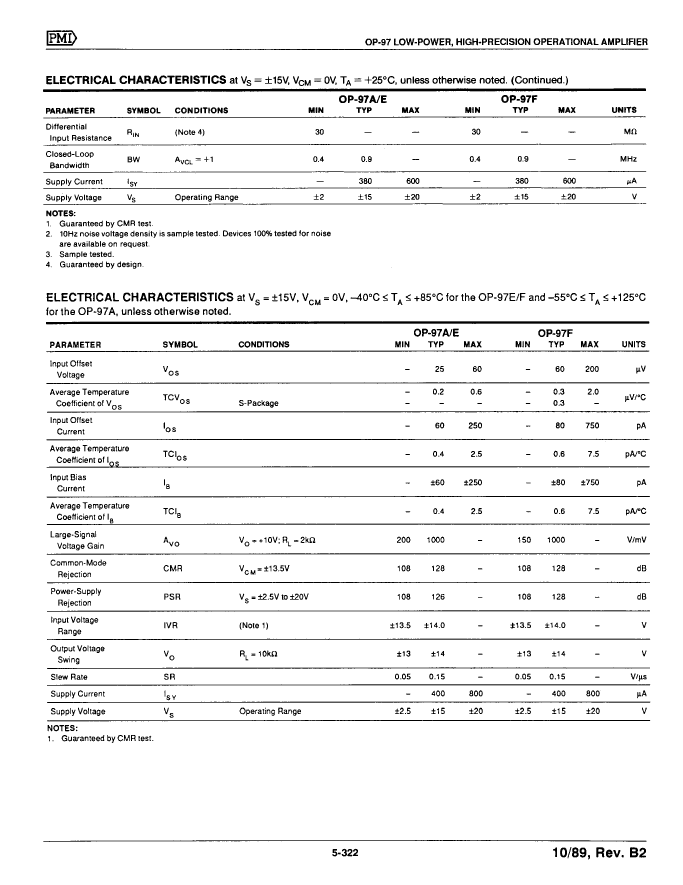

OP97BIEP Overview

Operational Amplifier, 1 Func, 60uV Offset-Max, BIPolar, PDIP8, MINI, PLASTIC, DIP-8

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Precision Monolithics Inc
package instruction	DIP, DIP8,.3
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.00025 µA
Maximum bias current (IIB) at 25C	0.0001 µA
Nominal Common Mode Rejection Ratio	128 dB
frequency compensation	YES
Maximum input offset voltage	60 µV
JESD-30 code	R-PDIP-T8
JESD-609 code	e0
low-bias	YES
low-dissonance	YES
micropower	YES
Negative supply voltage upper limit	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
minimum slew rate	0.05 V/us
Nominal slew rate	0.15 V/us
Maximum slew rate	0.8 mA
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Minimum voltage gain	200000
