MW-02-03-G-D-125-065-TR datasheet, PDF

Datasheet> All Categories > The connector> The connector> MW-02-03-G-D-125-065-TR

MW-02-03-G-D-125-065-TR: DescriptionBoard Stacking Connector, 4 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size994KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

MW-02-03-G-D-125-065-TR Overview

Board Stacking Connector, 4 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT

MW-02-03-G-D-125-065-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Objectid	1239185573
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	2 weeks
compound_id	94989860
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	GOLD (10) OVER NICKEL (50)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	MW
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	4

Preview

Download Datasheet

View All

F-211-1

MW–32–03–G–D–125–085

MW–16–03–G–D–185–125

(1,00mm) .03937"

MW SERIES

MW–25–03–G–D–210–110

MW–10–03–G–D–100–160

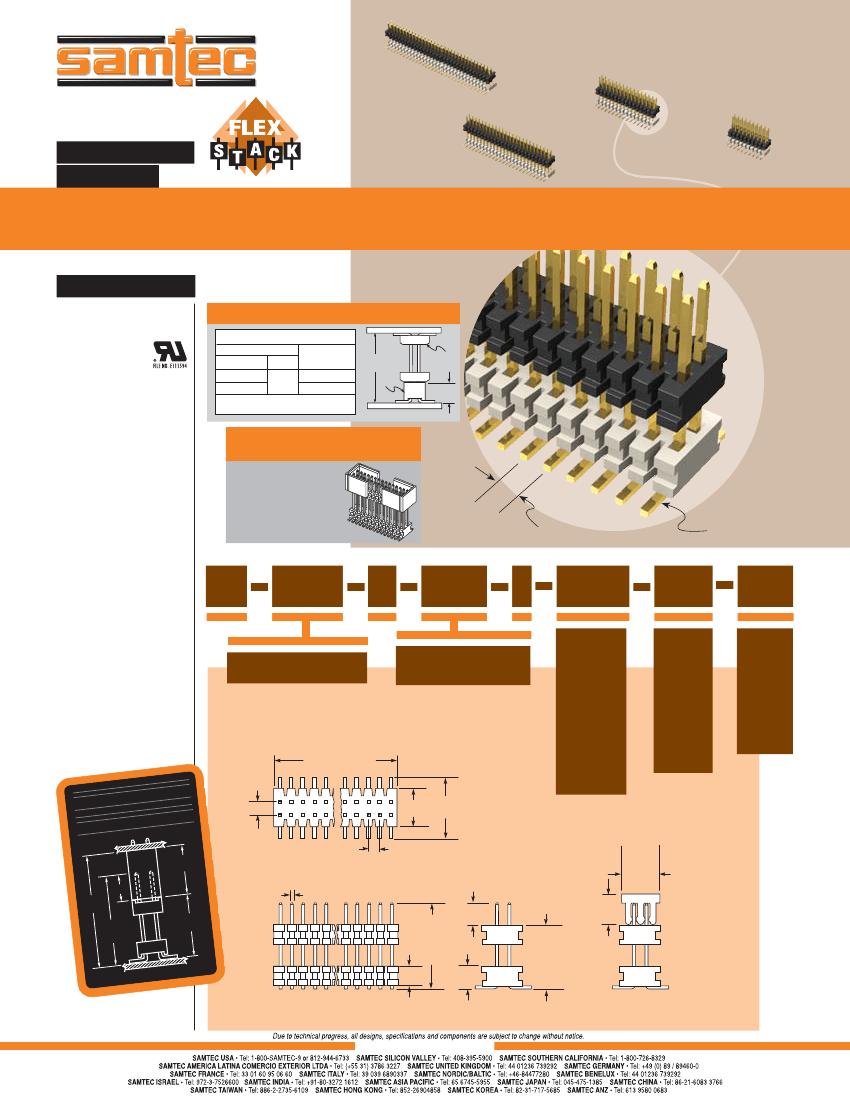

SMT MICRO BOARD HEADER

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts

see www.samtec.com?MW

Insulator Material:

Top: Black LCP

Bottom: Natural LCP

Terminal Material:

Phosphor Bronze

Current Rating:

2.5A @ 80°C ambient

Operating Temp Range:

-55°C to +125°C

Plating:

Au over 50µ" (1,27µm) Ni

RoHS Compliant:

Yes

Mates with:

CLM, MLE

APPLICATIONS

EXAMPLES

LEAD STYLE

MATED

HEIGHT*

CLM

Available with

optional end

shrouds and

pick-and-place

pads

MATED

HEIGHT

CLM

-163-065

-233-065

– 02

(6,35) .250

(8,13) .320

*Processing conditions will

affect mated height.

(2,21)

.087

APPLICATION

SPECIFIC OPTION

Alignment pins,

end shrouds and

end shrouds with

guide posts available.

Call Samtec.

Processing:

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0,10mm) .004" max (02-30)

(0,15mm) .006" max (31-50)

(1,00mm) .03937"

micro pitch

Surface

Mount

NO. PINS

PER ROW

PLATING

OPTION

STACKER

HEIGHT

POST

HEIGHT

OPTION

02 thru 50

–G

= 10µ" (0,25µm) Gold

–“XXX”

= Stacker

Height

(in inches)

(2,41) .095"

(6,22) .245"

–“XXX”

= Post

Height

(in inches)

(1,65) .065"

minimum

Example:

–065

= (1,65)

.065"

–P

= Pick &

Place Pad

(7 positions

minimum)

–TR

= Tape &

Reel

B o a rd

S t a ck i n g

SO C K E T

P R O FI LE

P O ST

BOARD

SP A C E

O V ER A LL

P IN

(O A L)

ST A C K ER

H EI G H T

(1,00)

.03937

No. of positions

x (1,00) .03937

100

Example:

–245

= (6,22mm)

.245"

(3,18) (5,21)

.205

.125

(1,00)

.03937

(0,30) .012 SQ TYP

POST HEIGHT

(1,65) .065

MIN

(3,18)

.125

STACKER

HEIGHT

(2,41)

.095

(6,22)

.245

(5,08)

.200

(3,18)

.125

(7,87)

.310

MAX

OVERALL

LENGTH

(1,49)

.059

(1,80)

.071

–P OPTION

Note:

This Series is

non-standard, non-returnable.

WWW.SAMTEC.COM
