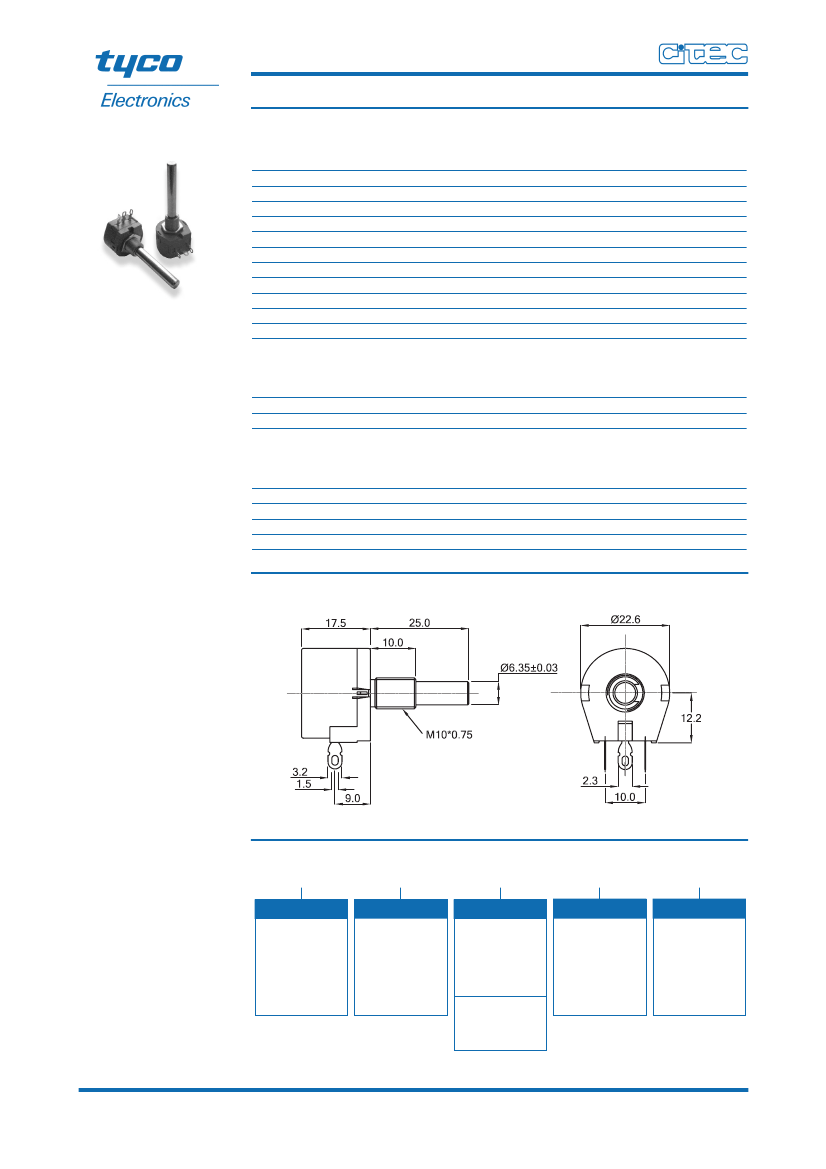

Wirewound Spindle Operated Potentiometer
Type TW Series
Type TW Series
Characteristics -
Electrical
Resistance Range:
Resistance Values:
Resistance Tolerance:
Linearity:
Rated Dissipation at 40°C:
Maximum Working Voltage:
Electrical Rotation:
Terminal Resistance:
Maximum Wiper Current:
Insulation Resistance:
Voltage Proof:
5R0 to 20K (Linear)
1, 2 and 5 in each decade
10%
2% maximum
1W
200V DC
265° ±5°
2 ohms
100mA
1000M Ohms at 500V DC
1000V AC
This
high
power
wire
wound
potentiometer is a recent addition to
the Tyco range. The TW series offers
1 Watt power rating, low terminal
resistance and excellent linearity. For
a
rugged
high
power
control
potentiometer at a very attractive price
the TW Series will satisfy your
requirements.
Characteristics -
Mechanical
Shaft Torque:
Mechanical Rotation:
3.5 - 100 mNm
285° ±5°
Key Features
I
I
I
I
I
I
Characteristics -
Environmental
Operating Temperature:
Temperature Coefficient:
Mechanical Endurance:
Sealing:
-55°C to +125°C
100ppm/°C
10,000 operations
Enclosed
Wirewound Element
Proven Reliability
Excellent Linearity
1 W Rating at 40°C
Robust Construction
Custom Designs Possible
Dimensions
How to Order
TW
Common Part
1
102
K
Tolerance
A
Shaft Style
Power Dissipation Resistance Value
The first two digits
are significant
figures of resistance
value and the third
denotes the number
of zeros following.
e.g. 100R: 101
1K0: 102
10K: 103
100K: 104
TW - Wirewound
Potentiometer
1 - 1 Watt at 40°C
K - ±10%
A - 6.35 x 25mm
Plain
Literature No. 1773290
Issued: 09-05
Dimensions are shown for
reference purposes only.
Dimensions are in millimetres
unless otherwise specified.
Specifications subject to
change.
www.tycoelectronics.com
passives.tycoelectronics.com
