SP9395B datasheet, PDF - EEWORLD Datasheet

SP9395B: DescriptionD/A Converter, 1 Func, Parallel, Word Input Loading, CDIP24, CERAMIC, DIP-24; CategoryAnalog mixed-signal IC converter; File Size172KB，4 Pages; ManufacturerSIPEX; Websitehttp://www.sipex.com/

Download Datasheet Parametric Compare View All

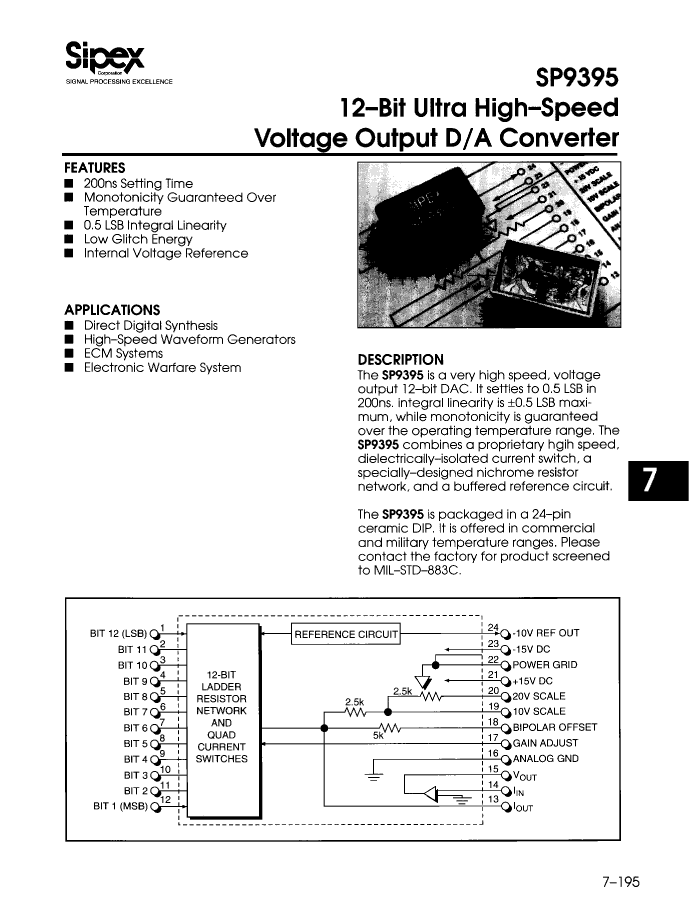

SP9395B Overview

D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP24, CERAMIC, DIP-24

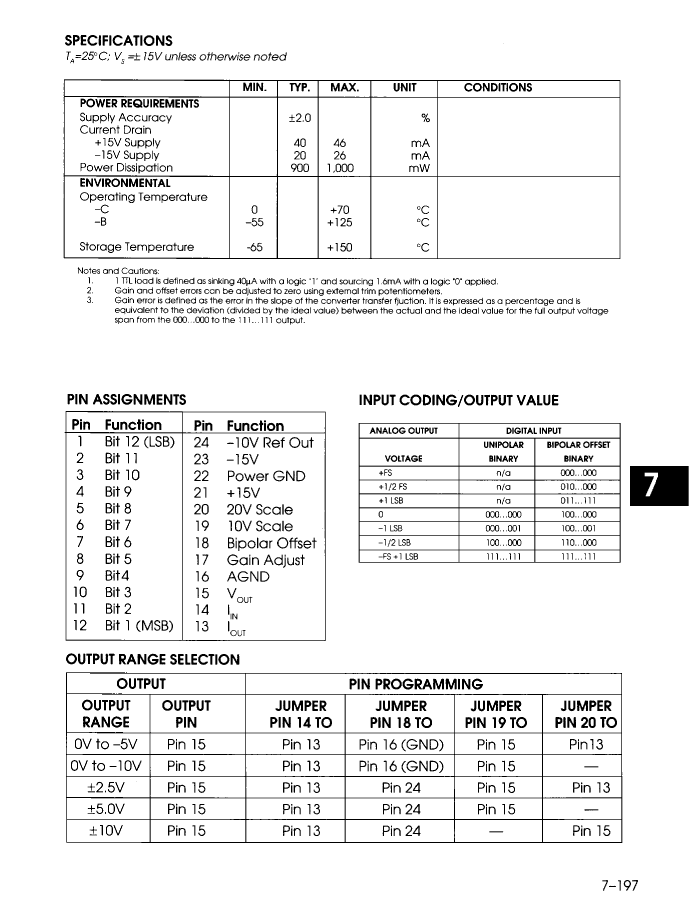

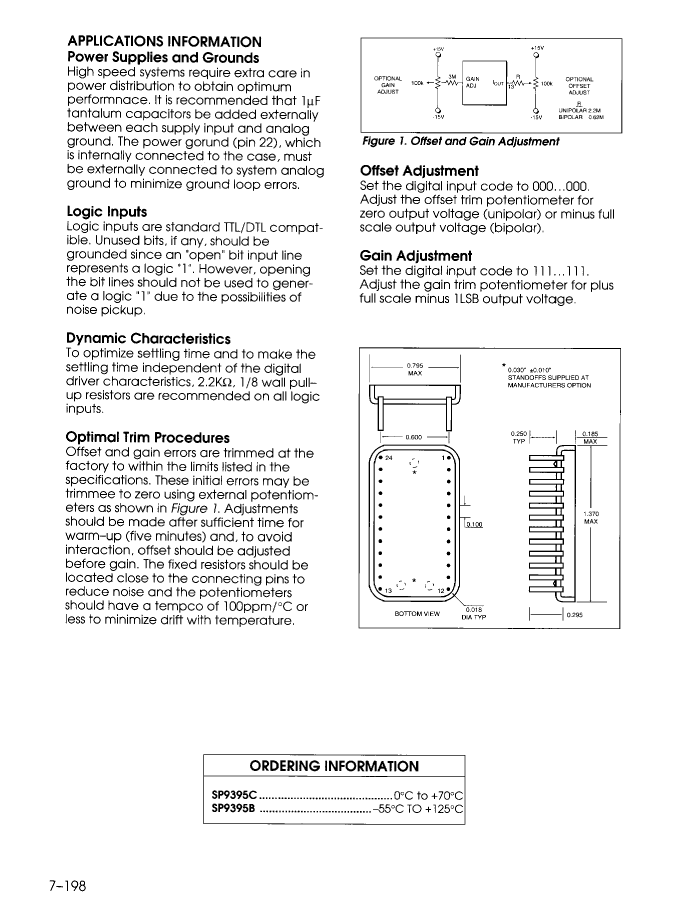

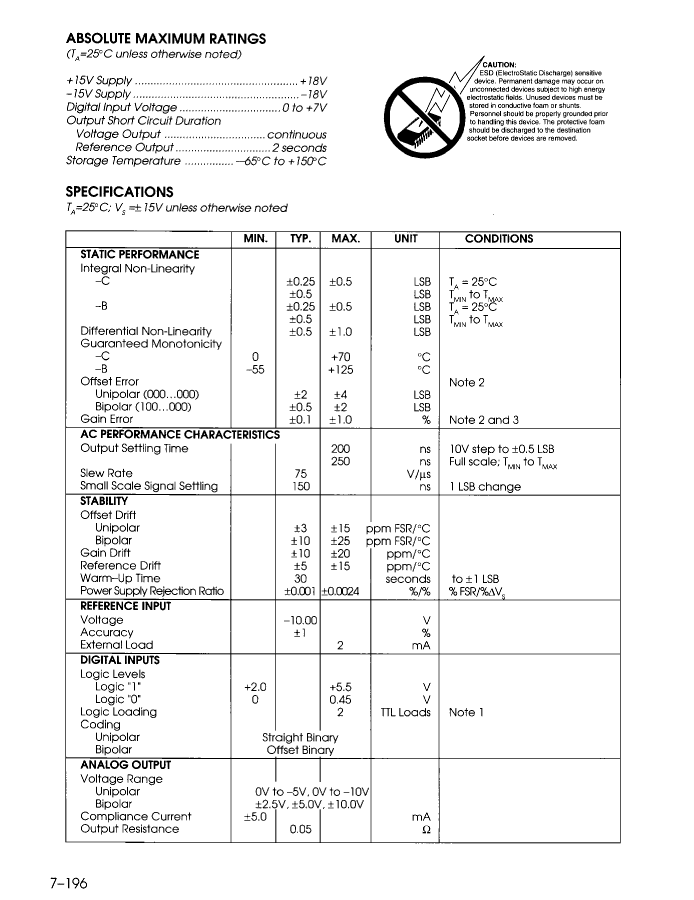

Parameter Name	Attribute value
Maker	SIPEX
package instruction	CERAMIC, DIP-24
Reach Compliance Code	unknown
Maximum analog output voltage	10 V
Minimum analog output voltage	-10 V
Converter type	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-CDIP-P24
Maximum linear error (EL)	0.012%
Nominal negative supply voltage	-15 V
Number of digits	12
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	4.699 mm
Maximum stabilization time
Maximum slew rate	46 mA
Nominal supply voltage	15 V
surface mount	NO
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm

	SP9395B	SP9395C
Description	D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP24, CERAMIC, DIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP24, CERAMIC, DIP-24
Maker	SIPEX	SIPEX
package instruction	CERAMIC, DIP-24	CERAMIC, DIP-24
Reach Compliance Code	unknown	unknown
Maximum analog output voltage	10 V	10 V
Minimum analog output voltage	-10 V	-10 V
Converter type	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	R-CDIP-P24	R-CDIP-P24
Maximum linear error (EL)	0.012%	0.012%
Nominal negative supply voltage	-15 V	-15 V
Number of digits	12	12
Number of functions	1	1
Number of terminals	24	24
Maximum operating temperature	125 °C	70 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.699 mm	4.699 mm
Maximum slew rate	46 mA	46 mA
Nominal supply voltage	15 V	15 V
surface mount	NO	NO
Temperature level	MILITARY	COMMERCIAL
Terminal form	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
width	15.24 mm	15.24 mm
