KPB-3025SURKCGKC datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> KPB-3025SURKCGKC

KPB-3025SURKCGKC: DescriptionDual Color LED, Hyper Red/green, Water Clear, 2.5mm, 3 X 2.50 MM, 1.10 MM HEIGHT, ROHS COMPLIANT, SMT, 4 PIN; CategoryLED optoelectronic/LED photoelectric; File Size77KB，4 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

KPB-3025SURKCGKC Overview

Dual Color LED, Hyper Red/green, Water Clear, 2.5mm, 3 X 2.50 MM, 1.10 MM HEIGHT, ROHS COMPLIANT, SMT, 4 PIN

KPB-3025SURKCGKC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	3 X 2.50 MM, 1.10 MM HEIGHT, ROHS COMPLIANT, SMT, 4 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	LED, RED/GREEN, 70/60MCD; LED Color:Green, Red; LED Mounting:SMD; Bulb Size:-; Viewing Angle:120°; Lens Shape:Rectangular; Forward Current / Color:R 20mA, G 20mA; Luminous Intensity / Color:R 250mcd, G 60mcd; Product Range:- RoHS Compliant: Yes
color	HYPER RED/GREEN
color@wavelength	Grn-Yell/Orng-Red
Configuration	SEPARATE, 2 ELEMENTS
Maximum forward current	0.03 A
Maximum forward voltage	2.5 V
Lens type	WATER CLEAR
minimum luminous intensity	120 cd
Nominal luminous intensity	160.0/50.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	DUAL COLOR LED
total height	1.1 mm
method of packing	TAPE AND REEL

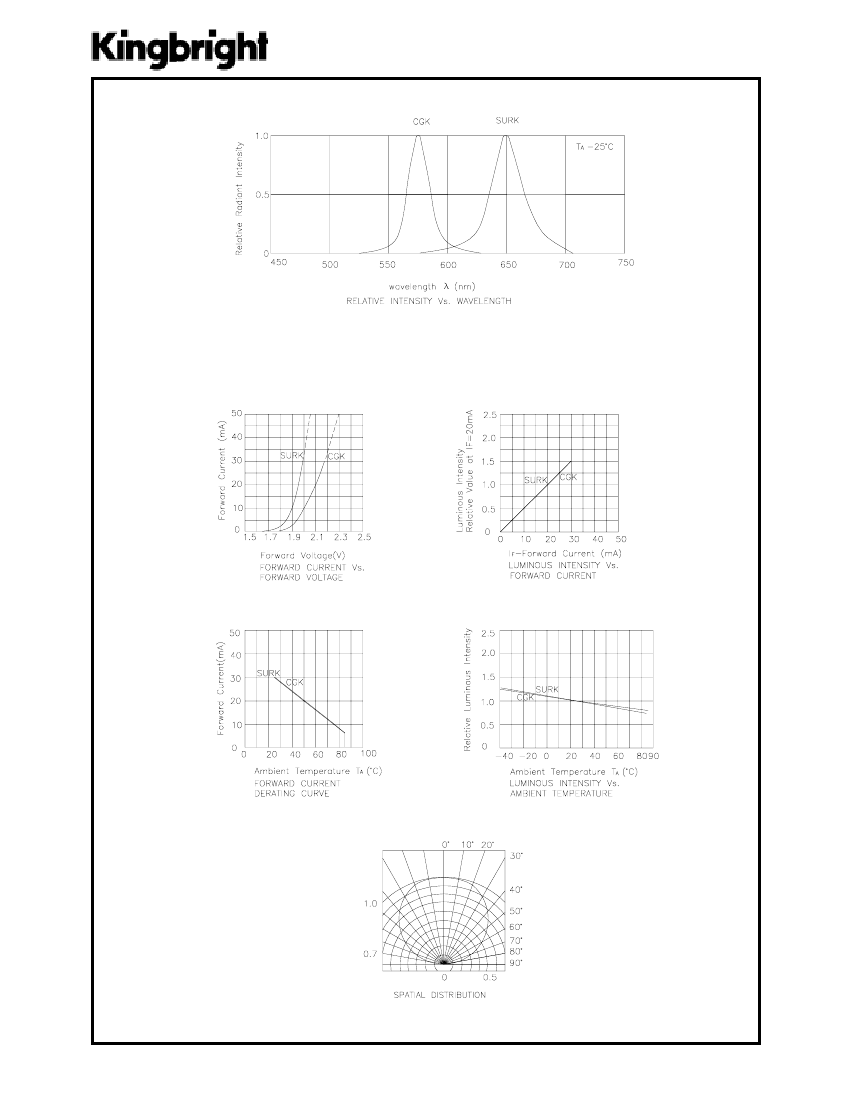

peak wavelength	650/574 nm
Maximum reverse voltage	5 V
shape	RECTANGULAR
size	2.5 mm
surface mount	YES
Terminal pitch	2.7 mm
perspective	120 deg

Preview

Download Datasheet

View All

3.0x2.5mm SURFACE MOUNT LED LAMP

KPB-3025SURKCGKC

HYPER RED / GREEN

Features

3.0mmx2.5mm

Description

SMT LED, 1.1mm THICKNESS.

The Hyper Red source color devices are made with

DH InGaAlP on GaAs substrate Light Emitting Diode.

The Green source color devices are made with InGaAlP

on GaAs substrate Light Emitting Diode.

-COLOR,LOW POWER CONSUMPTION.

VIEWING ANGLE.

FOR BACKLIGHT AND INDICATOR.

COLORS AND LENS TYPES AVAILABLE.

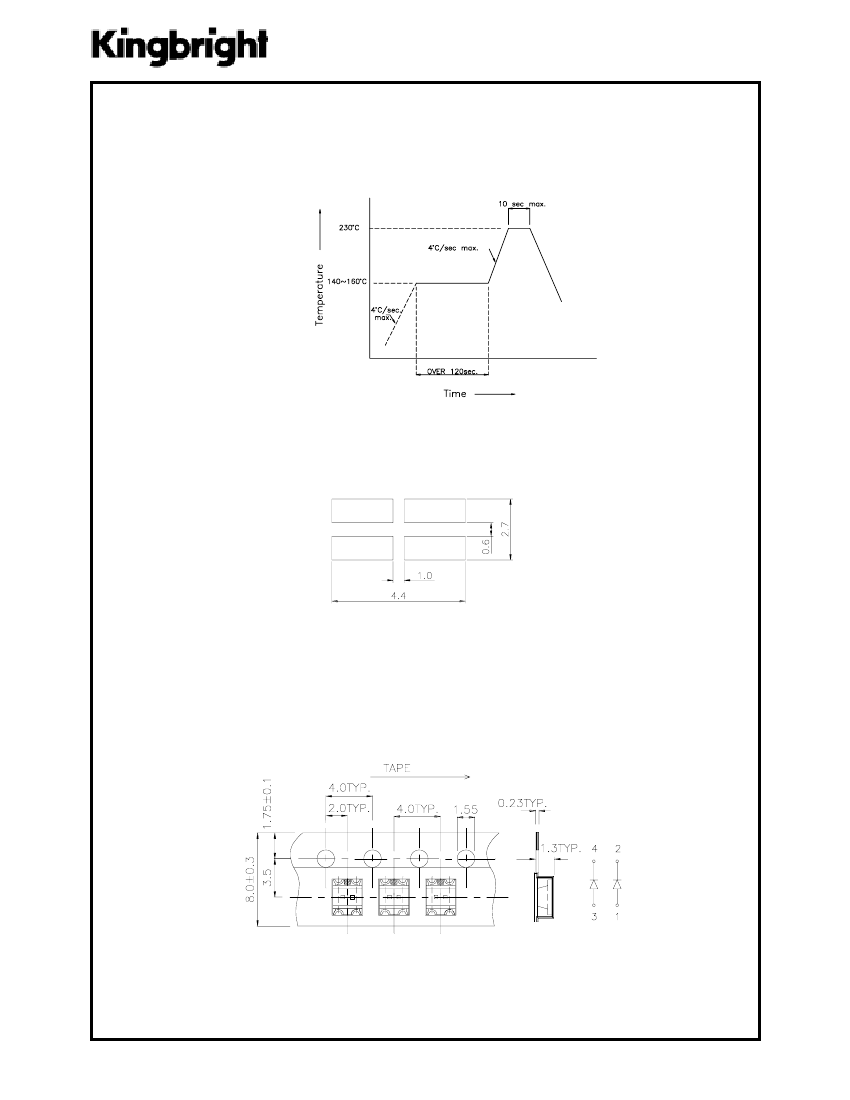

: 2000PCS / REEL.

WIDE

IDEAL

VARIOUS

PACKAGE

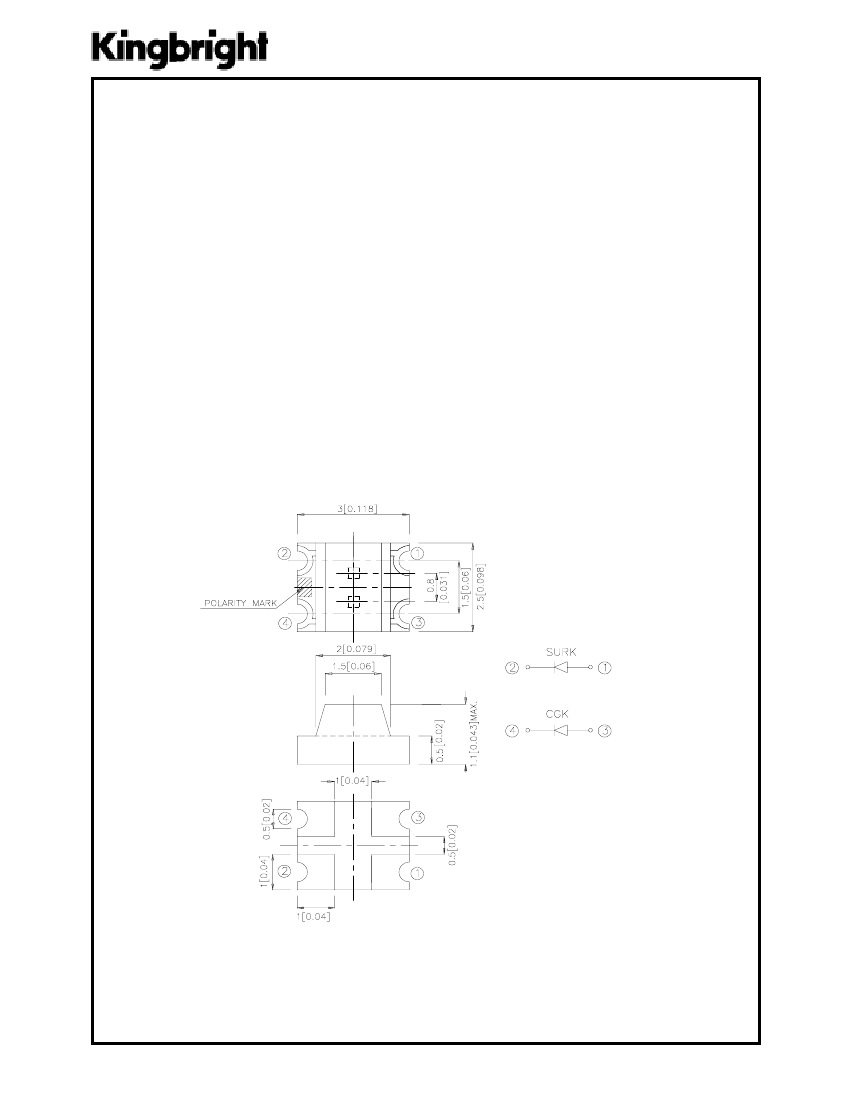

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.2(0.0079")

unless otherwise noted.

3. Specifications are subject to change without notice.

SPEC NO:DSAB4169

APPROVED: J.Lu

REV NO: V.2

CHECKED:Allen Liu

DATE:DEC/19/2002

DRAWN:S.J.HOU

PAGE: 1 OF 4
