MC74F02DR2 datasheet, PDF - EEWORLD Datasheet

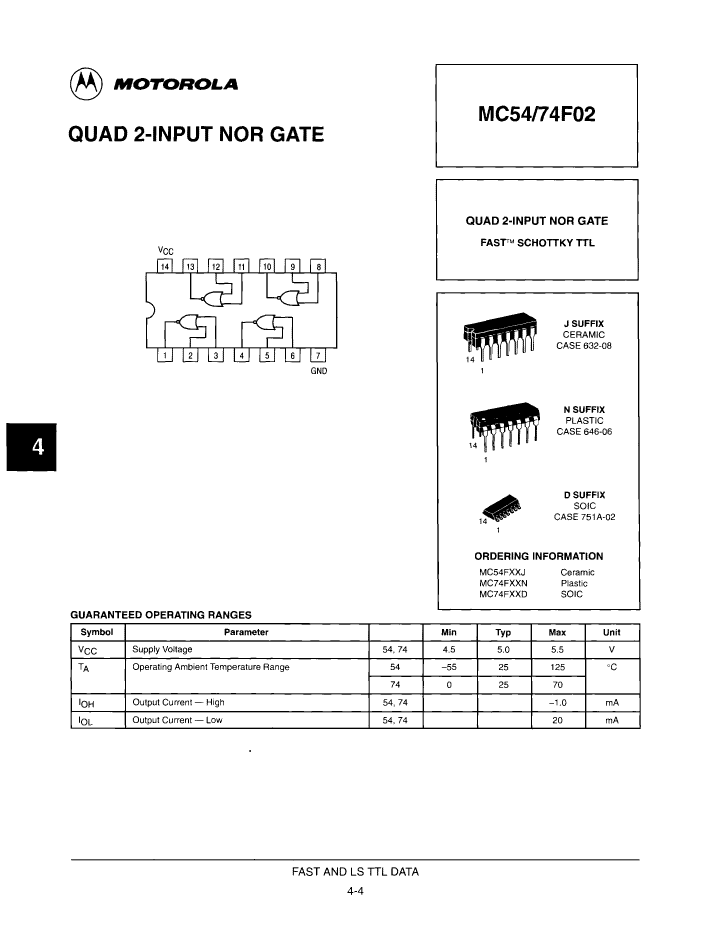

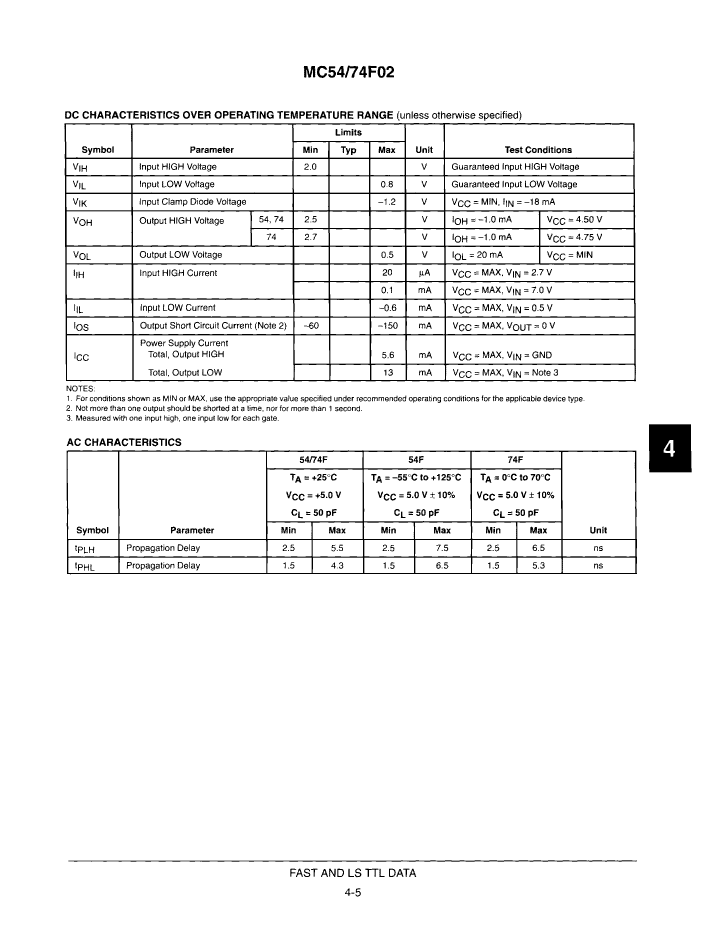

MC74F02DR2: DescriptionF/FAST SERIES, QUAD 2-INPUT NOR GATE, PDSO14, PLASTIC, SOIC-14; Categorylogic logic; File Size42KB，2 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

MC74F02DR2 Overview

F/FAST SERIES, QUAD 2-INPUT NOR GATE, PDSO14, PLASTIC, SOIC-14

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
Objectid	1420284277
Parts packaging code	SOIC
package instruction	SOP, SOP14,.25
Contacts	14
Reach Compliance Code	unknown
compound_id	10012958
series	F/FAST
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
length	8.65 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	NOR GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	TAPE AND REEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	13 mA
propagation delay (tpd)	5.3 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm
