SM10PHR170 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SM10PHR170

SM10PHR170: DescriptionDIODE 150 A, 1000 V, SILICON, RECTIFIER DIODE, Rectifier Diode; CategoryDiscrete semiconductor diode; File Size368KB，6 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

SM10PHR170 Overview

DIODE 150 A, 1000 V, SILICON, RECTIFIER DIODE, Rectifier Diode

SM10PHR170 Parametric

Parameter Name	Attribute value
Maker	IXYS
package instruction	O-MUPM-H1
Reach Compliance Code	unknown
ECCN code	EAR99
application	FAST RECOVERY
Shell connection	ANODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.35 V
JESD-30 code	O-MUPM-H1
Maximum non-repetitive peak forward current	4950 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	125 °C
Maximum output current	150 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1000 V
Maximum reverse recovery time	1.8 µs
surface mount	NO
Terminal form	HIGH CURRENT CABLE
Terminal location	UPPER

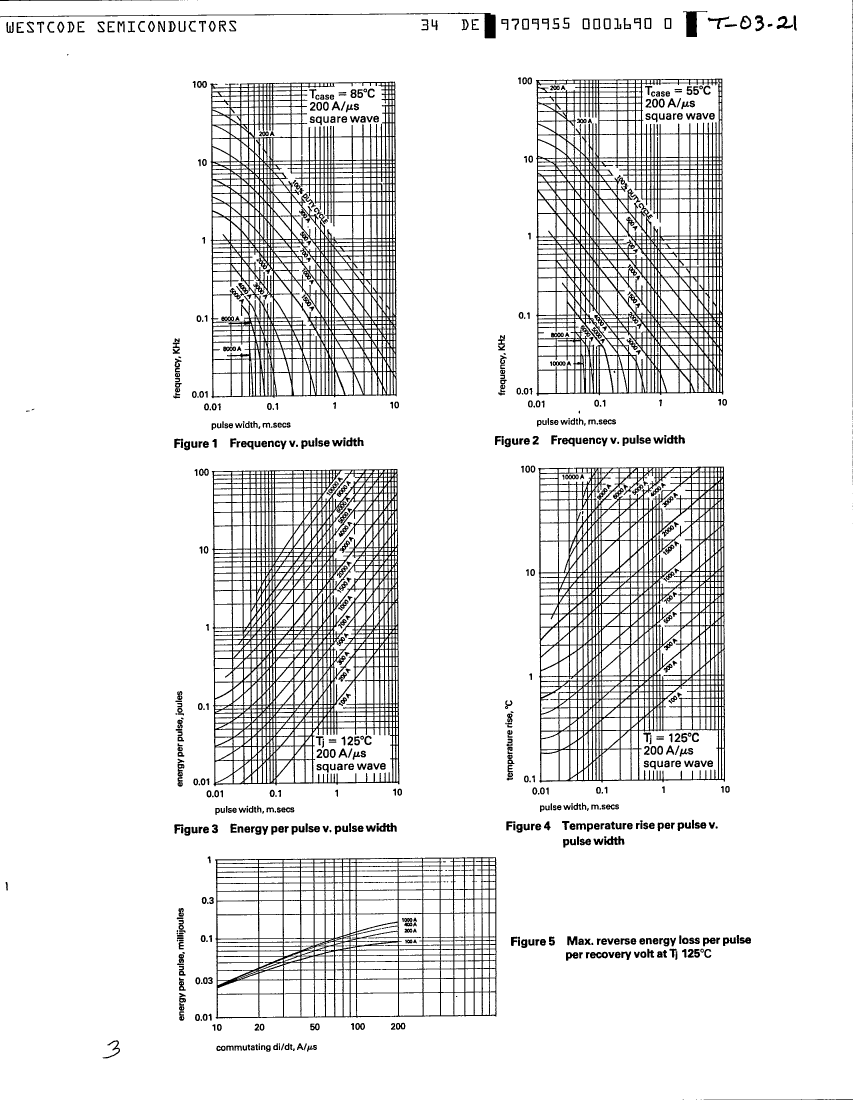

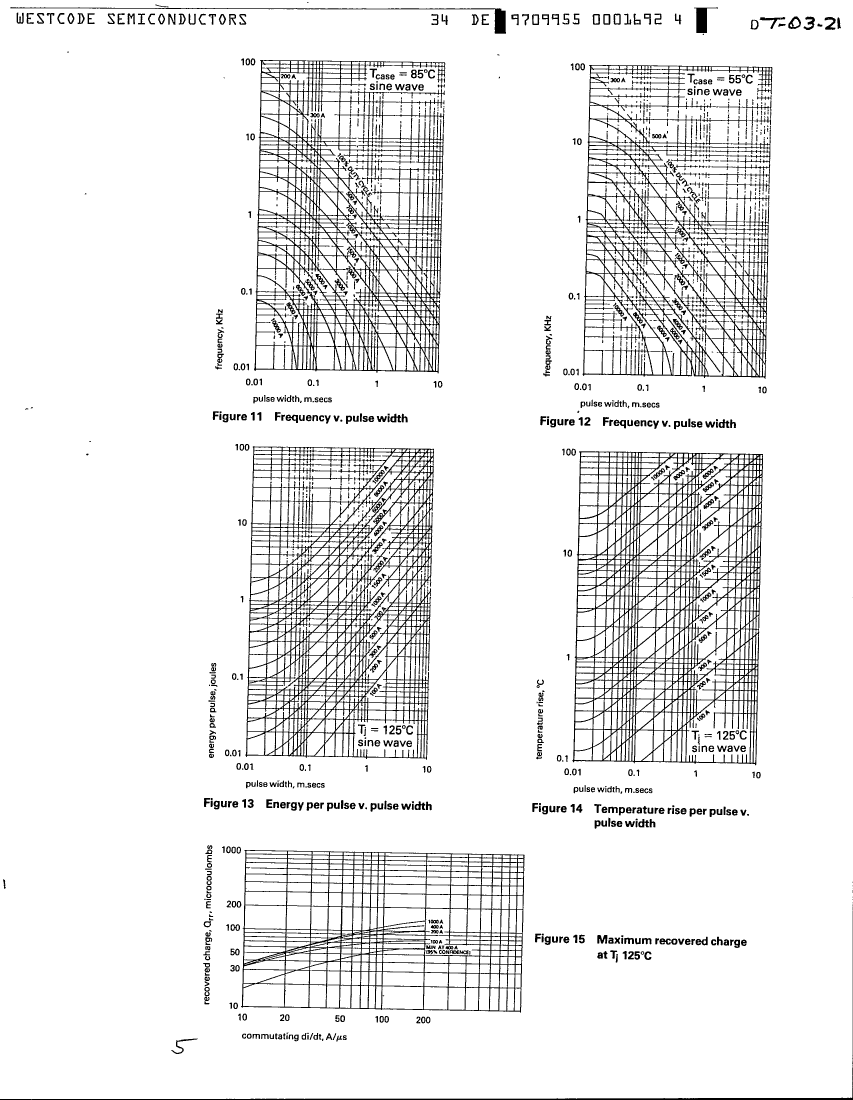

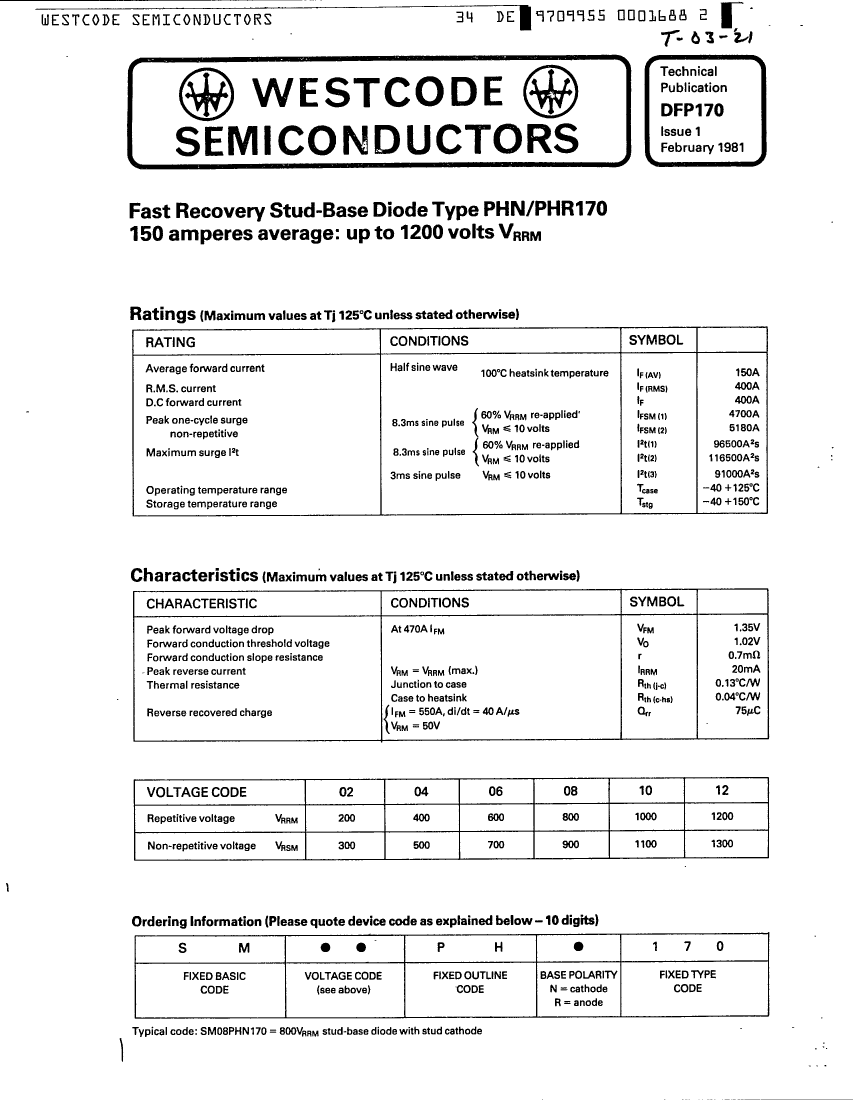

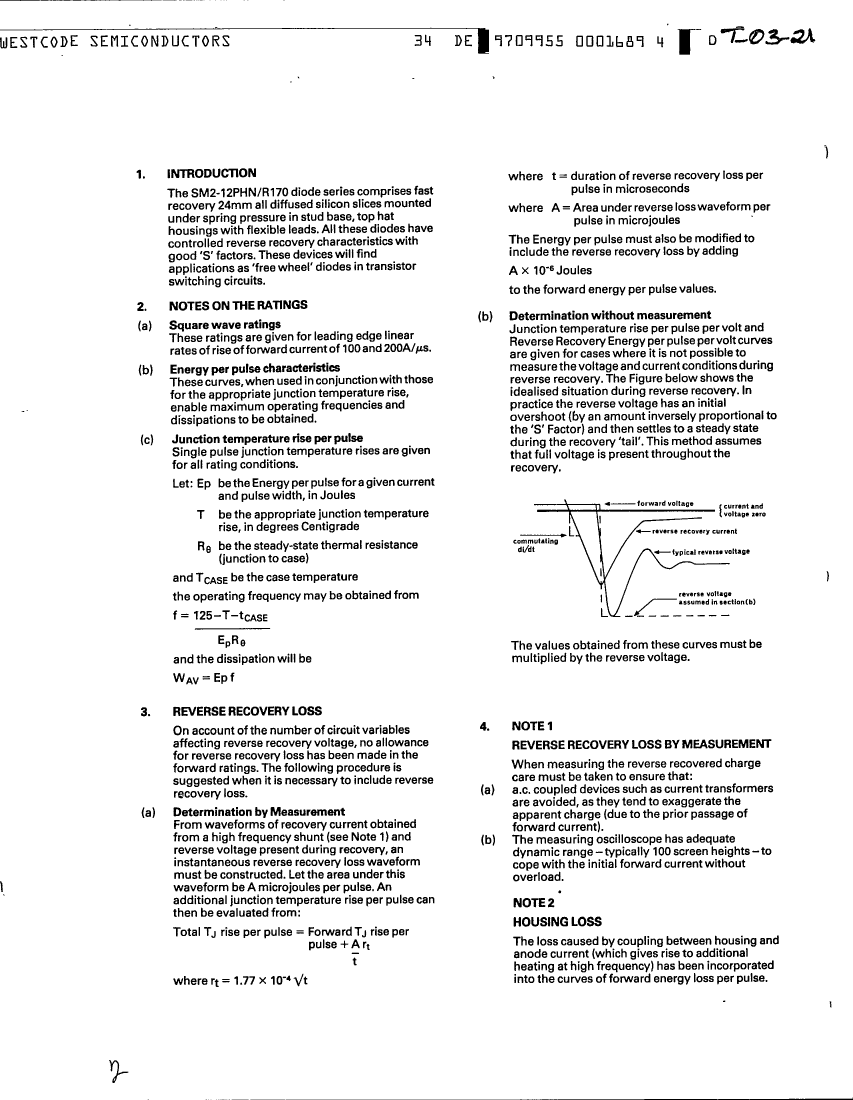

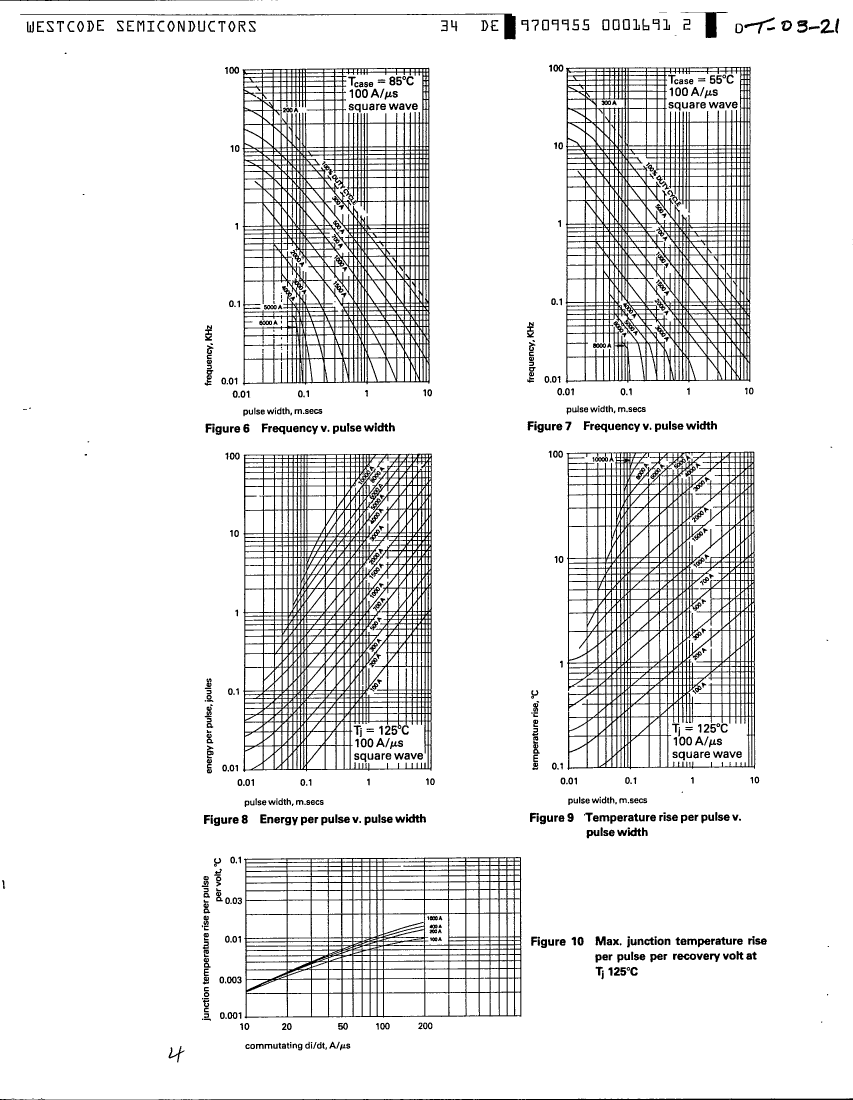

Preview

Download Datasheet

View All

SM10PHR170 Related Products

	SM10PHR170	SM06PHN170	SM08PHN170	SM12PHR170
Description	DIODE 150 A, 1000 V, SILICON, RECTIFIER DIODE, Rectifier Diode	DIODE 150 A, 600 V, SILICON, RECTIFIER DIODE, Rectifier Diode	DIODE 150 A, 800 V, SILICON, RECTIFIER DIODE, Rectifier Diode	DIODE 150 A, 1200 V, SILICON, RECTIFIER DIODE, Rectifier Diode
package instruction	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
application	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY
Shell connection	ANODE	CATHODE	CATHODE	ANODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.35 V	1.35 V	1.35 V	1.35 V
JESD-30 code	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1
Maximum non-repetitive peak forward current	4950 A	4950 A	4950 A	4950 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	1	1	1	1
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Maximum output current	150 A	150 A	150 A	150 A
Package body material	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	1000 V	600 V	800 V	1200 V
Maximum reverse recovery time	1.8 µs	1.8 µs	1.8 µs	1.8 µs
surface mount	NO	NO	NO	NO
Terminal form	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE
Terminal location	UPPER	UPPER	UPPER	UPPER
Maker	IXYS	-	IXYS	IXYS
