8525-10R18B8PNH datasheet, PDF

Datasheet> All Categories > The connector> The connector> 8525-10R18B8PNH

8525-10R18B8PNH: DescriptionCircular Connector, 8 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle,; CategoryThe connector The connector; File Size87KB，1 Pages; ManufacturerSOURIAU; Environmental Compliance

Download Datasheet Parametric Compare View All

8525-10R18B8PNH Overview

Circular Connector, 8 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle,

8525-10R18B8PNH Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Maker	SOURIAU
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	COMPATIBLE CONTACT: 8526-1350
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT/FLUID/FUEL/IMMERSION RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	ANODIZED BLACK
Shell material	ALUMINUM ALLOY
Housing size	18
Termination type	CRIMP
Total number of contacts	8

Preview

Download Datasheet

View All

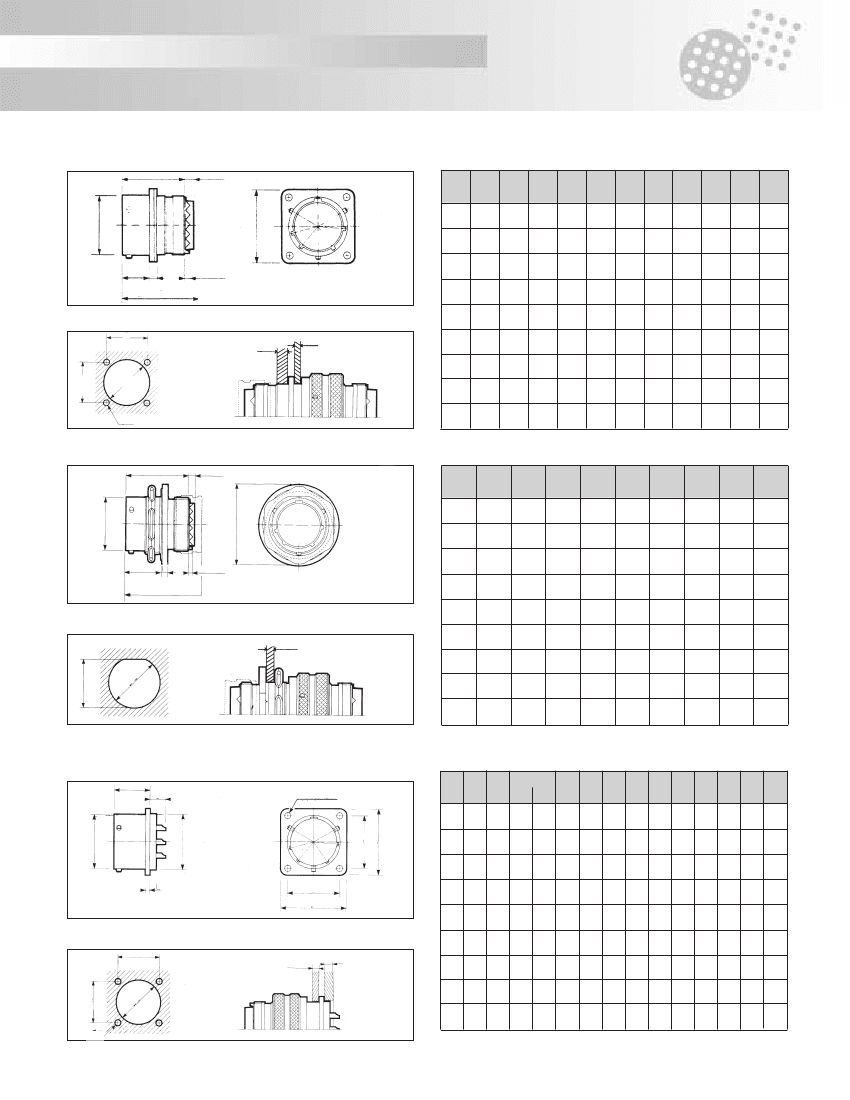

8525 Series

Square flange receptacle type 10

4.06

.160

shell A

size Max Max Max Max Max

Max Max Max

2.21 25.50

.087 1.004

ØA

12.03 1.37 11.70 29.80 21.00 15.09 14.43 3.05 3.17

.474 .054

.461 1.173 .827 .594

.568 .120

.125

15.01 1.37 11.70 29.80 24.25 18.26 17.40 3.05

.591

.054

.461 1.173

.955

.719

.685

.120

3.17

.125

2.21 25.50

.087 1.004

with backnut

1.55 Max.

.061

gasket sold separately

19.07 1.37 11.70 29.80 26.55 20.62 21.95 3.05 3.17

.751 .054

.461 1.173 1.045 .812

.864 .120

.125

22.25 1.37 11.70 29.80 28.90 23.01 25.12 3.05 3.17

.876 .054

.461 1.173 1.138 .906

.989 .120

.125

25.42 1.37 11.70 29.80 31.30 24.61 28.27 3.05 3.17

1.001 .054

.461 1.173 1.232 .969 1.113 .120

.125

2.21 25.50

.087 1.004

2.21 25.50

.087 1.004

panel cut-out

2.21 25.50

.087 1.004

28.60 1.37 11.70 29.80 33.70 26.97 31.45 3.05

1.126

.054

.461 1.173 1.327 1.062

1.238

.120

3.17

.125

2.21 25.50

.087 1.004

31.77 2.20 14.35 31.60 36.90 29.36 34.62 3.05 3.17

1.251 .087

.565 1.244 1.453 1.156 1.363 .120

.125

5.38 27.30

.212 1.075

34.95 2.20 14.35 31.60 40.00 31.75 37.80 3.05 3.17

1.376

1.501

.087

.565 1.244 1.575 1.250

.565 1.244 1.705 1.375

1.488

1.615

.120

.147

.125

5.38 27.30

.212 1.075

ØH

38.12 2.20 14.35 31.60 43.30 34.92 41.02 3.73 3.17

5.38 27.30

.212 1.075

Jam nut receptacle type 17

4.06

.160

shell

size Max

ØF

2.35

.093

17.35

.683

Max

30.30

1.193

Max

.917

1.047

1.234

1.360

1.484

1.610

1.797

1.923

2.047

.572

.697

.895

1.010

1.135

1.260

1.385

1.510

1.635

13.61

.536

Max

4.75

.187

Max

25.90

1.020

12.03

.474

23.30 14.53

26.60 17.70

31.35 22.73

34.55 25.65

37.70 28.83

40.90 32.00

45.65 35.18

48.85 38.35

52.00 41.53

ØA

15.01

.591

2.35

.093

17.35

.683

30.30

1.193

16.79

.661

4.75

.187

25.90

1.020

19.07

.751

2.35

.093

17.35

.683

30.30

1.193

20.93

.824

4.75

.187

25.90

1.020

1.55 Max.

.061

with backnut

22.25

.876

2.35

.093

17.35

.683

30.30

1.193

24.08

.948

4.75

.187

25.90

1.020

25.42

1.001

2.35

.093

17.35

.683

30.30

1.193

27.23

1.072

4.75

.187

25.90

1.020

panel cut-out

28.60

1.126

2.35

.093

17.35

.683

30.30

1.193

30.40

1.197

4.75

.187

25.90

1.020

31.77

1.251

2.55

.100

18.95

.746

32.00

1.260

33.58

1.322

6.35

.250

27.50

1.083

34.95

1.376

2.55

.100

18.95

.746

32.00

1.260

36.75

1.447

6.35

.250

27.50

1.083

38.12

1.501

2.55

.100

19.00

.748

32.00

1.260

39.93

1.572

5.55

.219

27.50

1.083

Square flange hermetic receptacle type 02 H

4 holes Ø H

shell A

size Max Max #20 #12-#16 Max Max Max

12.02 12.78 6.50

.473 .503 .256

Max

14.27 1.97 21.02 15.09 3.10 3.10 15.10 14.70 3.50 2.30

.562 .078 .828 .594 .122 .122 .594 .579 .138 .091

6.50

14.99 12.78

.256

.590 .503

ØD

ØA

17.06 1.97 24.22 18.26 3.10 3.10 18.25 17.50 3.50 2.30

.672 .078 .954 .719 .122 .122 .719 .689 .138 .091

6.50 7.75

1.97 26.58

3.10 3.10

3.50 2.30

19.05 12.78

.256 .305

19.83

.078 1.046

20.62

.122 .122

20.60 20.20

.138 .091

.750 .503

.781

.812

.811 .795

6.50 7.75

1.97 28.96

3.10 3.10

3.50 2.30

22.23 12.78

.256 .305

23.01

.078 1.140

23.01

.122 .122

23.00 23.40

.138 .091

.875 .503

.906

.906 .921

25.40

6.50 7.75 26.18 1.97 31.33

3.10 3.10

26.60 3.50 2.30

1.000

12.78

.256 .305 1.031 .078 1.233

24.61

.122 .122

24.60

1.047 .138 .091

.503

.969

panel cut-out

28.58

6.50 7.75 29.36 1.97 33.72 26.97 3.10 3.10 27.00 29.80 3.50 2.30

1.125

12.78

.256 .305 1.156 .078 1.328 1.062 .122 .122 1.063 1.173 .138 .091

.503

31.75

6.10 7.30 31.74 2.38 36.90 29.37 3.10 3.10 29.40 32.20 3.50 5.40

1.250

14.82

.240 .287 1.250 .094 1.453 1.156 .122 .122 1.157 1.268 .138 .213

.583

34.93

6.10 7.30 34.92 2.38 40.07 31.75 3.10 3.10 31.75 35.30 3.50 5.40

1.375

14.82

.240 .287 1.375 .094 1.578 1.250 .122 .122 1.250 1.390 .138 .213

.583

38.10

5.30 6.50 38.09 2.38 43.26 34.92 3.75 3.80 34.90 38.40 3.50 5.40

1.500

15.62

.209 .256 1.500 .094 1.703 1.375 .148 .150 1.374 1.512 .138 .213

.615

ØJ

8525-10R18B8PNH Related Products

	8525-10R18B8PNH	8525-10R16B26PNH
Description	Circular Connector, 8 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle,	Circular Connector, 26 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle,
Is it lead-free?	Lead free	Lead free
Maker	SOURIAU	SOURIAU
Reach Compliance Code	unknown	compliant
ECCN code	EAR99	EAR99
Other features	COMPATIBLE CONTACT: 8526-1350	COMPATIBLE CONTACT: 8526-1348
Back shell type	SOLID	SOLID
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
Coupling type	BAYONET	BAYONET
DIN compliance	NO	NO
empty shell	NO	NO
Environmental characteristics	ENVIRONMENT/FLUID/FUEL/IMMERSION RESISTANT	ENVIRONMENT/FLUID/FUEL/IMMERSION RESISTANT
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO
Installation type	CABLE AND PANEL	CABLE AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	ANODIZED BLACK	ANODIZED BLACK
Shell material	ALUMINUM ALLOY	ALUMINUM ALLOY
Housing size	18	16
Termination type	CRIMP	CRIMP
Total number of contacts	8	26
