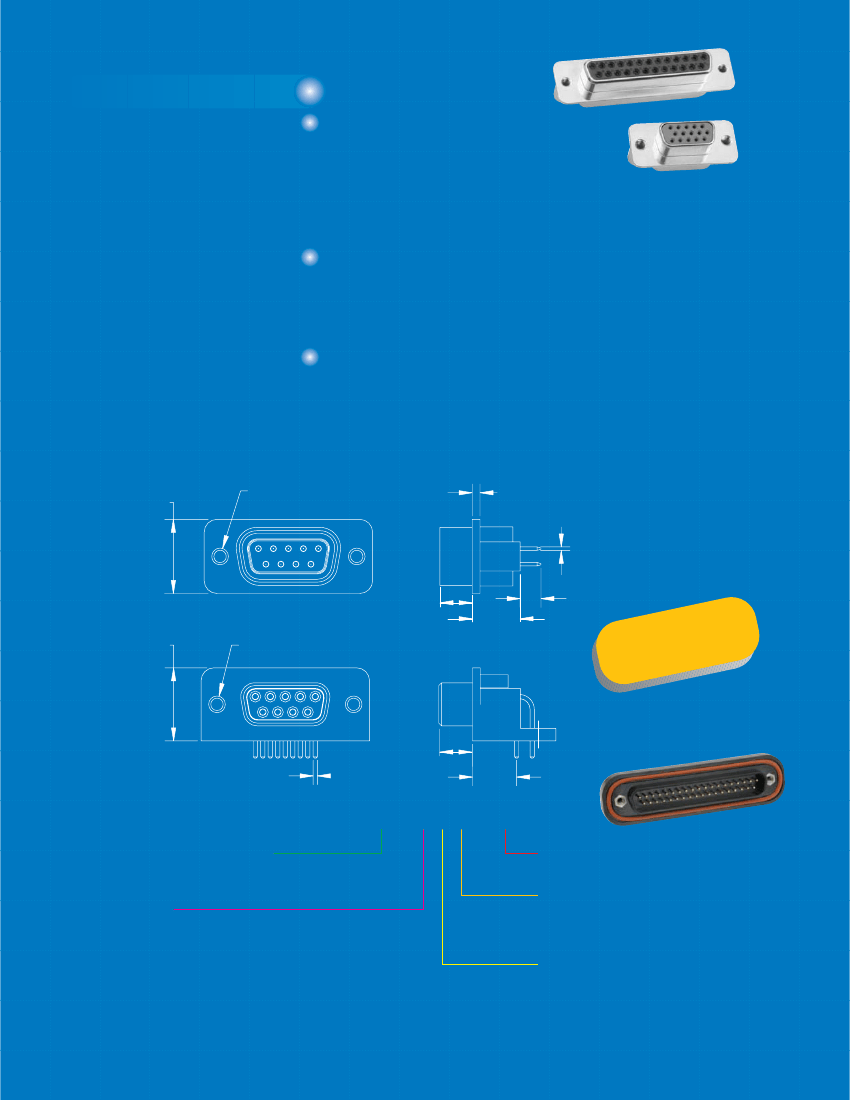

AMPHENOL
SD308
SEALED
D-SUB
For Air, Land or Sea, these connectors
are SEALED! Amphenol’s SD308
Connectors are available in the full
range of standard and high-density
arrangements, either pin or socket.
These connectors are supplied with
fixed screw machine contacts and
are available in Solder Cup, Straight
or Right Angle PCB terminations.
Applications:
• Industrial Controllers
• Ruggedized Computers and Peripheral Equipment
• Ideal for Retrofit Applications or Late Design-In
SPECIFICATIONS
PRODUCT FEATURES:
• ONE PIECE MACHINED ALUMINUM SHELL
• SCREW MACHINE CONTACTS
• HI GRADE THERMOPLASTIC INSERTS
• INTEGRATED BLIND PANEL MOUNTS
• SUPPLIED WITH CONDUCTIVE PANEL SEAL GASKET
• MATES WITH MIL-DTL-24308 D-SUBS
MATERIALS AND PLATINGS:
SHELL
MACHINED ALUMINUM ALLOY, TIN PLATED
INSERTS
HIGH TEMPERATURE RESISTANT POLYETHERSULFONE PER MIL-P-46185
CONTACTS COPPER ALLOY, 20μ" GOLD OVER NICKEL
SEAL
SILICONE ELASTOMER WITH NICKEL PLATED GRAPHITE
ELECTRICAL RATINGS:
CURRENT RATING
INSULATION RESISTANCE
WORKING VOLTAGE
D.W.V.
TEMPERATURE
5A
5 GΩ @ 500 Vdc
120 Vac
1,000 Vac PIN-PIN / PIN-SHELL
-55°C / +125°C
.534 Max
(.641 Max D size)
4-40 UNC - 2B
.200 Min Thd
.057
ø
.025 ± .002
.233
.345
.534 Max
(.641 Max D size)
4-40 UNC - 2B
.200 Min Thd
.150 Max
t
s abouns!
Ask u desig
custom
.243
ø
.030 ± .002
.318
SD308 - B25 S A 1 - 000
Custom SD308
SHELL SIZE & NUMBER 0F CONTACTS
STD Density E09, A15, B25, C37, D50
HIGH Density E15, A26, B44, C62, D78, 6104
CONTACT TYPE
S
= Socket Contact (Receptacle)
P
= Pin Contact (Plug)
000
= Standard part
other deviations as required
MOUNTING TYPE
1
= 4-40 Blind Nut
2
= 4-40 Blind Nut with R/A Mounting Bracket
3
=
ø
.120 thru hole
4 = M3x0.5 Blind Nut
TERMINATION STYLE
A
= Right Angle PCB
B
= Vertical PCB
C
= Solder Cup
Visit www.amphenolcanada.com for drawings.
T
ELEPHONE
: (416) 291-4401 F
AX
: (416) 292-0647 E-M
AIL
:
SALES
@
AMPHENOLCANADA
.
COM
SEALED D-SUB
