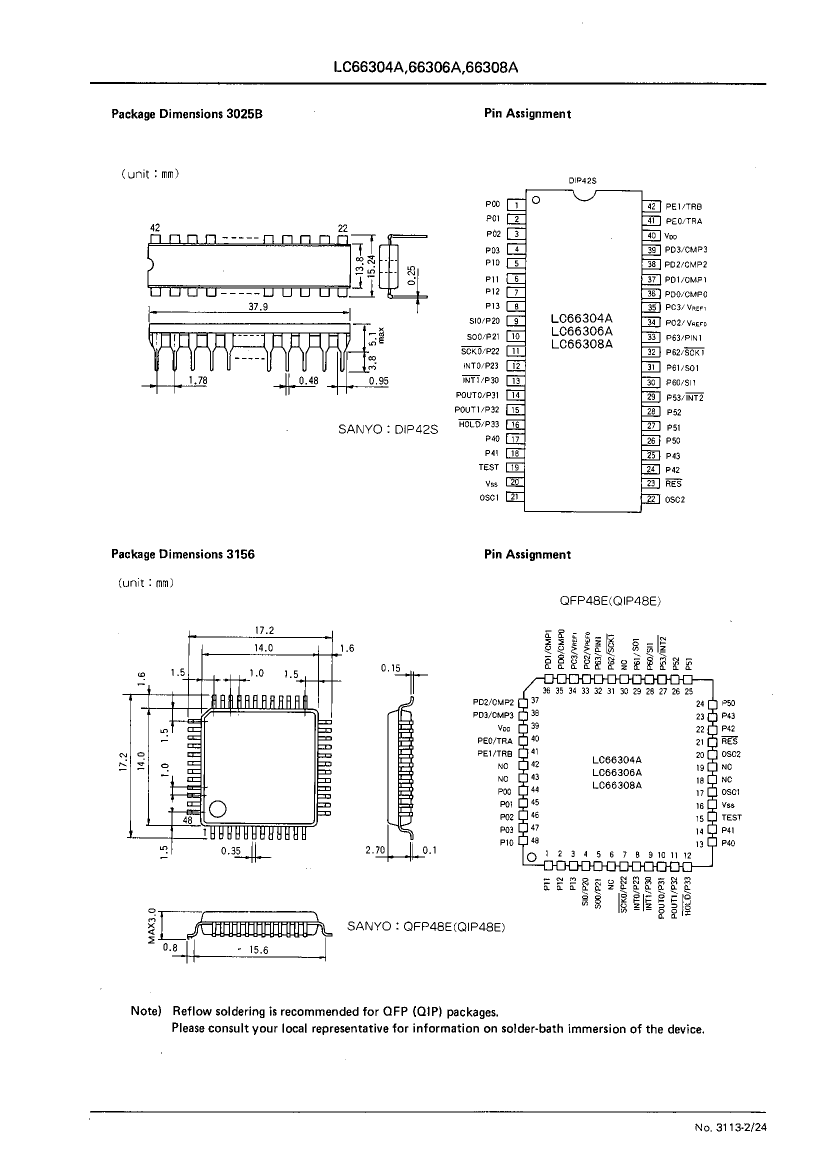

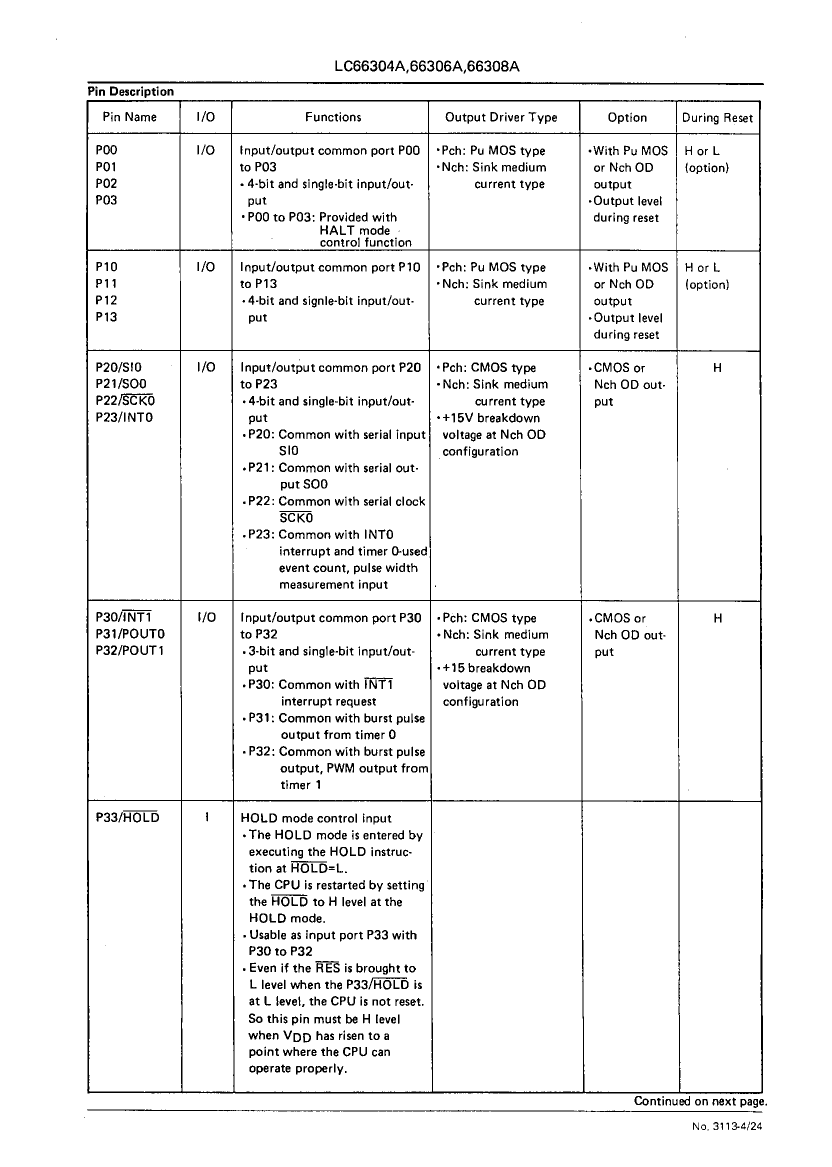

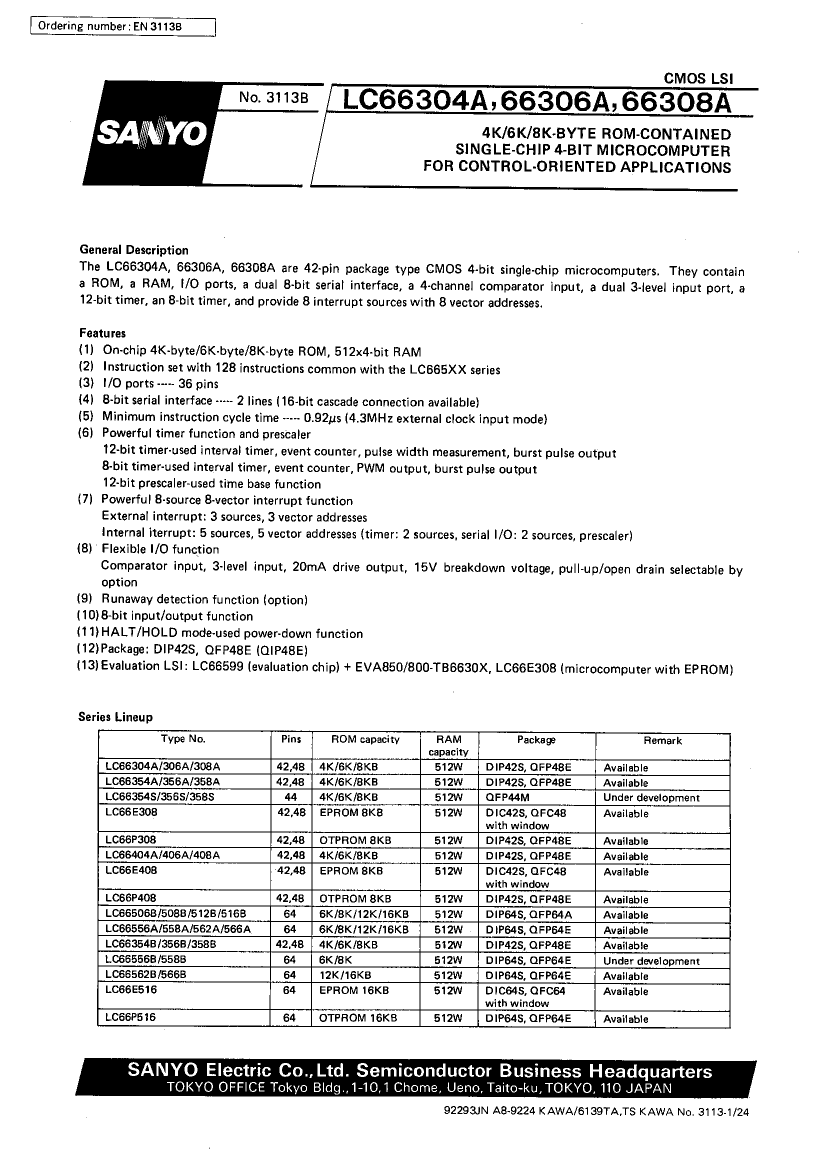

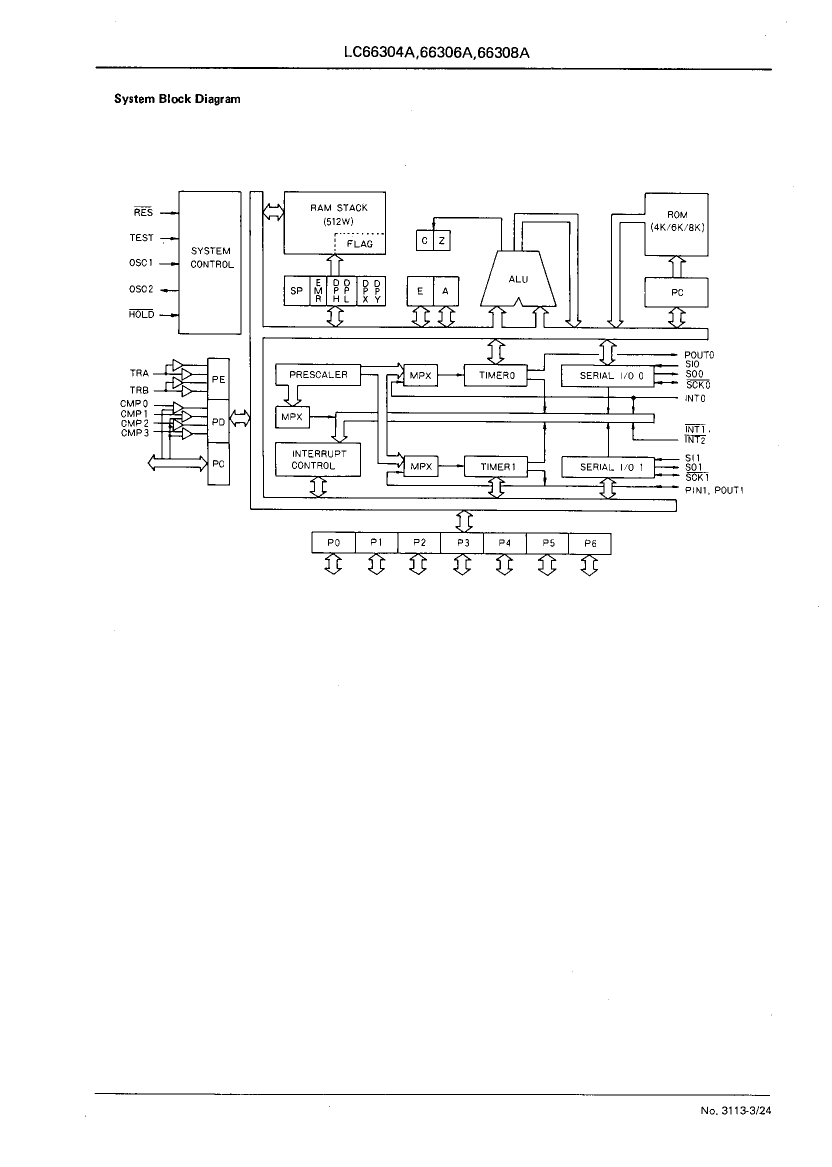

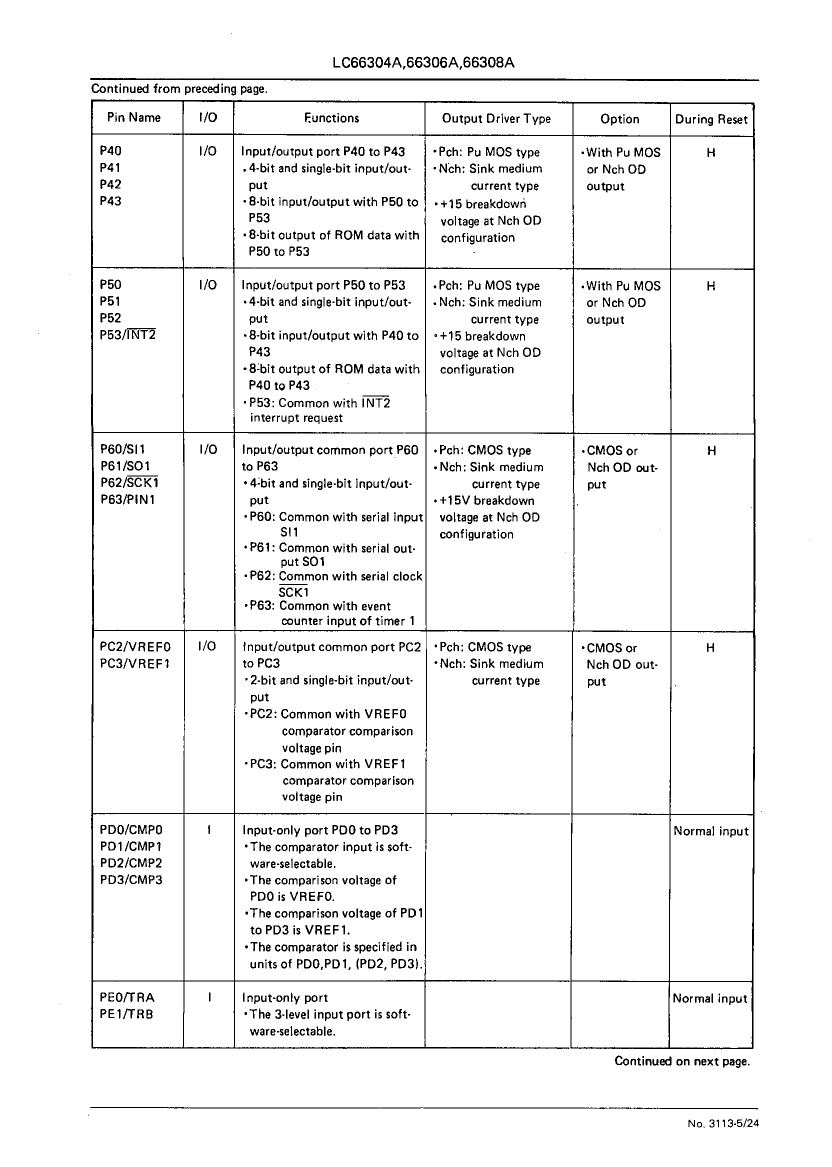

LC66306AQIP48E: DescriptionMicrocontroller, 4-Bit, MROM, CMOS, PQFP48, QFP-48; CategoryThe embedded processor and controller Microcontrollers and processors; File Size618KB，24 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

LC66306AQIP48E Overview

Microcontroller, 4-Bit, MROM, CMOS, PQFP48, QFP-48

LC66306AQIP48E Parametric

Parameter Name	Attribute value
Maker	SANYO
Parts packaging code	QFP
package instruction	QFP,
Contacts	48
Reach Compliance Code	unknown
Has ADC	NO
Address bus width
bit size	4
maximum clock frequency	4.35 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	S-PQFP-G48
length	14 mm
Number of I/O lines	36
Number of terminals	48
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
ROM programmability	MROM
Maximum seat height	3 mm
Maximum supply voltage	6 V
Minimum supply voltage	4 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal form	GULL WING
Terminal pitch	1 mm
Terminal location	QUAD
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
