L29C818CM24 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> L29C818CM24

L29C818CM24: DescriptionPipeline Register, 8-Bit, CMOS, CDIP24, 0.300 INCH, SIDE BRAZED, HERMETIC SEALED, DIP-24; CategoryThe embedded processor and controller Microcontrollers and processors; File Size316KB，10 Pages; ManufacturerLOGIC Devices; Websitehttp://www.logicdevices.com/

Download Datasheet Parametric Compare View All

L29C818CM24 Overview

Pipeline Register, 8-Bit, CMOS, CDIP24, 0.300 INCH, SIDE BRAZED, HERMETIC SEALED, DIP-24

L29C818CM24 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	LOGIC Devices
Objectid	1425429445
Parts packaging code	DIP
package instruction	DIP, DIP24,.3
Contacts	24
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
compound_id	11115598
Other features	ICC SPECIFIED @ 5MHZ
boundary scan	NO
External data bus width	8
JESD-30 code	R-CDIP-T24
JESD-609 code	e0
length	30.48 mm
low power mode	NO
Humidity sensitivity level	3
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output data bus width	8
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Certification status	Not Qualified
Maximum seat height	4.953 mm
Maximum slew rate	15 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, PIPELINE REGISTER

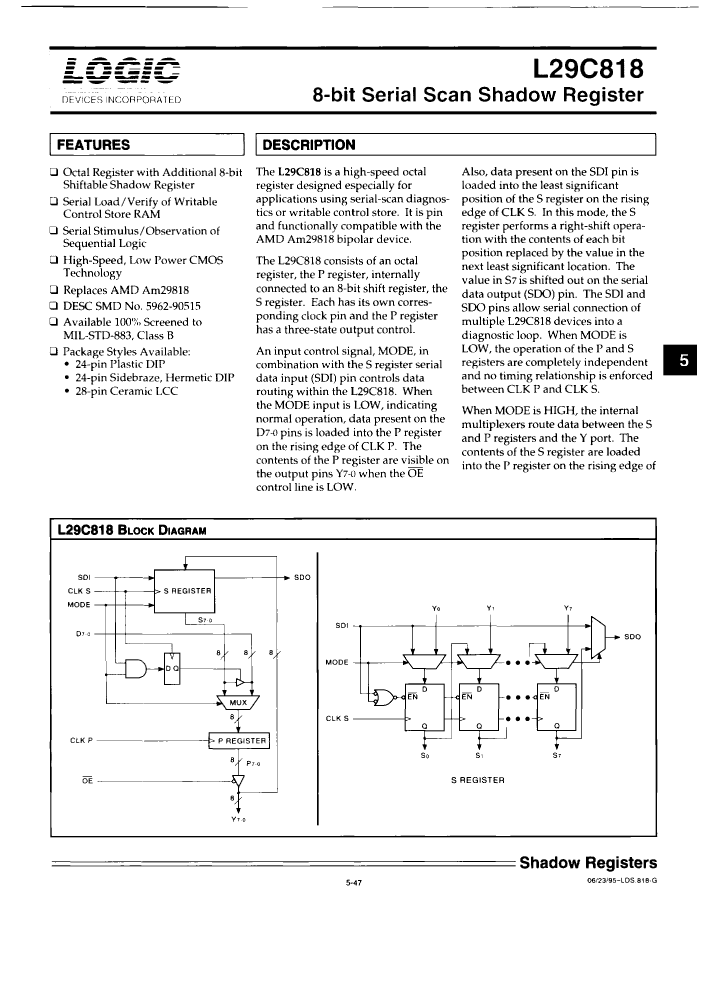

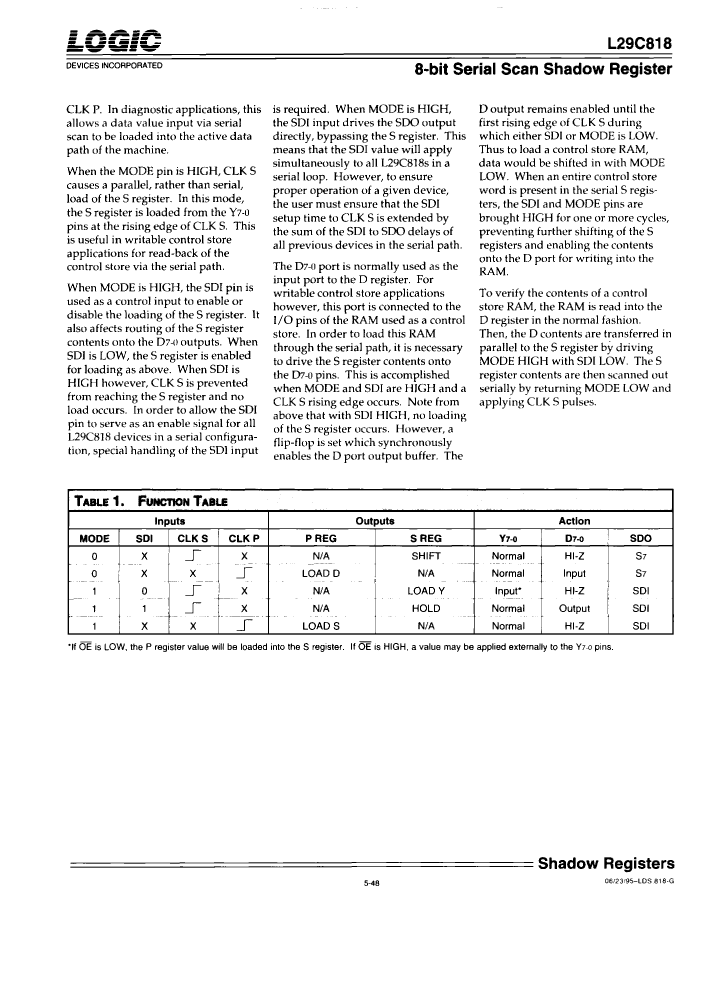

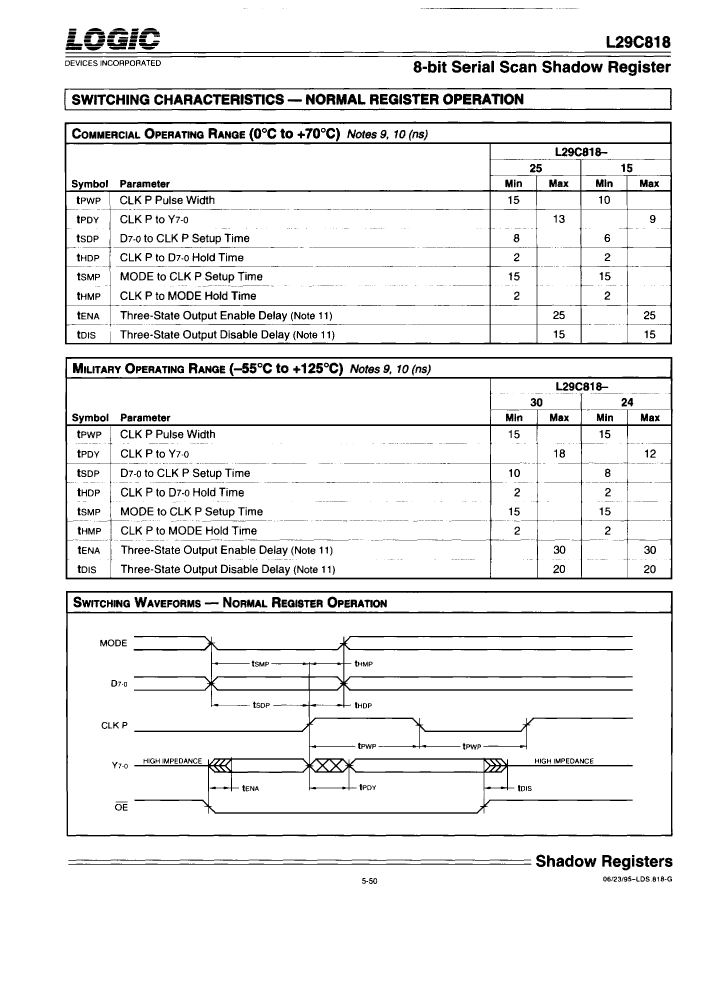

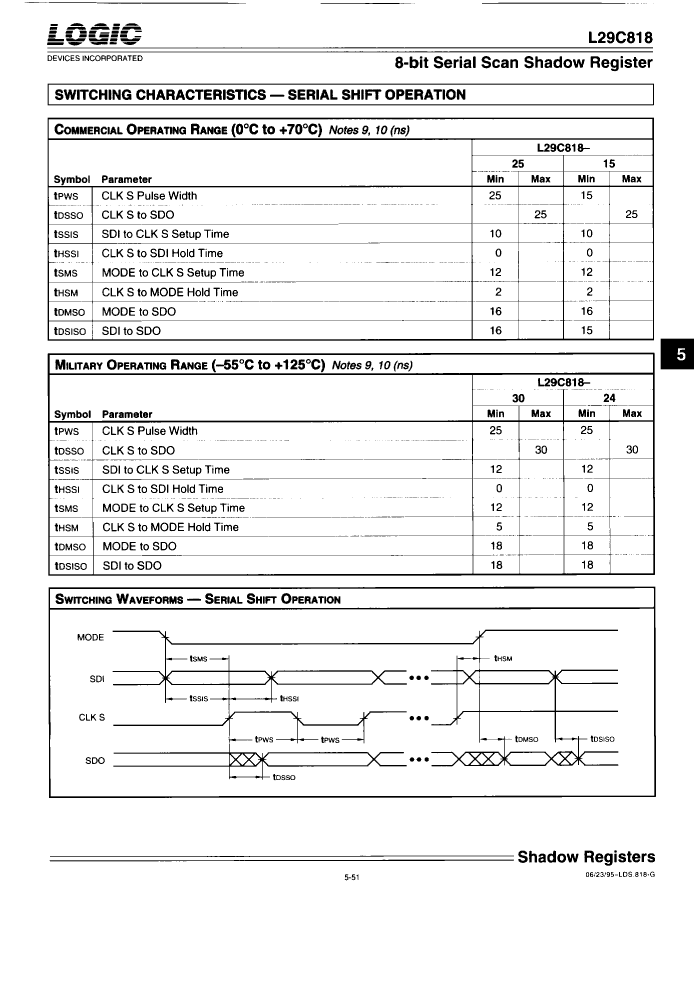

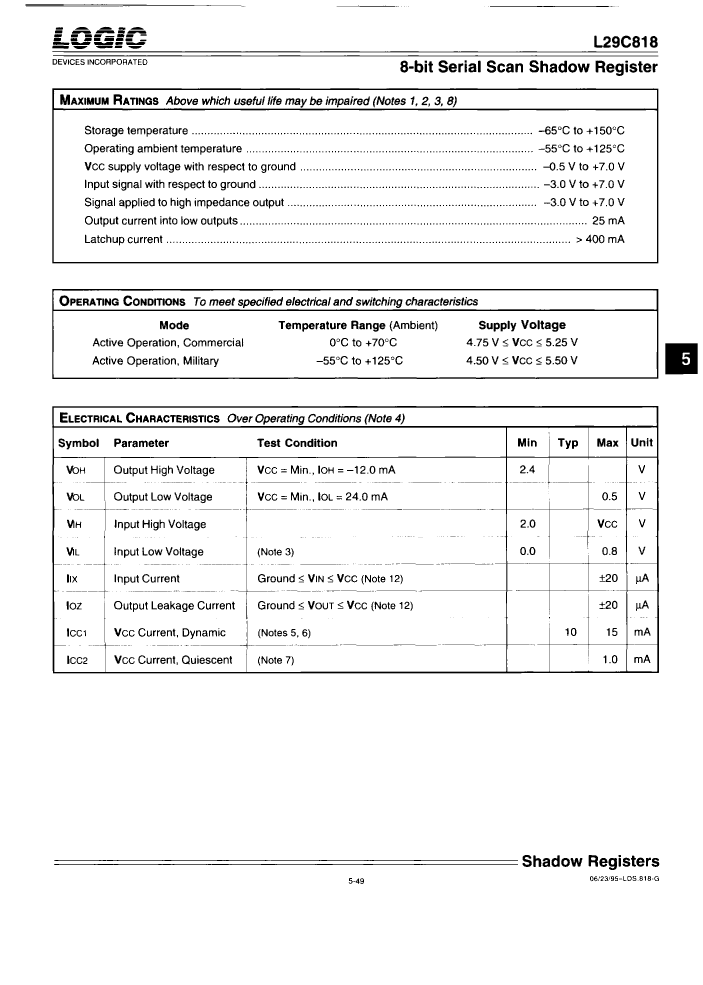

Preview

Download Datasheet

View All

L29C818CM24 Related Products

	L29C818CM24	5962-90515013C	5962-9051501LA	L29C818CC25	L29C818CMB30	L29C818CM30	L29C818CC15	L29C818CMB24
Description	Pipeline Register, 8-Bit, CMOS, CDIP24, 0.300 INCH, SIDE BRAZED, HERMETIC SEALED, DIP-24	Pipeline Register, 8-Bit, CMOS, CQCC28, 0.450 X 0.450 INCH, CERAMIC, LCC-28	Pipeline Register, 8-Bit, CMOS, CDIP24, 0.300 INCH, HERMETIC SEALED, SIDE BRAZED, DIP-24	Pipeline Register, 8-Bit, CMOS, CDIP24, 0.300 INCH, SIDE BRAZED, HERMETIC SEALED, DIP-24	Pipeline Register, 8-Bit, CMOS, CDIP24, 0.300 INCH, SIDE BRAZED, HERMETIC SEALED, DIP-24	Pipeline Register, 8-Bit, CMOS, CDIP24, 0.300 INCH, SIDE BRAZED, HERMETIC SEALED, DIP-24	Pipeline Register, 8-Bit, CMOS, CDIP24, 0.300 INCH, SIDE BRAZED, HERMETIC SEALED, DIP-24	Pipeline Register, 8-Bit, CMOS, CDIP24, 0.300 INCH, SIDE BRAZED, HERMETIC SEALED, DIP-24
Parts packaging code	DIP	QLCC	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP, DIP24,.3	QCCN,	DIP, DIP24,.3	DIP, DIP24,.3	0.300 INCH, SIDE BRAZED, HERMETIC SEALED, DIP-24	DIP, DIP24,.3	DIP, DIP24,.3	DIP, DIP24,.3
Contacts	24	28	24	24	24	24	24	24
Reach Compliance Code	unknown	unknown	compliant	unknown	unknown	unknown	unknown	unknown
Other features	ICC SPECIFIED @ 5MHZ	ICC SPECIFIED @ 5MHZ	ICC SPECIFIED @ 5MHZ	ICC SPECIFIED @ 5MHZ	ICC SPECIFIED @ 5MHZ	ICC SPECIFIED @ 5MHZ	ICC SPECIFIED @ 5MHZ	ICC SPECIFIED @ 5MHZ
boundary scan	NO	NO	NO	NO	NO	NO	NO	NO
External data bus width	8	8	8	8	8	8	8	8
JESD-30 code	R-CDIP-T24	S-CQCC-N28	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24
JESD-609 code	e0	e4	e0	e0	e0	e0	e0	e0
length	30.48 mm	11.43 mm	30.48 mm	30.48 mm	30.48 mm	30.48 mm	30.48 mm	30.48 mm
low power mode	NO	NO	NO	NO	NO	NO	NO	NO
Number of terminals	24	28	24	24	24	24	24	24
Maximum operating temperature	125 °C	125 °C	125 °C	70 °C	125 °C	125 °C	70 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C	-	-55 °C
Output data bus width	8	8	8	8	8	8	8	8
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	QCCN	DIP	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.953 mm	2.54 mm	4.953 mm	4.953 mm	4.953 mm	4.953 mm	4.953 mm	4.953 mm
Maximum slew rate	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.25 V	5.5 V	5.5 V	5.25 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.75 V	4.5 V	4.5 V	4.75 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	GOLD	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	11.43 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER
Is it Rohs certified?	incompatible	-	-	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	LOGIC Devices	-	-	LOGIC Devices	LOGIC Devices	LOGIC Devices	LOGIC Devices	LOGIC Devices
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	-	3A001.A.2.C	3A001.A.2.C	-	3A001.A.2.C
Humidity sensitivity level	3	-	-	3	3	3	3	3
Encapsulate equivalent code	DIP24,.3	-	DIP24,.3	DIP24,.3	DIP24,.3	DIP24,.3	DIP24,.3	DIP24,.3
Peak Reflow Temperature (Celsius)	225	-	-	225	225	225	225	225
power supply	5 V	-	5 V	5 V	5 V	5 V	5 V	5 V
Maximum time at peak reflow temperature	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
