IQA48015A050M-005 datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> IQA48015A050M-005

IQA48015A050M-005: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 75W, Hybrid; CategoryPower/power management The power supply circuit; File Size55KB，4 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric View All

IQA48015A050M-005 Overview

DC-DC Regulated Power Supply Module, 2 Output, 75W, Hybrid

IQA48015A050M-005 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TDK Corporation
Objectid	2020388825
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
compound_id	4827017
Other features	ADDITIONAL +3.3V OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	75 V
Minimum input voltage	36 V
Nominal input voltage	48 V
JESD-30 code	R-XDMA-P7
JESD-609 code	e3
Number of functions	1
Output times	2
Number of terminals	7
Maximum output voltage	5.5 V
Minimum output voltage	4.5 V
Nominal output voltage	5 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Terminal surface	TIN
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	75 W
Fine-tuning/adjustable output	YES

Preview

Download Datasheet

View All

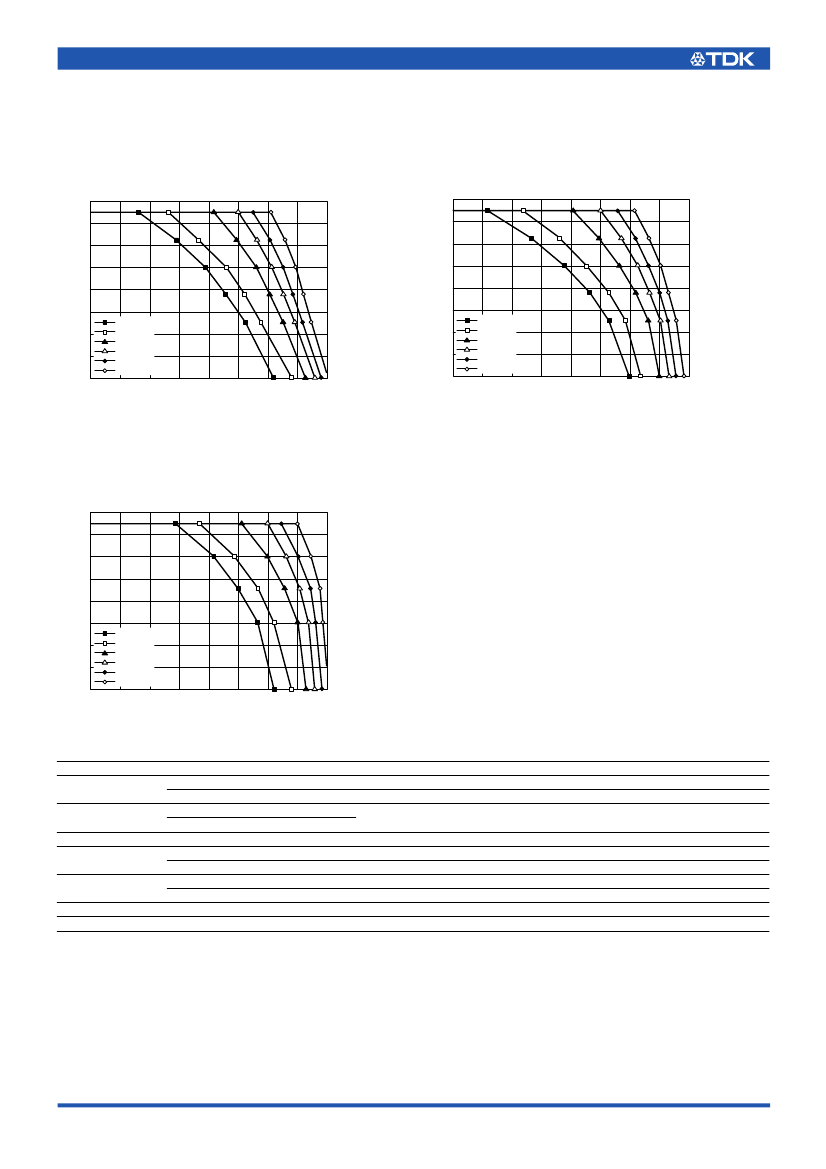

(1/4)

DC to DC Converters

Distributed Power Supplies for Systems, Insulation Type

Quarter Brick Type iQA Series

Power supply systems for infrastructure devices used in communi-

cation networks primarily use brick-type DC to DC converters.

As the voltage used for LSIs continues to drop, power supplies are

expected to provide lower output, higher efficiencies, and lower

noise levels.

To meet these demands, we have developed quarter brick types

that are smaller in size, produce low output voltage, and provide

two outputs.

FEATURES

• Wide input voltage range (DC.36 to 75V)

•

Low output voltage products with two outputs are available.

High efficiency: 87.5%(5.0 and 3.3V outputs)

Heat sink is not required.

Remote ON-OFF function

Output voltage external variable function

Various protective functions

Each output can be controlled independently.

Flexible current distribution between the two outputs

PART NUMBERS AND RATINGS

(6)

Output voltage(V)

2.5/1.8

3.3/1.8

3.3/2.5

2.5/1.8

3.3/2.5

5.0/3.3

Current(A)

Part No.

iQA48024A025M

iQA48024A033M–1

iQA48024A033M–0

iQA48015A025M

iQA48015A033M

iQA48015A050M

PRODUCT IDENTIFICATION

iQA

(1)

48 015A

(2) (3)

050

(4)

(5)

(1) Type name

iQA: Quarter brick type

(2) Rated input voltage

(3) Output current

(4) Output voltage(The higher of the voltages of the two outputs)

(5) Multi-output

(6) Option code

001: Standard(Negative on/off logic, Pin length: 3.68mm,

Variable output: Variable independently)

000: Positive on/off logic, Pin length: 3.68mm,

Variable output: Variable independently

002: Positive on/off logic, Pin length: 3.68mm,

Variable output: Both outputs are variable simultaneously.

003: Negative on/off logic, Pin length: 3.68mm,

Variable output: Both outputs are variable simultaneously.

004: Positive on/off logic, Pin length: 2.79mm,

Variable output: Variable independently

005: Negative on/off logic, Pin length: 2.79mm,

Variable output: Variable independently

006: Positive on/off logic, Pin length: 2.79mm,

Variable output: Both outputs are variable simultaneously.

007: Negative on/off logic, Pin length: 2.79mm,

Variable output: Both outputs are variable simultaneously.

• The first number in the three digit option code for

iQA48024A033M-1 is “1”.

• All specifications are subject to change without notice.

002-02 / 20040524 / ea33_br_iqa.fm
