MT8LD264G-7X datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> MT8LD264G-7X

Preview

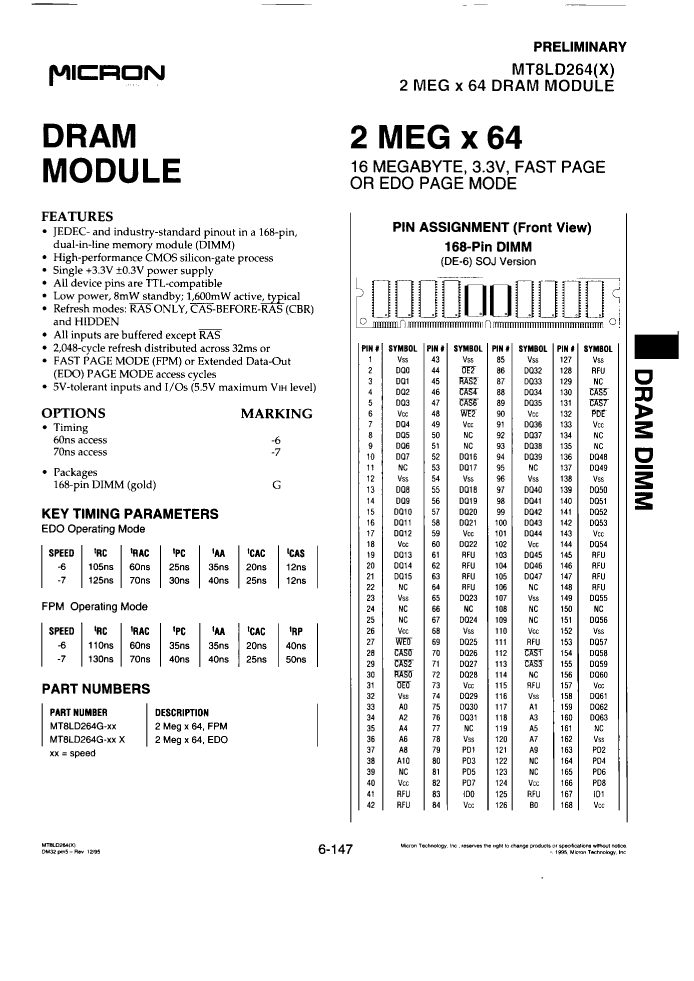

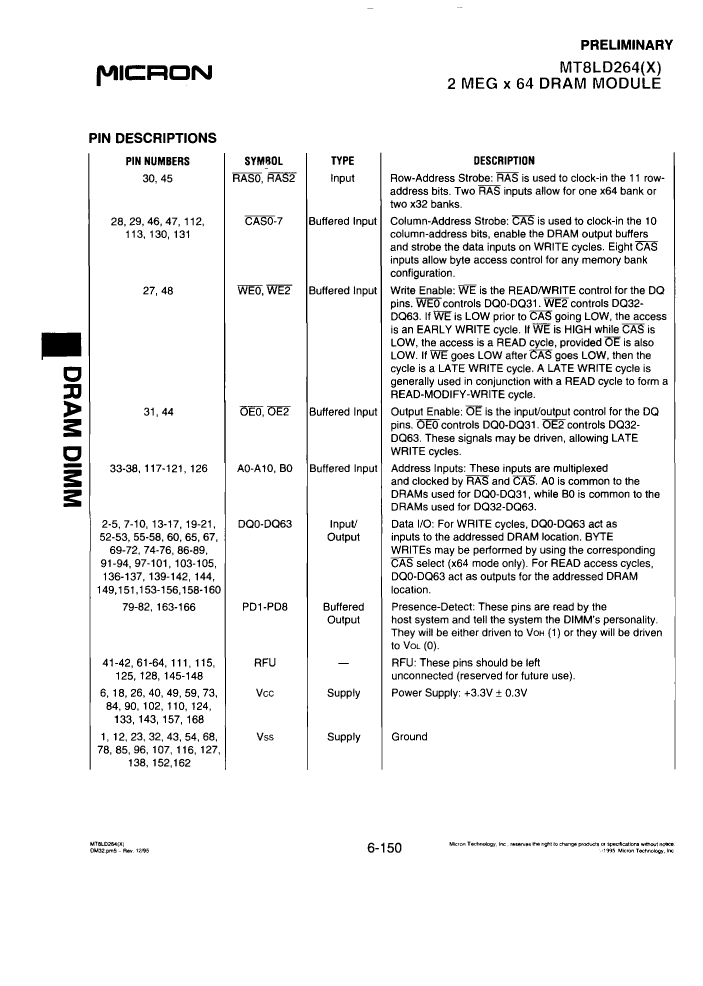

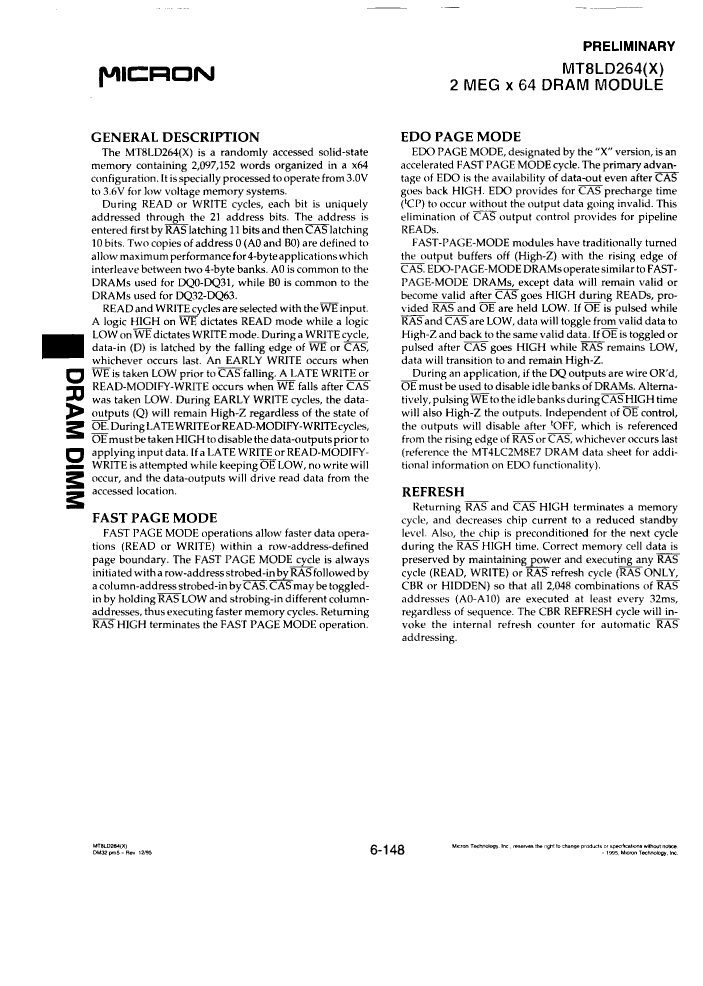

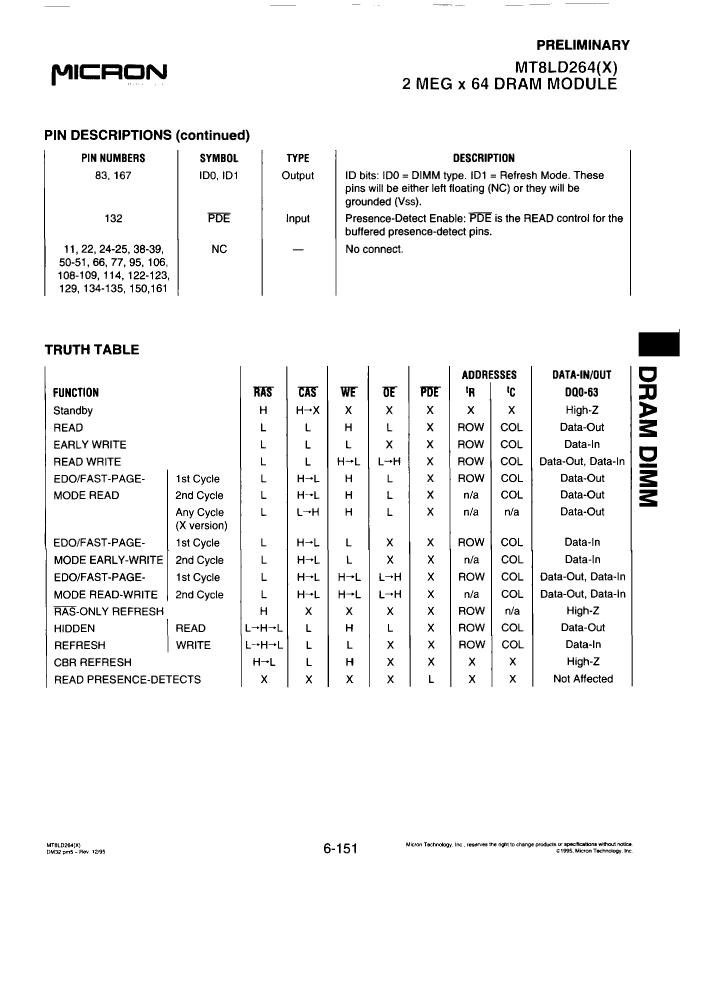

MT8LD264G-7X: DescriptionEDO DRAM Module, 2MX64, 70ns, CMOS, DIMM-168; Categorystorage storage; File Size925KB，29 Pages; ManufacturerMicron Technology; Websitehttp://www.mdtic.com.tw/

Download Datasheet Parametric Compare View All

MT8LD264G-7X Overview

EDO DRAM Module, 2MX64, 70ns, CMOS, DIMM-168

MT8LD264G-7X Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Micron Technology
Parts packaging code	DIMM
package instruction	DIMM-168
Contacts	168
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE WITH EDO
Maximum access time	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
Spare memory width	32
I/O type	COMMON
JESD-30 code	R-XDMA-N168
memory density	134217728 bit
Memory IC Type	EDO DRAM MODULE
memory width	64
Humidity sensitivity level	1
Number of functions	1
Number of ports	1
Number of terminals	168
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX64
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	DIMM
Encapsulate equivalent code	DIMM168
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	225
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	2048
Maximum seat height	25.654 mm
self refresh	NO
Maximum standby current	0.004 A
Maximum slew rate	0.96 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

MT8LD264G-7X Related Products

	MT8LD264G-7X	MT8LD264G-6X	MT8LD264G-6	MT8LD264G-7
Description	EDO DRAM Module, 2MX64, 70ns, CMOS, DIMM-168	EDO DRAM Module, 2MX64, 60ns, CMOS, DIMM-168	Fast Page DRAM Module, 2MX64, 60ns, CMOS, DIMM-168	Fast Page DRAM Module, 2MX64, 70ns, CMOS, DIMM-168
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIMM	DIMM	DIMM	DIMM
package instruction	DIMM-168	DIMM-168	DIMM-168	DIMM-168
Contacts	168	168	168	168
Reach Compliance Code	unknown	not_compliant	not_compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE	FAST PAGE
Maximum access time	70 ns	60 ns	60 ns	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
Spare memory width	32	32	32	32
I/O type	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XDMA-N168	R-XDMA-N168	R-XDMA-N168	R-XDMA-N168
memory density	134217728 bit	134217728 bit	134217728 bit	134217728 bit
Memory IC Type	EDO DRAM MODULE	EDO DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE
memory width	64	64	64	64
Humidity sensitivity level	1	1	1	1
Number of functions	1	1	1	1
Number of ports	1	1	1	1
Number of terminals	168	168	168	168
word count	2097152 words	2097152 words	2097152 words	2097152 words
character code	2000000	2000000	2000000	2000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	2MX64	2MX64	2MX64	2MX64
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIMM	DIMM	DIMM	DIMM
Encapsulate equivalent code	DIMM168	DIMM168	DIMM168	DIMM168
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	225	225	225	225
power supply	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	2048	2048	2048	2048
Maximum seat height	25.654 mm	25.654 mm	25.654 mm	25.654 mm
self refresh	NO	NO	NO	NO
Maximum standby current	0.004 A	0.004 A	0.004 A	0.004 A
Maximum slew rate	0.96 mA	1.04 mA	1.04 mA	0.96 mA
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
