IH5042M/W datasheet, PDF - EEWORLD Datasheet

IH5042M/W: DescriptionSPDT, 1 Func, 1 Channel, CMOS; CategoryAnalog mixed-signal IC The signal circuit; File Size2MB，8 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric View All

IH5042M/W Overview

SPDT, 1 Func, 1 Channel, CMOS

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Maxim
Objectid	1426528017
package instruction	DIE,
Reach Compliance Code	compliant
compound_id	4652638
Analog Integrated Circuits - Other Types	SPDT
JESD-30 code	R-XUUC-N14
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	1
Number of functions	1
Number of terminals	14
Nominal off-state isolation	54 dB
On-state resistance matching specifications	3 Ω
Maximum on-state resistance (Ron)	75 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	RECTANGULAR
Package form	UNCASED CHIP
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum supply current (Isup)	0.01 mA
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	200 ns
Maximum connection time	400 ns
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED

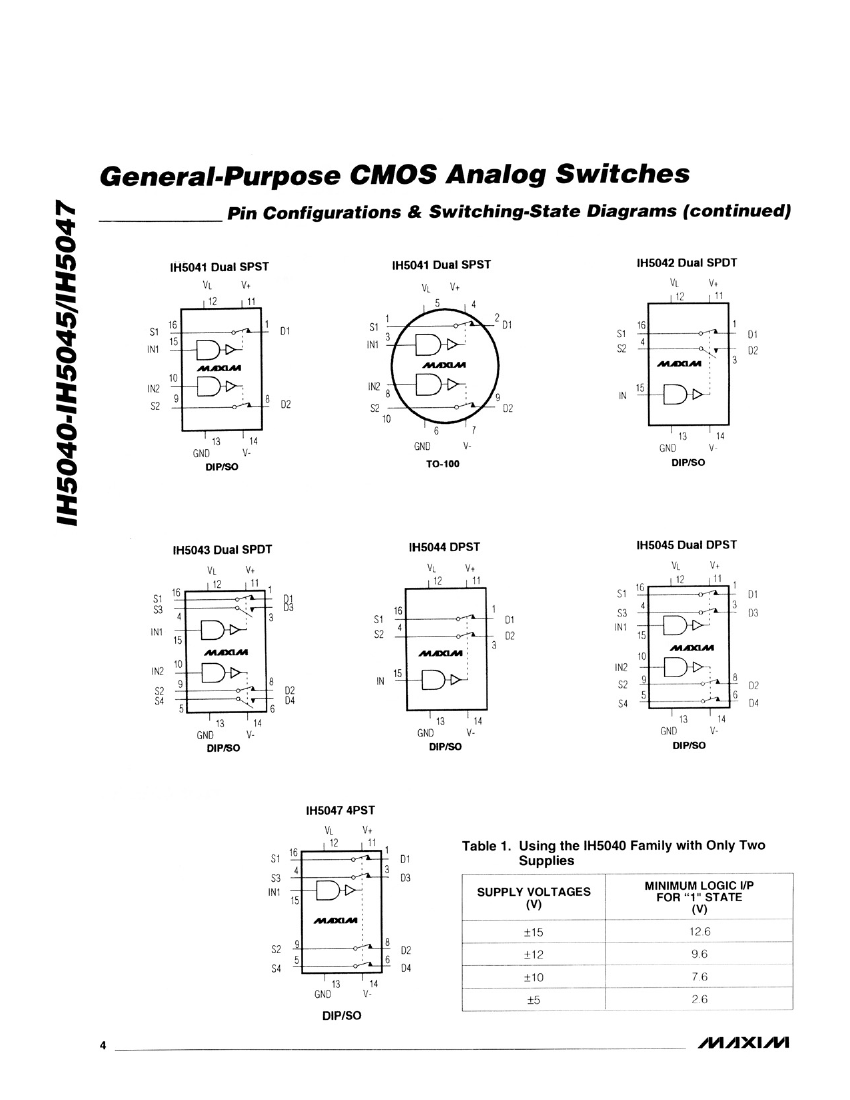

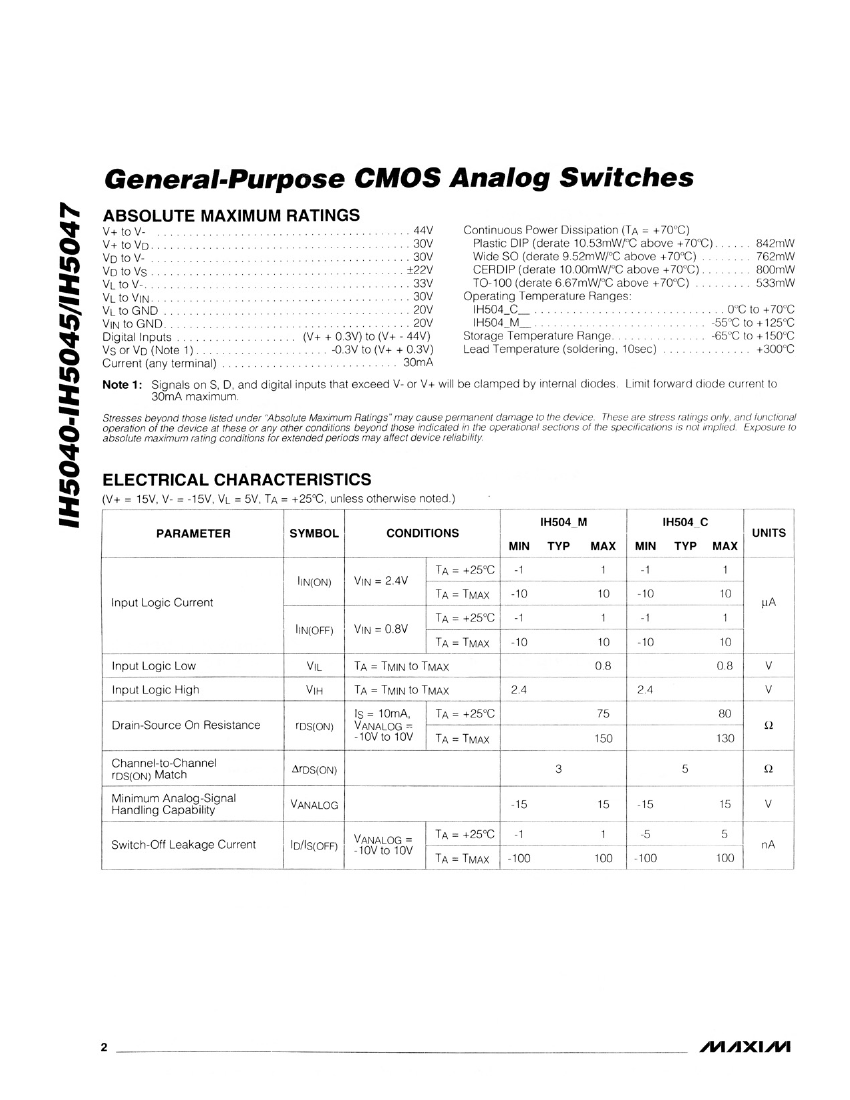

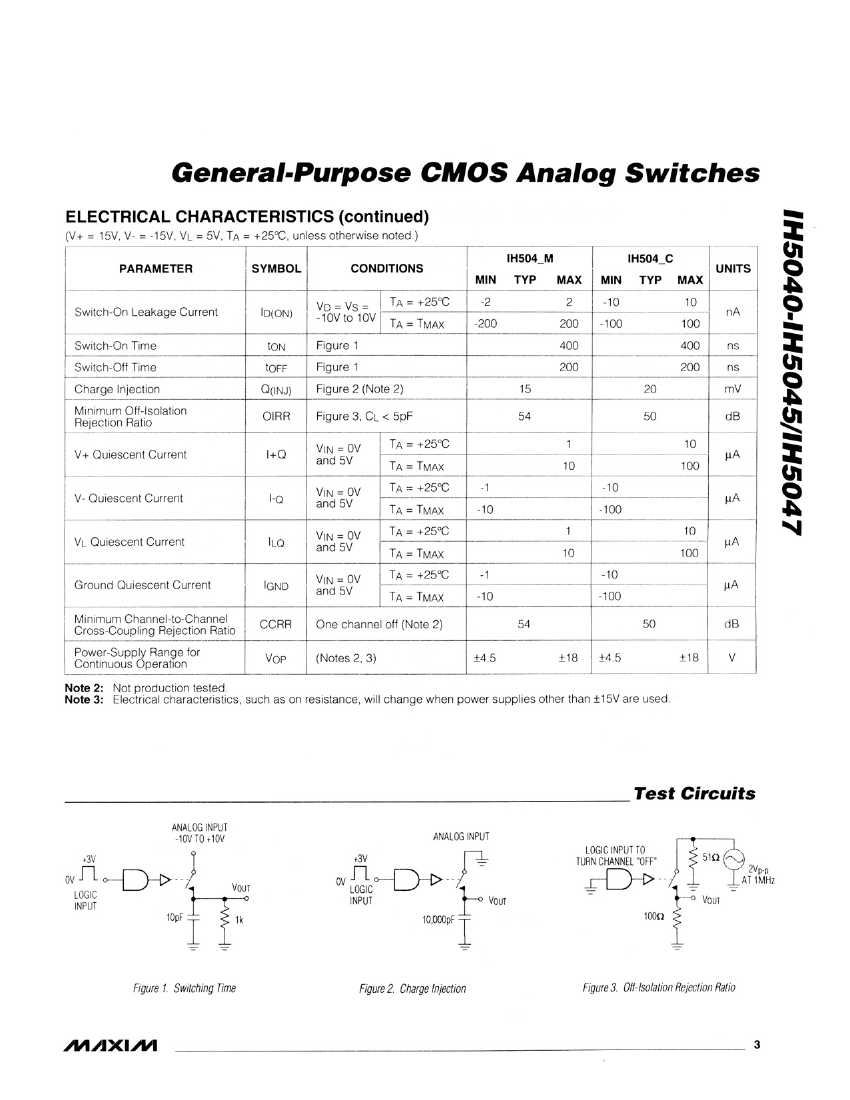

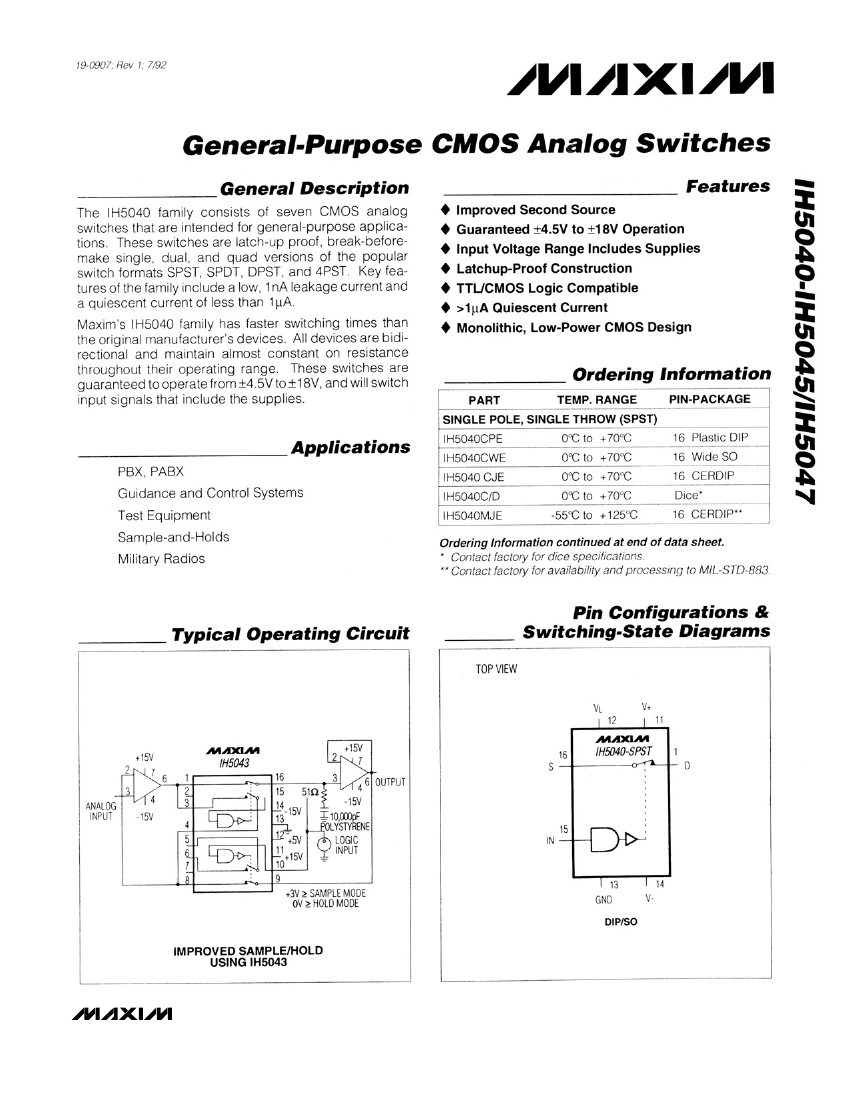

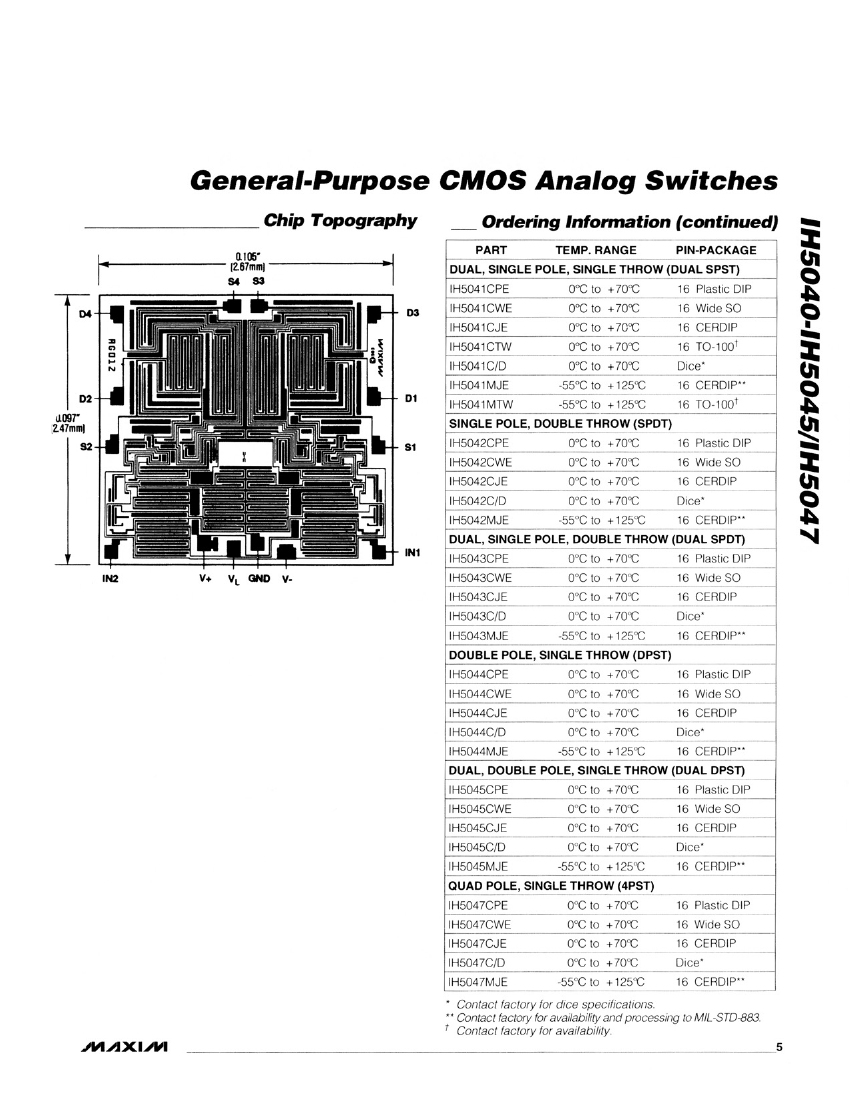

____________________________________________________________________________

Maxim

Integrated Products

1

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at

1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
