518-13-296-69-129003 datasheet, PDF

Datasheet> All Categories > The connector> socket> 518-13-296-69-129003

518-13-296-69-129003: DescriptionIC Socket, PGA296, 296 Contact(s),; CategoryThe connector socket; File Size174KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

518-13-296-69-129003 Overview

IC Socket, PGA296, 296 Contact(s),

518-13-296-69-129003 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
Objectid	1938001514
Reach Compliance Code	compliant
ECCN code	EAR99
compound_id	64519936
Other features	PGA SOCKET
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Gold (Au)
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	PGA296
Shell material	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER
JESD-609 code	e4
Number of contacts	296

Preview

Download Datasheet

View All

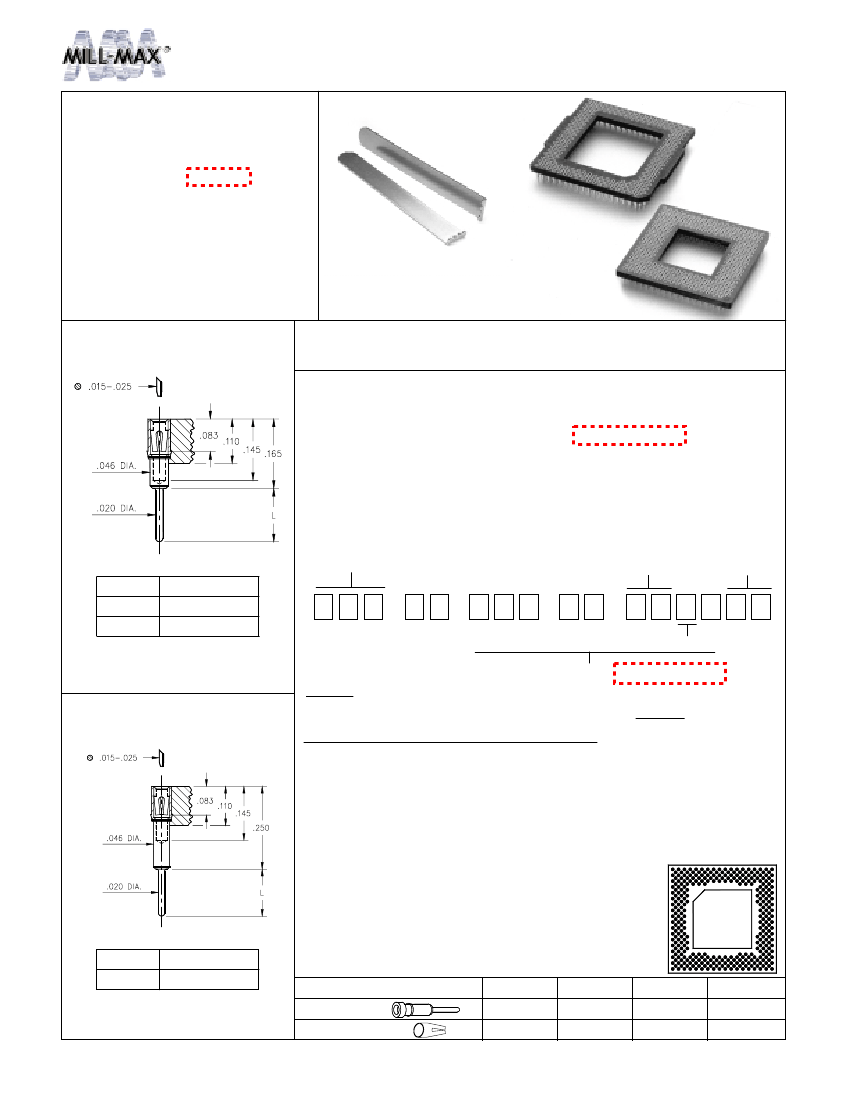

PIN GRID ARRAY SOCKETS

Optional Tabs for Clip-on Heatsink**

Interstitial Pattern

•

Series 518 Interstitial PGA

sockets are available with and

without tabs for clip-on heatsinks.

•

Mill-Max #43, “Ultra-Lite” contact

standard, see page 209 for

details.

•

Hi-Temp PCT polyester insulator

material suitable for all forms of

soldering.

•

A pry-bar tool is available for

extraction (part # 828-01-010).

Series 518

SOLDER TAIL SOCKET PIN

(Without Heatsink Tabs)

Ordering Information

Interstitial configurations are a .100” grid pattern overlapped with a second,

staggered .100” grid pattern thus doubling the package density of the socket.

1. Locate interstitial footprint pattern from pages 107 to 111, the middle 8

digits of the part number will be located under the pattern.

2. Specify 2-digit plating code from chart at bottom of page.

3. Determine the last 2 digits of part number from the pin type at left.

For sockets with heatsink tabs, see chart

“A”

below for pin options.

Pin Type

For L = .125”

For L = .145”

For L = .100”

Series

Plating

Code

Window

Pin Type

5 1 8

No. of pins

Grid size

Pattern #

PIN 08 IS USED EXCLUSIVELY IN

CERTAIN PATTERNS. SEE

CHART “A”.

Determined from footprint pattern pages 107 to 111

CHART

NOTE**

FOOTPRINT

HEATSINK

PATTERN

MFG.

TYPE

Designed to work with:

296-19-126

THERMALLOY

04, 06

THERMALLOY

296-19-127

THERMALLOY

04, 06

WAKEFIELD

320-19-126

THERMALLOY

04, 06

AAVID

296-19-128

WAKEFIELD

04, 06

IERC

296-69-129008 SEE NOTE**

08 ONLY

heatsinks & clips.

320-69-129008 SEE NOTE**

08 ONLY

387-01-016508 SEE NOTE**

08 ONLY

EXAMPLE OF COMPLETE PART NUMBER:

518-93-325-18-105003

This is a 325 pin interstitial (11x11 grid) insulator with a

1.00” square window and fitted with standard solder tail

receptacles. Pin sleeve is tin plated, inner contacts are

Mill-Max #43 and are plated 30µ” gold.

SPECIFY PLATING CODE XX=

SOLDER TAIL SOCKET PIN

(With Heatsink Tabs)

Pin Type

For L = .080”

For L = .115”

10µ” Au

30µ” Au

200µ” Sn/Pb

30µ” Au

PIN 08 IS USED EXCLUSIVELY IN

CERTAIN PATTERNS. SEE

CHART “A”.

Sleeve (Pin)

Contact (Clip)

Mill-Max-Mfg.Corp., P.O. Box 300, 190 Pine Hollow Road, Oyster Bay, NY 11771-0300.Tel: 516-922-6000 Fax: 516-922-9253
