M3L28FGN01.5440MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> M3L28FGN01.5440MHZ

M3L28FGN01.5440MHZ: DescriptionHCMOS Output Clock Oscillator, 1.554MHz Min, 125MHz Max, 1.544MHz Nom; CategoryPassive components oscillator; File Size478KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric View All

M3L28FGN01.5440MHZ Overview

HCMOS Output Clock Oscillator, 1.554MHz Min, 125MHz Max, 1.544MHz Nom

M3L28FGN01.5440MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	MtronPTI
package instruction	DILCC4,.12
Reach Compliance Code	unknown
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	125 MHz
Minimum operating frequency	1.554 MHz
Nominal operating frequency	1.544 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS
Maximum output low current	4 mA
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	DILCC4,.12
power supply	3.3 V
Certification status	Not Qualified
Maximum slew rate	35 mA
Nominal supply voltage	3.3 V
surface mount	YES
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

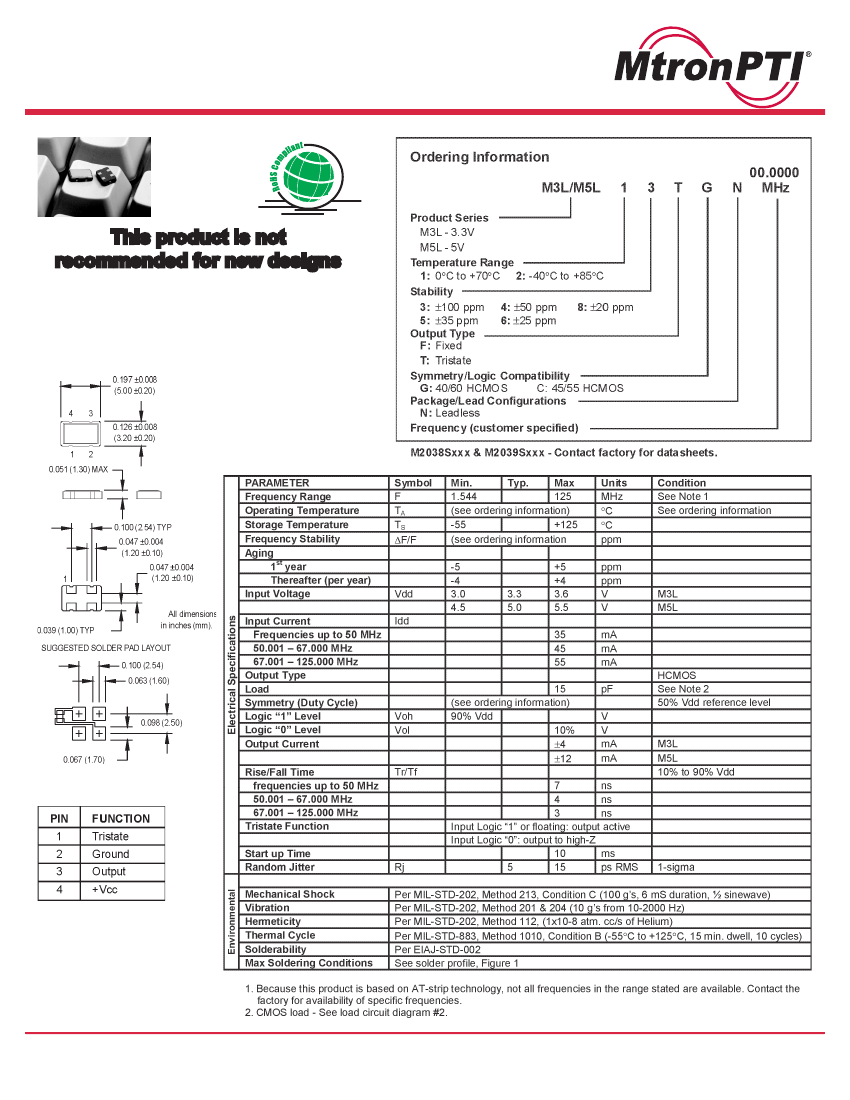

M3L & M5L Series

3.2x5 mm, 3.3 or 5.0 Volt, HCMOS, Clock Oscillator

This product is not

recommended for new designs

•

Ultra-miniature size

Ideal for PCMCIA cards, laptop/palmtop computers,

wireless handsets, portable instrumentation

Pin Connections

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Revision:11-11-10
