M3R64TCJ01.0000MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> M3R64TCJ01.0000MHZ

M3R64TCJ01.0000MHZ: DescriptionHCMOS Output Clock Oscillator, 1MHz Nom, J LEADED PACKAGE-4; CategoryPassive components oscillator; File Size444KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

M3R64TCJ01.0000MHZ Overview

HCMOS Output Clock Oscillator, 1MHz Nom, J LEADED PACKAGE-4

M3R64TCJ01.0000MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	MtronPTI
Reach Compliance Code	unknown
Other features	TRI-STATE
maximum descent time	8 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Nominal operating frequency	1 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	14.0mm x 9.8mm x 4.7mm
longest rise time	8 ns
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

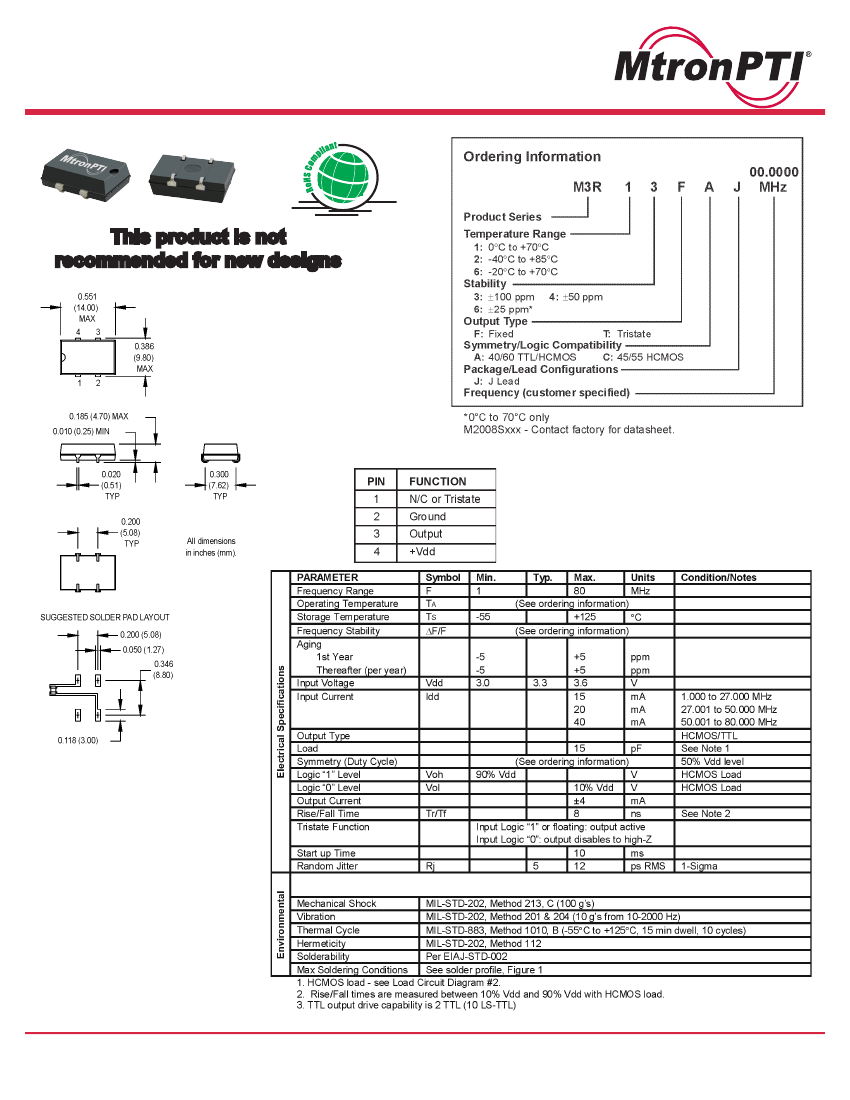

M3R

Series

9x14 mm, 3.3

3.3 Volt, HCMOS/TTL, Clock Oscillator

9x14 mm,

Volt, HCMOS/TTL, Clock Oscillator

This product is not

recommended for new designs

Pin Connections

NOTE:

A capacitor of value 0.01

NOTE:

between Vdd and

µF

or greater

capacitor of value

Ground is

or greater

0.01

recommended.

between Vdd

and

Ground

recommended.

1. See load circuit diagram #2 on page 116.

2. Rise/Fall times are measured between 10% Vdd and 90% Vdd with HCMOS load.

3. TTL output drive capability is 2 TTL (10 LS - TTL).

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Revision: 11-11-10
