SMBJ5947B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> SMBJ5947B

SMBJ5947B: DescriptionSurface Mount Zener Diodes, Diodes, Single, 0.05, 82V, 4.6mA, 3000mW, -; CategoryDiscrete semiconductor; File Size567KB，5 Pages; ManufacturerGalaxy Microelectronics

Download Datasheet Parametric View All

SMBJ5947B Overview

Surface Mount Zener Diodes, Diodes, Single, 0.05, 82V, 4.6mA, 3000mW, -

SMBJ5947B Parametric

Parameter Name	Attribute value
Maker	Galaxy Microelectronics
Parts packaging code	SMB
Reach Compliance Code	unknown
category
Configuration	Single
Tolerance	0.05
VZ (V) nom.	82
Condition1_IT (mA)	4.6
PD (mW) max	3000
AEC Qualified	-
Maximum operating temperature	150
Minimum operating temperature	-55
MSL level	-
Is it lead-free?	Yes
Comply with Reach	Yes
RoHS compliant	Yes
ECCN code	EAR99
Pin	-

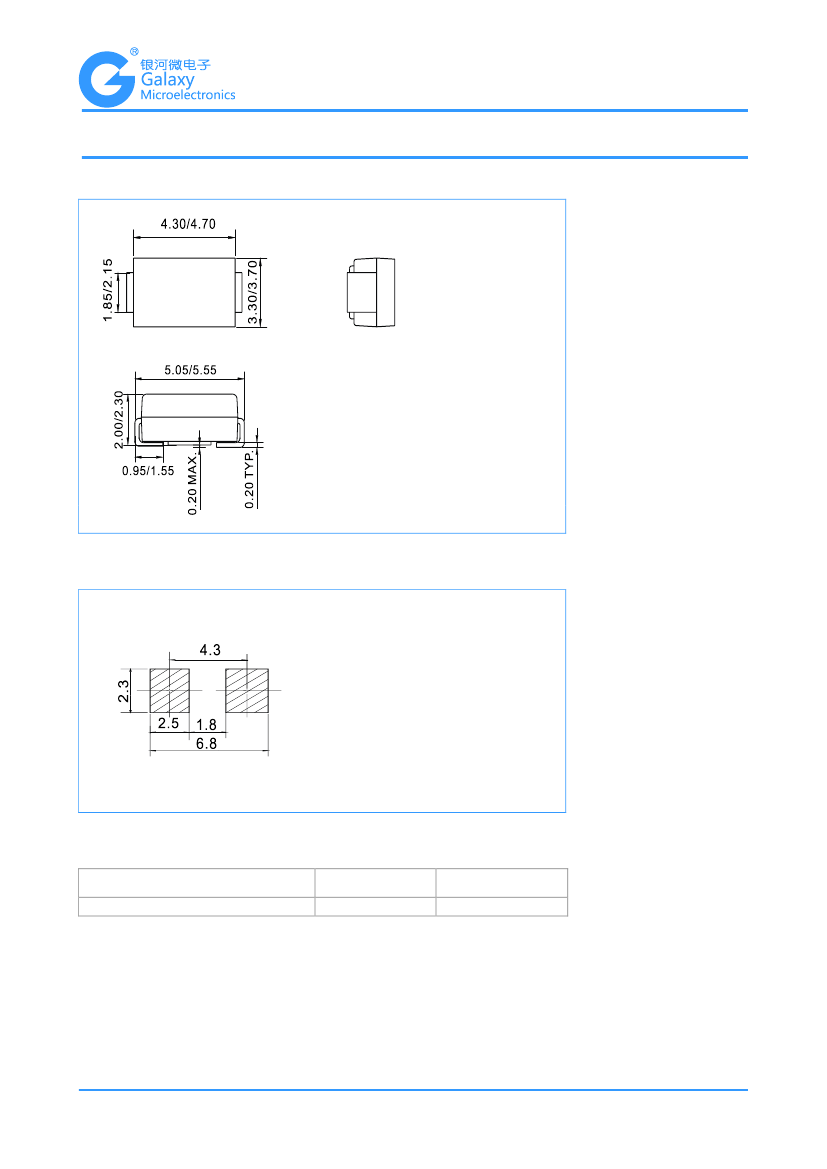

Package Outlines	SMB

Preview

Download Datasheet

View All

Production specification

Zener Diodes

Features



Complete voltage range 3.3 to 200 V

Withstands large surge stresses

Available on tape and reel

High surge current rating

Case: SMB molded plastic

SMBJ5913B--SMBJ5956B

Mechanical Data

Molding compound, UL flammability classification rating 94V-0

Polarity: Color band denotes cathode end

Maximum Ratings

(@T

= 25°C unless otherwise specified)

Parameter

Power dissipation at T

=75°C

Forward voltage @I

=200mA

Typical thermal resistance

Junction temperature

Storage temperature range

Symbol

tot

θJL

θJA

STG

Value

3.0

1.5

°C /W

226

-55 to +150

°C

Units

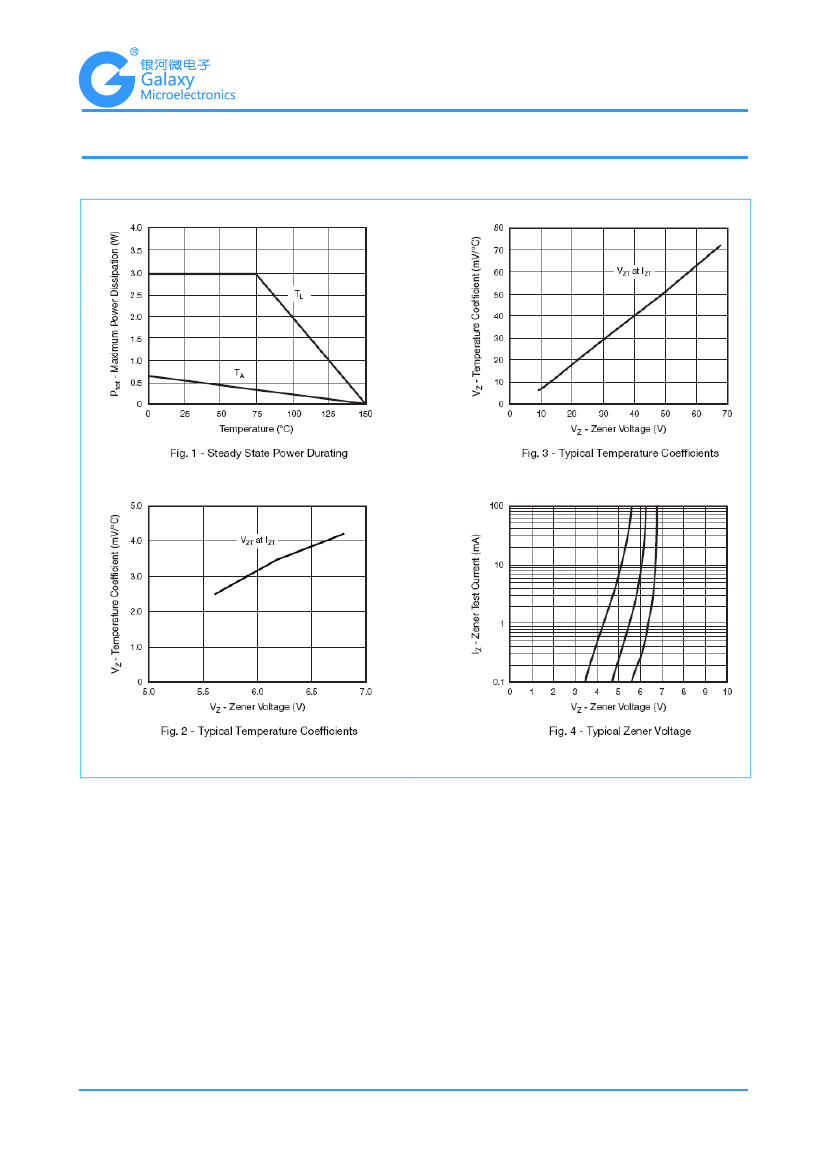

SMB501AA

Rev.B

www.gmesemi.com
