M3V64T1CJ60.0000MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> M3V64T1CJ60.0000MHZ

M3V64T1CJ60.0000MHZ: DescriptionCMOS Output Clock Oscillator, 60MHz Nom, J-LEADED PACKAGE-6; CategoryPassive components oscillator; File Size426KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

M3V64T1CJ60.0000MHZ Overview

CMOS Output Clock Oscillator, 60MHz Nom, J-LEADED PACKAGE-6

M3V64T1CJ60.0000MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	MtronPTI
Reach Compliance Code	unknown
Other features	TRI-STATE
Maximum control voltage	3 V
Minimum control voltage	0.3 V
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	50 ppm
frequency stability	50%
linearity	10%
Manufacturer's serial number	M3V
Installation features	SURFACE MOUNT
Nominal operating frequency	60 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	CMOS
Output load	10 TTL, 50 pF
physical size	14.22mm x 9.78mm x 4.7mm
longest rise time	10 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %

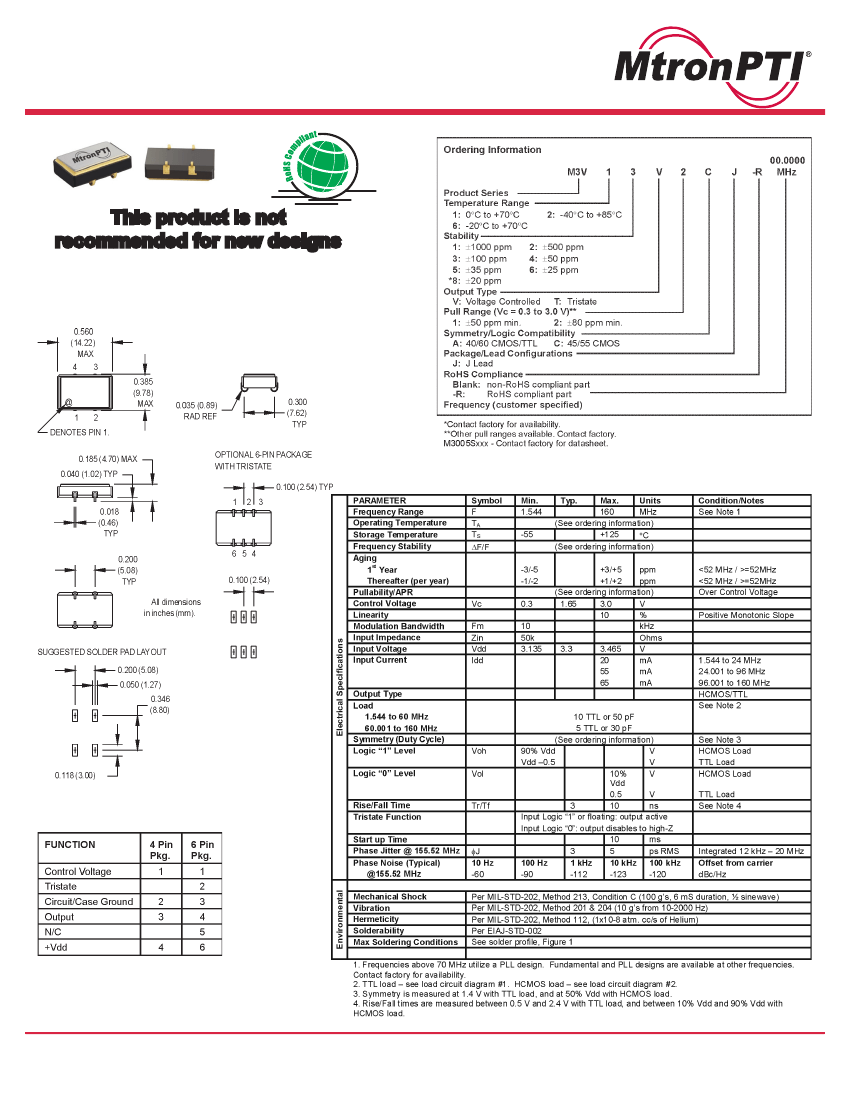

Preview

Download Datasheet

View All

M3V Series

9x14 mm, 3.3 Volt, HCMOS/TTL, VCXO

This product is not

recommended for new designs

•

HCMOS/TTL output to 160 MHz and excellent jitter (2.1 ps typ.)

in a SMT package

Phase-Locked Loops (PLL’s), Clock Recovery, Reference Signal

Tracking, Synthesizers, Frequency Modulation/Demodulation

Pin Connections

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Revision: 11-11-10
