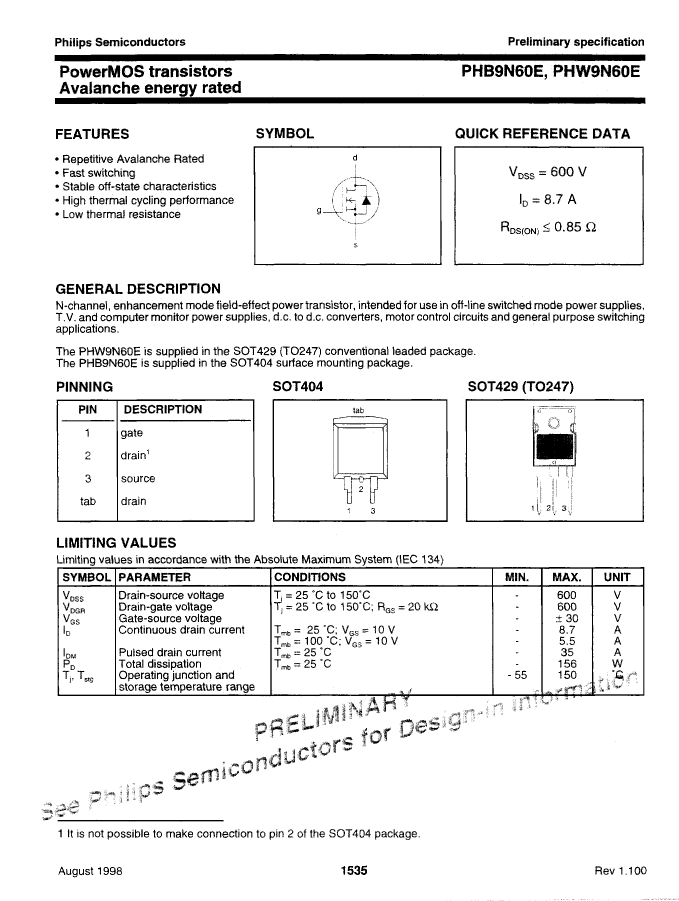

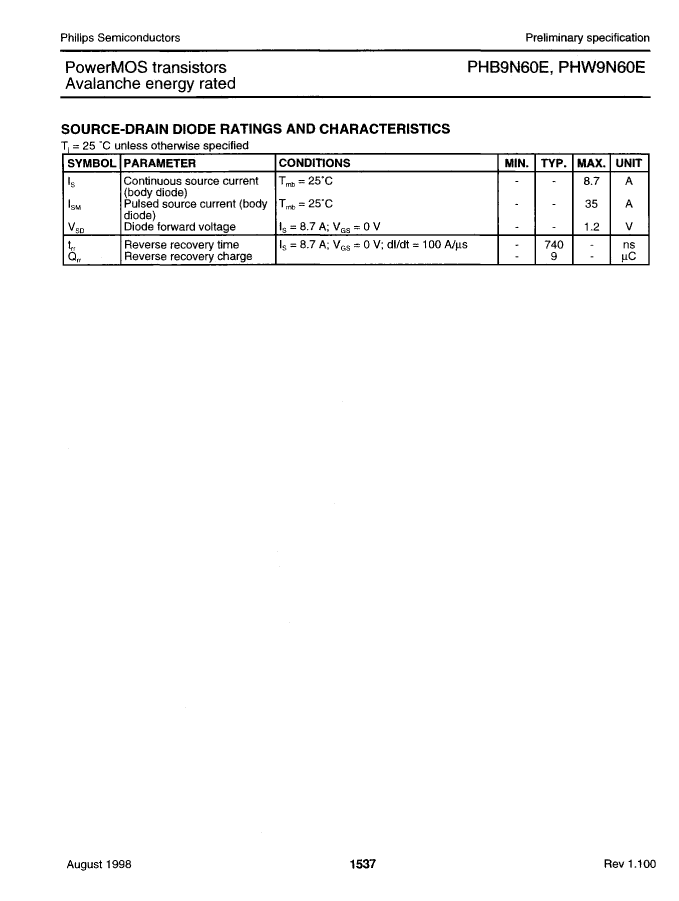

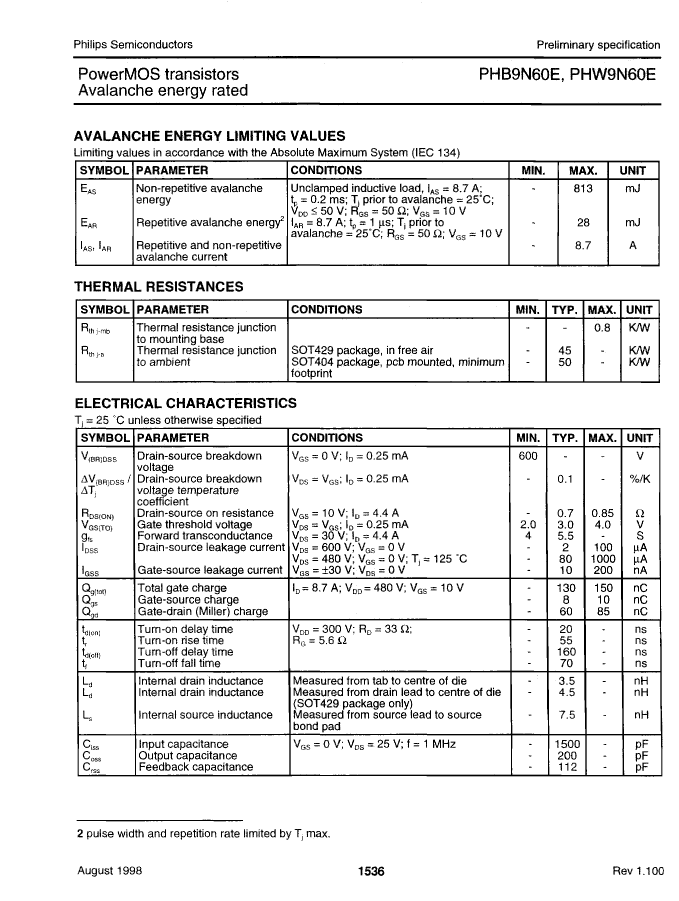

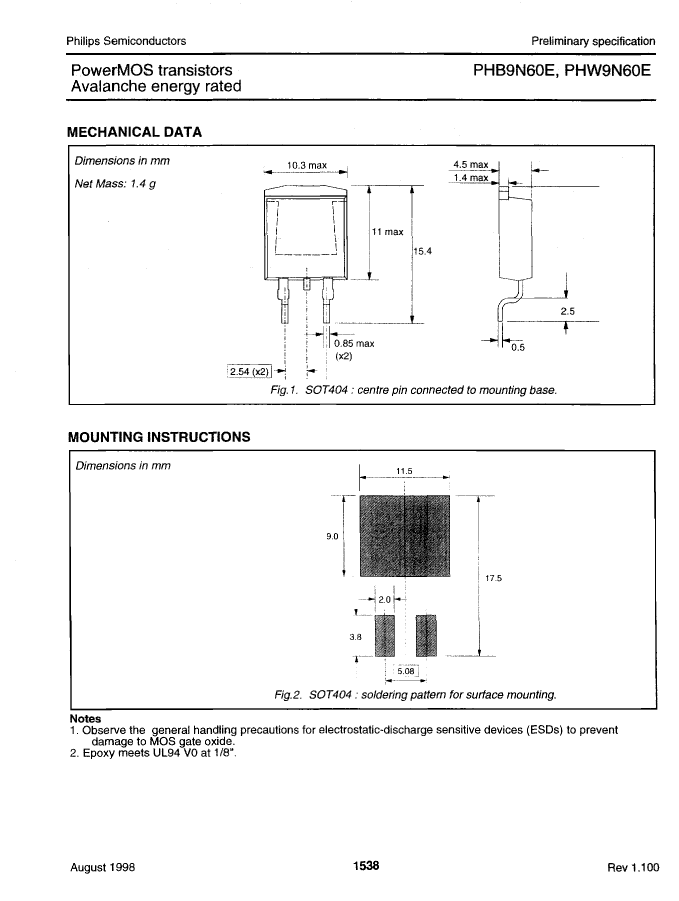

PHW9N60E127 datasheet, PDF - EEWORLD Datasheet

PHW9N60E127: DescriptionTRANSISTOR 8.7 A, 600 V, 0.85 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-247, FET General Purpose Power; CategoryDiscrete semiconductor The transistor; File Size140KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

PHW9N60E127 Overview

TRANSISTOR 8.7 A, 600 V, 0.85 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-247, FET General Purpose Power

Parameter Name	Attribute value
Maker	NXP
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown
Other features	FAST SWITCHING
Avalanche Energy Efficiency Rating (Eas)	813 mJ
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	600 V
Maximum drain current (ID)	8.7 A
Maximum drain-source on-resistance	0.85 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-247
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	N-CHANNEL
Maximum pulsed drain current (IDM)	35 A
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON

	PHW9N60E127	PHB9N60E118
Description	TRANSISTOR 8.7 A, 600 V, 0.85 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-247, FET General Purpose Power	TRANSISTOR 8.7 A, 600 V, 0.85 ohm, N-CHANNEL, Si, POWER, MOSFET, FET General Purpose Power
Maker	NXP	NXP
package instruction	FLANGE MOUNT, R-PSFM-T3	SMALL OUTLINE, R-PSSO-G2
Reach Compliance Code	unknown	unknow
Other features	FAST SWITCHING	FAST SWITCHING
Avalanche Energy Efficiency Rating (Eas)	813 mJ	813 mJ
Shell connection	DRAIN	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	600 V	600 V
Maximum drain current (ID)	8.7 A	8.7 A
Maximum drain-source on-resistance	0.85 Ω	0.85 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PSFM-T3	R-PSSO-G2
Number of components	1	1
Number of terminals	3	2
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	SMALL OUTLINE
Polarity/channel type	N-CHANNEL	N-CHANNEL
Maximum pulsed drain current (IDM)	35 A	35 A
Certification status	Not Qualified	Not Qualified
surface mount	NO	YES
Terminal form	THROUGH-HOLE	GULL WING
Terminal location	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
