rev.
page
date
1 of 3
11/16/2007
PART NUMBER:
MAH17
DESCRIPTION:
absolute encoder
ELECTRICAL SPECIFICATIONS
output signals
output circuit
logic
current consumption
frequency response
supply voltage
output resolution (ppr)
max ouput current
G: gray code, N: natural binary, B: BCD (1000ppr only)
NPN open collector
negative logic (H=0, L=1)
70mA or less (under no load)
20 KHz
5 V dc ± 5%
256 (8 bit), 512 (9 bit), 100, 1024 (10 bit)
sink current each bit 4mA (output voltage resistance 7V)

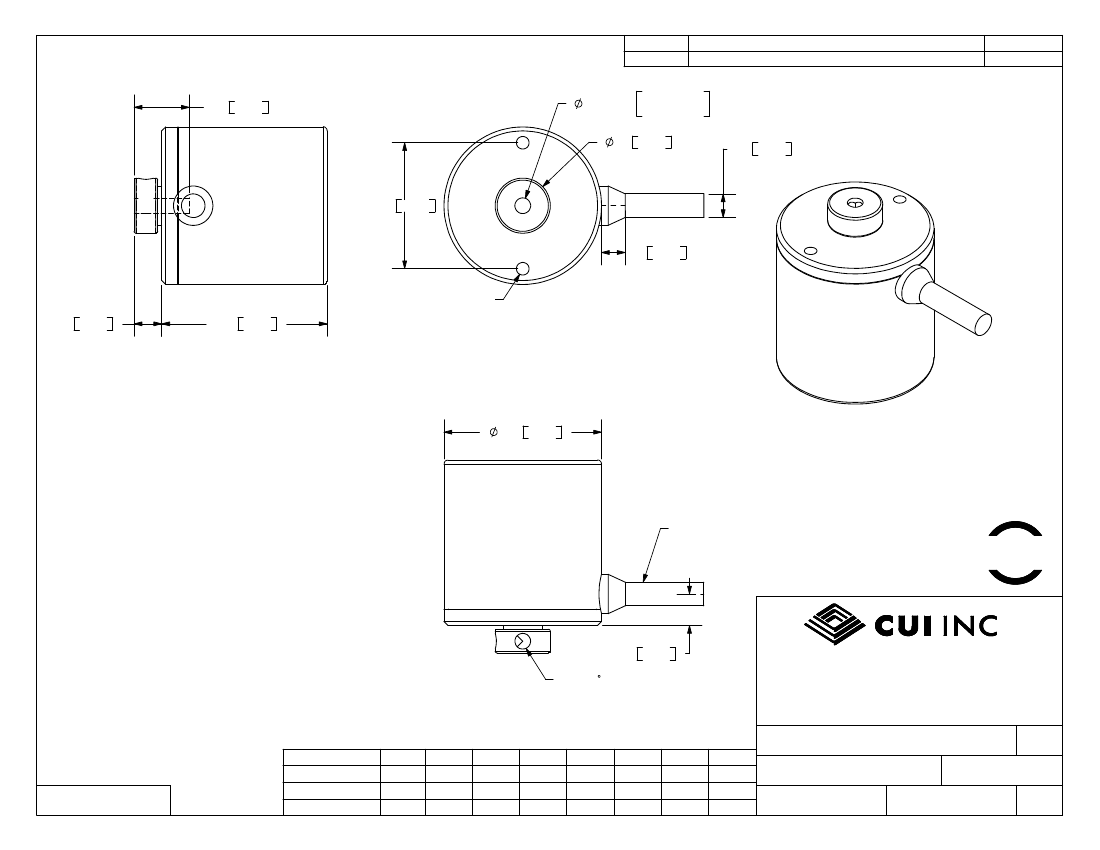

MECHANICAL SPECIFICATIONS
radial:
thrust:
max rotational speed
shock resistance
vibration proof
weight
cable
max shaft loading,
1.9N (200gf)
1.9N (200gf)
6000 RPM
500m/s
2
(50g), X, Y, Z each 3 times
55 Hz / 1.5mm 2h each X, Y, Z
30g (with cable)
256: outside diameter 3mm, 10-core vinyl wire insulated shield cable
(length 1m)
1024: vinyl wire (AWG32) cable length 300mm
ENVIRONMENTAL SPECIFICATIONS
operating temp
storage temp
humidity
-10° to +70° C
-20° to +80° C
RH 35%~ 90%, non collecting
ORDERING INSTRUCTIONS
MAH17 - XXXX-X1
Resolution (PPR):
256 = 256 PPR
512 = 512 PPR
1000 = 1000 PPR
1024 = 1024 PPR
Output Type:
G = Gray Code
N = Natural Binary
B = BCD (1000ppr only)
20050
SW
112
th
Ave. Tualatin, Oregon
97062
phone
503.612.2300
fax
503.612.2383
