SC5203-3.0CSKTR datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> SC5203-3.0CSKTR

SC5203-3.0CSKTR: DescriptionFixed Positive LDO Regulator, 3V, 0.6V Dropout, PDSO4, SOT-143, 4 PIN; CategoryPower/power management The power supply circuit; File Size139KB，4 Pages; ManufacturerSEMTECH; Websitehttp://www.semtech.com

Download Datasheet Parametric Compare View All

SC5203-3.0CSKTR Overview

Fixed Positive LDO Regulator, 3V, 0.6V Dropout, PDSO4, SOT-143, 4 PIN

SC5203-3.0CSKTR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SEMTECH
Objectid	1443284725
Parts packaging code	SOT-143
package instruction	TSOP,
Contacts	4
Reach Compliance Code	unknown
ECCN code	EAR99
compound_id	6882731
Maximum drop-back voltage 1	0.6 V
Maximum input voltage	16 V
Minimum input voltage	4 V
JESD-30 code	R-PDSO-G4
JESD-609 code	e0
length	2.92 mm
Number of functions	1
Number of terminals	4
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min	-40 °C
Maximum output current 1	0.08 A
Maximum output voltage 1	3.12 V
Minimum output voltage 1	2.88 V
Nominal output voltage 1	3 V
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	1.2 mm
surface mount	YES
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.9 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	1.3 mm

Preview

Download Datasheet

View All

!"# $

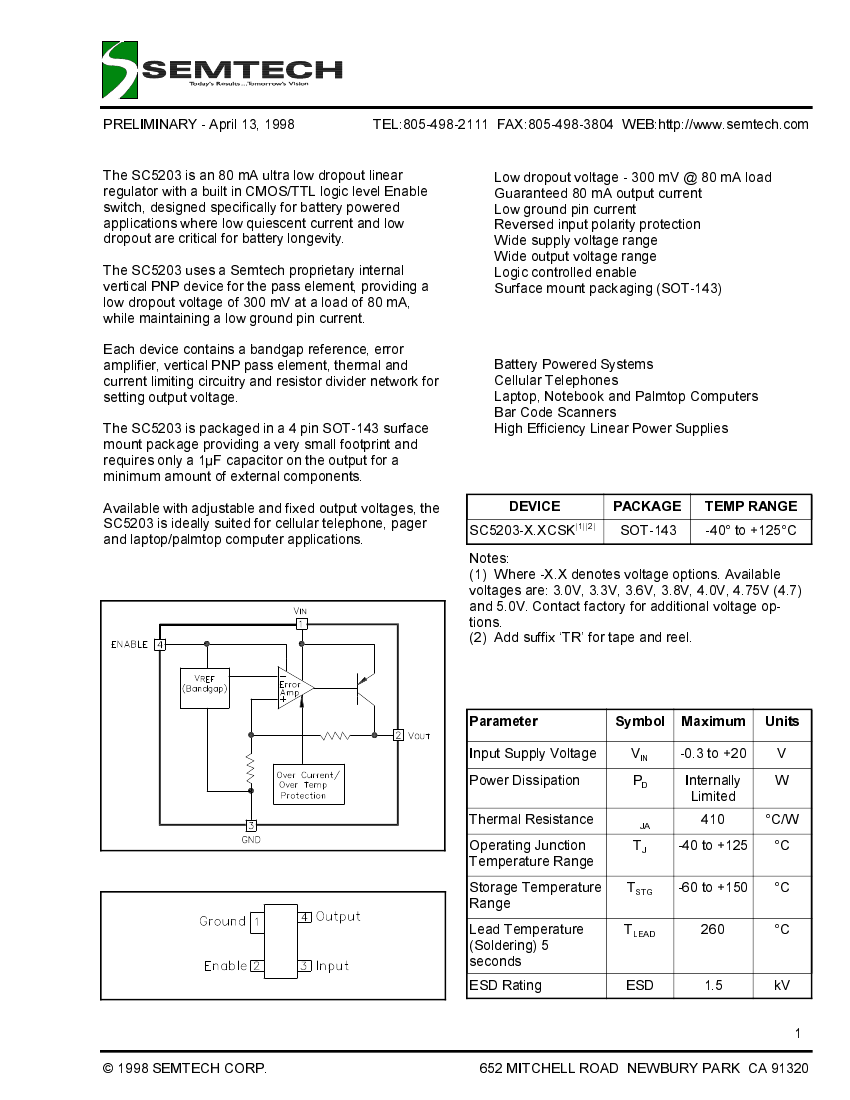

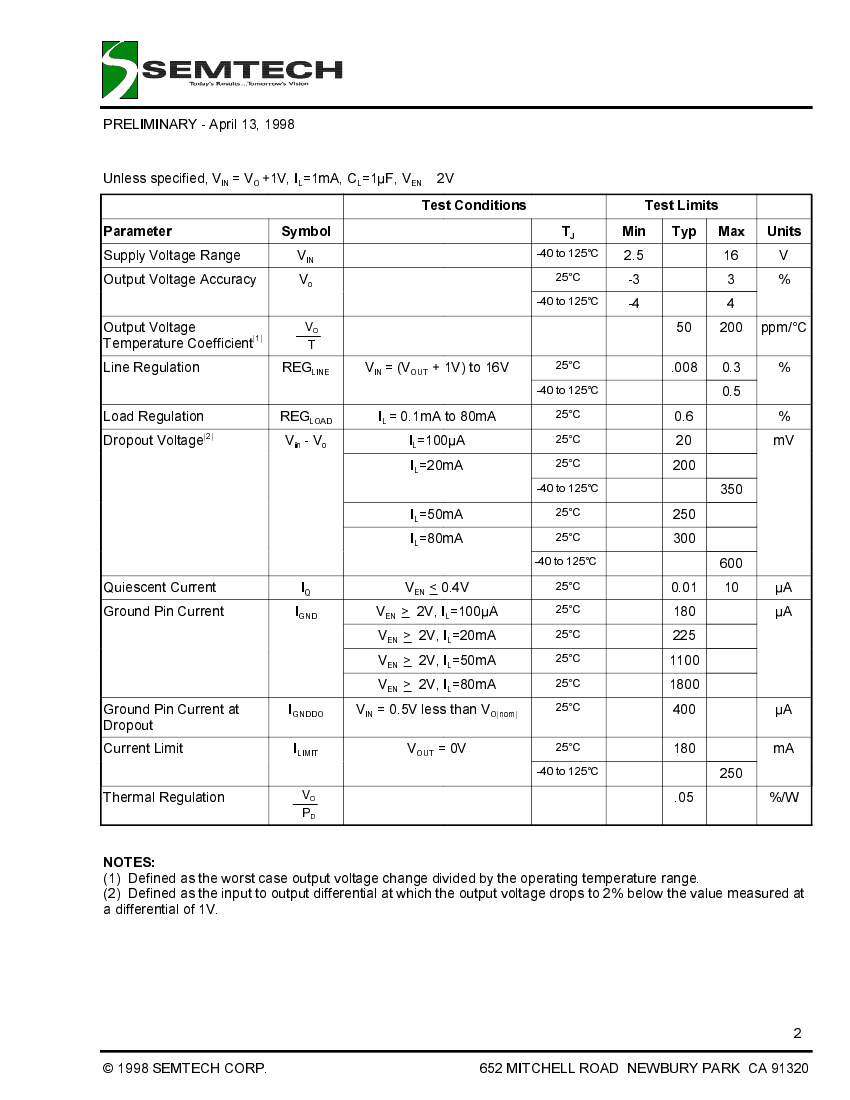

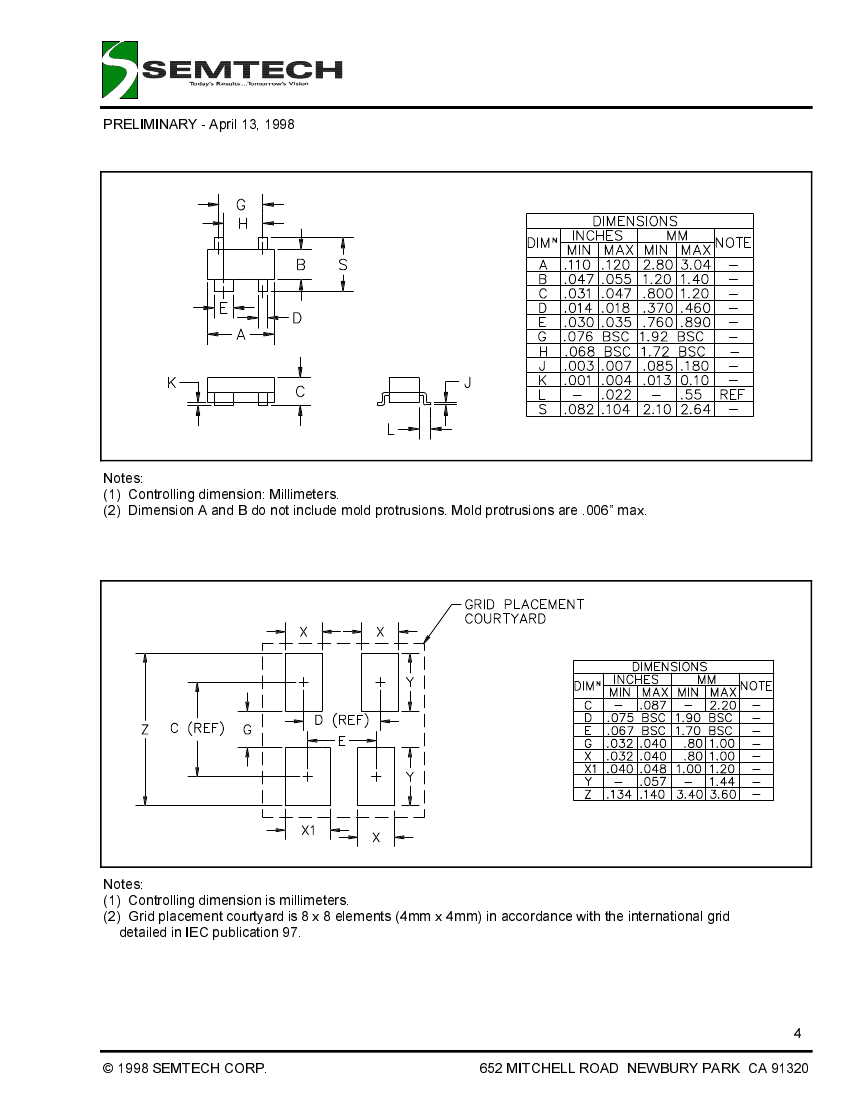

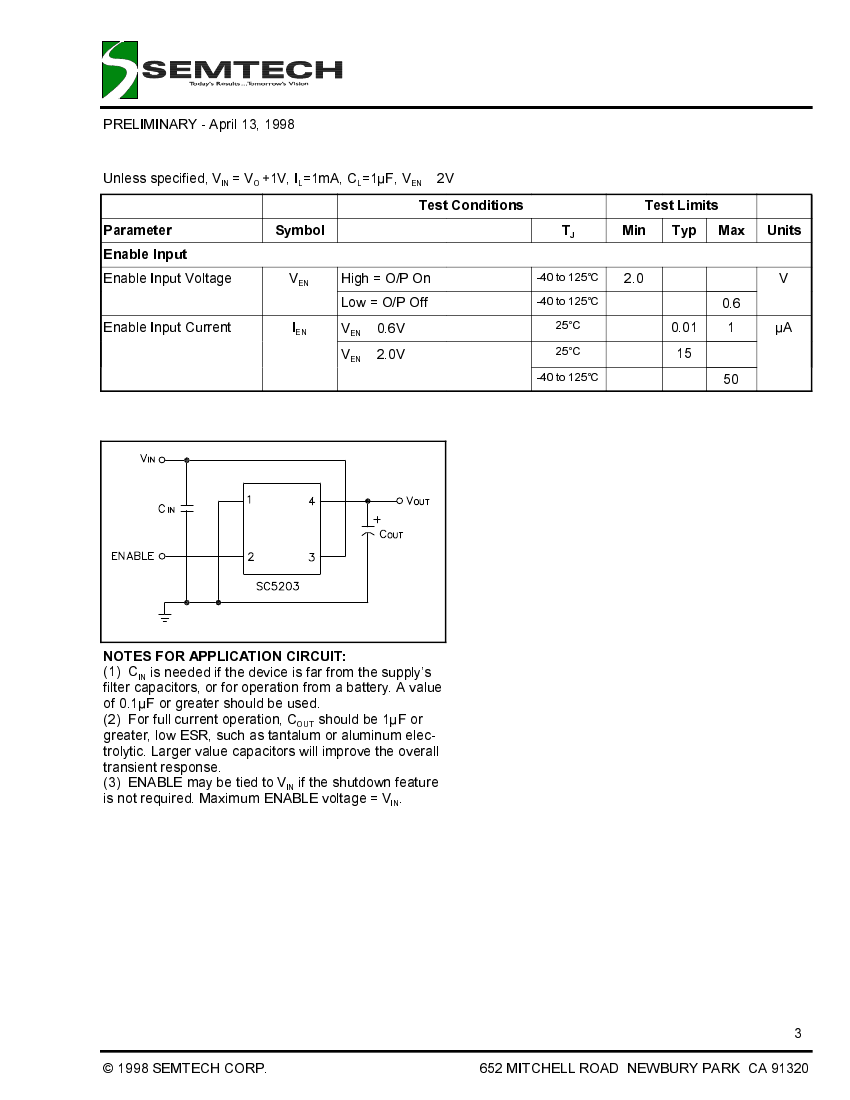

B: G=B:: B<)) B@@&&&4-.)-3<3%.

•

%& '!% %() *%#)+,- ./ 0 . #%+'

•

1(+!+2)--' . %() () 3(!!-2)

•

%& ,!%(2' "2 3(!!-2)

•

-*-!4-' "2 () %#+!")5 !%)-3)"%2

•

"'- 4( #5 *%#)+,- !+2,-

•

"'- %() () *%#)+,- !+2,-

•

%,"3 3%2)!%##-' -2+6#-

•

(!7+3- .%(2) +38+,"2, 9

•

+))-!5 %&-!-' 54)-.4

•

-##(#+! -#- <%2-4

•

+ )% $ %)-6%%8 +2' +#.)% %. ()-!4

•

+! %'- 3+22-!4

•

",< 77"3"-235 "2-+! %&-! ( #"-4

<- "4 +2 . (#)!+ #%& '!% %() #"2-+!

!-,(#+)%! &")< + 6("#) "2

@ #%,"3 #-*-# 2+6#-

4&")3<$ '-4",2-' 4 -3"7"3+##5 7%! 6+))-!5 %&-!-'

+ #"3+)"%24 &<-!- #%& H("-43-2) 3(!!-2) +2' #%&

'!% %() +!- 3!")"3+# 7%! 6+))-!5 #%2,-*")5

<- (4-4 + -.)-3< !% !"-)+!5 "2)-!2+#

*-!)"3+# '-*"3- 7%! )<- +44 -#-.-2)$ !%*"'"2, +

#%& '!% %() *%#)+,- %7 ./ +) + #%+' %7 .$

&<"#- .+"2)+"2"2, + #%& ,!%(2' "2 3(!!-2)

+3< '-*"3- 3%2)+"24 + 6+2',+ !-7-!-23-$ -!!%!

+. #"7"-!$ *-!)"3+# +44 -#-.-2)$ )<-!.+# +2'

3(!!-2) #".")"2, 3"!3(")!5 +2' !-4"4)%! '"*"'-! 2-)&%!8 7%!

4-))"2, %() () *%#)+,-

<- "4 +38+,-' "2 + : "2

: 4(!7+3-

.%(2) +38+,- !%*"'"2, + *-!5 4.+## 7%%) !"2) +2'

!-H("!-4 %2#5 + IG 3+ +3")%! %2 )<- %() () 7%! +

."2".(. +.%(2) %7 -D)-!2+# 3%. %2-2)4

*+"#+6#- &")< +'J(4)+6#- +2' 7"D-' %() () *%#)+,-4$ )<-

"4 "'-+##5 4(")-' 7%! 3-##(#+! )-#- <%2-$ +,-!

+2' #+ )% @ +#.)% 3%. ()-! + #"3+)"%24

: :> )% ?>

%)-4B

9; <-!- == '-2%)-4 *%#)+,- % )"%24 *+"#+6#-

*%#)+,-4 +!-B /$ /$ /$ /$ :/$ :C/ 9:C;

+2' / %2)+3) 7+3)%!5 7%! +''")"%2+# *%#)+,- %

)"%24

9; '' 4(77"D E F 7%! )+ - +2' !--#

2 () ( #5 /%#)+,-

%&-! "44" +)"%2

<-!.+# -4"4)+23-

-!+)"2, A(23)"%2

-. -!+)(!- +2,-

)%!+,- -. -!+)(!-

+2,-

-+' -. -!+)(!-

9%#'-!"2,;

4-3%2'4

+)"2,

)% ?

2)-!2+##5

".")-'

> @

: )% ? >

)% ?

SC5203-3.0CSKTR Related Products

	SC5203-3.0CSKTR	SC5203-4.0CSKTR	SC5203-4.7CSKTR	SC5203-3.3CSKTR	SC5203-3.6CSKTR	SC5203-3.8CSKTR	SC5203-5.0CSKTR
Description	Fixed Positive LDO Regulator, 3V, 0.6V Dropout, PDSO4, SOT-143, 4 PIN	Fixed Positive LDO Regulator, 4V, 0.6V Dropout, PDSO4, SOT-143, 4 PIN	Fixed Positive LDO Regulator, 4.7V, 0.6V Dropout, PDSO4, SOT-143, 4 PIN	Fixed Positive LDO Regulator, 3.3V, 0.6V Dropout, PDSO4, SOT-143, 4 PIN	Fixed Positive LDO Regulator, 3.6V, 0.6V Dropout, PDSO4, SOT-143, 4 PIN	Fixed Positive LDO Regulator, 3.8V, 0.6V Dropout, PDSO4, SOT-143, 4 PIN	Fixed Positive LDO Regulator, 5V, 0.6V Dropout, PDSO4, SOT-143, 4 PIN
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	SOT-143	SOT-143	SOT-143	SOT-143	SOT-143	SOT-143	SOT-143
package instruction	TSOP,	TSOP,	TSOP,	TSOP,	TSOP,	TSOP,	TSOP,
Contacts	4	4	4	4	4	4	4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum drop-back voltage 1	0.6 V	0.6 V	0.6 V	0.6 V	0.6 V	0.6 V	0.6 V
Maximum input voltage	16 V	16 V	16 V	16 V	16 V	16 V	16 V
Minimum input voltage	4 V	5 V	5.7 V	4.3 V	4.6 V	4.8 V	6 V
JESD-30 code	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
length	2.92 mm	2.92 mm	2.92 mm	2.92 mm	2.92 mm	2.92 mm	2.92 mm
Number of functions	1	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4	4
Working temperatureTJ-Max	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Maximum output current 1	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A
Maximum output voltage 1	3.12 V	4.16 V	4.888 V	3.432 V	3.744 V	3.952 V	5.2 V
Minimum output voltage 1	2.88 V	3.84 V	4.512 V	3.168 V	3.456 V	3.648 V	4.8 V
Nominal output voltage 1	3 V	4 V	4.7 V	3.3 V	3.6 V	3.8 V	5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP	TSOP	TSOP	TSOP	TSOP	TSOP	TSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.9 mm	1.9 mm	1.9 mm	1.9 mm	1.9 mm	1.9 mm	1.9 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	1.3 mm	1.3 mm	1.3 mm	1.3 mm	1.3 mm	1.3 mm	1.3 mm
Maker	SEMTECH	-	SEMTECH	SEMTECH	SEMTECH	SEMTECH	SEMTECH
Working temperature TJ-Min	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-
