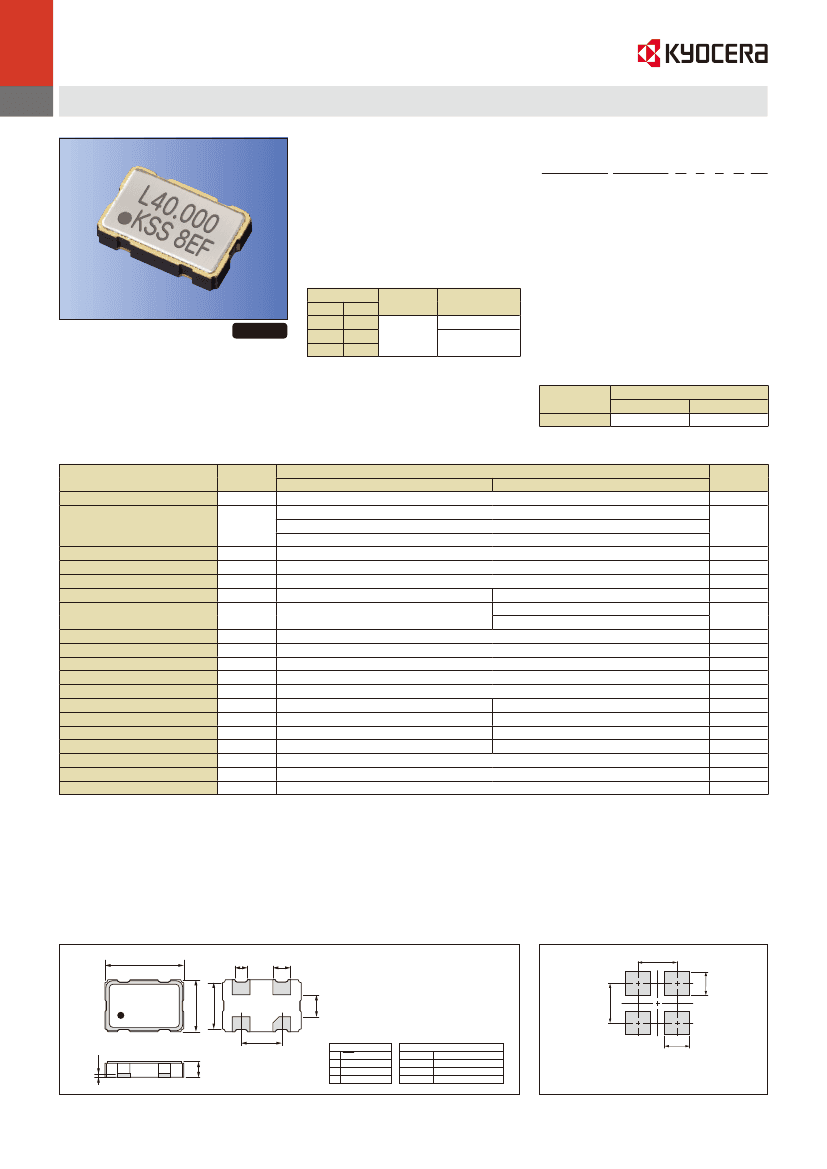

Clock Oscillators Surface Mount Type

KC5032D Series (FXO-61F2 Series)

CMOS/ 3.3V/ 5.0V/ 5.0×3.2mm

Features

• Compact and low profile (5×3.2×1.2mm)

• Surface mount type suitable for auto

pick-and-place

• Reflow soldering compatible

• CMOS, TTL IC direct drive is possible

• With tri-state function

• Supply voltage V

CC

=3.3/

5.0V available

How to Order

KC5032D 25.0000 C 3 1 B 00

①

②

③④⑤⑥ ⑦

Frequency Tolerance (Overall)

Operating

Freq. Tol.

Note

−

6

Temperature

Code

×

10

Range (

°

C)

±100

1

1.8 to 50MHz

−10

to

+70

±

50

0

(standard) 1.8 to 32MHz

±

30

S

①

Type

②

Output Frequency

③

Output Type (CMOS)

④

Supply Voltage 5=5.0V, 3=3.3V

⑤

Frequency Tolerance (See table at left)

⑥

Symmetry/ INH Function

A: 40/ 60%, Disable

B: 40/ 60%, Stand-by

⑦

Customer Special Model Suffix

(STD Specification is “00”)

RoHS Compliant

Symmetry/ INH Function

Freq.

(MHz)

1.8 to 50

Code

KC5032D-C5 KC5032D-C3

A

B

Specifications

Item

Output Frequency Range

Frequency Tolerance (Overall)

Storage Temperature Range

Operating Temperature Range

Max. Supply Voltage

Supply Voltage

Current Consumption

Stand-by/ Disable Current

Symmetry

Rise/ Fall Time

Low Level Output Voltage

High Level Output Voltage

CMOS Load

Input Voltage Range

Low Level Input Voltage

High Level Input Voltage

Disable Time

Enable Time

Start-up Time

Symbol

fo

f

_tol

T

_stg

T

_use

—

V

CC

I

CC

I

_std

SYM

tr/ tf

V

OL

V

OH

L_CMOS

V

IN

V

IL

V

IH

t

_dis

t

_ena

t

_str

Specifications

KC5032Dxx.xxxxC5xA00 (FXO-61F2)

KC5032Dxx.xxxxC3xB00 (FXO-61FL2)

1.8 to 50

±30

(to 32MHz)

±50

(to 32MHz)

±100

(to 50MHz)

−40

to

+85

−10

to

+70

7 max.

5±0.5

3.3±0.3

18 max. (1.8 to 39.9MHz)

25 max.

25 max. (40 to 50MHz)

10 max.

40 to 60@50%V

CC

10 max.

10% V

CC

max.

90% V

CC

min.

15 max.

20 max.

0 to V

CC

0 to V

CC

0.8 max.

0.3 max.

2.2 min.

150 max.

5 max.

10 max.

Units

MHz

×10

−

6

°C

V

mA

µA

%

nS

V

pF

V

nS

mS

Note: All electrical characteristics are defined at the maximum load and operating temperature range.

Please contact us for inquiry about operating temperature range, available frequencies and other conditions.

Dimensions

(Unit: mm)

Recommended Land Pattern

2.5

1.5

(Unit: mm)

②

①

2.5

③

④

1.6

①

②

③

④

Note: A capacitor of value 0.01 F between V

CC

and GND is recommended.
