14.22mm (0.56INCH) FOUR DIGIT NUMERIC
DISPLAY
Part Number: CC56-21SURKWA
Hyper Red
Features
0.56 inch digit height.
Low current operation.
Excellent character appearance.

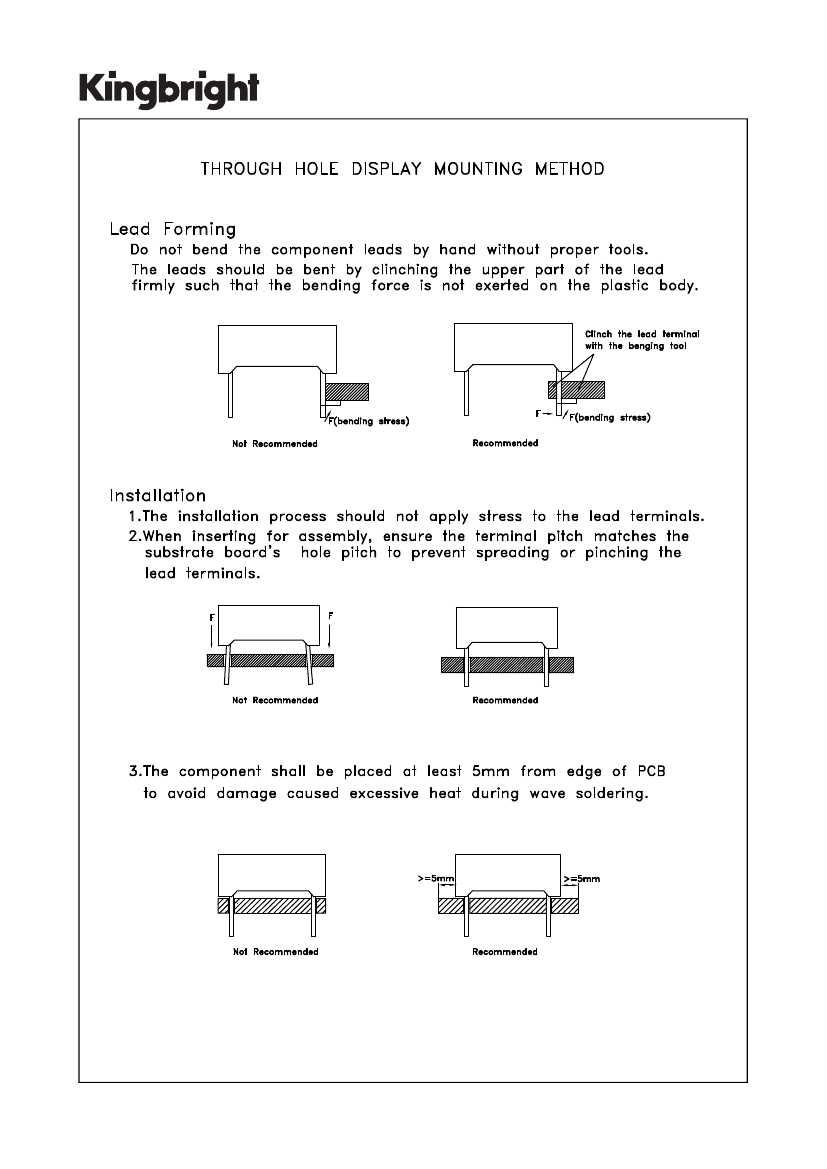

Easy mounting on P.C. boards or sockets.
Mechanically rugged.
Standard: gray face, white segment.
RoHS compliant.
Description
The Hyper Red source color devices are made with Al-
GaInP on GaAs substrate Light Emitting Diode.

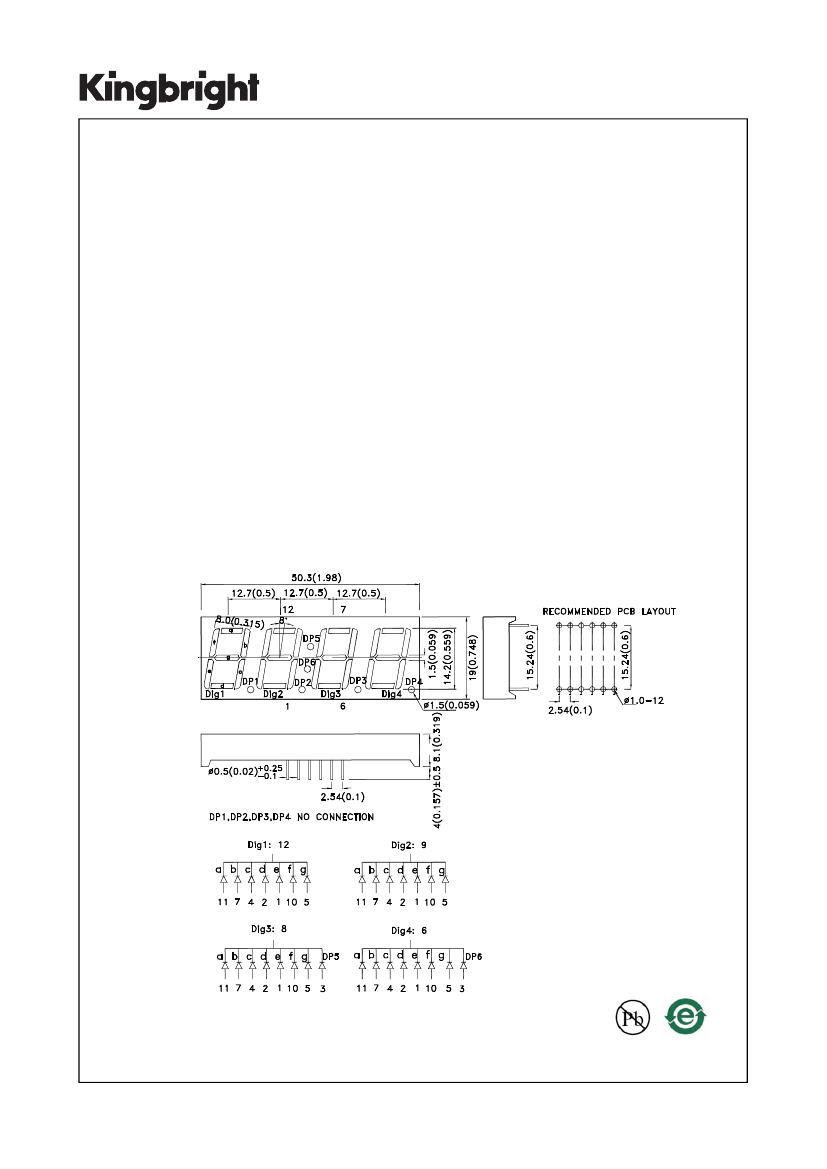

Package Dimensions& Internal Circuit Diagram
Notes:
1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.
2. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
SPEC NO: DSAK2831
APPROVED: WYNEC
REV NO: V.5A
CHECKED: Joe Lee
DATE: MAY/15/2013
DRAWN: Q.M.CHEN
PAGE: 1 OF 6
ERP: 1304000354
Selection Guide
Part No.
Dice
Lens Type
Iv (ucd) [1]
@ 10mA
Min.
CC56-21SURKWA
Hyper Red (AlGaInP)
White Diffused
31000
*14000
Typ.
72000
*24000
Common Cathode
Description
Note:
1. Luminous intensity/ luminous Flux: +/-15%.
* Luminous intensity value is traceable to the CIE127-2007 compliant national standards.

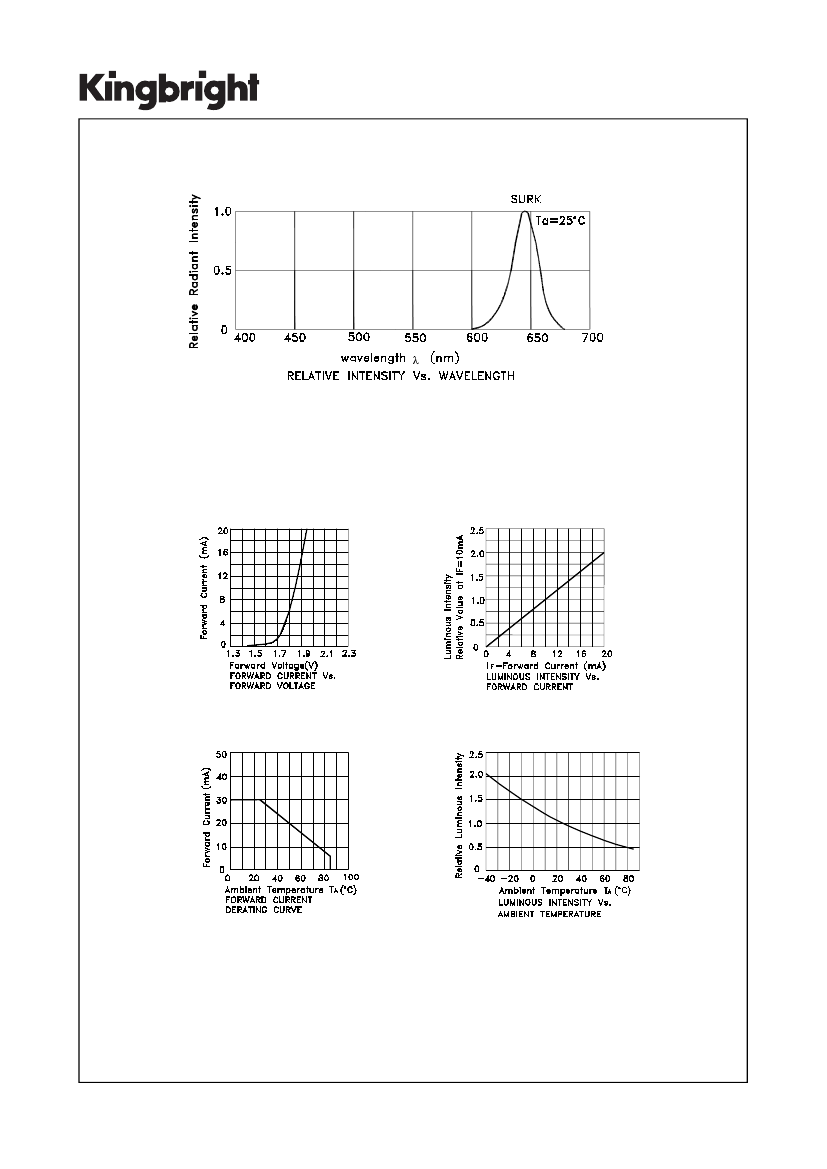

Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Hyper Red
Hyper Red
Hyper Red
Hyper Red
Hyper Red
Hyper Red
Typ.
645
630
28
35
1.95
2.5
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
=5V
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
3. Wavelength value is traceable to the CIE127-2007 compliant national standards.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating / Storage Temperature
Lead Solder Temperature[2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
Hyper Red
75
30
185
5
-40°C To +85°C
260°C For 3-5 Seconds
Units
mW
mA
mA
V
SPEC NO: DSAK2831
APPROVED: WYNEC
REV NO: V.5A
CHECKED: Joe Lee
DATE: MAY/15/2013
DRAWN: Q.M.CHEN
PAGE: 2 OF 6
ERP: 1304000354
