TDC1035B7C datasheet, PDF - EEWORLD Datasheet

TDC1035B7C: DescriptionAnalog Circuit, CDIP24,; CategoryAnalog mixed-signal IC The signal circuit; File Size498KB，8 Pages; ManufacturerRaytheon Company; Websitehttps://www.raytheon.com/

Download Datasheet Parametric Compare View All

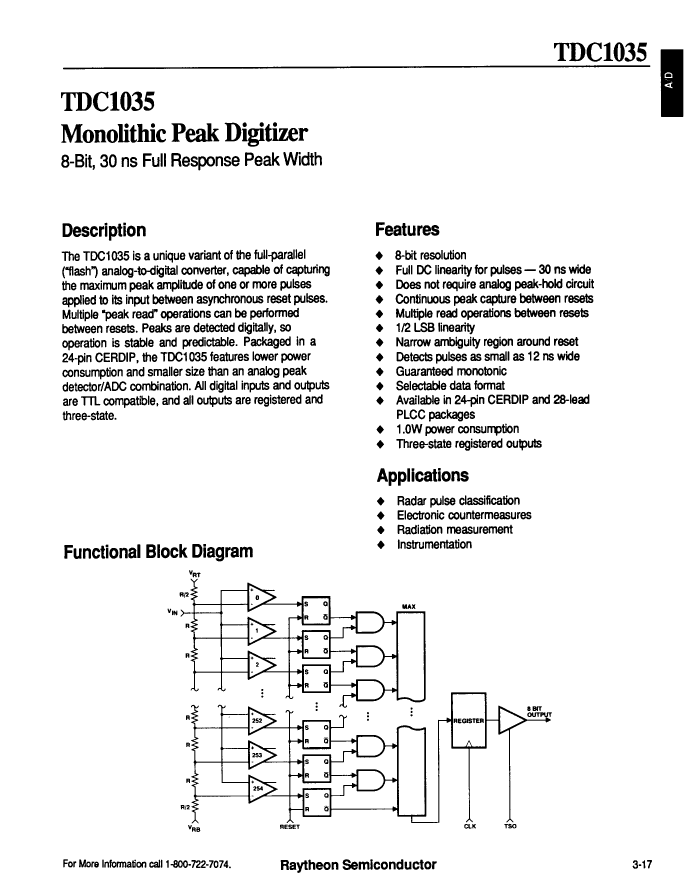

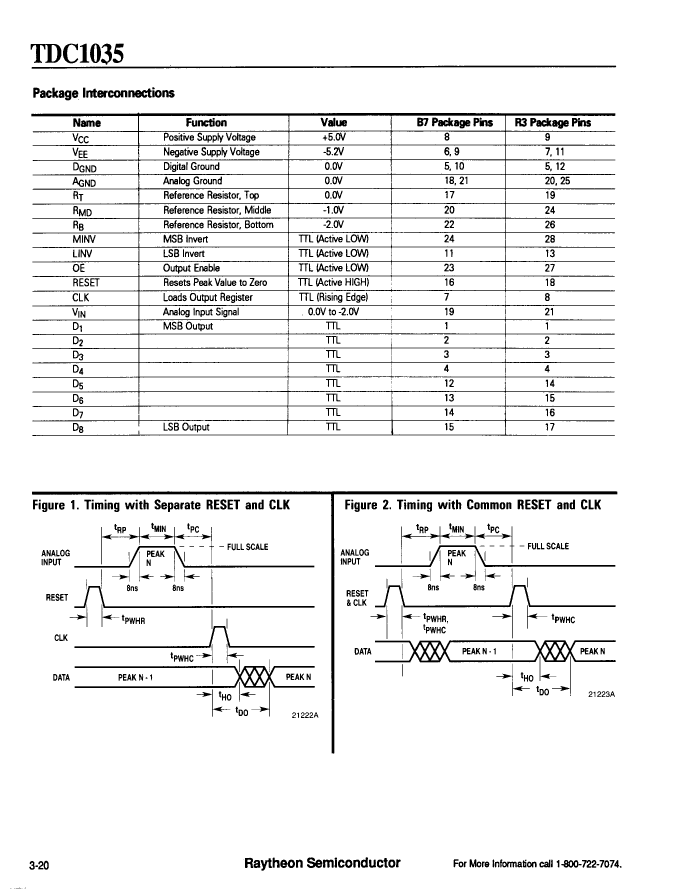

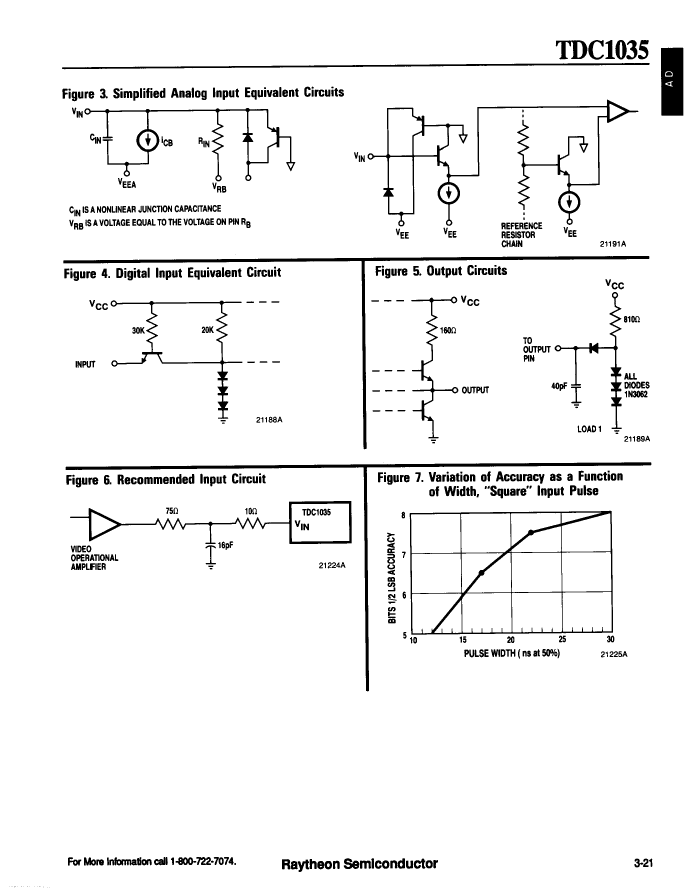

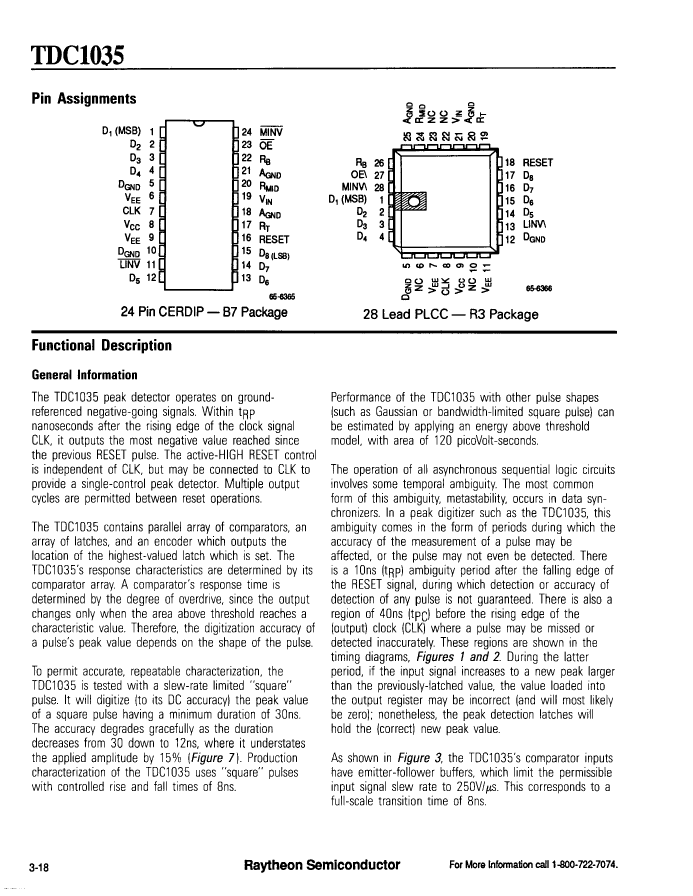

TDC1035B7C Overview

Analog Circuit, CDIP24,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Raytheon Company
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T24
JESD-609 code	e0
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE

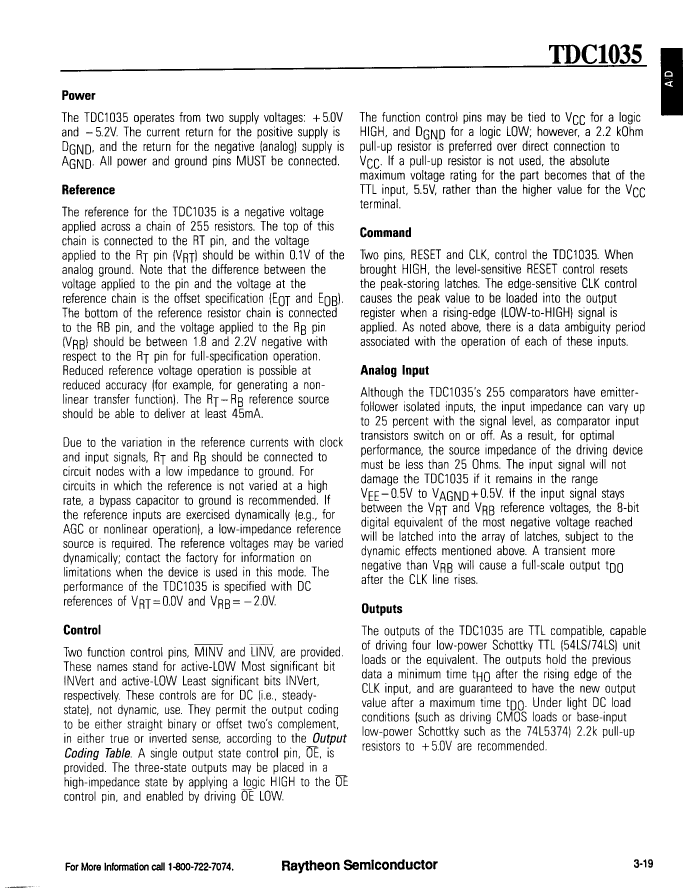

power supply	5,-5.2 V
Certification status	Not Qualified
surface mount	NO
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	TDC1035B7C	TDC1035B7V	TDC1035R3C	TDC1035
Description	Analog Circuit, CDIP24,	Analog Circuit, CDIP24,	Analog Circuit, PQCC28,	Analog Circuit, CDIP24,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown
JESD-30 code	R-XDIP-T24	R-XDIP-T24	S-PQCC-J28	R-XDIP-T24
JESD-609 code	e0	e0	e0	e0
Number of terminals	24	24	28	24
Maximum operating temperature	70 °C	125 °C	70 °C	70 °C
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DIP	QCCJ	DIP
Encapsulate equivalent code	DIP24,.6	DIP24,.6	LDCC28,.5SQ	DIP24,.6
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE
power supply	5,-5.2 V	5,-5.2 V	5,-5.2 V	5,-5.2 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	YES	NO
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	J BEND	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	QUAD	DUAL
