86117ZSG datasheet, PDF - EEWORLD Datasheet

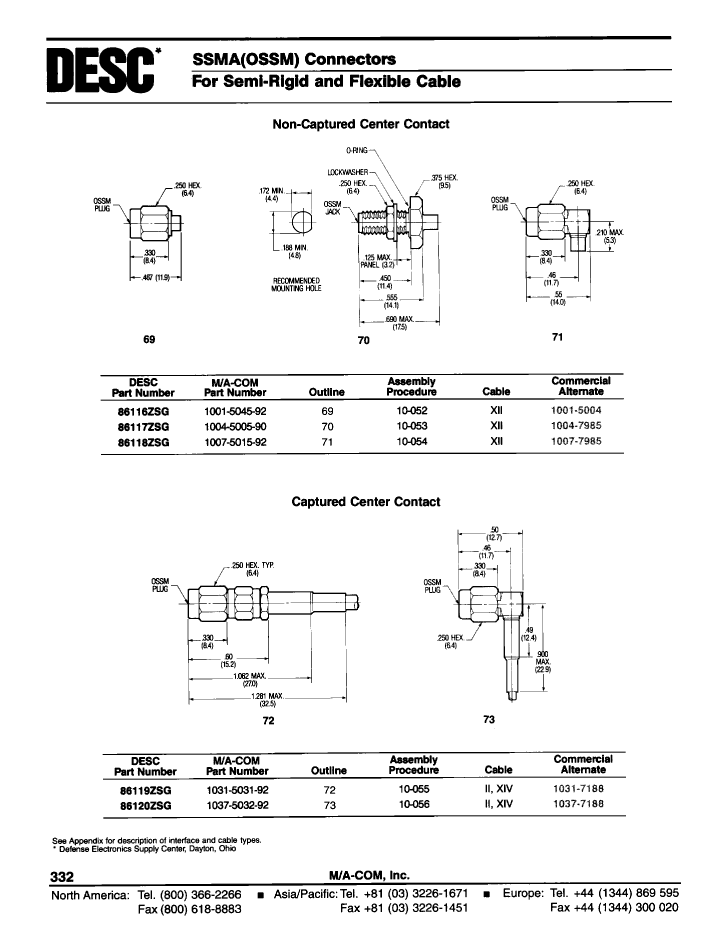

86117ZSG: DescriptionRF SSMA Connector, Female, Cable Mount, Jack; CategoryThe connector The connector; File Size28KB，1 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric Compare View All

86117ZSG Overview

RF SSMA Connector, Female, Cable Mount, Jack

Parameter Name	Attribute value
Maker	MACOM
Reach Compliance Code	unknown
Other features	APPLICABLE CABLE: RG-405/U
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF SSMA CONNECTOR
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	SSMA(OSSM)
Installation method	STRAIGHT
Installation type	CABLE
Options	GENERAL PURPOSE
Panel mounting	NO

	86117ZSG	86116ZSG	86120ZSG	86118ZSG	86119ZSG
Description	RF SSMA Connector, Female, Cable Mount, Jack	RF SSMA Connector, Male, Cable Mount, Plug	RF SSMA Connector, Male, Cable Mount, Plug	RF SSMA Connector, Male, Cable Mount, Plug	RF SSMA Connector, Male, Cable Mount, Plug
Maker	MACOM	MACOM	MACOM	MACOM	MACOM
Reach Compliance Code	unknown	unknow	unknow	unknown	unknown
Other features	APPLICABLE CABLE: RG-405/U	APPLICABLE CABLE: RG-405/U	APPLICABLE CABLE:RG-174/U; RG-179/U; RG-316, CAPTIVE CONTACT	APPLICABLE CABLE: RG-405/U	APPLICABLE CABLE:RG-174/U; RG-179/U; RG-316, CAPTIVE CONTACT
Body/casing type	JACK	PLUG	PLUG	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF SSMA CONNECTOR	RF SSMA CONNECTOR	RF SSMA CONNECTOR	RF SSMA CONNECTOR	RF SSMA CONNECTOR
Contact point gender	FEMALE	MALE	MALE	MALE	MALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	SSMA(OSSM)	SSMA(OSSM)	SSMA(OSSM)	SSMA(OSSM)	SSMA(OSSM)
Installation method	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO	NO
