ISB35-SM: DescriptionSolid State Relay, TRANSISTOR OUTPUT SOLID STATE RELAY, 3750 V ISOLATION-MAX, SURFACE MOUNT, DIP-6; CategoryLED optoelectronic/LED photoelectric; File Size75KB，2 Pages; ManufacturerIsocom Components; Websitehttp://www.isocom.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ISB35-SM Overview

Solid State Relay, TRANSISTOR OUTPUT SOLID STATE RELAY, 3750 V ISOLATION-MAX, SURFACE MOUNT, DIP-6

ISB35-SM Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Isocom Components
Reach Compliance Code	unknown
Other features	HIGH RELIABILITY
Configuration	SINGLE
Maximum forward current	0.05 A
Maximum insulation voltage	3750 V
Number of components	1
Maximum on-state current	0.1 A
Maximum on-state resistance	50 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	TRANSISTOR OUTPUT SSR

Preview

Download Datasheet

View All

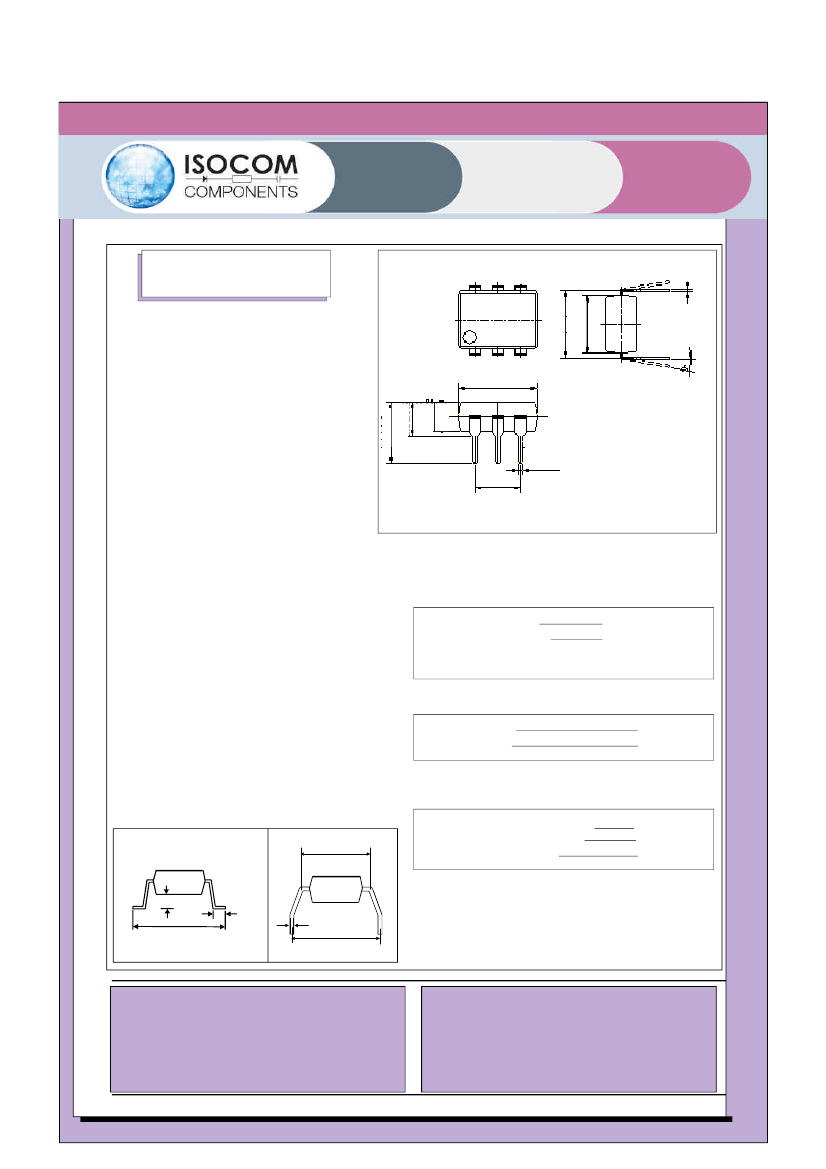

ISB35

DESCRIPTION

6.9

3.9

3.4

Dimensions in mm

6

5

4

ISB35

7.62

6.4

1

2

3

7.62

6

5

4

1

2

3

8.6

8.8

8.2

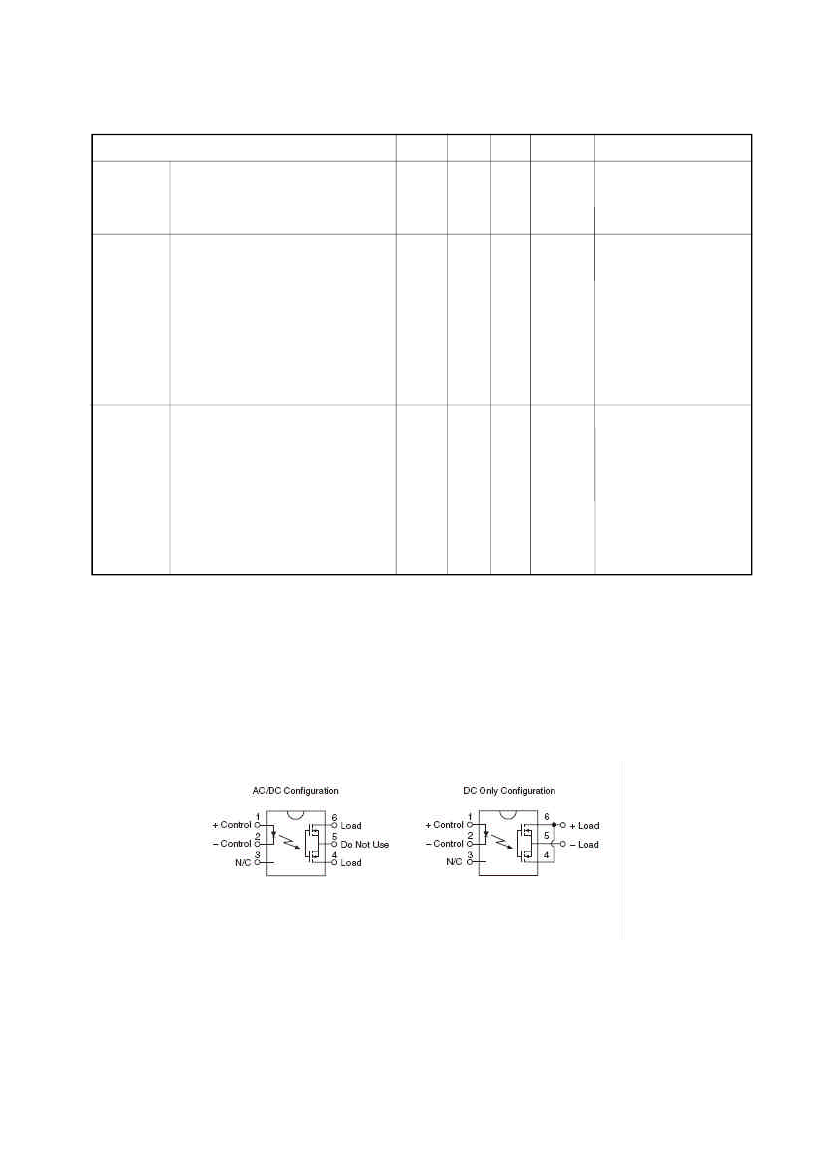

The ISB35 is a 1-Form B solid state relay in a 6

pin DIL package. The ISB35 utilises MOSFET

technology that is optically coupled to a highly

efficient GaAlAs infrared light emitting diode.

FEATURES

l

Options :-

10mm lead spread - add G after part no.

Surface mount - add SM after part no.

Tape&reel - add SMT&R after part no.

l

High Load voltage(350V)

l

High Isolation Voltage (3.75kV

RMS

)

l

No moving parts

l

High reliability

l

Arc-Free without snubber circuits

l

All electrical parameters 100% tested

l

Custom electrical selections available

APPLICATIONS

l

Telecommunications

l

Industrial systems controllers

l

Measuring instruments

l

Signal transmission between systems of

different potentials and impedances

0.47

5.08

ABSOLUTEMAXIMUMRATINGS

(25°C unless otherwise specified)

Storage Temperature

-40°C to + 100°C

Operating Temperature

-40°C to + 85°C

Lead Soldering Temperature

(1/16 inch (1.6mm) from case for 10 secs) 260°C

INPUT DIODE

Forward Current

Reverse Voltage

OUTPUT MOSFET

50mA

5V

OPTION SM

SURFACE MOUNT

OPTION G

7.62

Load Voltage ( AC peak or DC )

Continous Load Current

Peak Current ( 10mS )

350V

100mA

250mA

0.6

0.1

10.46

9.86

1.25

0.75

0.26

10.16

ISOCOM COMPONENTS LTD

Unit 25B, Park View Road West,

Park View Industrial Estate, Brenda Road

Hartlepool, TS25 1YD England Tel: (01429)863609

Fax : (01429) 863581 e-mail sales@isocom.co.uk

http://www.isocom.com

6/12/06

ISOCOM COMPONENTS ASIA LTD

Hong Kong Office, 1712-1713

Laurels Industrial Centre, 32 Tai Yau Street,

San Po Kong, Kowloon, Hong Kong.

Tel: +852 2995 9217 Fax : +852 8161 6292

e-mail sales@isocom.com.hk

DC93074

0

.
