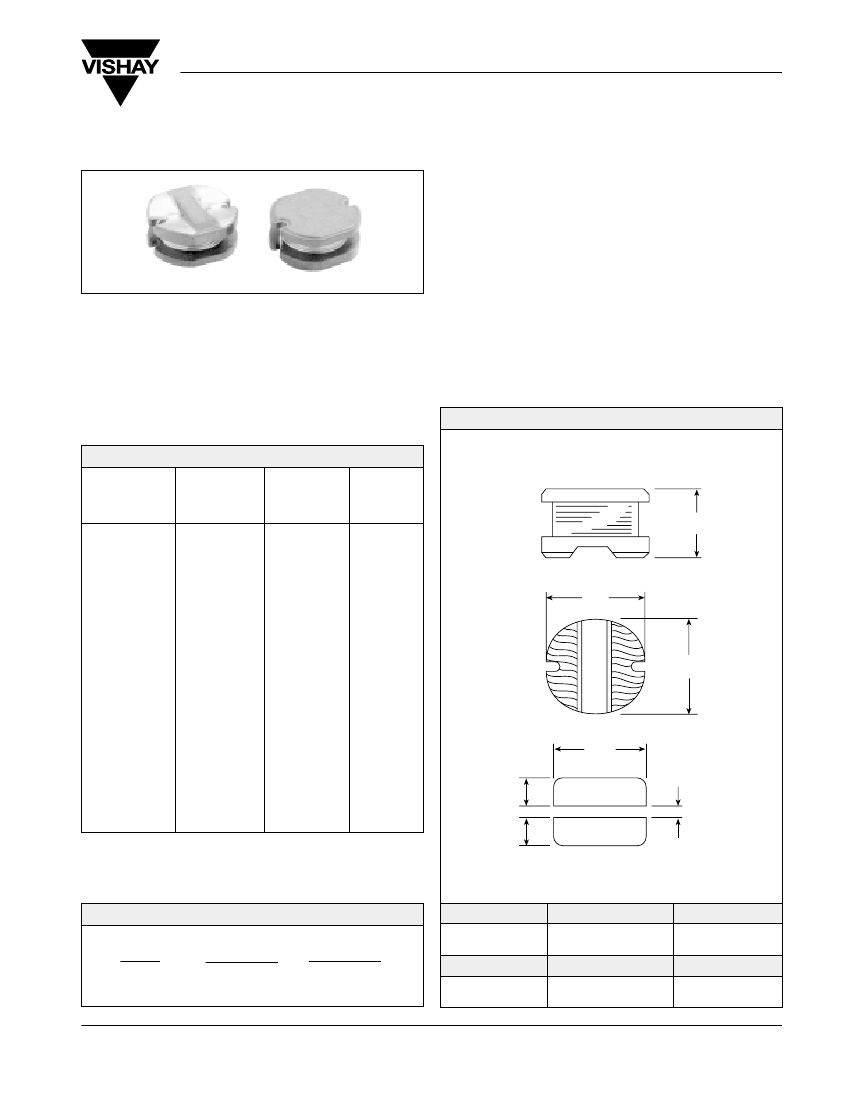

Model IDCP-3916
Vishay Dale
Inductors
High Current, Surface Mount
FEATURES
• High energy storage.
• Low resistance.
• Tape and reel packaging for automatic handling.
ELECTRICAL SPECIFICATIONS
Inductance Range:
10.0µH to 560µH.
Inductance Tolerance:
20%, 10%
Operating Temperature:
- 20°C to + 80°C.
Storage Temperature:
- 25°C to 85°C.
Resistance to Solder Heat:
260°C for 10 seconds.
MATERIALS
Core:
Ferrite.
Wire:
Enamelled copper wire.
Terminal:
Ag + Ni + Sn/Pb.
DIMENSIONS
in inches (millimeters)
STANDARD ELECTRICAL SPECIFICATIONS
INDUCTANCE
(
µ
H)
10.0
12.0
15.0
18.0
22.0
27.0
33.0
39.0
47.0
56.0
68.0
82.0
100.0
120.0
150.0
180.0
220.0
270.0
330.0
390.0
470.0
560.0
TEST
FREQUENCY
L
2.52MHz
2.52MHz
2.52MHz
2.52MHz
2.52MHz
2.52MHz
2.52MHz
2.52MHz
2.52MHz
2.52MHz
2.52MHz
2.52MHz
1KHz
1KHz
1KHz
1KHz
1KHz
1KHz
1KHz
1KHz
1KHz
1KHz
DCR
MAXIMUM
(Ohms)
0.05
0.06
0.07
0.08
0.09
0.10
0.12
0.15
0.17
0.20
0.22
0.25
0.34
0.40
0.54
0.62
0.72
0.95
1.10
1.24
1.53
1.90
RATED
DC
CURRENT*
(A)
2.38
2.13
1.87
1.73
1.60
1.44
1.26
1.20
1.10
1.01
0.91
0.85
0.74
0.69
0.61
0.56
0.53
0.45
0.42
0.38
0.35
0.32
B
A
C
D
F
E
E
*Rated Current: Value obtained when current flows and the temperature
has risen 40°C or when DC current flows and the
initial value of inductance has fallen by 10%,
whichever is smaller.
ORDERING INFORMATION
IDCP-3916
MODEL
10
µ
H
INDUCTANCE
VALUE
A
B
0.158
±
0.02
[4.0
±
0.5]
E
0.148
[3.75]
C
0.355
±
0.01
[9.0
±
0.3]
F
0.099
[2.5]
±
20%
INDUCTANCE
TOLERANCE
0.394
±
0.01
[10.0
±
0.3]
D
0.374
[9.5]
Document Number 34131
Revision 03-May-01
www.vishay.com
61
