UDN2953B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Other integrated circuit (IC)> The signal circuit> UDN2953B

UDN2953B: DescriptionSTEPPER MOTOR CONTROLLER; CategoryOther integrated circuit (IC) The signal circuit; File Size566KB，7 Pages; ManufacturerAllegro; Websitehttp://www.allegromicro.com/; Related ProductsFound19parts with similar functions to UDN2953B

Download Datasheet Parametric Compare View All

UDN2953B Overview

STEPPER MOTOR CONTROLLER

UDN2953B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Allegro
Parts packaging code	DIP
package instruction	PLASTIC, DIP-16
Contacts	16
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	DIP-16
Analog Integrated Circuits - Other Types	STEPPER MOTOR CONTROLLER
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
length	20.13 mm
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Maximum output current	3.5 A
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,50 V
Certification status	Not Qualified
Maximum seat height	5.33 mm
Maximum supply current (Isup)	60 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

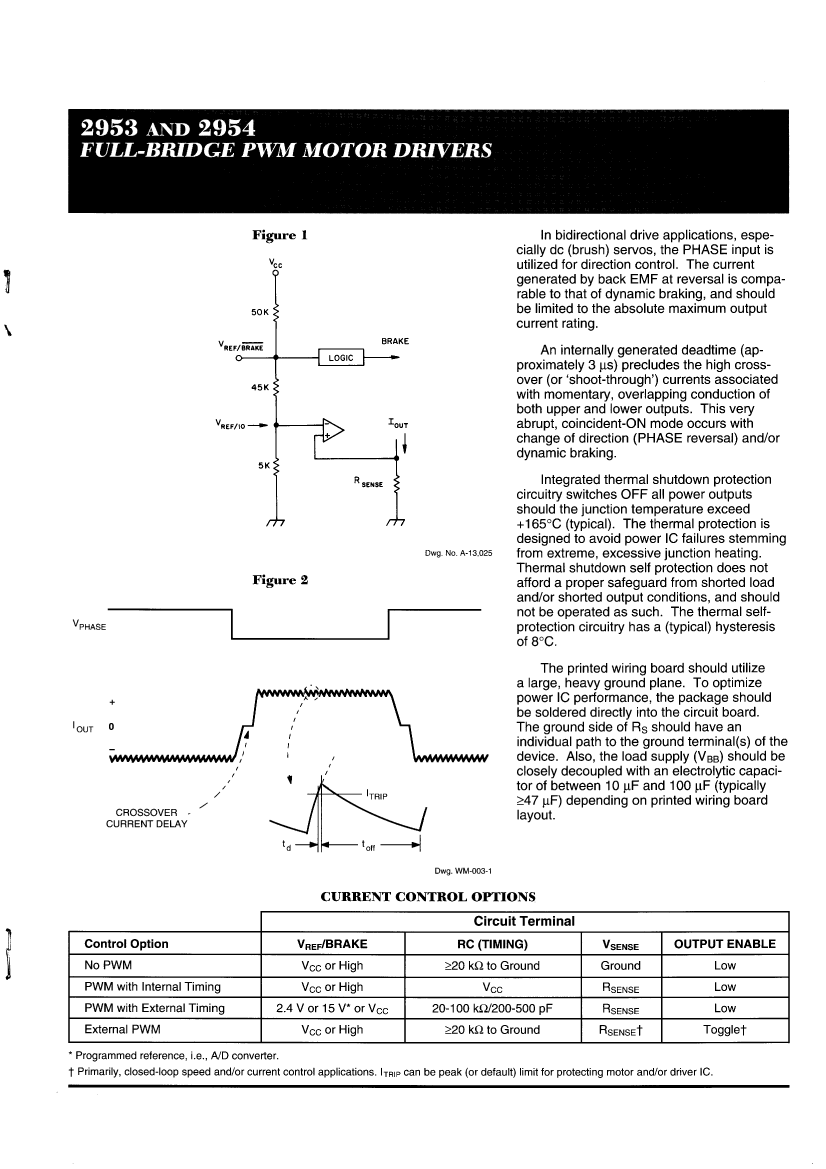

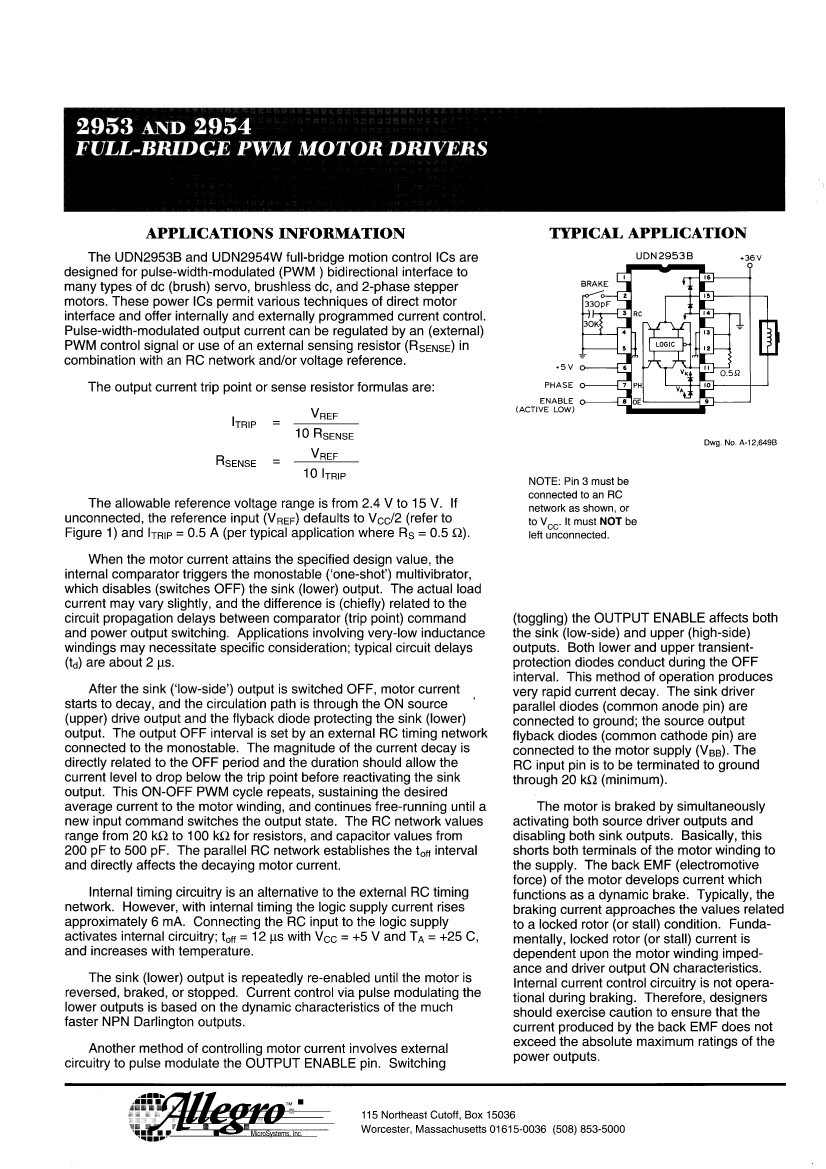

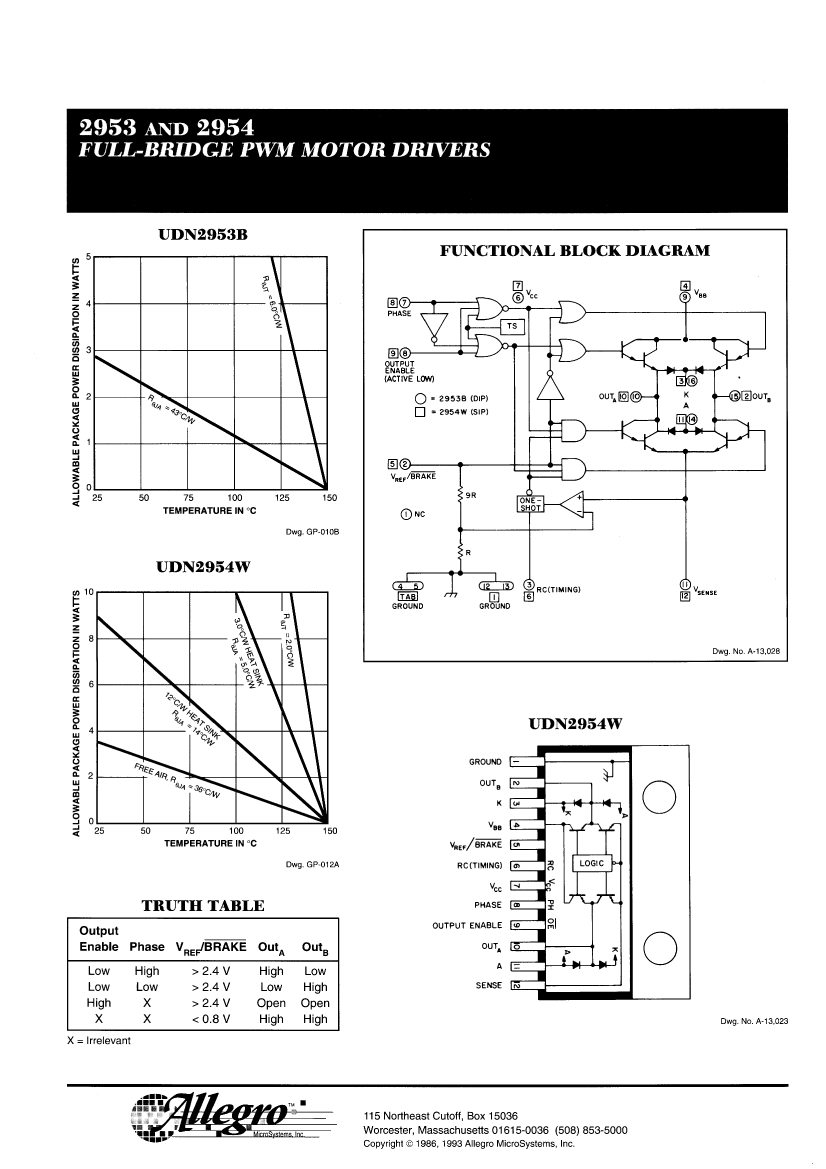

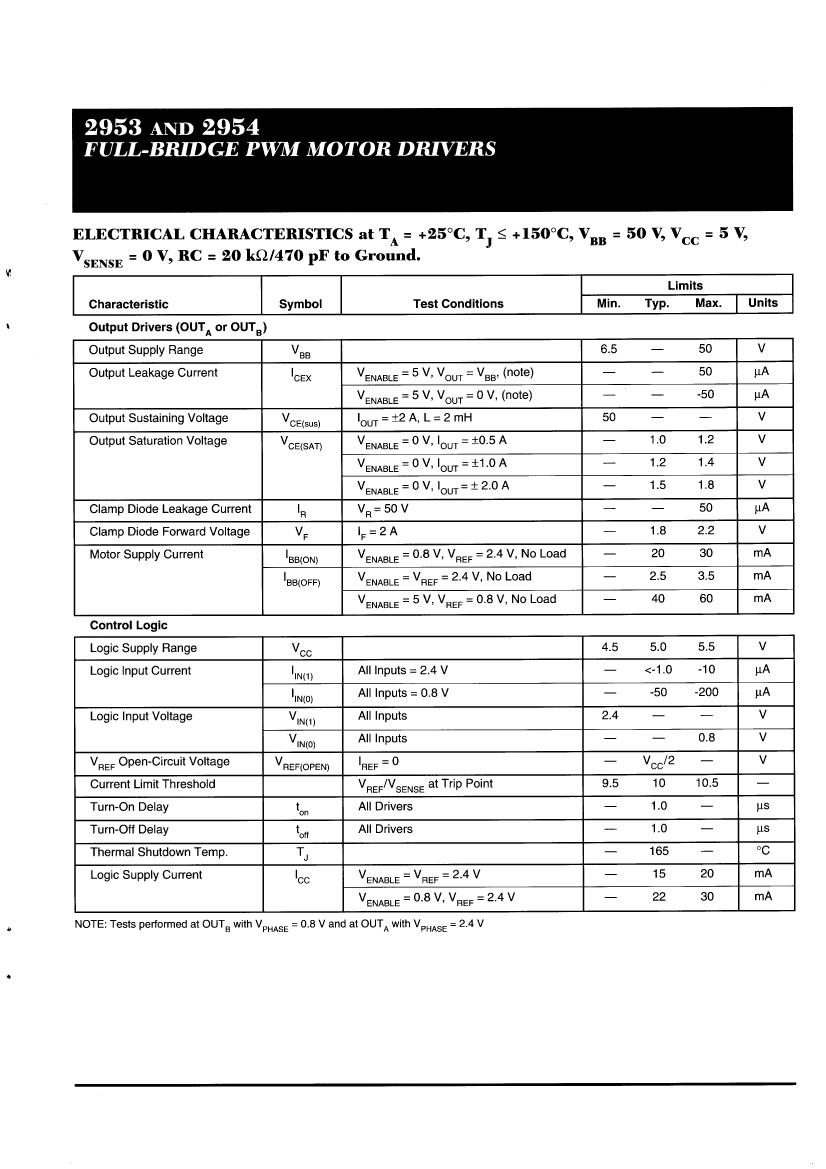

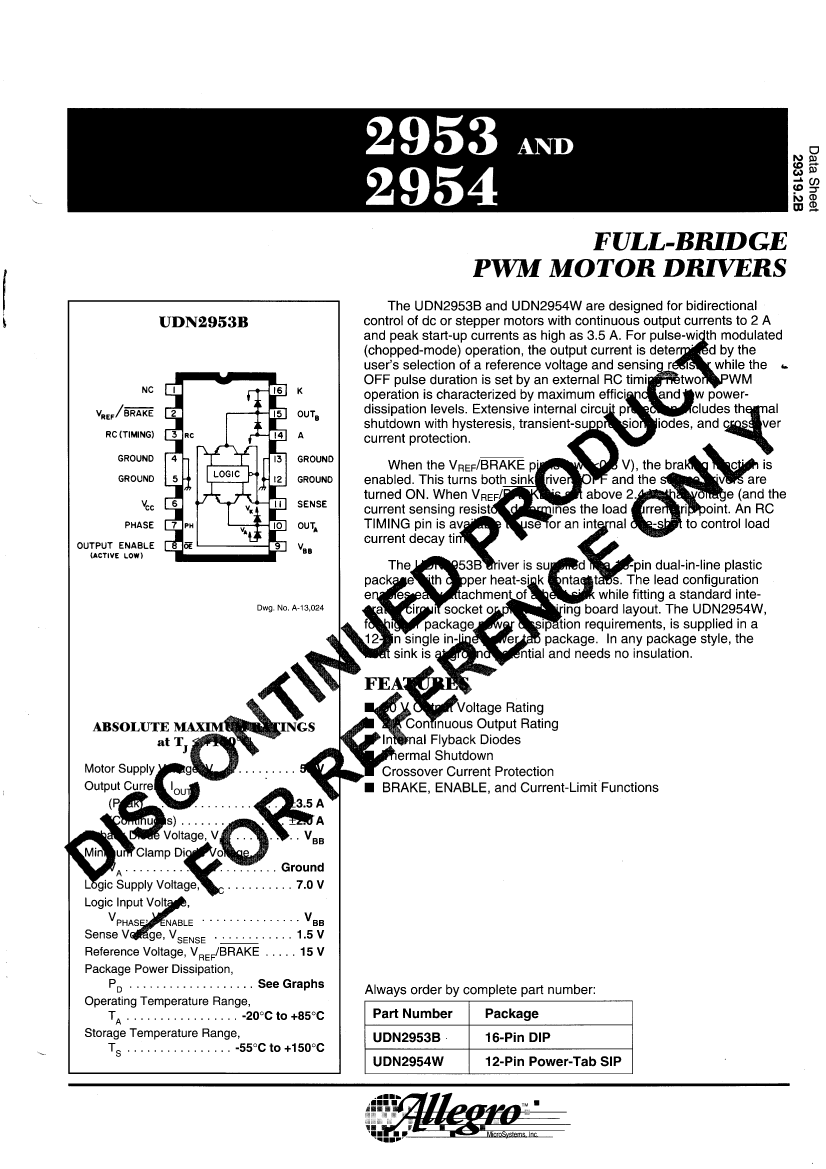

Preview

Download Datasheet

View All
