BK-GMT-1A Overview

FAST BLOW ELECTRIC FUSE, 2A, 125VAC, 60VDC, 300A (IR), INLINE/HOLDER

Preview

Download Datasheet

View All

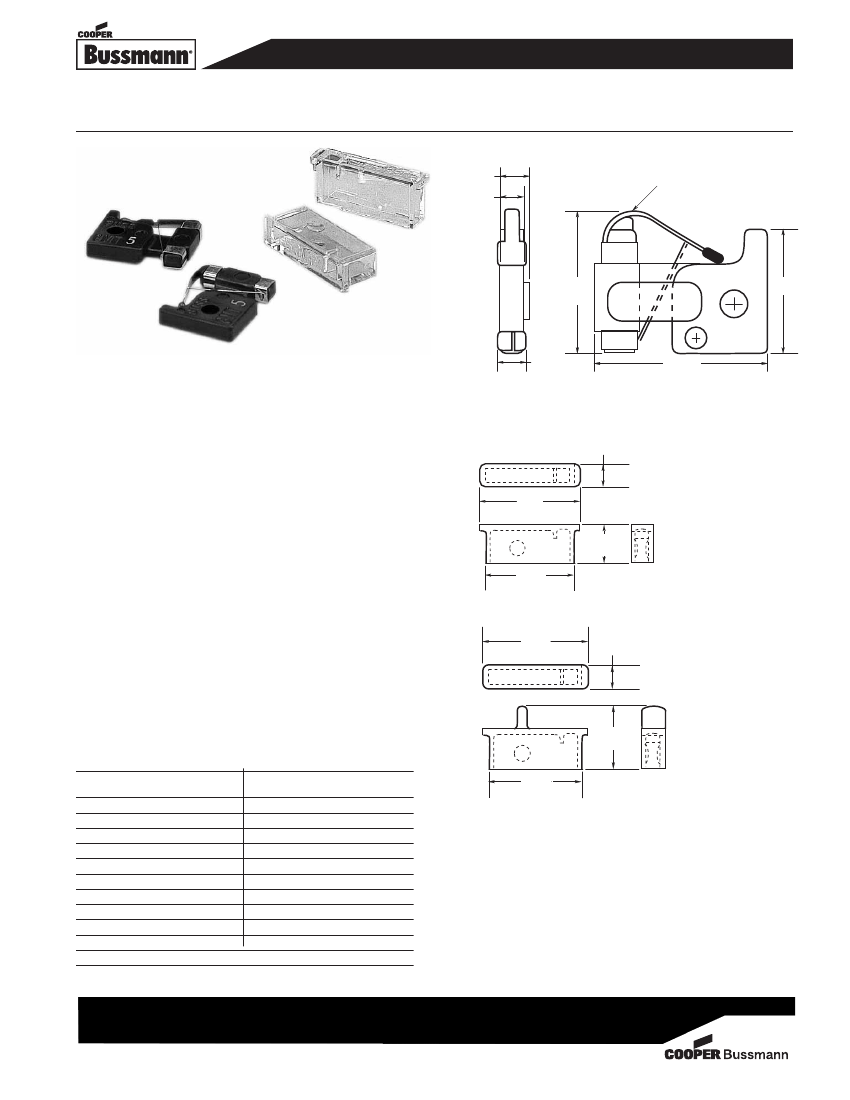

Fast-Acting Indicating Telecom Fuse

60Vdc/125Vac

Dimensional Data — in

0.127

0.107

CONTACT AND

ALARM SPRING

0.688

MAX.

0.585

0.118

0.81

Catalog Symbol:

GMT

Fast-acting indicating fuse for telecom circuits.

Ratings:

Volts: 60Vdc/125Vac

Amps: 18/100 – 15A

IR: 450A @ 60Vdc

300A @ 125Vac

Agency Information:

UL Recognized, Guide JFHR2, File E56412

Materials:

Body: Thermoplastic (flammability rating: UL94V0)

Terminals: Tin-plated beryllium copper

Carton Quantity & Weight:

100 fuses per carton, 0.33 lbs. (150g.)

Fuse Holders:

Catalog Nos. HLS, HLT and PCT

General Information:

• For telecom, computer, or control circuits.

• Visual spring indicating and alarm circuit indicating.

• Color coded flags designate amp rating.

• Fuses easily replaced without use of insulated tools.

• Fuses can be removed with wire hook when mounted on

minimum centers.

•

GMT-X

fuse cover available.

•

GMT-Y

fuse cover (with pull-tab) available.

Catalog Symbol and Color Codes

Catalog

Symbol

GMT-18/100A

GMT-1/4A

GMT-3/8A

GMT-1/2A

GMT-65/100A

GMT-3/4A

GMT-1A

GMT-1 1/3A

GMT-1 1/2A

GMT-2A

GMT-3A

Color

Code

Yellow

Violet

White/Gray

Red

Black

Brown

Gray

White

White/Yellow

Orange

Blue

Catalog

Symbol

GMT-3 1/2A

GMT-4A

GMT-5A

GMT-7 1/2A

GMT-10A

GMT-12A

GMT-15A

GMT-Dummy

GMT-A (alarm)*

GMT-X (cover)

Color

Code

White/Blue

White/Brown

Green

Black/White

Red/White

Yellow/Green

Red/Blue

Gray

Yellow

Clear

Covers — in (mm)

0.20"

(5.1mm)

BUSS GMT-X

0.95"

(24.0mm)

0.36"

(9.0mm)

0.84"

(21.3mm)

GMT-X Fuse Cover

0.95"

(24.0mm)

0.20"

(5.1mm)

BUSS GMT-Y

0.7"

(17.8mm)

0.84"

(21.3mm)

GMT-Y Fuse Cover

*Designed specifically for use in the Telpower

Series 15800 fused

disconnect switch.

0708

BU-SB08204

Page 1 of 2

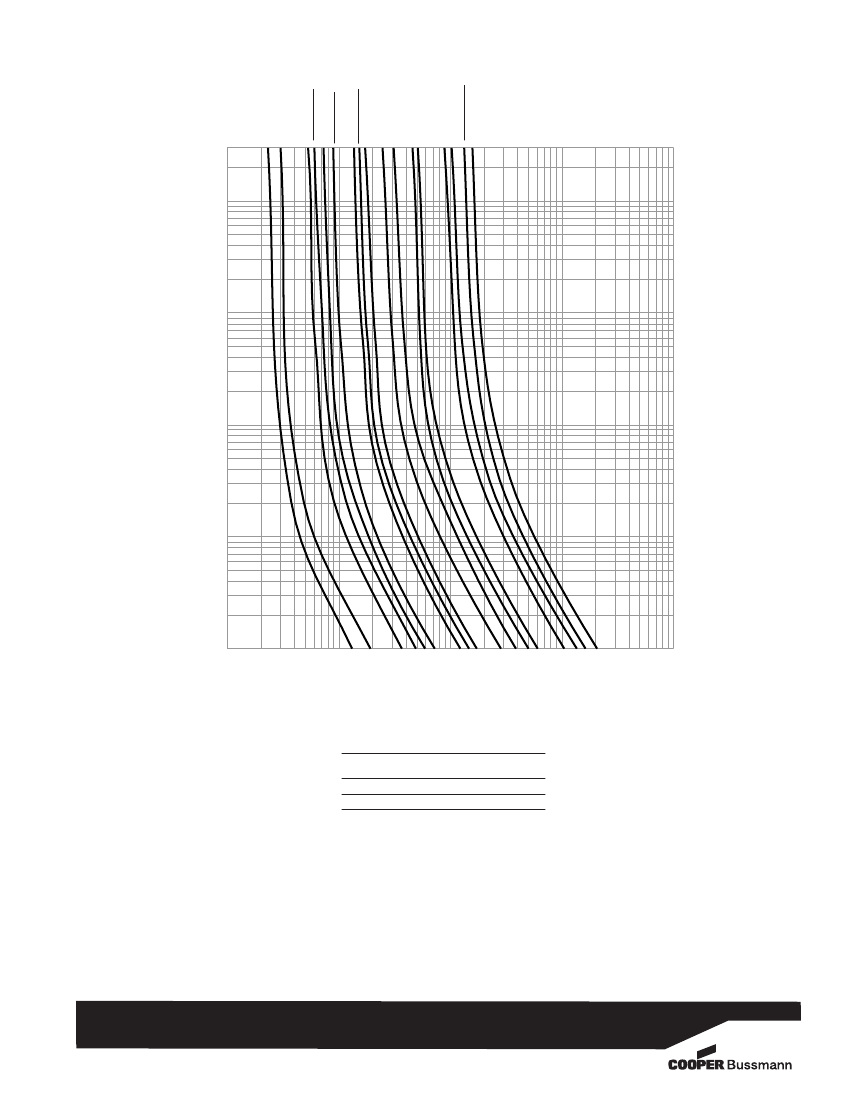

Data Sheet 5008
