EF6809E-JM datasheet, PDF - EEWORLD Datasheet

EF6809E-JM: DescriptionMicroprocessor, 8-Bit, 1MHz, HMOS, CDIP40, CERDIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size3MB，52 Pages; Manufacturere2v technologies

Download Datasheet Parametric View All

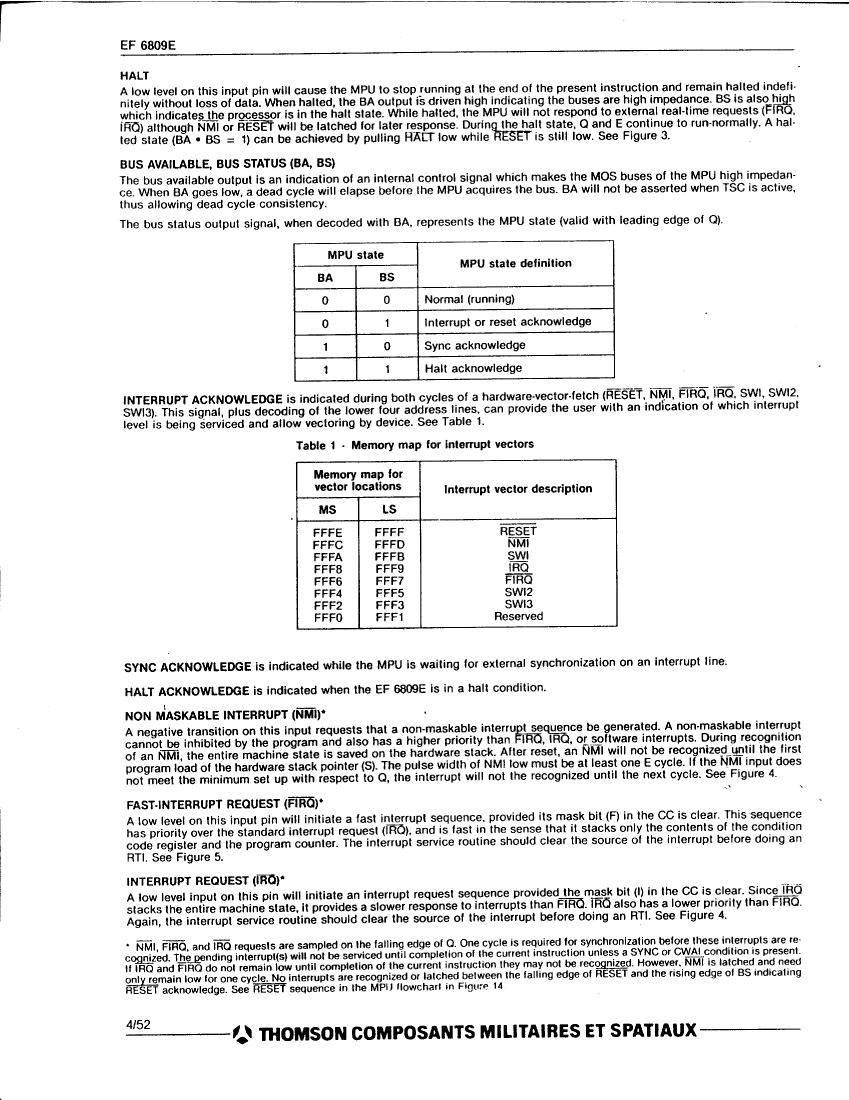

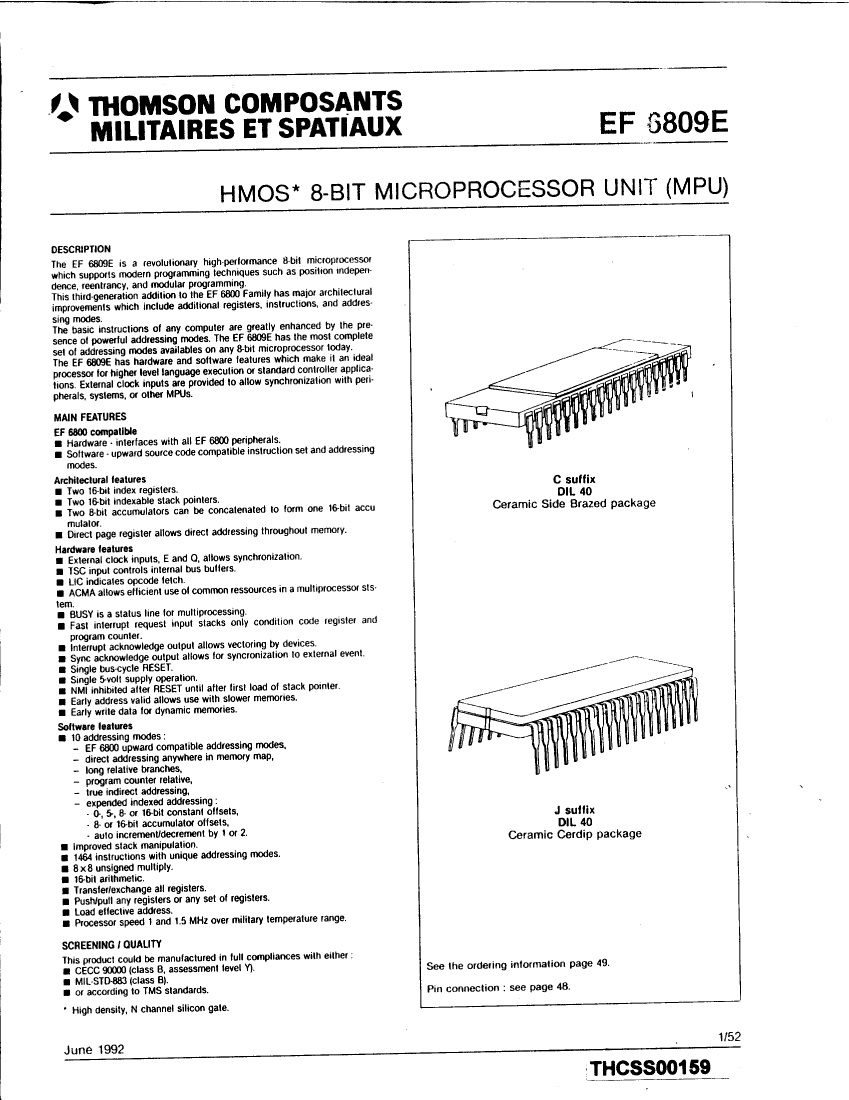

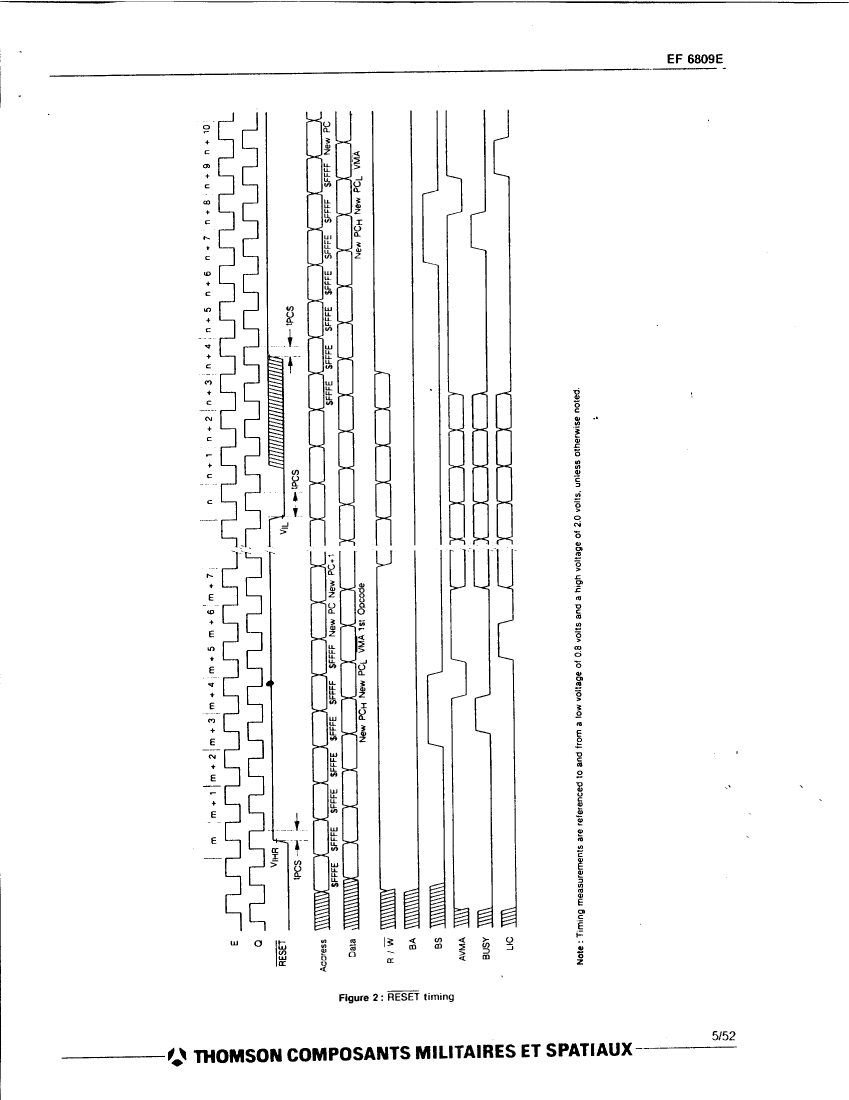

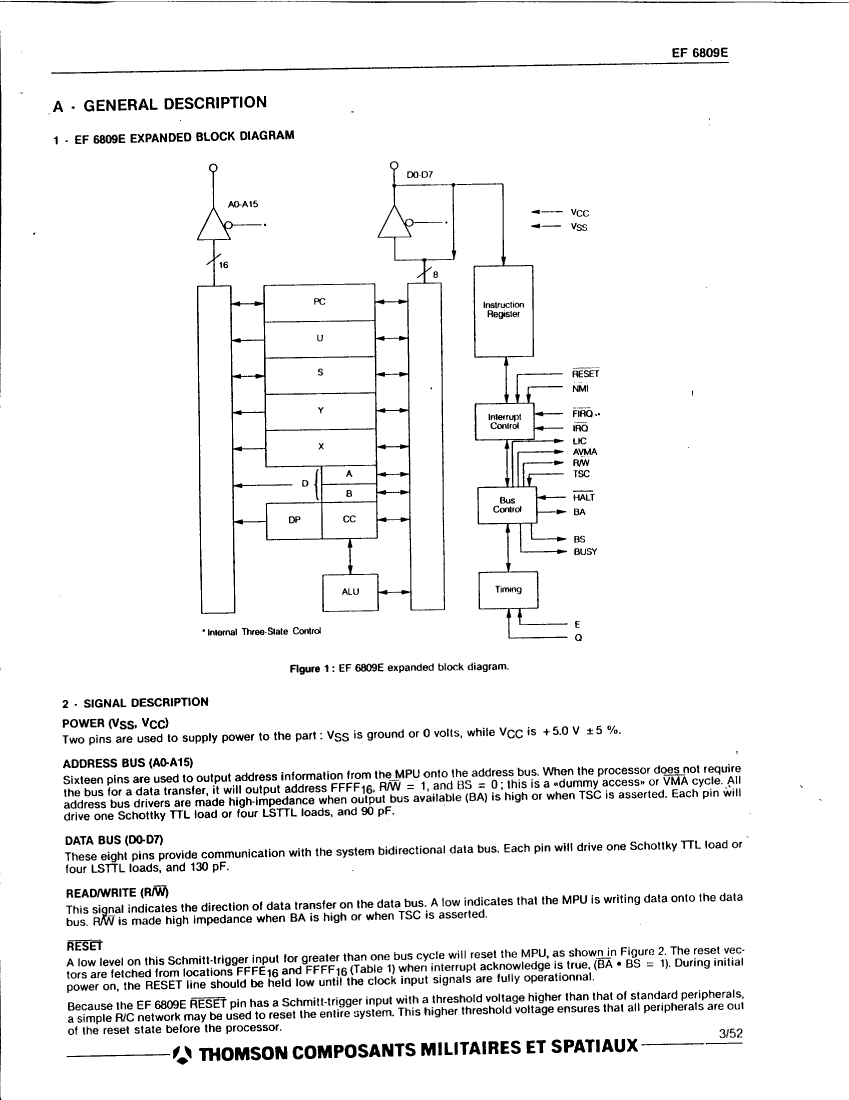

EF6809E-JM Overview

Microprocessor, 8-Bit, 1MHz, HMOS, CDIP40, CERDIP-40

Parameter Name	Attribute value
Maker	e2v technologies
Parts packaging code	DIP
package instruction	,
Contacts	40
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	1 MHz
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-GDIP-T40
low power mode	NO
Number of terminals	40
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
speed	1 MHz
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	HMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR
