DG406AK/883 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> DG406AK/883

DG406AK/883: DescriptionSingle-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28,; CategoryAnalog mixed-signal IC The signal circuit; File Size323KB，10 Pages; ManufacturerTEMIC; Websitehttp://www.temic.de/

Download Datasheet Parametric Compare View All

DG406AK/883 Overview

Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28,

DG406AK/883 Parametric

Parameter Name	Attribute value
Maker	TEMIC
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-GDIP-T28
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	16
Number of functions	1
Number of terminals	28
Nominal off-state isolation	69 dB
On-state resistance matching specifications	2.5 Ω
Maximum on-state resistance (Ron)	100 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum supply current (Isup)	0.9 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	350 ns
Maximum connection time	350 ns
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL

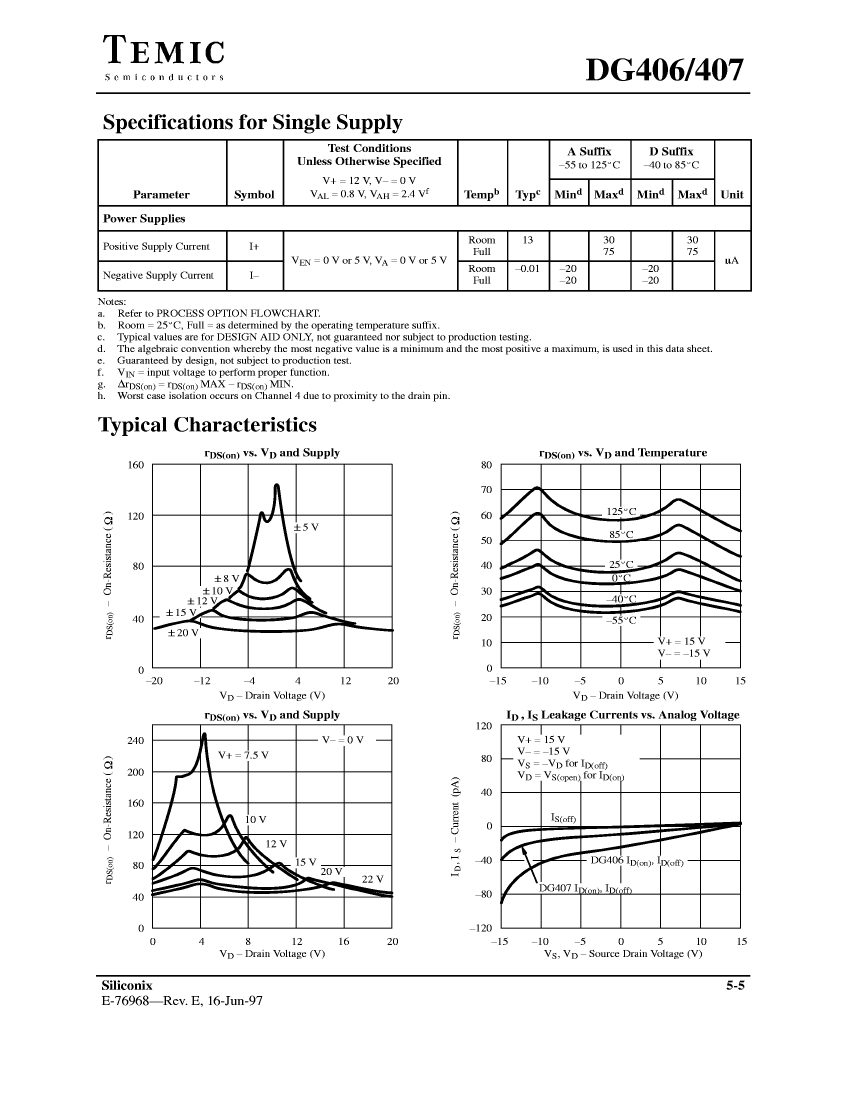

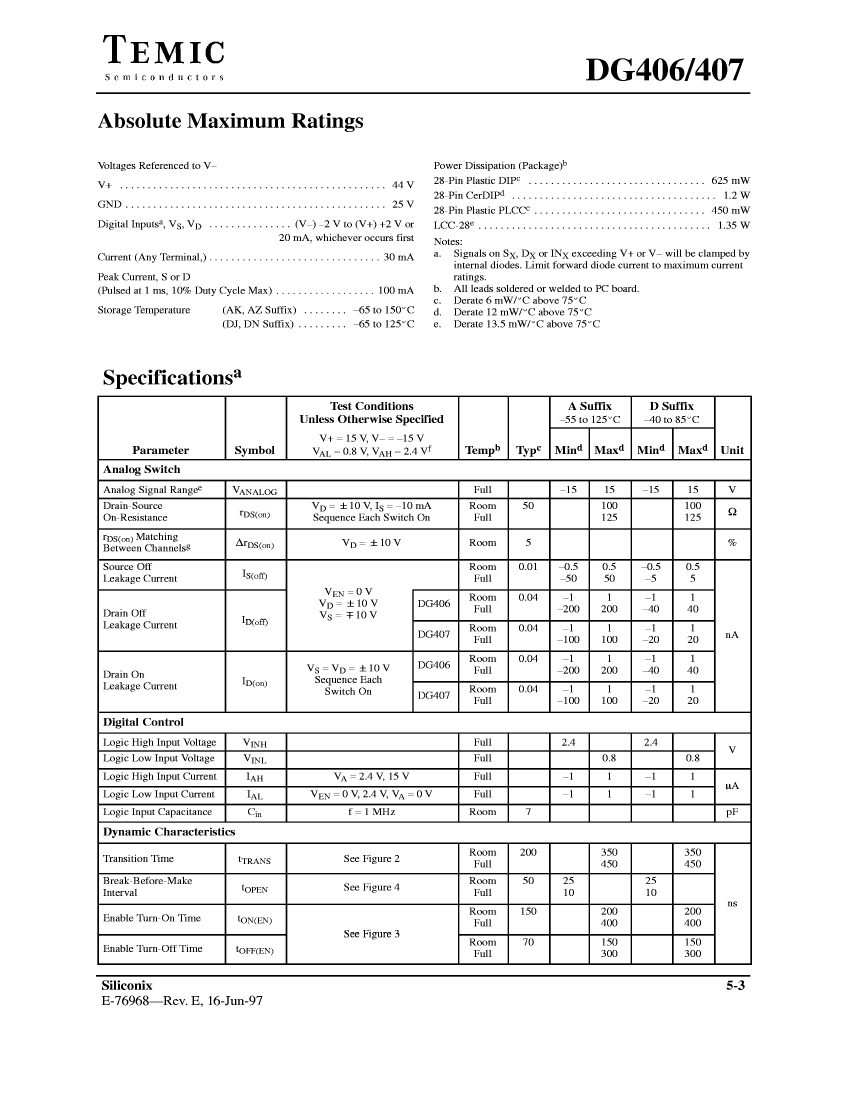

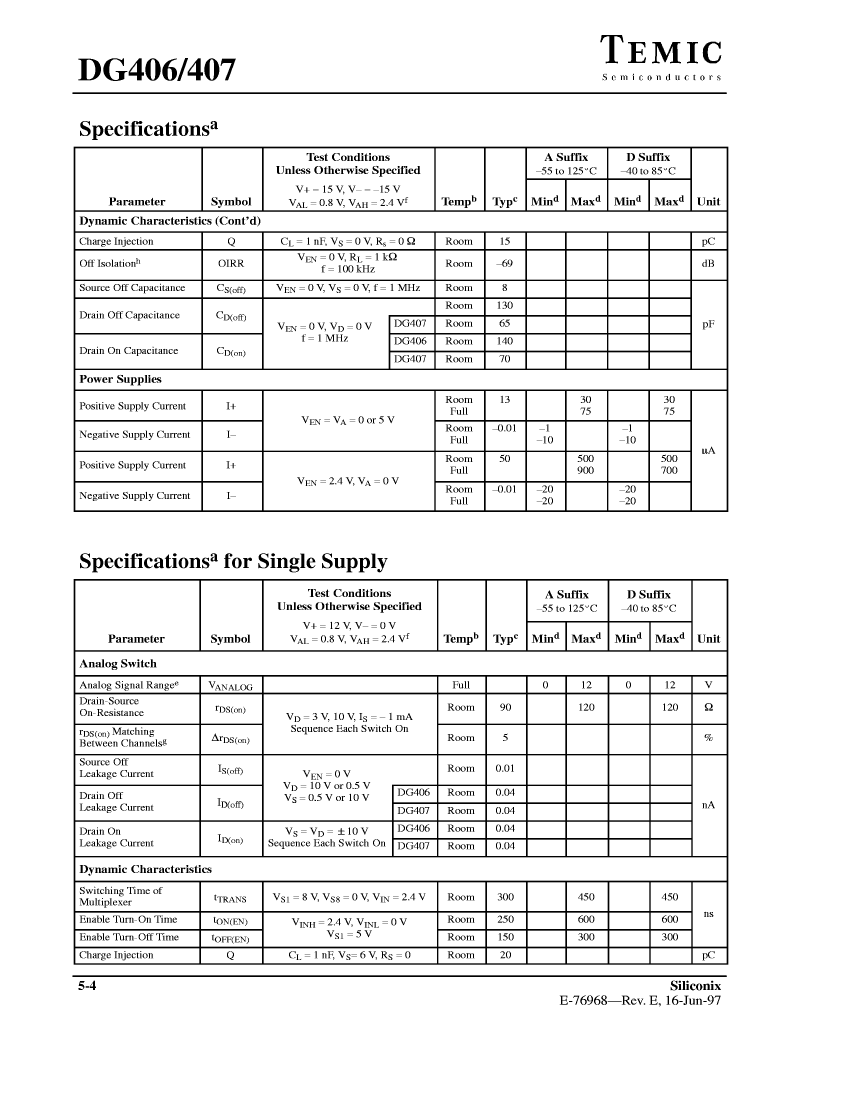

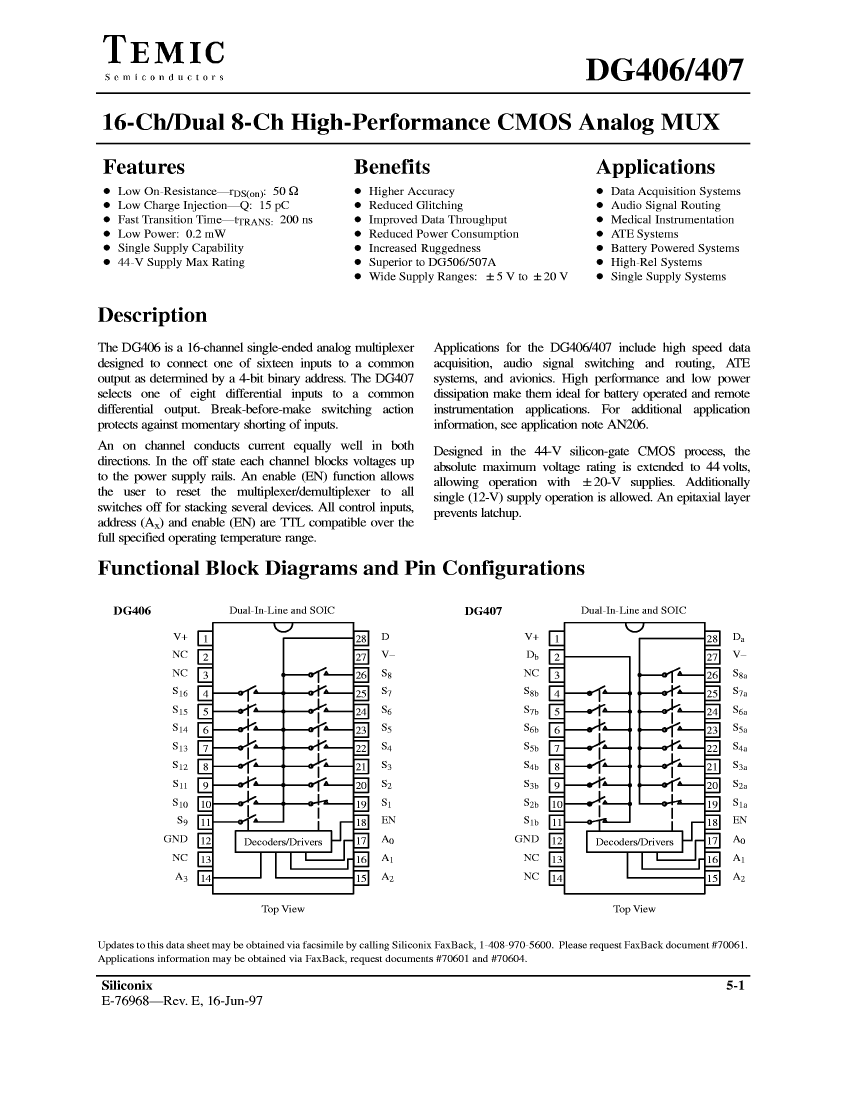

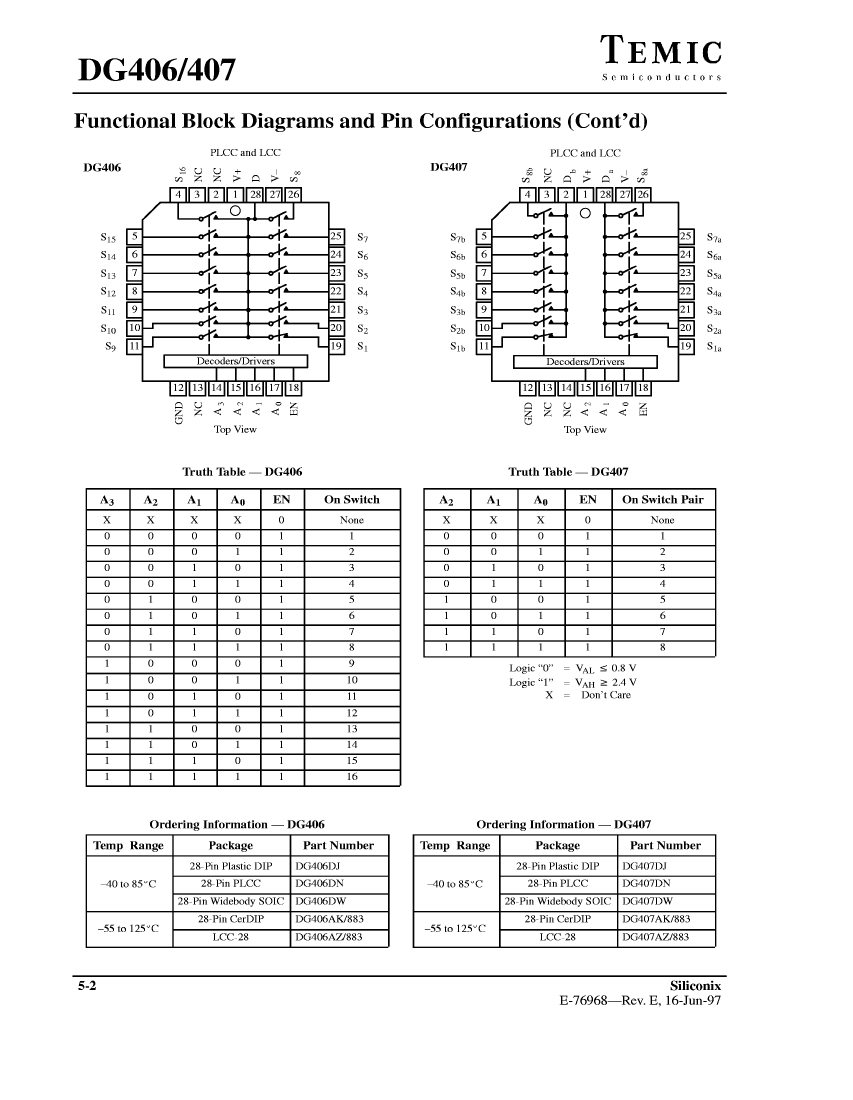

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

DG406AK/883 Related Products

	DG406AK/883	DG406DW	DG407DN	DG406DN	DG407AZ/883	DG407DW	DG407AK/883	DG406AZ/883
Description	Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28,	Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, PDSO28,	Differential Multiplexer, 1 Func, 8 Channel, CMOS, PQCC28,	Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, PQCC28,	Differential Multiplexer, 1 Func, 8 Channel, CMOS, CQCC28,	Differential Multiplexer, 1 Func, 8 Channel, CMOS, PDSO28,	Differential Multiplexer, 1 Func, 8 Channel, CMOS, CDIP28,	Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CQCC28,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-GDIP-T28	R-PDSO-G28	S-PQCC-J28	S-PQCC-J28	S-CQCC-N28	R-PDSO-G28	R-GDIP-T28	S-CQCC-N28
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of channels	16	16	8	16	8	8	8	16
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28	28	28
Nominal off-state isolation	69 dB	69 dB	69 dB	69 dB	69 dB	69 dB	69 dB	69 dB
On-state resistance matching specifications	2.5 Ω	2.5 Ω	2.5 Ω	2.5 Ω	2.5 Ω	2.5 Ω	2.5 Ω	2.5 Ω
Maximum on-state resistance (Ron)	100 Ω	100 Ω	100 Ω	100 Ω	100 Ω	100 Ω	100 Ω	100 Ω
Maximum operating temperature	125 °C	85 °C	85 °C	85 °C	125 °C	85 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-40 °C	-40 °C	-40 °C	-55 °C	-40 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE
Package form	IN-LINE	SMALL OUTLINE	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	SMALL OUTLINE	IN-LINE	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	0.9 mA	0.7 mA	0.7 mA	0.7 mA	0.9 mA	0.7 mA	0.9 mA	0.9 mA
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	YES	YES	YES	YES	YES	NO	YES
Maximum disconnect time	350 ns	350 ns	350 ns	350 ns	350 ns	350 ns	350 ns	350 ns
Maximum connection time	350 ns	350 ns	350 ns	350 ns	350 ns	350 ns	350 ns	350 ns
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	MILITARY	INDUSTRIAL	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	GULL WING	J BEND	J BEND	NO LEAD	GULL WING	THROUGH-HOLE	NO LEAD
Terminal location	DUAL	DUAL	QUAD	QUAD	QUAD	DUAL	DUAL	QUAD
Maker	TEMIC	-	TEMIC	TEMIC	TEMIC	TEMIC	TEMIC	TEMIC
