SP3222EBEA-L/TR

Description
Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDSO20, LEAD FREE, MO-153AE, SSOP-20
CategoryAnalog mixed-signal IC    Drivers and interfaces
File Size646KB，23 Pages
ManufacturerExar
Environmental Compliance
Related ProductsFound20parts with similar functions to SP3222EBEA-L/TR
Download Datasheet Parametric Compare View All

SP3222EBEA-L/TR Overview

Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDSO20, LEAD FREE, MO-153AE, SSOP-20

SP3222EBEA-L/TR Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerExar
Objectid1857548684
Parts packaging codeTSSOP
package instructionSOP, SSOP20,.3
Contacts20
Reach Compliance Codecompliant
ECCN codeEAR99
compound_id3620450
Differential outputNO
Number of drives2
Input propertiesSCHMITT TRIGGER
Interface integrated circuit typeLINE TRANSCEIVER
Interface standardsEIA-232-F; TIA-232-F; V.24; V.28
JESD-30 codeR-PDSO-G20
JESD-609 codee3
length7.2 mm
Humidity sensitivity level2
Number of functions2
Number of terminals20
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Minimum output swing10 V
Maximum output low current0.0016 A
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Encapsulate equivalent codeSSOP20,.3
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
power supply3.3/5 V
Certification statusNot Qualified
Maximum receive delay
Number of receiver bits2
Maximum seat height2 mm
Maximum slew rate1 mA
Maximum supply voltage5.5 V
Minimum supply voltage3 V
Nominal supply voltage3.3 V
surface mountYES
Temperature levelINDUSTRIAL
Terminal surfaceMatte Tin (Sn)
Terminal formGULL WING
Terminal pitch0.65 mm
Terminal locationDUAL
Maximum time at peak reflow temperature40
width5.3 mm

SP3222EBEA-L/TR Preview

SP3222EB/SP3232EB
True +3.0V to +5.5V RS-232 Transceivers
FEATURES
■ Meets true EIA/TIA-232-F Standards
from a +3.0V to +5.5V power supply
■ 250kbps Transmission Rate Under Load
■ 1µA Low Power Shutdown with
Receivers active (SP3222EB)
■ Interoperable with RS-232 down to a
+2.7V power source
■ Enhanced ESD Specifications:
+15kV Human Body Model
+15kV IEC61000-4-2 Air Discharge
+8kV IEC61000-4-2 Contact Discharge
DESCRIPTION
The SP3222EB/SP3232EB series is an RS-232 transceiver solution intended for portable or
hand-held applications such as notebook or laptop computers. The SP3222EB/SP3232EB
series has a high-efficiency, charge-pump power supply that requires only 0.1µF capacitors
in 3.3V operation. This charge pump allows the SP3222EB/SP3232EB series to deliver true
RS-232 performance from a single power supply ranging from +3.0V to +5.5V. The SP3222EB/
SP3232EB are 2-driver/2-receiver devices. The ESD tolerance of the SP3222EB/SP3232EB
devices is over +/-15kV for both Human Body Model and IEC61000-4-2 Air discharge test
methods. The SP3222EB device has a low-power shutdown mode where the devices' driver
outputs and charge pumps are disabled. During shutdown, the supply current falls to less
than 1µA.
SELECTION TABLE
Device
SP3222EB
SP3232EB
Power
Supplies
+3.0V to
+5.5V
+3.0V to
+5.5V
RS-232
Drivers
2
2
RS-232
Receivers
2
2
External
Components
4 Capacitors
4 Capacitors
Shutdown
Yes
No
TTL
3-State
Yes
No
# of
Pins
18, 20
16
Exar Corporation 48720 Kato Road, Fremont CA, 94538 • 510-668-7000• www.exar.com
SP3222EB/SP3232EB_106_022316
1
ABSOLUTE MAXIMUM RATINGS
These are stress ratings only and functional operation
of the device at these ratings or any other above those
indicated in the operation sections of the
specifications
below is not implied. Exposure to absolute maximum
rating conditions for extended periods of time may
affect reliability and cause permanent damage to the
device.
V
CC
.......................................................-0.3V to +6.0V
V+ (NOTE 1).......................................-0.3V to +7.0V
V- (NOTE 1)........................................+0.3V to -7.0V
V+ + |V-| (NOTE 1)...........................................+13V
I
CC
(DC V
CC
or GND current).........................+100mA
Input Voltages
TxIN, EN..............................................-0.3V to +6.0V
RxIN...................................................................+25V
Output Voltages
TxOUT.............................................................+13.2V
RxOUT, .......................................-0.3V to (V
CC
+0.3V)
Short-Circuit Duration
TxOUT....................................................Continuous
Storage Temperature......................-65°C to +150°C
Power Dissipation per package
20-pin SSOP (derate 9.25mW/
o
C above +70
o
C)..............750mW
18-pin SOIC (derate 15.7mW/
o
C above +70
o
C)..............1260mW
20-pin TSSOP (derate 11.1mW/
o
C above +70
o
C).............890mW
16-pin SSOP (derate 9.69mW/
o
C above +70
o
C)...............775mW
16-pin Wide SOIC (derate 11.2mW/
o
C above +70
o
C)........900mW
16-pin TSSOP (derate 10.5mW/
o
C above +70
o
C)..............850mW
16-pin nSOIC (derate 13.57mW/
o
C above +70
o
C)...........1086mW
Maximum Junction Temperature .......................................+125°C
Thermal Resistance (16-pin TSSOP)
Θ
JA
...................100.4°C/W
Thermal Resistance (16-pin TSSOP)
Θ
JC
.....................19.0°C/W
Thermal Resistance (16-pin QFN)
Θ
JA
......................... 44.0°C/W
Thermal Resistance (16-pin QFN)
Θ
JC
...........................7.3°C/W
NOTE 1:
V+ and V- can have maximum magnitudes of 7V, but their absolute difference cannot exceed 13V.
NOTE 2:
Driver Input hysteresis is typically 250mV.
ELECTRICAL CHARACTERISTICS
Unless otherwise noted, the following specifications apply for V
CC
= +3.0V to +5.5V with T
AMB
= T
MIN
to T
MAX
,
C1 - C4 = 0.1µF.
PARAMETER
DC CHARACTERISTICS
Supply Current
Shutdown Supply Current
0.3
1.0
1.0
10
mA
µA
no load, V
CC
= 3.3V,
T
AMB
= 25
o
C, TxIN = GND or V
CC
SHDN = GND, VCC = 3.3V,
T
AMB
= 25
o
C, TxIN = Vcc or GND
TxIN, EN, SHDN, Note 2
Vcc = 3.3V, Note 2
Vcc = 5.0V, Note 2
TxIN, EN, SHDN,
T
AMB
= +25
o
C, V
IN
= 0V to V
CC
Receivers disabled, V
OUT
= 0V to V
CC
I
OUT
= 1.6mA
I
OUT
= -1.0mA
All driver outputs loaded with 3kΩ to
GND, T
AMB
= +25
o
C
MIN.
TYP.
MAX.
UNITS
CONDITIONS
LOGIC INPUTS AND RECEIVER OUTPUTS
Input Logic Threshold LOW
Input Logic Threshold HIGH
Input Logic Threshold HIGH
Input Leakage Current
Output Leakage Current
Output Voltage LOW
Output Voltage HIGH
DRIVER OUTPUTS
Output Voltage Swing
+5.0
+5.4
V
V
CC
-0.6
V
CC
-0.1
GND
2.0
2.4
+0.01
+0.05
0.8
Vcc
Vcc
+1.0
+10
0.4
V
V
V
µA
µA
V
V
Exar Corporation 48720 Kato Road, Fremont CA, 94538 • 510-668-7000 • www.exar.com
SP3222EB/SP3232EB_106_022316
2
Unless otherwise noted, the following specifications apply for V
CC
= +3.0V to +5.5V with T
AMB
= T
MIN
to T
MAX
,
C1 - C4 = 0.1µF. Typical values apply at V
CC
= +3.3V or +5.0V and T
AMB
= 25°C.
PARAMETER
DRIVER OUTPUTS (continued)
Output Resistance
Output Short-Circuit Current
Output Leakage Current
RECEIVER INPUTS
Input Voltage Range
Input Threshold LOW
Input Threshold LOW
Input Threshold HIGH
Input Threshold HIGH
Input Hysteresis
Input Resistance
TIMING CHARACTERISTICS
Maximum Data Rate
Receiver Propagation Delay, t
PHL
Receiver Propagation Delay, t
PLH
Receiver Output Enable Time
Receiver Output Disable Time
Driver Skew
Receiver Skew
Transition-Region Slew Rate
250
0.15
0.15
200
200
100
50
30
kbps
µs
µs
ns
ns
ns
ns
V/µs
| t
PHL
- t
PLH
|, T
AMB
= 25°C
| t
PHL
- t
PLH
|
R
L
= 3kΩ, C
L
= 1000pF, one
driver active
Receiver input to Receiver
output, C
L
= 150pF
Receiver input to Receiver
output, C
L
= 150pF
3
-15
0.6
0.8
1.2
1.5
1.5
1.8
0.3
5
7
2.4
2.4
15
V
V
V
V
V
V
kΩ
Vcc = 3.3V
Vcc = 5.0V
Vcc = 3.3V
Vcc = 5.0V
300
+35
+60
+25
Ω
mA
µA
MIN.
TYP.
MAX.
UNITS
CONDITIONS
ELECTRICAL CHARACTERISTICS
V
CC
= V+ = V- = 0V, V
OUT
=+2V
V
OUT
= 0V
V
CC
= 0V or 3.0V to 5.5V, V
OUT
=
+12V, Drivers disabled
Vcc = 3.3V, R
L
= 3kΩ,
C
L
= 1000pF, T
AMB
= 25°C,
measurements taken from -3.0V
to +3.0V or +3.0V to -3.0V
Exar Corporation 48720 Kato Road, Fremont CA, 94538 • 510-668-7000• www.exar.com
SP3222EB/SP3232EB_106_022316
3

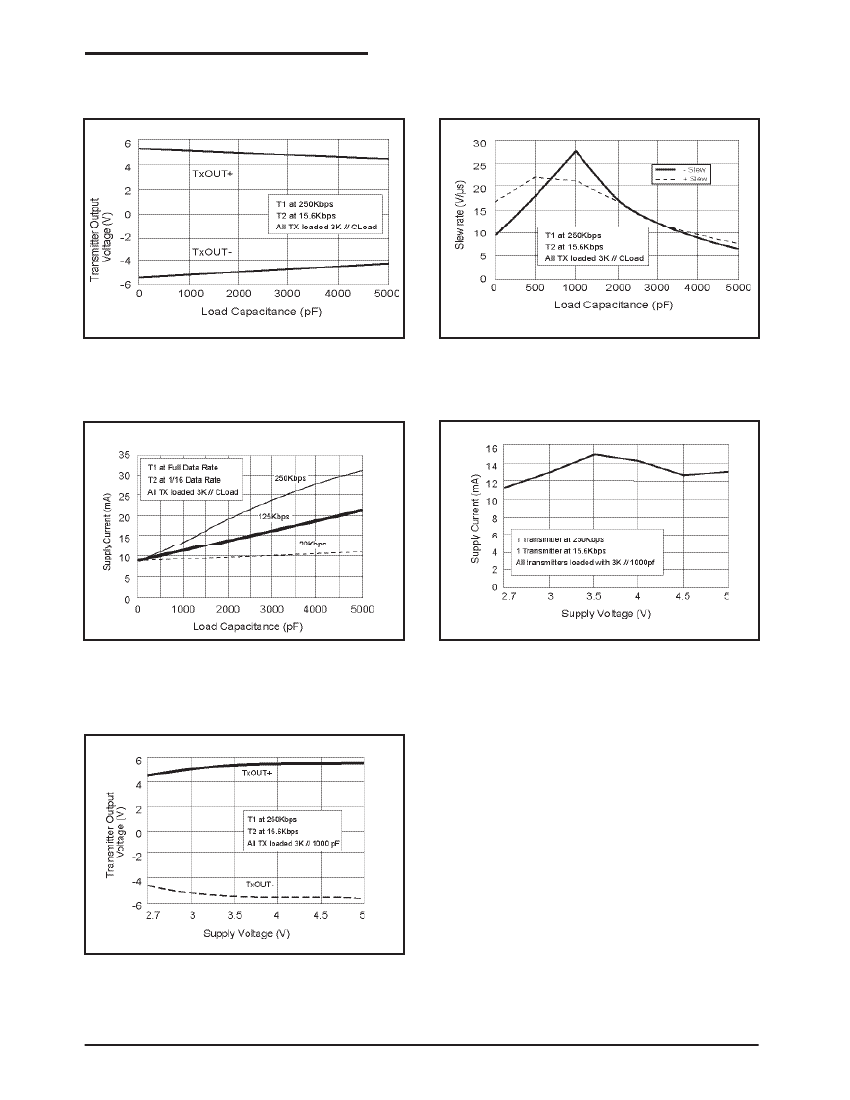

TYPICAL PERFORMANCE CHARACTERISTICS
Unless otherwise noted, the following performance characteristics apply for V
CC
= +3.3V, 1000kbps data rate, all
drivers loaded with 3kΩ, 0.1µF charge pump capacitors, and T
AMB
= +25°C.
Figure 1. Transmitter Output Voltage vs Load
Capacitance
Figure 2. Slew Rate vs Load Capacitance
Figure 3. Supply Current VS. Load Capacitance
when Transmitting Data
Figure 4. Supply Current VS. Supply Voltage
Figure 5. Transmitter Output Voltage vs Supply
Voltage
Exar Corporation 48720 Kato Road, Fremont CA, 94538 • 510-668-7000 • www.exar.com
SP3222EB/SP3232EB_106_022316
4
PIN FUNCTION
PIN NUMBER
SP3222EB
NAME
FUNCTION
SOIC
SSOP
TSSOP
SP3232EB
SSOP
TSSOP
NSOIC
WSOIC
-
1
2
3
4
5
6
14
7
13
8
12
9
11
10
15
16
-
-
QFN
EN
C1+
V+
C1-
C2+
C2-
V-
T
1
OUT
T
2
OUT
R
1
IN
R
2
IN
R
1
OUT
R
2
OUT
T
1
IN
T
2
IN
GND
V
CC
SHDN
N.C.
Receiver Enable. Apply Logic LOW for normal operation.
Apply logic HIGH to disable the receiver outputs (high-Z state)
Positive terminal of the voltage doubler charge-pump capacitor
+5.5V output generated by the charge pump
Negative terminal of the voltage doubler charge-pump capacitor
Positive terminal of the inverting charge-pump capacitor
Negative terminal of the inverting charge-pump capacitor
-5.5V output generated by the charge pump
RS-232 driver output.
RS-232 driver output.
RS-232 receiver input
RS-232 receiver input
TTL/CMOS receiver output
TTL/CMOS receiver output
TTL/CMOS driver input
TTL/CMOS driver input
Ground.
+3.0V to +5.5V supply voltage
Shutdown Control Input. Drive HIGH for normal device opera-
tion. Drive LOW to shutdown the drivers (high-Z output) and
the on-board power supply
No Connect
1
2
3
4
5
6
7
15
8
14
9
13
10
12
11
16
17
18
-
1
2
3
4
5
6
7
17
8
16
9
15
10
13
12
18
19
20
11, 14
-
15
16
1
2
3
4
12
5
11
6
10
7
9
8
13
14
-
-
Table 1. Device Pin Description
Exar Corporation 48720 Kato Road, Fremont CA, 94538 • 510-668-7000• www.exar.com
SP3222EB/SP3232EB_106_022316
5
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

SP3222EBEA-L/TR Related Products

SP3222EBEA-L/TR SP3232EBEN-L SP3232EBCN-L/TR SP3232EBCT-L/TR SP3232EBEP-L SP3222EBEA-L SP3222EBCT-L
Description Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDSO20, LEAD FREE, MO-153AE, SSOP-20 Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDSO16, LEAD FREE, MS-012AC, NSOIC-16 Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDSO16, LEAD FREE, MS-012AC, NSOIC-16 Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDSO16, LEAD FREE, MS-013AA, WSOIC-16 Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDIP16, LEAD FREE, PLASTIC, MS-001BB, PDIP-16 Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDSO20, LEAD FREE, MO-153AE, SSOP-20 Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDSO18, LEAD FREE, MS-013AB, WSOIC-18
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to
Maker Exar Exar Exar Exar Exar Exar Exar
Parts packaging code TSSOP SOIC SOIC SOIC DIP TSSOP SOIC
package instruction SOP, SSOP20,.3 SOP, SOP16,.25 SOP, SOP16,.25 SOP, SOP16,.4 DIP, DIP16,.3 SOP, SSOP20,.3 SOP, SOP18,.4
Contacts 20 16 16 16 16 20 18
Reach Compliance Code compliant compliant compliant compliant unknown compliant compli
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Differential output NO NO NO NO NO NO NO
Number of drives 2 2 2 2 2 2 2
Input properties SCHMITT TRIGGER SCHMITT TRIGGER SCHMITT TRIGGER SCHMITT TRIGGER SCHMITT TRIGGER SCHMITT TRIGGER SCHMITT TRIGGER
Interface integrated circuit type LINE TRANSCEIVER LINE TRANSCEIVER LINE TRANSCEIVER LINE TRANSCEIVER LINE TRANSCEIVER LINE TRANSCEIVER LINE TRANSCEIVER
Interface standards EIA-232-F; TIA-232-F; V.24; V.28 EIA-232-F; TIA-232-F; V.24; V.28 EIA-232-F; TIA-232-F; V.24; V.28 EIA-232-F; TIA-232-F; V.24; V.28 EIA-232-F; TIA-232-F; V.24; V.28 EIA-232-F; TIA-232-F; V.24; V.28 EIA-232-F; TIA-232-F; V.24; V.28
JESD-30 code R-PDSO-G20 R-PDSO-G16 R-PDSO-G16 R-PDSO-G16 R-PDIP-T16 R-PDSO-G20 R-PDSO-G18
JESD-609 code e3 e3 e3 e3 e3 e3 e3
length 7.2 mm 9.9 mm 9.9 mm 10.3 mm 19.18 mm 7.2 mm 11.55 mm
Number of functions 2 2 2 2 2 2 2
Number of terminals 20 16 16 16 16 20 18
Maximum operating temperature 85 °C 85 °C 70 °C 70 °C 85 °C 85 °C 70 °C
Minimum operating temperature -40 °C -40 °C - - -40 °C -40 °C -
Minimum output swing 10 V 10 V 10 V 10 V 10 V 10 V 10 V
Maximum output low current 0.0016 A 0.0016 A 0.0016 A 0.0016 A 0.0016 A 0.0016 A 0.0016 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code SOP SOP SOP SOP DIP SOP SOP
Encapsulate equivalent code SSOP20,.3 SOP16,.25 SOP16,.25 SOP16,.4 DIP16,.3 SSOP20,.3 SOP18,.4
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE IN-LINE SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) 260 260 260 260 NOT SPECIFIED 260 260
power supply 3.3/5 V 3.3/5 V 3.3/5 V 3.3/5 V 3.3/5 V 3.3/5 V 3.3/5 V
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Number of receiver bits 2 2 2 2 2 2 2
Maximum seat height 2 mm 1.75 mm 1.75 mm 2.65 mm 5.334 mm 2 mm 2.65 mm
Maximum slew rate 1 mA 1 mA 1 mA 1 mA 1 mA 1 mA 1 mA
Maximum supply voltage 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V
Minimum supply voltage 3 V 3 V 3 V 3 V 3 V 3 V 3 V
Nominal supply voltage 3.3 V 3.3 V 3.3 V 3.3 V 3.3 V 3.3 V 3.3 V
surface mount YES YES YES YES NO YES YES
Temperature level INDUSTRIAL INDUSTRIAL COMMERCIAL COMMERCIAL INDUSTRIAL INDUSTRIAL COMMERCIAL
Terminal surface Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn)
Terminal form GULL WING GULL WING GULL WING GULL WING THROUGH-HOLE GULL WING GULL WING
Terminal pitch 0.65 mm 1.27 mm 1.27 mm 1.27 mm 2.54 mm 0.65 mm 1.27 mm
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature 40 40 40 40 NOT SPECIFIED 40 40
width 5.3 mm 3.9 mm 3.9 mm 7.5 mm 7.62 mm 5.3 mm 7.5 mm
Is it lead-free? Lead free Lead free Lead free Lead free - Lead free Lead free
Humidity sensitivity level 2 2 2 3 - 2 3

Recommended Resources

Resistance furnace thyristor temperature control circuit 2

Double button light switch circuit (4)

Integrated circuit for editing, sending, translating and receiving

Sawtooth wave generating circuit

DC motor automatic commutation circuit

Computer motherboard circuit diagram 815 1_03

SP3222EBEA-L/TR Similar Products

Part Number Manufacturer Description
SP3222EEA-L/TR MaxLinear Inc Dual Transmitter/Receiver RS-232 20-Pin SSOP T/R
SP3222EEY-L/TR MaxLinear Inc Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDSO20, LEAD FREE, MO-153AC, TSSOP-20
SP3223EEA-L/TR MaxLinear Inc Dual Transmitter/Receiver RS-232 20-Pin SSOP T/R
SP3222ECA-L/TR MaxLinear Inc Dual Transmitter/Receiver RS-232 20-Pin SSOP T/R
SP3223EEA-L MaxLinear Inc Dual Transmitter/Receiver RS-232 20-Pin SSOP
SP3223ECA-L/TR MaxLinear Inc Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDSO20, LEAD FREE, MO-150, SSOP-20
SP3222ECY-L/TR MaxLinear Inc Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDSO20, LEAD FREE, MO-153AC, TSSOP-20
SP3222EUEY-L/TR MaxLinear Inc Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDSO20, LEAD FREE, MO-153AC, TSSOP-20
SP3223EEA-L Exar Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20, LEAD FREE, MO-150, SSOP-20
SP3222ECY-L/TR Exar RS-232 Interface IC 3V-5.5V RS-232 2-DRV/2-RCV LOW PWR
SP3222EUCY-L/TR MaxLinear Inc Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDSO20, LEAD FREE, MO-153AC, TSSOP-20
SP3222EUCY-L/TR SIPEX Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20, LEAD FREE, PLASTIC, TSSOP-20
SP3223EEA-L/TR Exar 类型：收发器 驱动器/接收器数：2/2 协议类别：RS232 数据速率：235kbps 低压型232收发芯片
SP3222ECA-L/TR Exar Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDSO20, LEAD FREE, MO-150AE, SSOP-20
SP3222ECY-L/TR SIPEX Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDSO20, LEAD FREE, PLASTIC, TSSOP-20
SP3223EEA-L SIPEX Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20, LEAD FREE, MO-153AE, SSOP-20
SP3222ECA-L/TR SIPEX Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDSO20, LEAD FREE, PLASTIC, SSOP-20
SP3222EEA-L/TR SIPEX Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDSO20, LEAD FREE, PLASTIC, SSOP-20
SP3222EUCY-L/TR Exar Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20, LEAD FREE, PLASTIC, TSSOP-20
SP3223ECA-L/TR SIPEX Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20, LEAD FREE, MO-153AE, SSOP-20
Do I need to install the corresponding glibc library after installing arm-linux-tools?
RT. Is the GLIBC library included with arm-linux-tools or do I need to install it myself? I have read the Internet and related books but this question is not mentioned....
lishixin Linux and Android
EnDat 2.2 Absolute Encoder Master Interface Reference Design for C2000 MCUs
C2000 Position Manager technology provides an integrated solution to connect digital absolute encoders as well as resolvers and SINCOS sensors, eliminating the need for additional circuitry commonly u...
Jacktang Microcontroller MCU
Debugging issues with API functions
When debugging API functions, what function can I use to view the value of a variable? I can use showmessage() to print some characters without variables, but I want to view the value of a variable. I...
mq13947193109 Embedded System
Many people watched yesterday's production video. Now I will refine this sculptured figure. [Updated]
[i=s]This post was last edited by cardin6 on 2017-11-3 22:36[/i] Yesterday I uploaded a video of my work using Zbrush to digitally sculpt a model (low poly). I'm sure many of you have seen it, but is ...
cardin6 Creative Market
[National Technology N32G457 Review] 3. Porting small embedded shell tool nr_micro_shell
【Transplantation Preparation】 When debugging and maintaining, it is often necessary to interact with the microcontroller to obtain or set certain parameters or perform certain operations. nr_micro_she...
yang377156216 Domestic Chip Exchange
How to select A/D
I am going to make a temperature detection system recently, with a range of 0-99 and a detection resolution of 0.1℃. I will use a platinum resistance bridge detection (three-wire) in the detection cir...
licaiyanding Embedded System
Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. GRM0225C1C430JA02L
  2. SON-N954LF-03-59R0-CG
  3. 800-035BFPAAZNUNN-72
  4. 232272223924
  5. 200118MH068S117ZO
  6. RIAN16LTE6200DEDE
  7. VA34240700.01LF
  8. JACK-9818-66-08-M-3-4
  9. BAS16-AU_LU_10001
  10. A2550H-17P-M1+A2550M-GP-D-G30
  11. A1201WRG-S-5P-HF
  12. ST2010G200KE04

Popular Articles

  1. LPC2000 series study notes 10--Bootloader
  2. The first international standard for automotive information security is officially released - ISO-SAE 21434
  3. New sensor evaluation board from Bosch - for rapid prototyping and faster development
  4. MEMS fiber optic sensor manufacturer Bioan Sensors receives Series A investment
  5. Shanghai Kuanyu, a leader in the field of industrial Internet, joins the 98th China Electronics Fair
  6. ZDS2022 Oscilloscope 100 Practical Videos 40: Slope Trigger
  7. Australian researchers use mining waste as catalyst to reduce hydrogen fuel production costs
  8. 2021 Year-end Review of the Autonomous Driving Industry: The Times Promotes Mass Production, and Mass Production Creates Heroes
  9. Guanghong Technology's 5G base station circuit board's full-surface welding process solution for the sub-board
  10. No indication of resistance block

Technical ResourceMore

  1. Relay comprehensive parameter detection principle
  2. Sensor Principles and Engineering Applications (pdf e-book)
  3. LVDS and M-LVDS Circuit Implementation Guidelines
  4. 8-character left-flow adjustable speed display LED dot matrix program
  5. Wire connection specifications and standards
  6. Chinese data on MCU peripheral chips
  7. IRFR_U3910 pdf
  8. Wireless Sensor Network Technology Lecture Notes - Network Management
  9. Power Plant Optimization Case Study
  10. Application of DDS Technology and HDTV Channel Selection Circuit

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2532  2096  2019  519  1076  51  43  41  11  22
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
