NV13M08YM-77.76M-NSA3473F datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> NV13M08YM-77.76M-NSA3473F

Preview

NV13M08YM-77.76M-NSA3473F: DescriptionCMOS Output Clock Oscillator, 77.76MHz Nom, ROHS COMPLIANT, J LEADED, SMD, 6 PIN; CategoryPassive components oscillator; File Size350KB，2 Pages; ManufacturerNDK; Websitehttp://www.ndk.com/en/; Environmental Compliance

Download Datasheet Parametric Compare View All

NV13M08YM-77.76M-NSA3473F Overview

CMOS Output Clock Oscillator, 77.76MHz Nom, ROHS COMPLIANT, J LEADED, SMD, 6 PIN

NV13M08YM-77.76M-NSA3473F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	NDK
package instruction	ROHS COMPLIANT, J LEADED, SMD, 6 PIN
Reach Compliance Code	unknown
Other features	STAND-BY
Maximum control voltage	3.15 V
Minimum control voltage	0.15 V
maximum descent time	3 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	100 ppm
frequency stability	45%
linearity	5%
Installation features	SURFACE MOUNT
Nominal operating frequency	77.76 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
physical size	13.8mm x 8.65mm x 4.1mm
longest rise time	3 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

Crystal Oscillator

Model Name NV13M08YM

■

Main Application

For , SDH-, and SONET-related equipment.

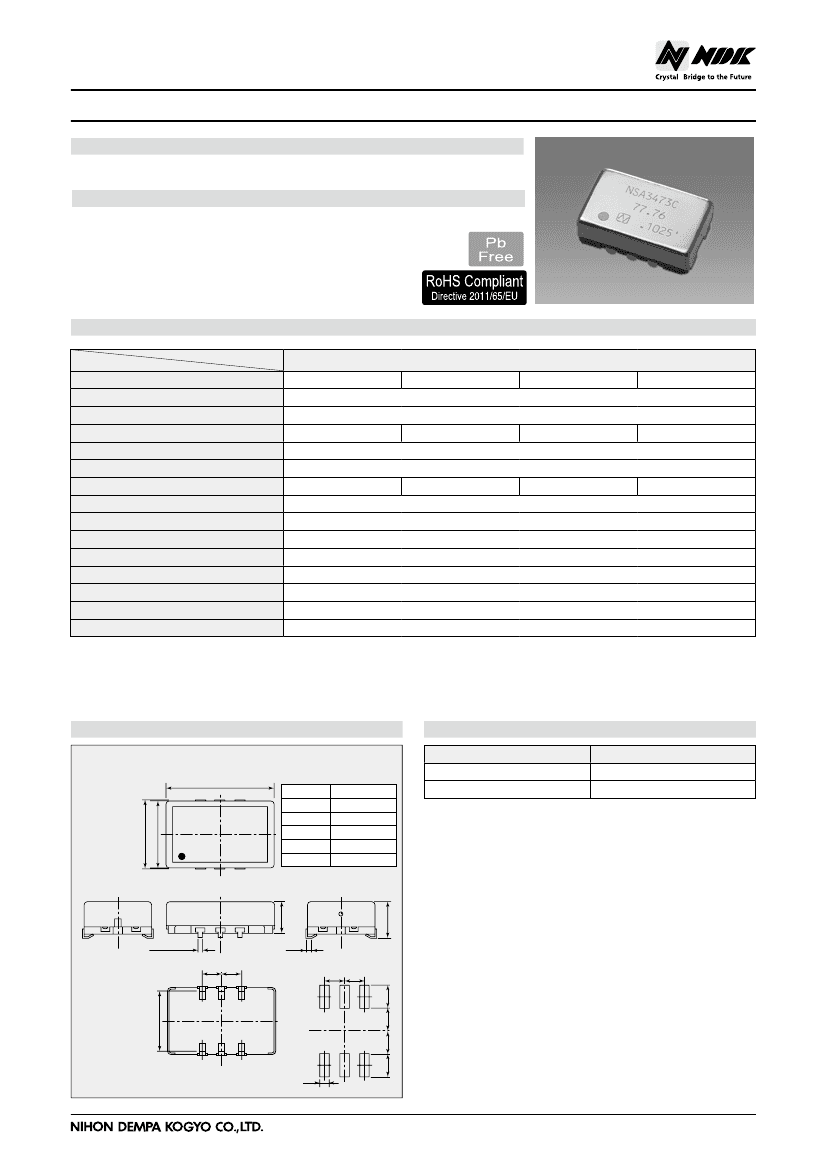

Voltage-Controlled Crystal Oscillator (VCXO) NV13M08Y Series

■

Features

● A J lead-mount type SMD crystal oscillator.

● Frequency range : 7 to 125MHz. (CMOS)

● Fundamental crystal units are designed.

● Enable/Disable function is optional.

● Low power supply voltage(3.3 V)

■

Specifications

Item

Nominal frequency range (MHz)

Supply voltage [V

CC

](V)

Control voltage [V

cont

] (V)

Current consumption (mA)

Output voltage

Symmetry (%)

Rise time / Decay (fall) time

Output load condition (CMOS)

Operating temperature Range (°C)

Storage temperature range (°C)

Overall frequency tolerance (*1)

Frequency control range

Frequency change polarity

Linearity of frequency modulation deviation

Input impedance

*Please specify products with or without Enable/Disable function.

(*1) Overall frequency tolerance includes "Frequency/temperature characteristics","Frequency tolerance","Frequency/voltage

coefficient","Frequency/load coefficient" and "Long-term frequency stability(1 year)".

Max. 15

Max. 20

Model

7 to 15

15 to 30

+3.3 ±10%

+1.65±1.5V

Max. 20

Max. 30

V

OH

: Min. 90% V

CC

, V

OL

: Max. 10% V

CC

45 to 55 (at 50 % V

CC

)

Max. 8ns(10% to 90% V

CC

)Max. 8ns(10% to 90% V

CC

)Max. 5ns(10% to 90% V

CC

)Max. 3ns(10% to 90% V

CC

)

15pF

–40 to +85

–55 to +125

Max. ±45 × 10

–6

Min. ±100 × 10

–6

Positive

Max. 5%

Min. 100kΩ

NV13M08YM

30 to 60

60 to 125

■

Dimensions

mm

13.8 ± 0.2

■

List of Enable / Disable function

Input (#2)

High (V

IH

≥0.7 V

CC

) or NC

Low (V

IL

≤0.3V

CC

)

Output (#4)

Nominal frequency Output

High Z

Terminal land connections

#1

#2

#3

#4

#5

#6

NC or E/D

OUTPUT

NC

V

CC

GND

V

cont

V

CONT

8.9 ± 0.3

8.65 ± 0.2

4.1 ± 0.2

0.51 ± 0.2

2.54 ± 0.1

#1

7.8 ± 0.6

#2

2.54 ± 0.1

#3

(0.6)

Land pattern (Typical)

2.54

3.0

1.27

3.0

#6

#5

#4

2.9

4.5 ± 0.2

vcxo09_110922_NV13M08YM_e
