3M
Mini D Ribbon (MDR) Connectors

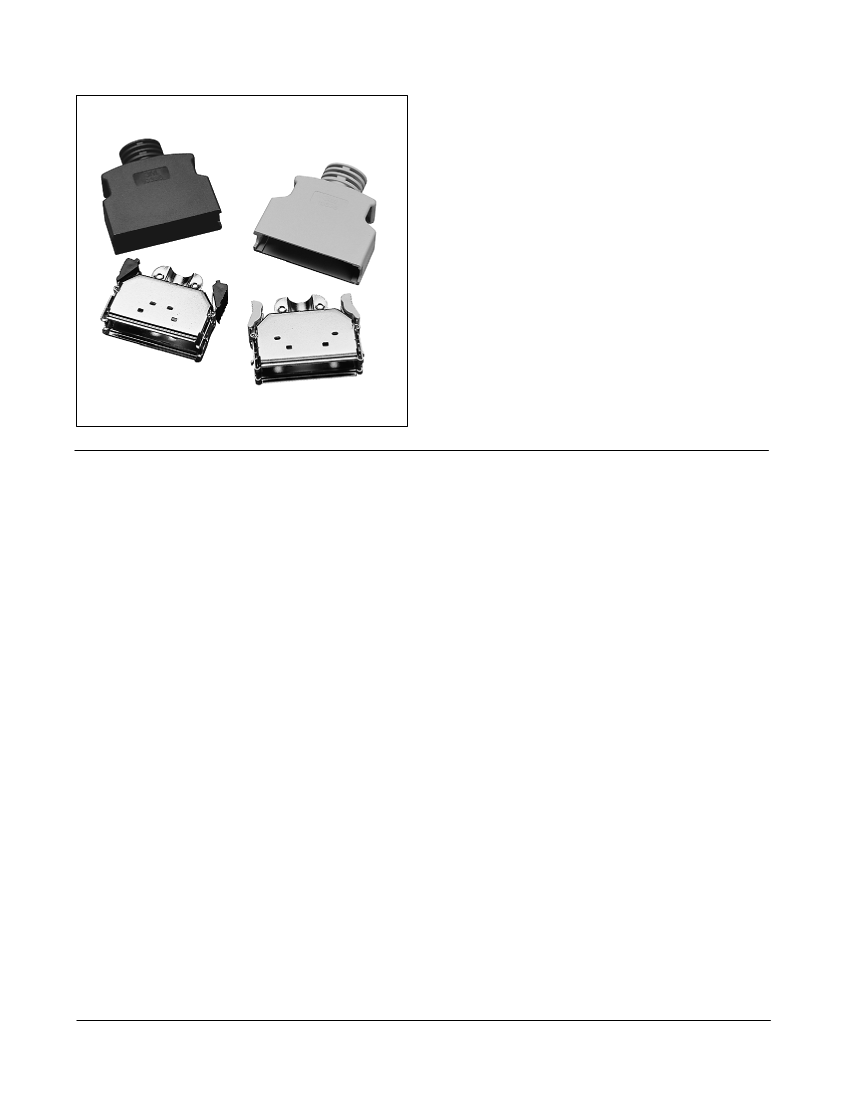

.050” Plastic Shielded Junction Shell for Round Cable
103 Series
S
Durable one piece plastic over two piece metal
junction shell for straight round cable (compatible
with 101XX-6000 EC plug)
S
Quick release latching
S
MDR digital LCD Interface as a 20 or 26 contact
connector
S
Contacts: 14, 20, 26, 36, 40, 50 and 68
Date Modified:May 30, 2003
TS-0571-06
Sheet 1 of 2
Physical
Outer Shell
Material:
Flammability:
Color:
Inner Shell
Material:
Plating:
Marking:
ABS
UL 94V-0
Beige, Medium Gray, and Black
Steel, .020″ [ 0.5 mm ] Thick
Nickel
3M Logo and Part Number
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M

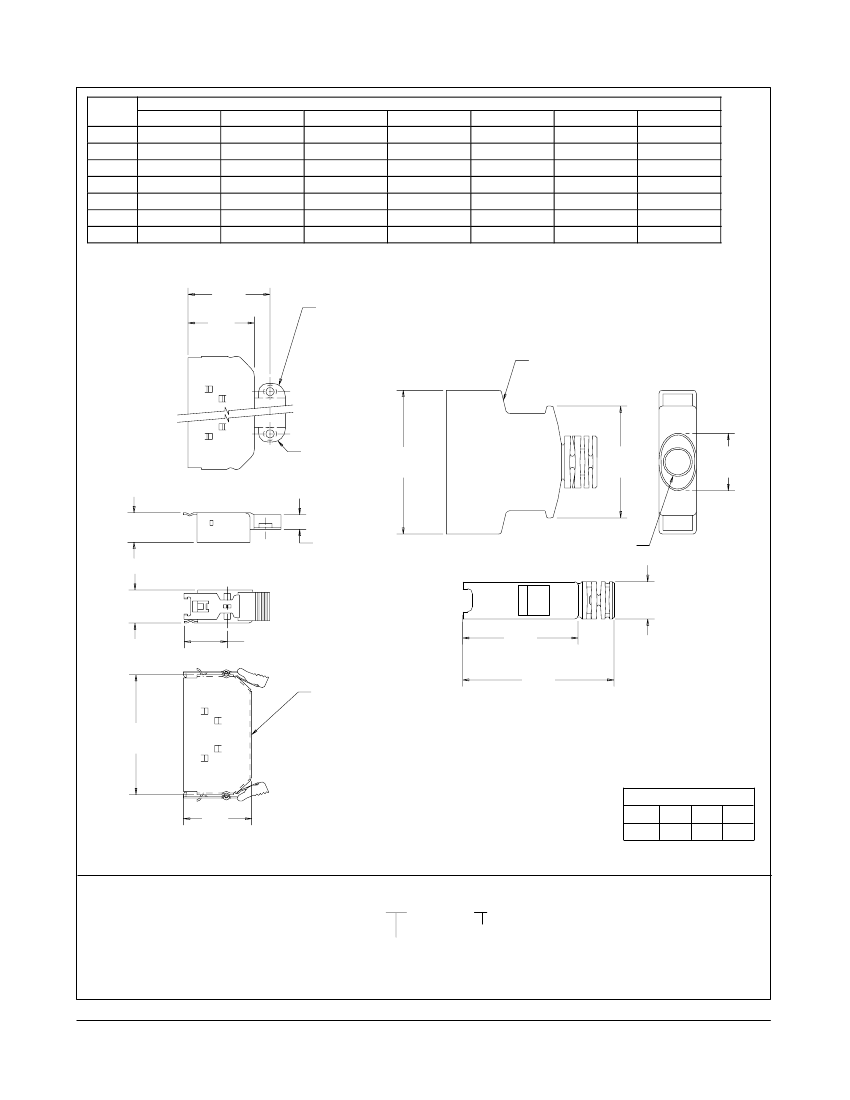

Mini D Ribbon (MDR) Connectors
Contact
Quantity
Dimensions
A
B
C
D
.050” Plastic Shielded Junction Shell for Round Cable
E
F
G
103 Series
14
20
26
36
40
50
68
.76 [ 19.4 ]
.91 [ 23.2 ]
1.06 [ 27.0 ]
1.31 [ 33.3 ]
1.41 [ 35.8 ]
1.66 [ 42.2 ]
2.11 [ 53.6 ]
1.15 [ 29.3 ]
1.15 [ 29.3 ]
1.15 [ 29.3 ]
1.01 [ 25.6 ]
.98 [ 24.8 ]
.98 [ 24.8 ]
.98 [ 24.8 ]
1.02 [ 25.9 ]
1.17 [ 29.7 ]
1.32 [ 33.5 ]
1.57 [ 39.8 ]
1.67 [ 42.4 ]
1.92 [ 48.7 ]
2.37 [ 60.1 ]
1.30 [ 33.0 ]
1.30 [ 33.0 ]
1.30 [ 33.0 ]
1.26 [ 32.0 ]
1.26 [ 32.0 ]
1.26 [ 32.0 ]
1.26 [ 32.0 ]
.57 [ 14.5 ]
.57 [ 14.5 ]
.57 [ 14.5 ]
.63 [ 16.0 ]
.63 [ 16.0 ]
.63 [ 16.0 ]
.71 [ 18.0 ]
.25 [ 6.3 ]
.26 [ 6.7 ]
.28 [ 7.1 ]
.32 [ 8.1 ]
.32 [ 8.2 ]
.34 [ 8.7 ]
.36 [ 9.1 ]
.67 [ 17.1 ]
.82 [ 20.9 ]
.97 [ 24.8 ]
1.22 [ 31.1 ]
1.32 [ 33.6 ]
1.57 [ 40.0 ]
2.02 [ 51.4 ]
B
.81
[20.5]
Upper Half Metal
Inner Shell
Plastic Outer Shell
See Note 1
C
G
E
.36
[9.1]
.20
[5.1]
F Dia.
.40
[10.1]
.52
[13.2]
D
.45
[11.5]
Lower Half Metal
Inner Shell
1.65
[42.0]
A
Inch
[mm]
.0
Inch
±
.1
Tolerance Unless Noted
.83
[21.1]
Notes:
1. Part number includes a cable clamp and 2X M2.6 screws. These parts are not shown.
2. Panel thickness including washers must be less than 2.0 mm.
.00
.000
±
.01
±
.005
[ ] Dimensions for
Reference only
Ordering Information
103XX-3210-00X
Contact Quantity
(See Table)
Color Code:
0 = Beige (Standard)
3 = Medium Gray (Special)
6 = Black (Special)
TS-0571-06
Sheet 2 of 2
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
