PD-20-10: Description0.05MHz - 20MHz RF/MICROWAVE SPLITTER AND COMBINER, 0.5dB INSERTION LOSS; CategoryWireless rf/communication Radio frequency and microwave; File Size234KB，1 Pages; ManufacturerInterpoint （ Crane Aerospace & Electronics ）; Websitehttp://www.interpoint.com; Environmental Compliance

Download Datasheet Parametric Compare View All

PD-20-10 Overview

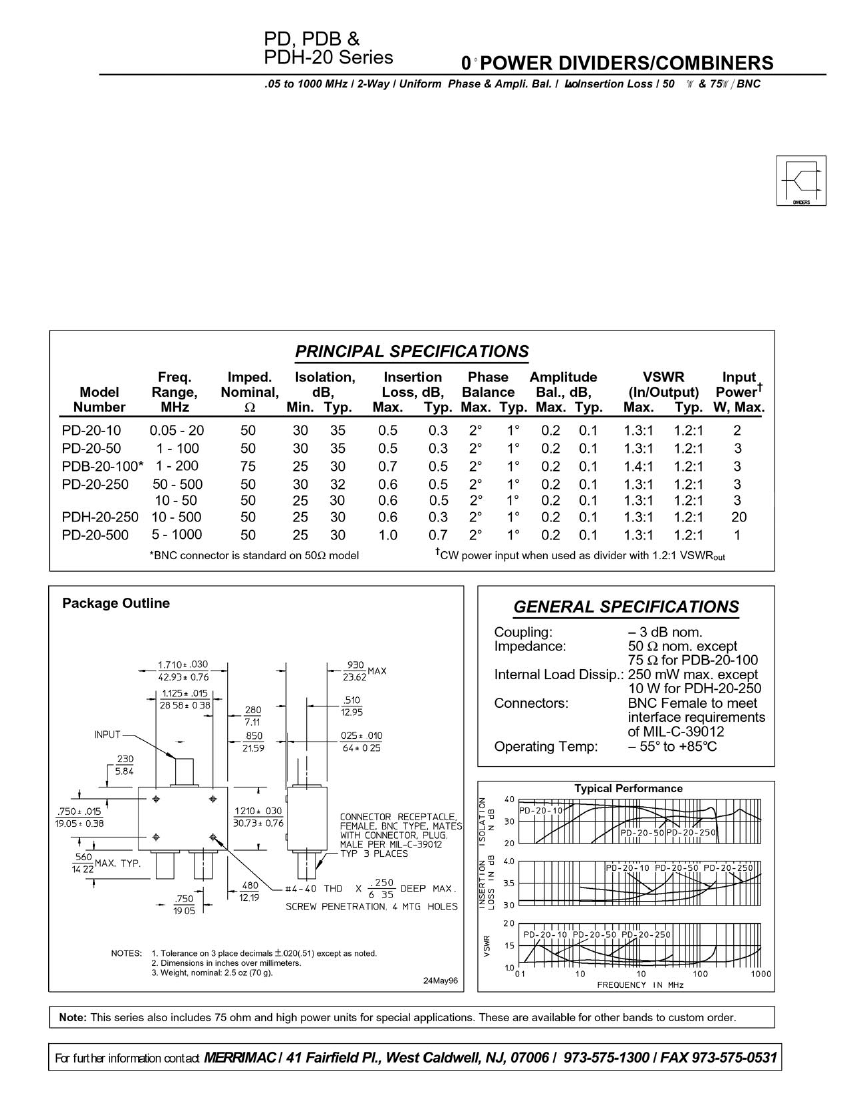

0.05MHz - 20MHz RF/MICROWAVE SPLITTER AND COMBINER, 0.5dB INSERTION LOSS

PD-20-10 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Interpoint （ Crane Aerospace & Electronics ）
Reach Compliance Code	compliant
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
Maximum insertion loss	0.5 dB
Maximum operating frequency	20 MHz
Minimum operating frequency	0.05 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	SPLITTER AND COMBINER
Maximum voltage standing wave ratio	1.3

Preview

Download Datasheet

View All

PD-20-10 Related Products

	PD-20-10	PDB-20-100	PD-20-50	PD-20-500	PDH-20-250
Description	0.05MHz - 20MHz RF/MICROWAVE SPLITTER AND COMBINER, 0.5dB INSERTION LOSS	1MHz - 200MHz RF/MICROWAVE SPLITTER AND COMBINER, 0.7dB INSERTION LOSS	1MHz - 100MHz RF/MICROWAVE SPLITTER AND COMBINER, 0.5dB INSERTION LOSS	5MHz - 1000MHz RF/MICROWAVE SPLITTER AND COMBINER, 1dB INSERTION LOSS	10MHz - 500MHz RF/MICROWAVE SPLITTER AND COMBINER, 0.6dB INSERTION LOSS
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Interpoint （ Crane Aerospace & Electronics ）	Interpoint （ Crane Aerospace & Electronics ）	Interpoint （ Crane Aerospace & Electronics ）	Interpoint （ Crane Aerospace & Electronics ）	Interpoint （ Crane Aerospace & Electronics ）
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Characteristic impedance	50 Ω	75 Ω	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	33.01 dBm	34.77 dBm	34.77 dBm	30 dBm	43.01 dBm
Maximum insertion loss	0.5 dB	0.7 dB	0.5 dB	1 dB	0.6 dB
Maximum operating frequency	20 MHz	200 MHz	100 MHz	1000 MHz	500 MHz
Minimum operating frequency	0.05 MHz	1 MHz	1 MHz	5 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	SPLITTER AND COMBINER	SPLITTER AND COMBINER	SPLITTER AND COMBINER	SPLITTER AND COMBINER	SPLITTER AND COMBINER
Maximum voltage standing wave ratio	1.3	1.4	1.3	1.3	1.3
Other features	-	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	-
Base Number Matches	-	1	1	1	-
