PD-20-10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> PD-20-10

PD-20-10: DescriptionSplitter And Combiner, 0.05MHz Min, 20MHz Max, 0.5dB Insertion Loss-Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size416KB，1 Pages; ManufacturerCrane Co.; Environmental Compliance

Download Datasheet Parametric Compare View All

PD-20-10 Overview

Splitter And Combiner, 0.05MHz Min, 20MHz Max, 0.5dB Insertion Loss-Max,

PD-20-10 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Crane Co.
Reach Compliance Code	compliant
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
Maximum insertion loss	0.5 dB
Maximum operating frequency	20 MHz
Minimum operating frequency	0.05 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	SPLITTER AND COMBINER
Maximum voltage standing wave ratio	1.3

Preview

Download Datasheet

View All

Crane Aerospace & Electronics Microwave Solutions

PD, PDB & PDH-20 S

ERIES

– 0° P

OWER

IVIDERS

OMBINERS

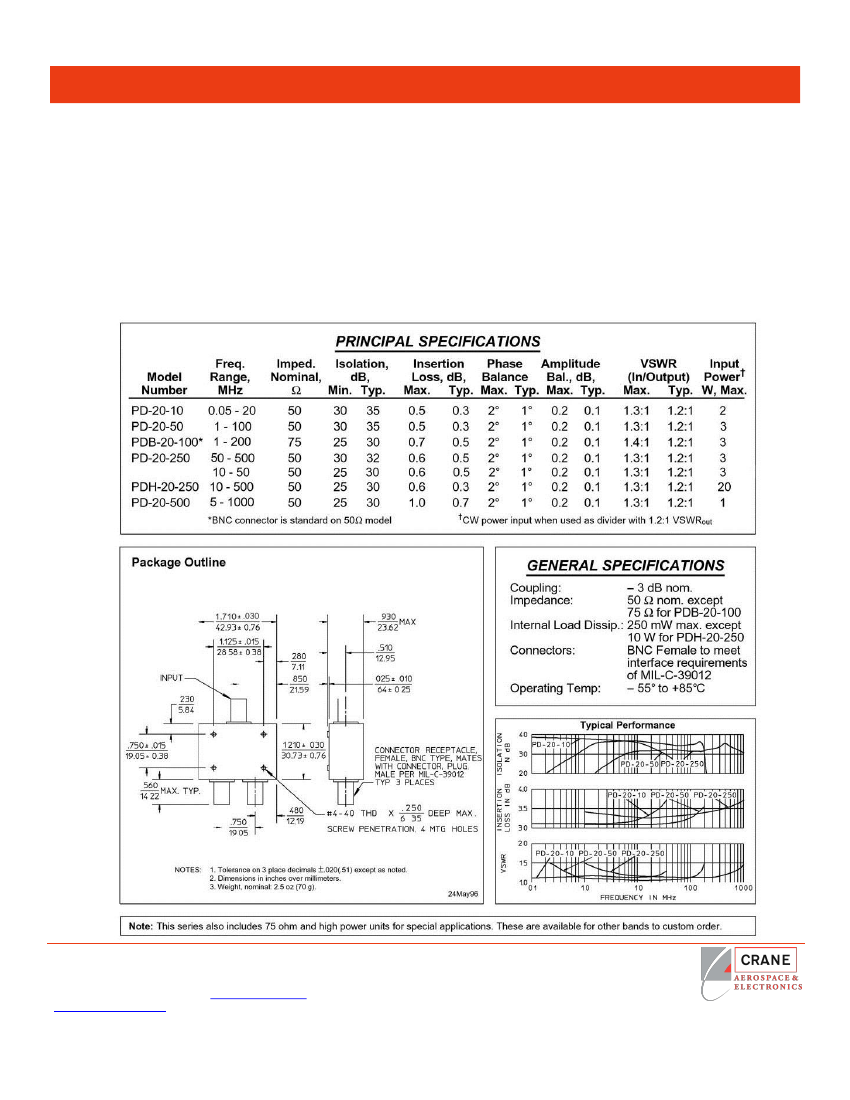

TECHNICAL FEATURE

FEATURES



.05 to 1000 MHz

2-way

Uniform Phase & Amplitude Balance

Low Insertion Loss

BNC

Crane Aerospace & Electronics

Microwave Solutions – Merrimac Industries

41 Fairfield Place, West Caldwell, NJ 07006

+ 1.973.575.1300 ext. 1309



mw@crane-eg.com

www.craneae.com/mw

PD20.doc. This revision supersedes all previous releases. All technical information is believed to be accurate, but no responsibility is assumed for errors. We

PD-20-10 Related Products

	PD-20-10	PD-20-50	PD-20-500	PDH-20-250
Description	Splitter And Combiner, 0.05MHz Min, 20MHz Max, 0.5dB Insertion Loss-Max,	Splitter And Combiner, 1MHz Min, 100MHz Max, 0.5dB Insertion Loss-Max,	Splitter And Combiner, 5MHz Min, 1000MHz Max, 1dB Insertion Loss-Max,	Splitter And Combiner, 10MHz Min, 500MHz Max, 0.6dB Insertion Loss-Max,
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Crane Co.	Crane Co.	Crane Co.	Crane Co.
Reach Compliance Code	compliant	compliant	compliant	compliant
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	33.01 dBm	34.77 dBm	30 dBm	43.01 dBm
Maximum insertion loss	0.5 dB	0.5 dB	1 dB	0.6 dB
Maximum operating frequency	20 MHz	100 MHz	1000 MHz	500 MHz
Minimum operating frequency	0.05 MHz	1 MHz	5 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	SPLITTER AND COMBINER	SPLITTER AND COMBINER	SPLITTER AND COMBINER	SPLITTER AND COMBINER
Maximum voltage standing wave ratio	1.3	1.3	1.3	1.3
