BTP-99AMCT-XX-M/W

Description
Visible LED
CategoryLED optoelectronic/LED    photoelectric
File Size523KB,8 Pages
ManufacturerDB Lectro Inc
Download Datasheet Parametric View All

BTP-99AMCT-XX-M/W Overview

Visible LED

BTP-99AMCT-XX-M/W Parametric

Parameter NameAttribute value
MakerDB Lectro Inc
Reach Compliance Codeunknown
ProLite
1W SMD Star
BTP-99XXCT-XX-X/W

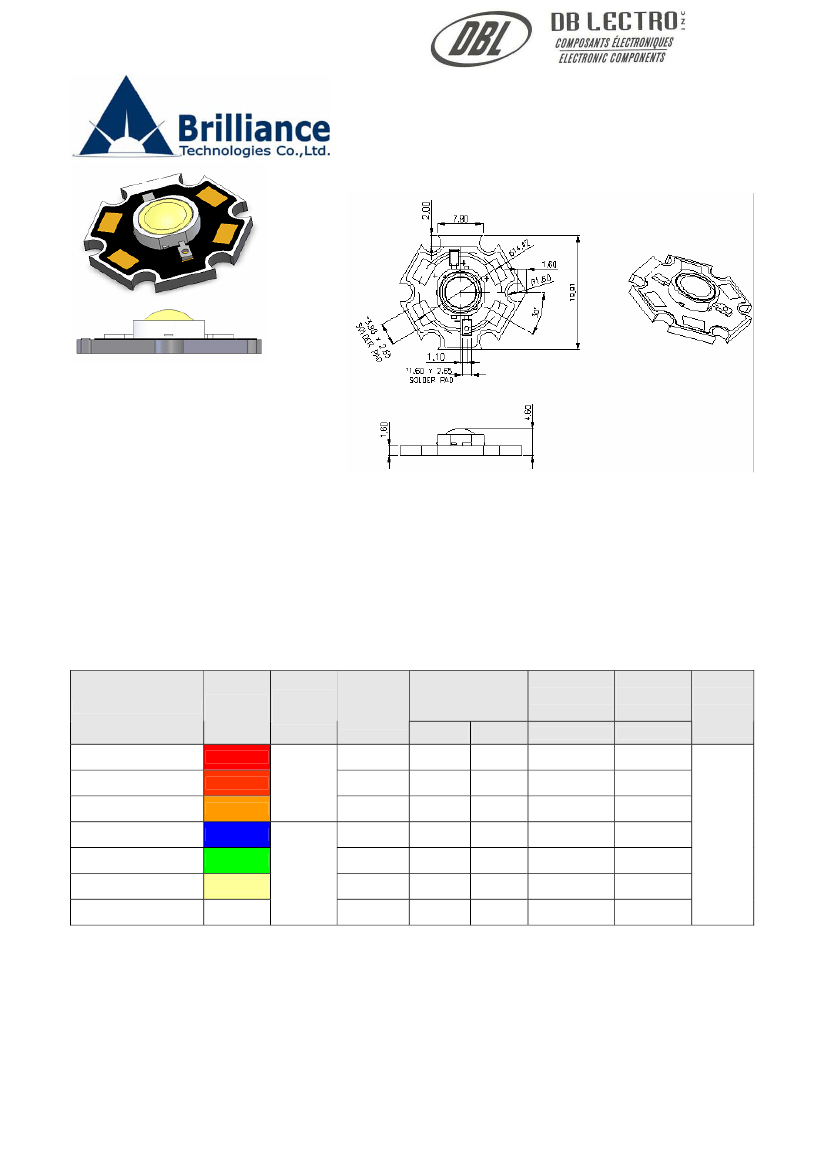

Package Dimension
Features
Highest Lumen Per Watt
Long Operational Life
White Housing
Superior ESD Protection
Instant Light (less than 100ns)
Compatible to Luxeon’s “Lambertian”
True SMD Emitter
Note: Lens is low dome profile
Tolerance:
± see spec
Unit: mm
Applications
Accent Light/Down Light/Spot Light
Automotive Exterior/Interior Light
Large Area LCD Backlights
Marine/Miner’s Lighting
Portable Flashlight/ General Lighting
Optical Characteristics at T
J
=25ºC, I
F
=350mA
PART NUMBER
Emitting
Color
LED Chip
Material
Lens
Color
Water Clear
AlInGaP
Water Clear
Water Clear
Water Clear
Water Clear
AlInGaN
Water Clear
Water Clear
Wavelength (nm)
CCT (K) Range
Min
BTP-99NRCT-XX-X/W
BTP-99AMCT-XX-X/W
BTP-99YECT-XX-X/W
BTP-99BLCT-XX-X/W
BTP-99PGCT-XX-X/W
BTP-99WWCT-XX-X/W
BTP-99WHCT-XX-X/W
Notes:
1)
2)
3)
4)
Picture for illustration purpose only.
Please refer to outline dimension for actual package size.

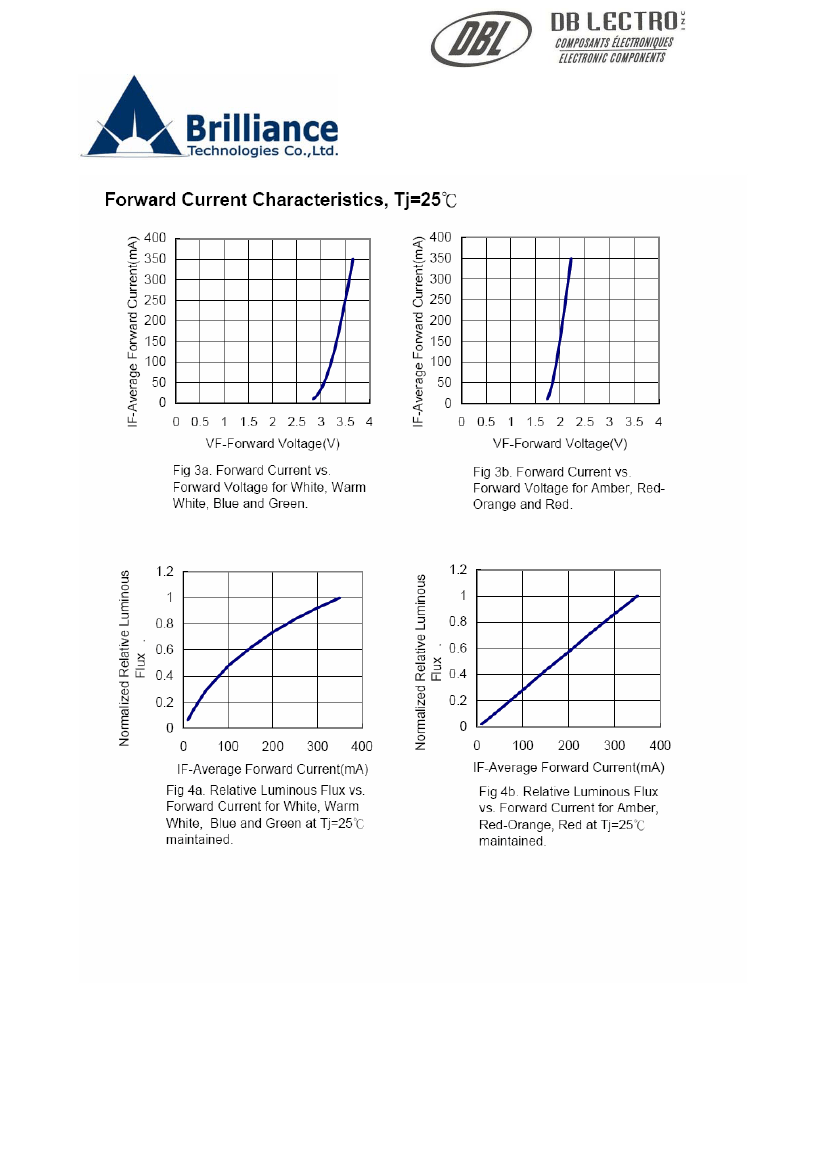

Drive
Voltage
@ 350mA
Typ.
2.40V
2.40V
2.40V
3.50V
3.50V
3.50V
3.50V
Luminous
Flux (lm)
@350mA
Typ.
30 lm
36 lm
30 lm
10 lm
30 lm
20 lm
25 lm

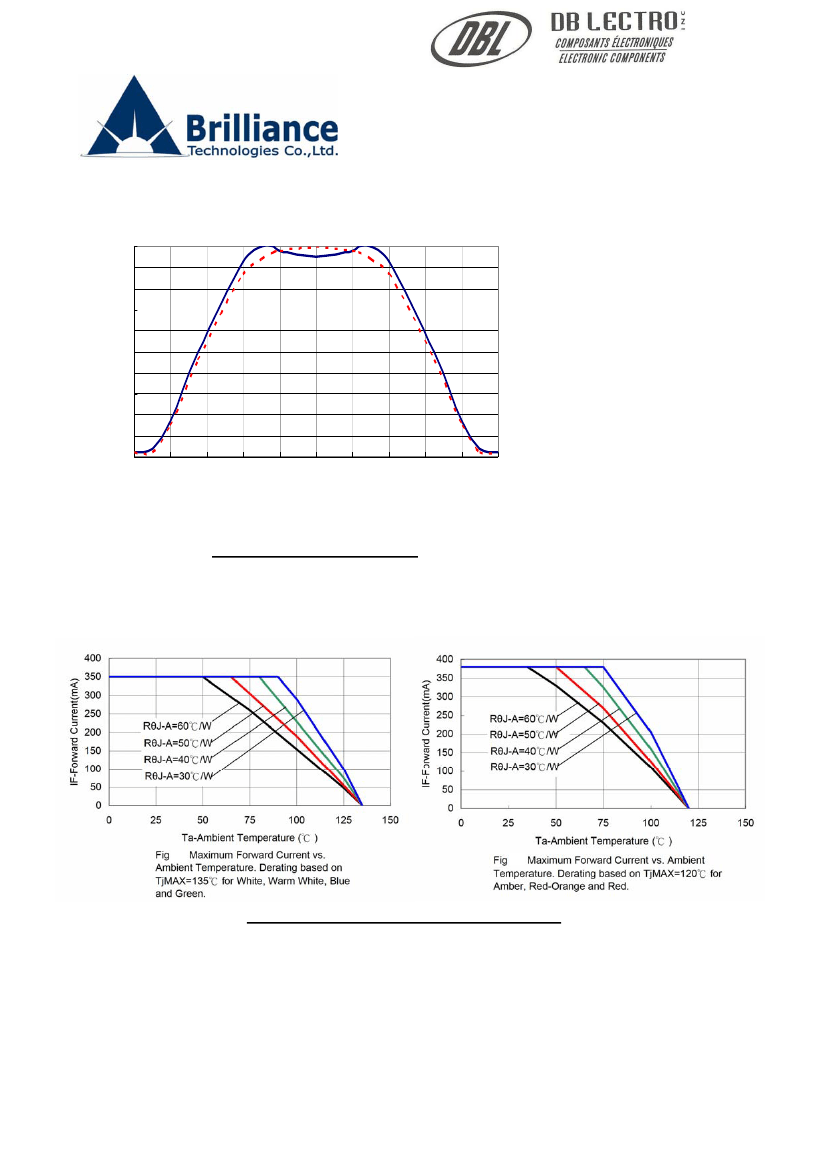

VIEW
ANGLE
1/2
(deg)
Max
635
620
595
475
540
3800K
8000K
Normal Red
Amber
Yellow
Blue
Green
Warm White
White
620
610
585
460
520
2800K
5000K
140
Flux is measured with the accuracy of ±15%. Please refer to Flux Selection Guide
CCT is measured with the accuracy of ± 400K. Please refer to CCT Selection Guide
V
F
is measured with the accuracy of ± 0.15V. Please refer to V
F
Selection Guide
Part No.: BTP-99XXCT-XX-X/W
Rev1.2005
Page 1 of 8
