DFVS1-MLECPIFREQ100B20: DescriptionLVPECL Output Clock Oscillator, 600MHz Min, 800MHz Max, MINIATURE PACKAGE-4; CategoryPassive components oscillator; File Size87KB，1 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric View All

DFVS1-MLECPIFREQ100B20 Overview

LVPECL Output Clock Oscillator, 600MHz Min, 800MHz Max, MINIATURE PACKAGE-4

DFVS1-MLECPIFREQ100B20 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CTS
Reach Compliance Code	unknown
Other features	ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; SYMMETRY 45/55 ALSO POSSIBLE
Maximum control voltage	3 V
Minimum control voltage	0.3 V
maximum descent time	0.5 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	100 ppm
frequency stability	20%
Installation features	SURFACE MOUNT
Maximum operating frequency	800 MHz
Minimum operating frequency	600 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	LVPECL
Output load	50 OHM
physical size	14.8mm x 9.1mm x 5.9mm
longest rise time	0.5 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

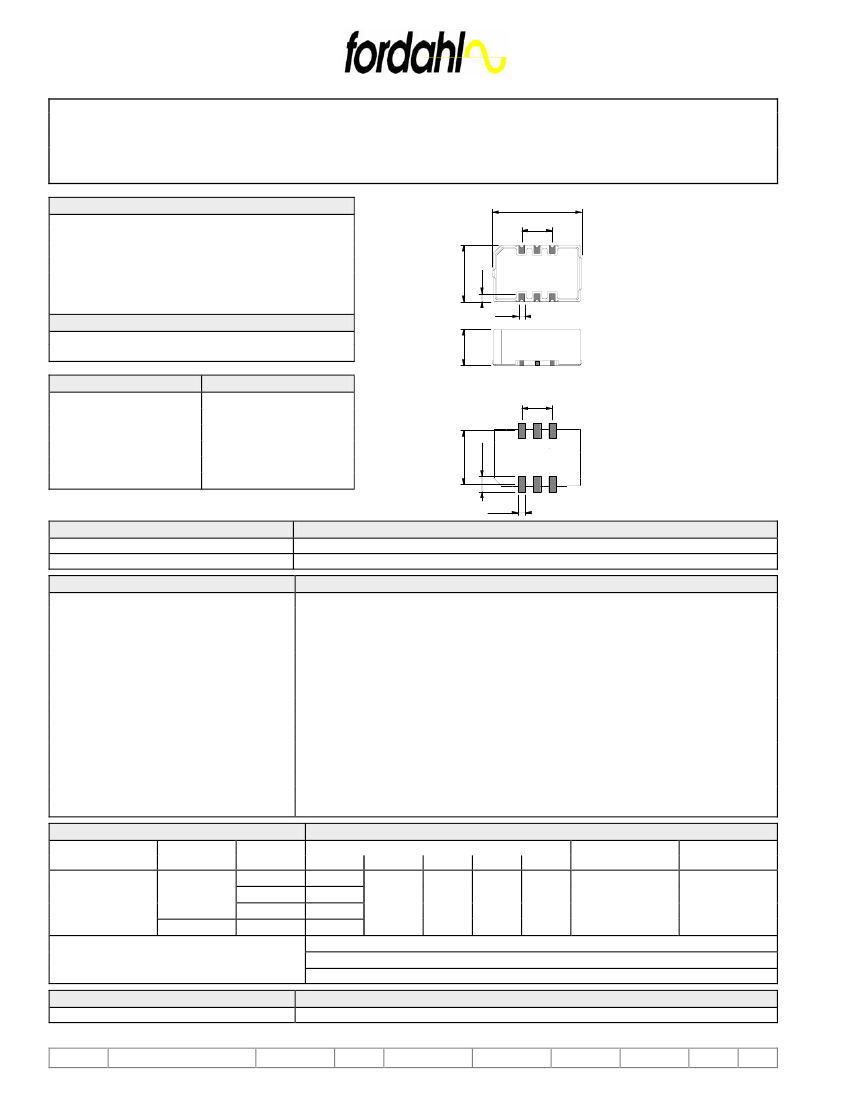

FREQUENCY CONTROL PRODUCTS

HIGH FREQUENCY MINIATURE SURFACE MOUNT VCXO

DFV S1-MLECPI (3.3 V)

KEY FEATURES

600 to 800 MHz

1.4

14.8±0.3

5.08

Parametric frequency multiplication

0.4 ps RMS jitter over 50 kHz to 80 MHz B.W.

APPLICATIONS

OC-192/Sonet/SDH

Function

V control

E/D

GND

Output 1

Output 2

Vcc

TYPE

Frequency Range

Standard Frequencies

9.1±0.2

1.0

+0.1

-0.2

5.9

DFV S1

1

2

3

4

5

6

5.08

2.54

8.9

6

1

5

2

4

3

PC board footprint

1.27

DFV S1-MLECPI

600 to 800 MHz

622.0800; 644.5313; 666.5143; 669.3266; 693.4828; 777.6000 MHz

3.3 V ± 5 %

≤

50 mA

LVPECL 100 K ( 50

Ω

to 1.3 V )

45/55...55/45 %

≤

0.5 ns

≥

2.22 V/

≤

1.7 V

0.10 ps typ;

≤

0.15 ps

0.15 ps typ;

≤

0.20 ps

0.40 ps typ;

≤

0.50 ps

low or open = enable, high = disable

180° phase shifted

≤

10 ms @ 3.15 V

ELECTRICAL SPECIFICATIONS

supply voltage

supply current (no load)

output load

duty cycle @ 50% level

rise/fall times ( 20 to 80% )

high/low levels

jitter RMS ( 12 kHz to 5 MHz )

jitter RMS ( 12 kHz to 20 MHz )

jitter RMS ( 50 kHz to 80 MHz )

enable / disable on pin 2

complementary output on pin 5

start up

FREQUENCY STABILITY

type

temperature model

range

code

100B20

0 to 70°C 100B25

100B50

-40 to 85°C 100E30

temp.

≤

± 20

≤

± 25

≤

± 50

≤

± 30

detailed tolerances [ ppm ]

stability versus:

@ 25°C

Vcc

load

≤

± 10

≤

±3

≤

± 0.5

ageing

≤

±2

pulling range

positive function

≥

± 100

control

voltage

1.65 V

±

1.35 V

DFV S1-MLECPI

remarks

input impedance

≥

10 kΩ,

modulation bandwidth

≥

10 kHz @ -3dB

ageing is 1

st

year at 25°C

ORDERING CODE

Example

TYPE

DFV S1-MLECPI

REVISION

00

type + option code + frequency + model code

DFV S1-MLECPI 622.08 MHz 100B20

CHECKED

NE

DATE

10.10.2002

PAGE

33
