LT1014DS datasheet, PDF - EEWORLD Datasheet

LT1014DS: DescriptionOperational Amplifier, 4 Func, 1000uV Offset-Max, BIPolar, PDSO16, 0.150 INCH, SLIM, PLASTIC, SO-16; CategoryAnalog mixed-signal IC Amplifier circuit; File Size242KB，8 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric View All

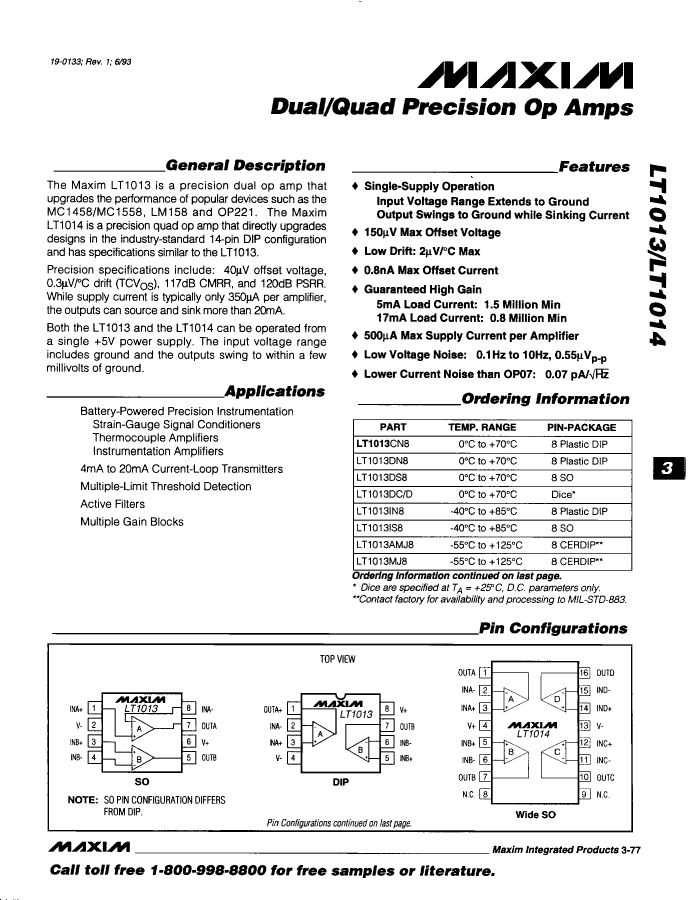

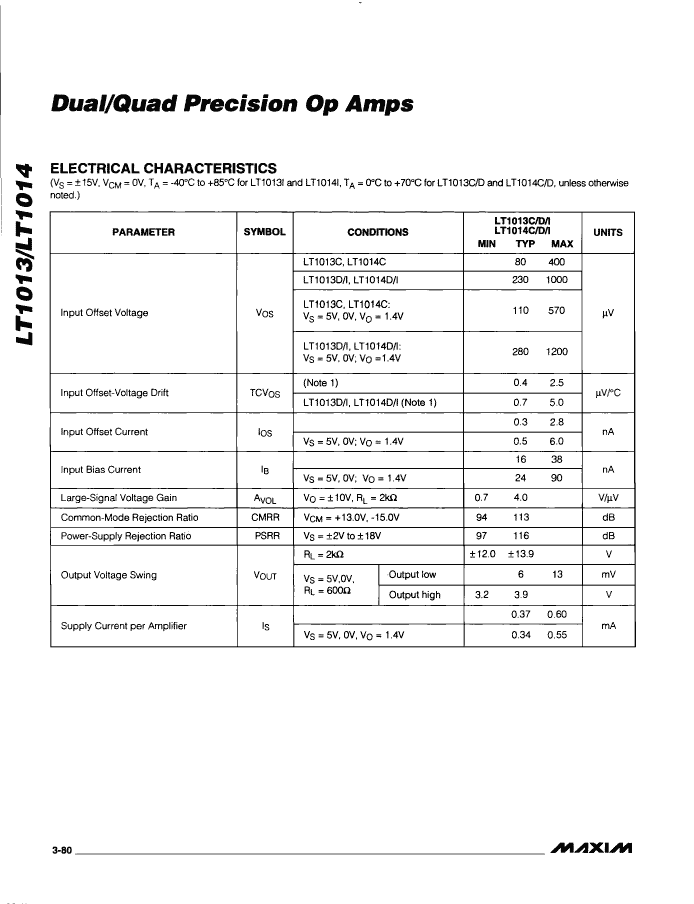

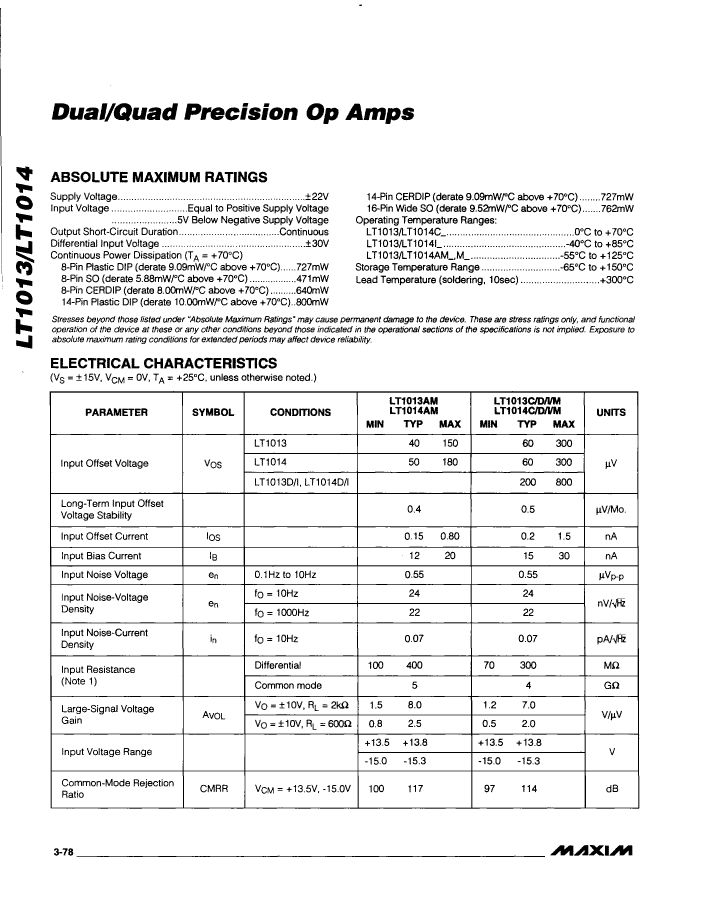

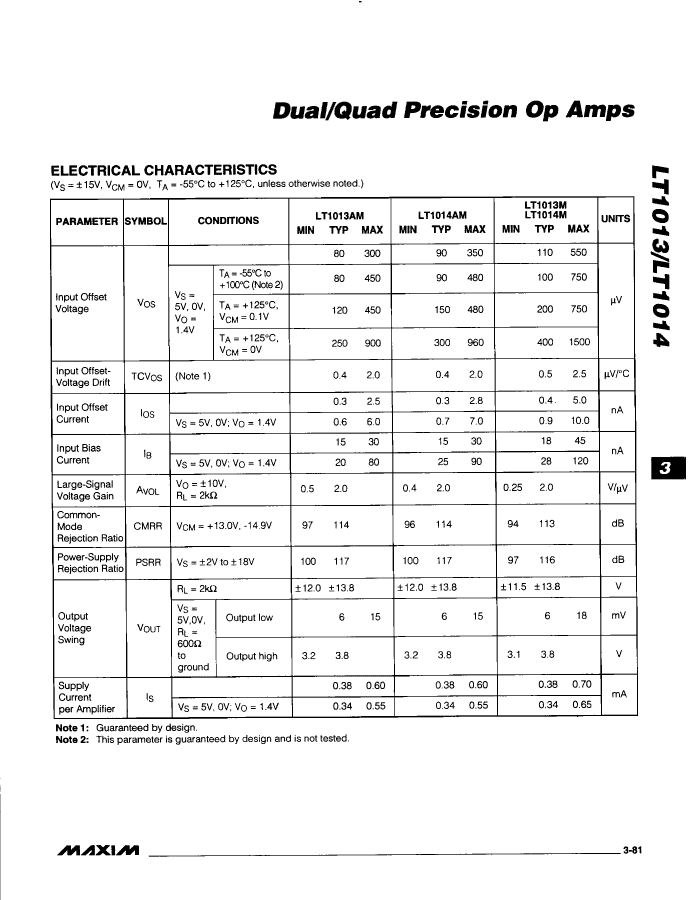

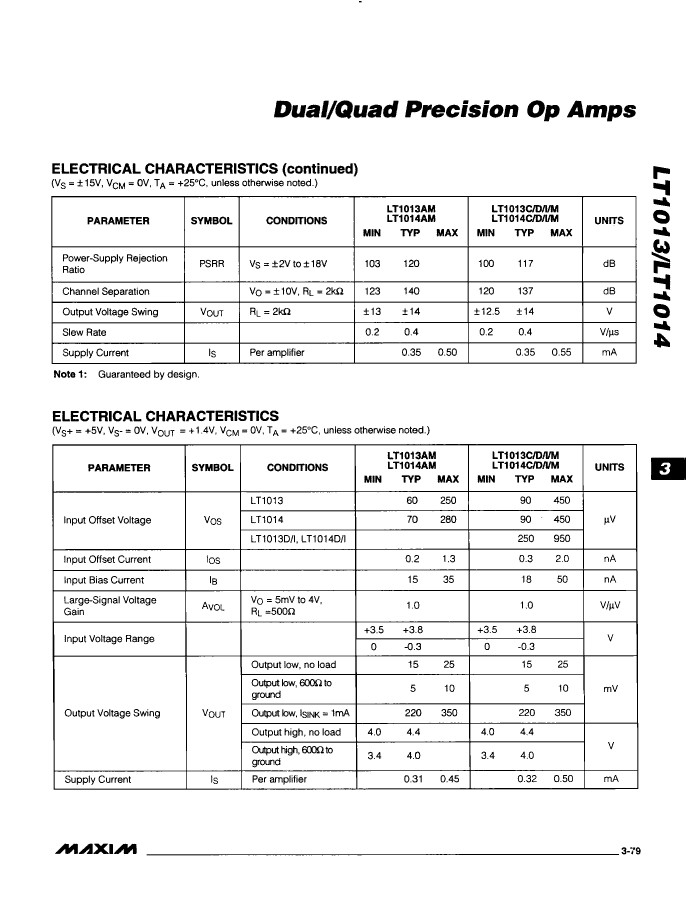

LT1014DS Overview

Operational Amplifier, 4 Func, 1000uV Offset-Max, BIPolar, PDSO16, 0.150 INCH, SLIM, PLASTIC, SO-16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	SOIC
package instruction	SOP, SOP16,.4
Contacts	16
Reach Compliance Code	not_compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.038 µA
Maximum bias current (IIB) at 25C	0.05 µA
Nominal Common Mode Rejection Ratio	113 dB
frequency compensation	YES
Maximum input offset voltage	1000 µV
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	10.3 mm
low-dissonance	NO
micropower	YES
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	4
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5/+-15 V
Certification status	Not Qualified
Maximum seat height	2.65 mm
minimum slew rate	0.2 V/us
Maximum slew rate	2.4 mA
Supply voltage upper limit	11 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Minimum voltage gain	500000
width	7.5 mm
