LF412MJ8/883 datasheet, PDF - EEWORLD Datasheet

LF412MJ8/883: DescriptionLF412MJ8/883; CategoryAnalog mixed-signal IC Amplifier circuit; File Size478KB，4 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

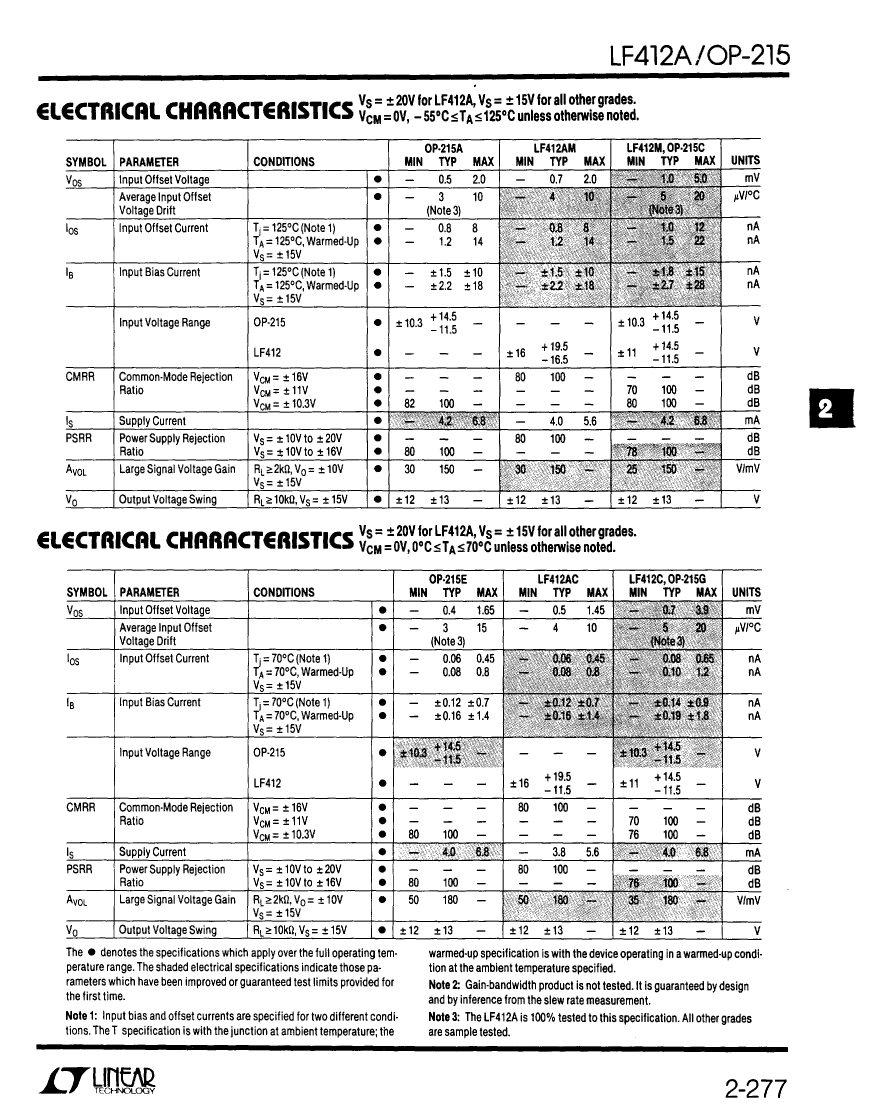

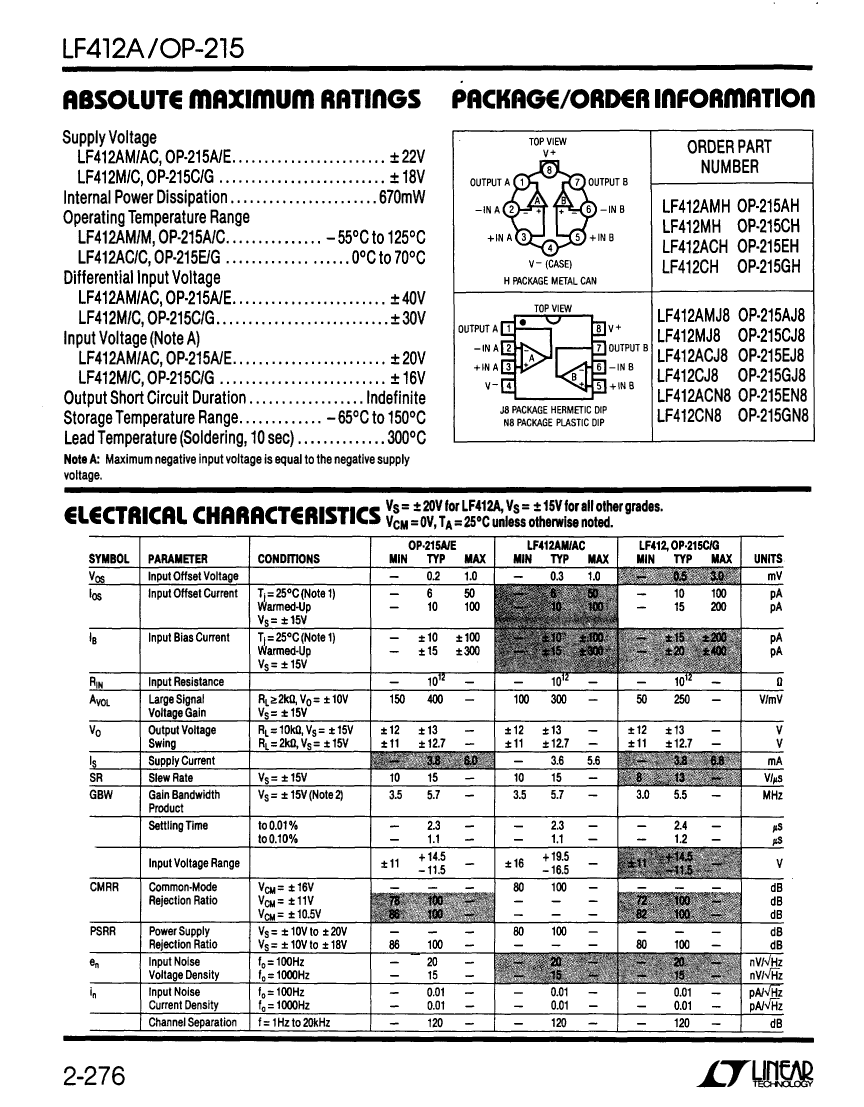

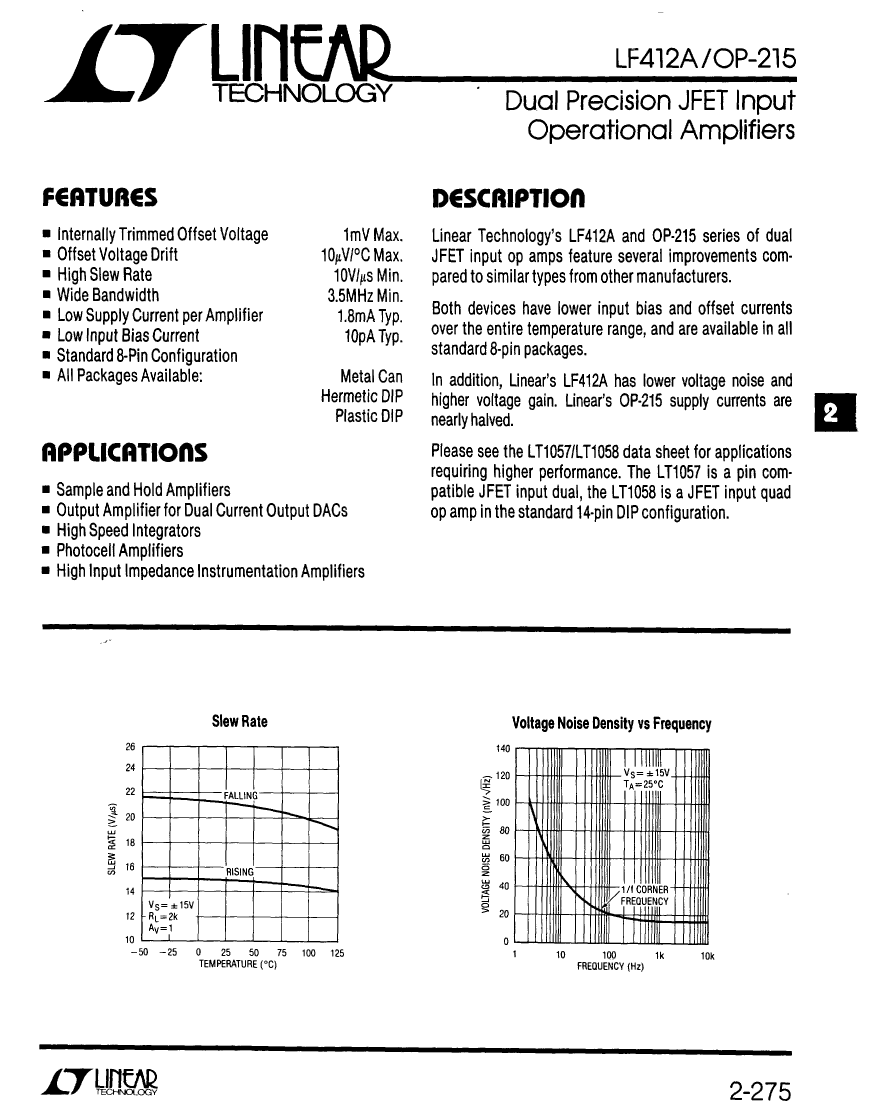

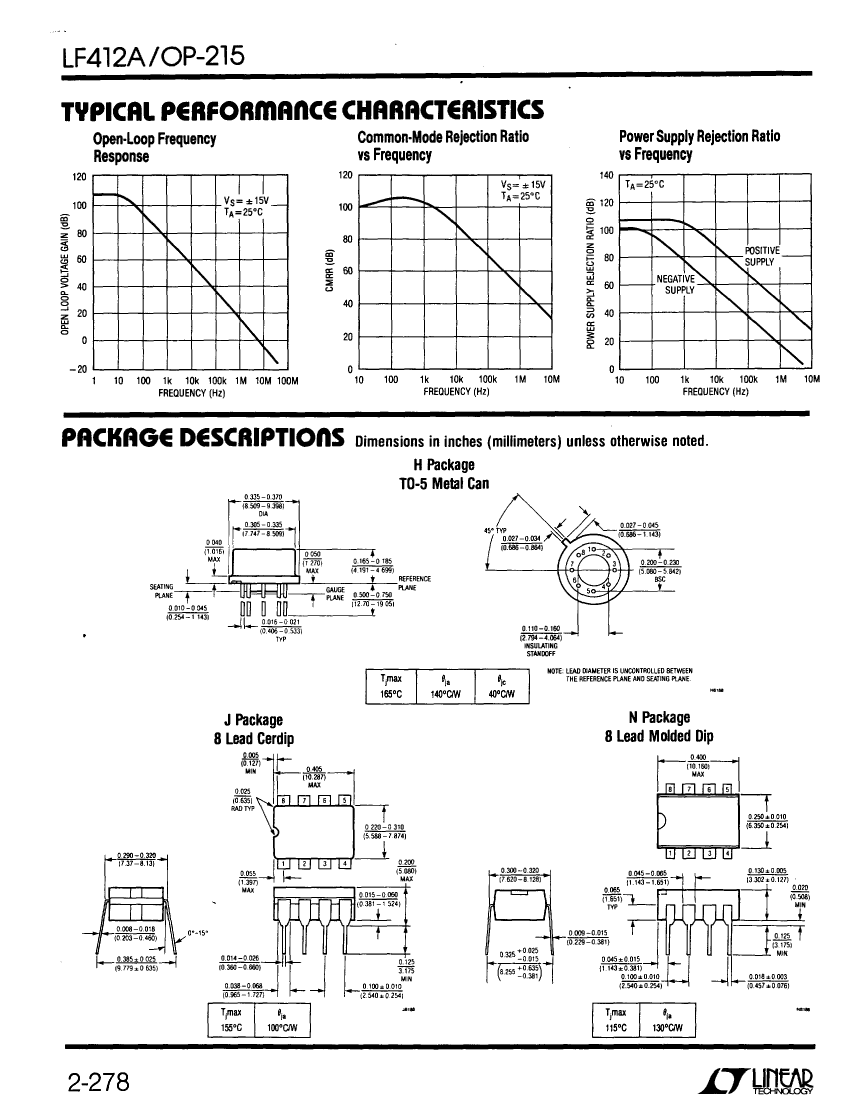

LF412MJ8/883 Overview

LF412MJ8/883

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
package instruction	DIP, DIP8,.3
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.0004 µA
frequency compensation	YES
Maximum input offset current (IIO)	0.022 µA
Maximum input offset voltage	5000 µV
JESD-30 code	R-XDIP-T8
JESD-609 code	e0
low-bias	YES
low-dissonance	NO
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	2
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
minimum slew rate	8 V/us
Maximum slew rate	6.8 mA
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Nominal Uniform Gain Bandwidth	5500 kHz
Minimum voltage gain	25000

	LF412MJ8/883	LF412AMJ8/883
Description	LF412MJ8/883	LF412AMJ8/883
Is it Rohs certified?	incompatible	incompatible
Maker	Linear ( ADI )	Linear ( ADI )
package instruction	DIP, DIP8,.3	DIP, DIP8,.3
Reach Compliance Code	unknown	unknow
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.0004 µA	0.0003 µA
frequency compensation	YES	YES
Maximum input offset current (IIO)	0.022 µA	0.014 µA
Maximum input offset voltage	5000 µV	2000 µV
JESD-30 code	R-XDIP-T8	R-XDIP-T8
JESD-609 code	e0	e0
low-bias	YES	YES
low-dissonance	NO	NO
Nominal Negative Supply Voltage (Vsup)	-15 V	-20 V
Number of functions	2	2
Number of terminals	8	8
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP8,.3	DIP8,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
power supply	+-15 V	+-20 V
Certification status	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B
minimum slew rate	8 V/us	10 V/us
Maximum slew rate	6.8 mA	5.6 mA
Supply voltage upper limit	18 V	22 V
Nominal supply voltage (Vsup)	15 V	20 V
surface mount	NO	NO
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Nominal Uniform Gain Bandwidth	5500 kHz	5700 kHz
Minimum voltage gain	25000	30000
