LF398H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LF398H

LF398H: DescriptionIC,SAMPLE/TRACK-AND-HOLD AMPLIFIER,SINGLE,BIPOLAR/JFET,CAN,8PIN,METAL; CategoryAnalog mixed-signal IC Amplifier circuit; File Size716KB，12 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

LF398H Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LF398H	-	-	View	Buy Now

LF398H Overview

IC,SAMPLE/TRACK-AND-HOLD AMPLIFIER,SINGLE,BIPOLAR/JFET,CAN,8PIN,METAL

LF398H Parametric

Parameter Name	Attribute value
Maker	STMicroelectronics
package instruction	, CAN8,.2
Reach Compliance Code	unknown
Amplifier type	SAMPLE AND HOLD CIRCUIT
JESD-30 code	O-MBCY-W8
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	METAL
Encapsulate equivalent code	CAN8,.2
Package shape	ROUND
Package form	CYLINDRICAL
power supply	+-15 V
Certification status	Not Qualified
Maximum slew rate	6.5 mA
Nominal supply voltage (Vsup)	15 V
Temperature level	COMMERCIAL
Terminal form	WIRE
Terminal location	BOTTOM

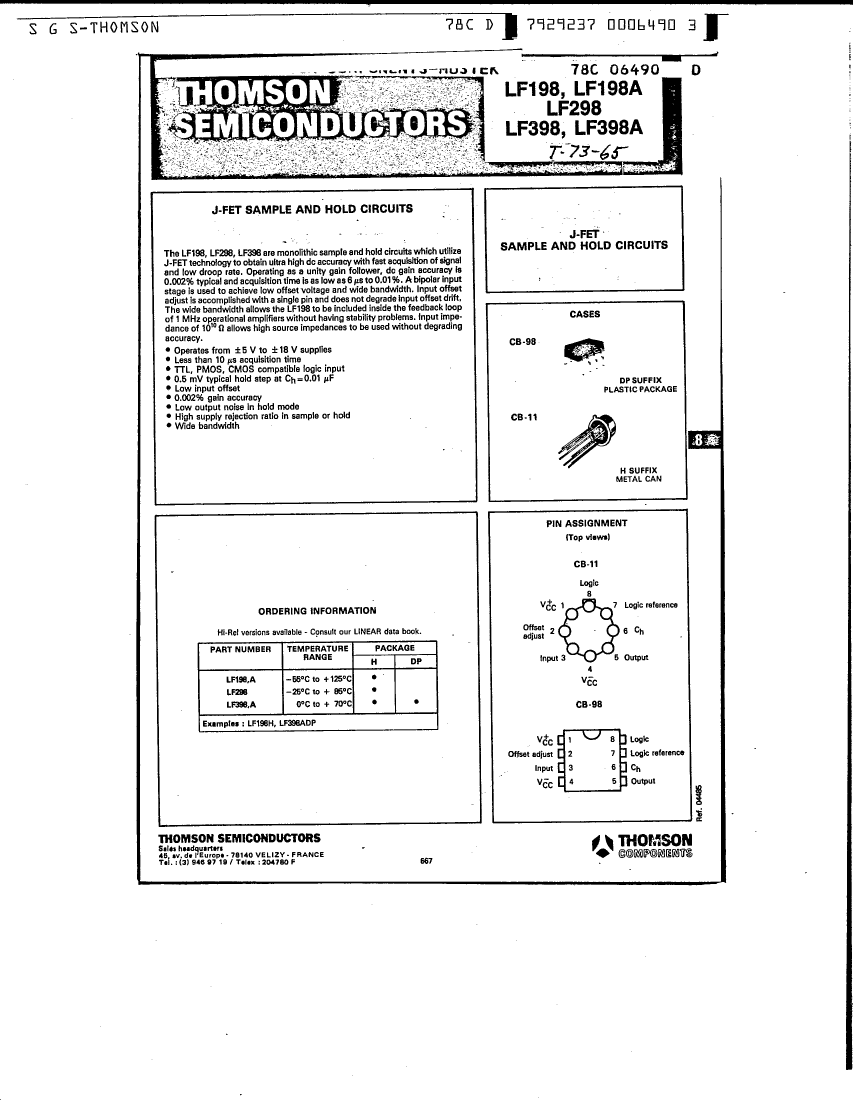

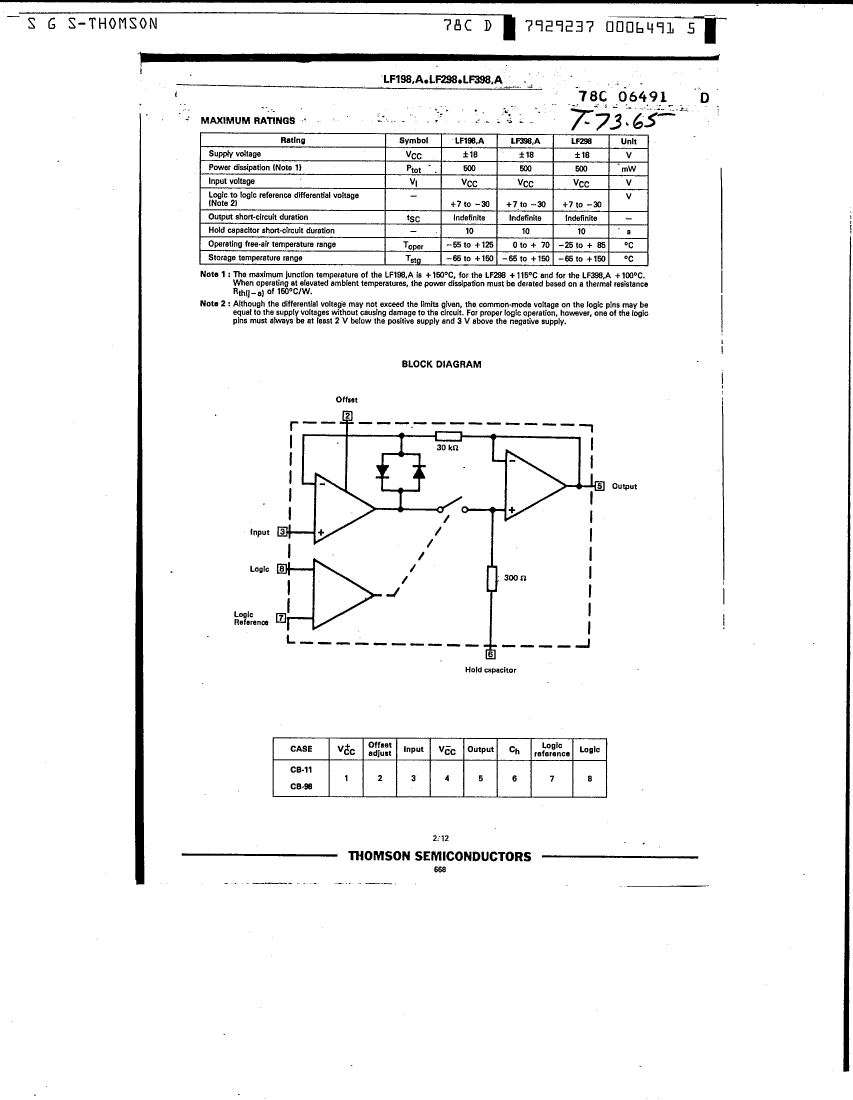

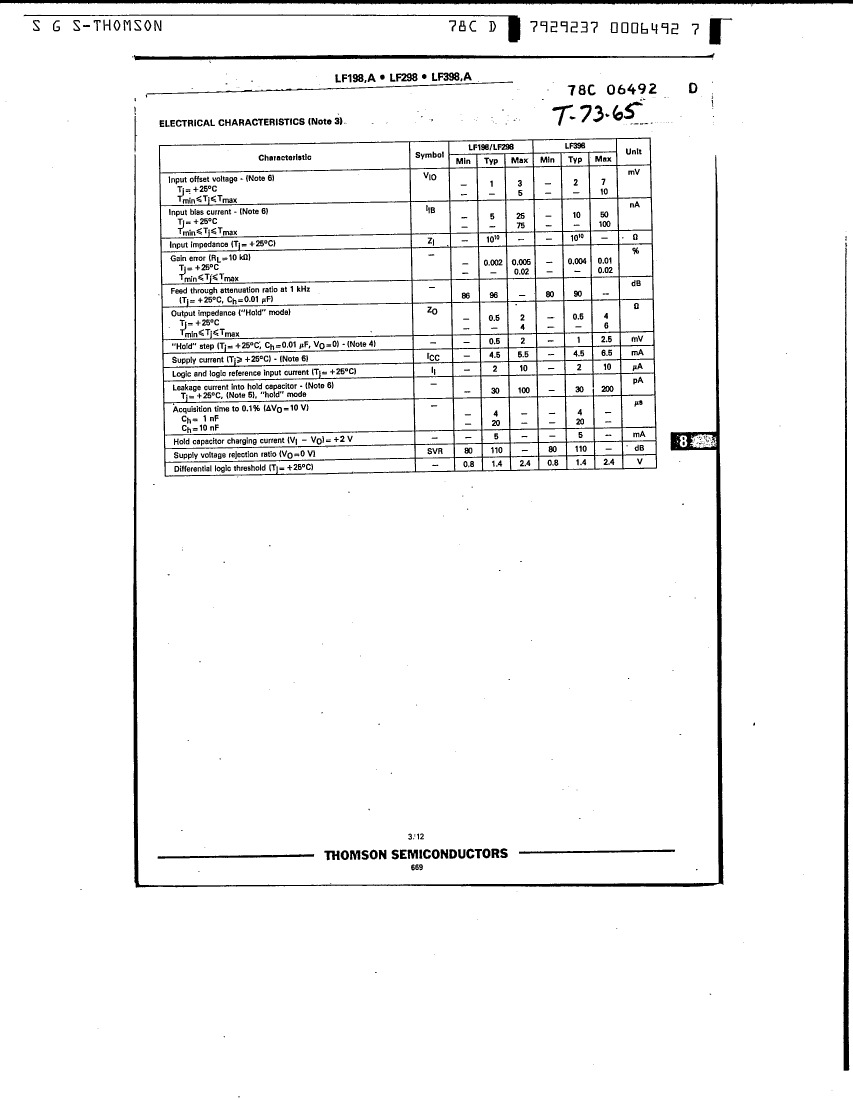

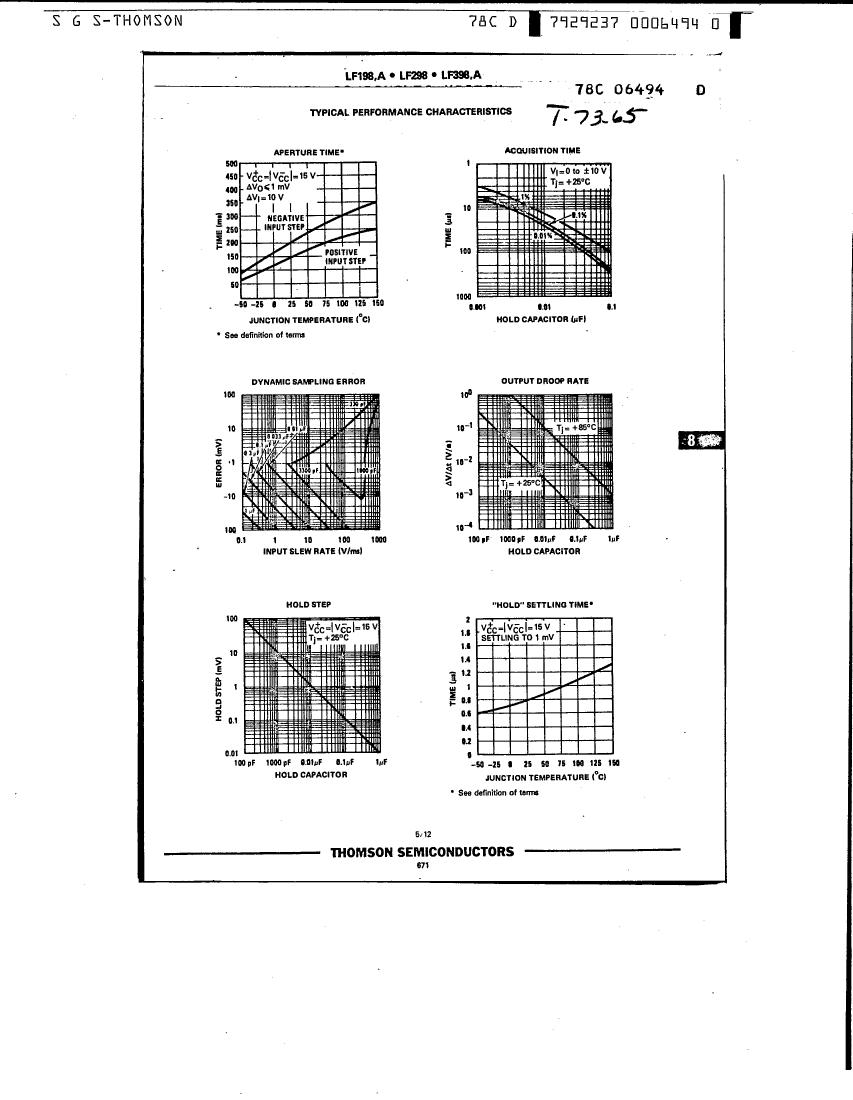

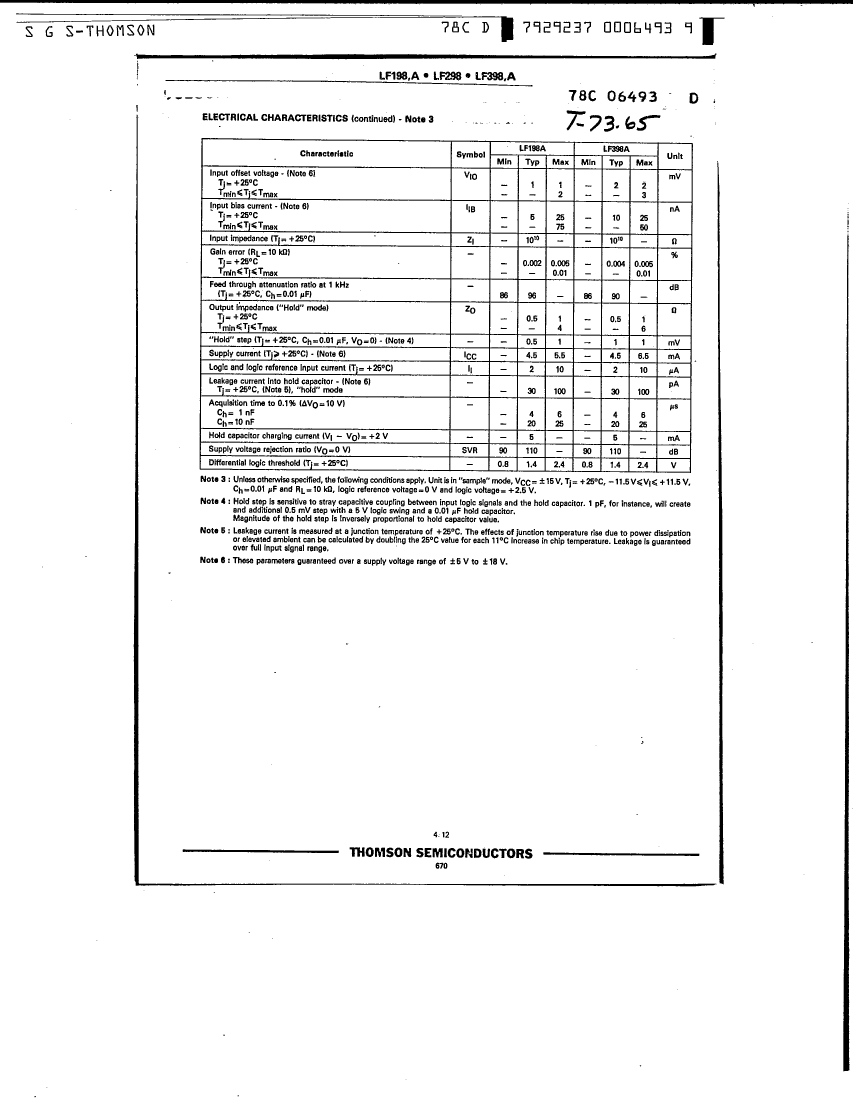

Preview

Download Datasheet

View All

LF398H Related Products

	LF398H	LF198AH	LF198H	LF398AH	LF298H
Description	IC,SAMPLE/TRACK-AND-HOLD AMPLIFIER,SINGLE,BIPOLAR/JFET,CAN,8PIN,METAL	IC,SAMPLE/TRACK-AND-HOLD AMPLIFIER,SINGLE,BIPOLAR/JFET,CAN,8PIN,METAL	IC,SAMPLE/TRACK-AND-HOLD AMPLIFIER,SINGLE,BIPOLAR/JFET,CAN,8PIN,METAL	IC,SAMPLE/TRACK-AND-HOLD AMPLIFIER,SINGLE,BIPOLAR/JFET,CAN,8PIN,METAL	IC,SAMPLE/TRACK-AND-HOLD AMPLIFIER,SINGLE,BIPOLAR/JFET,CAN,8PIN,METAL
Reach Compliance Code	unknown	not_compliant	unknown	unknown	unknow
Amplifier type	SAMPLE AND HOLD CIRCUIT	SAMPLE AND HOLD CIRCUIT	SAMPLE AND HOLD CIRCUIT	SAMPLE AND HOLD CIRCUIT	SAMPLE AND HOLD CIRCUIT
JESD-30 code	O-MBCY-W8	O-MBCY-W8	O-MBCY-W8	O-MBCY-W8	O-MBCY-W8
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1	1
Number of terminals	8	8	8	8	8
Maximum operating temperature	70 °C	125 °C	125 °C	70 °C	85 °C
Minimum operating temperature	-	-55 °C	-55 °C	-	-25 °C
Package body material	METAL	METAL	METAL	METAL	METAL
Encapsulate equivalent code	CAN8,.2	CAN8,.2	CAN8,.2	CAN8,.2	CAN8,.2
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V
Temperature level	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	OTHER
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Maker	STMicroelectronics	-	STMicroelectronics	STMicroelectronics	STMicroelectronics
package instruction	, CAN8,.2	-	, CAN8,.2	, CAN8,.2	, CAN8,.2
Maximum slew rate	6.5 mA	-	-	6.5 mA	5.5 mA
