Wide Band High Power Amplifier, 0.5MHz Min, 1500MHz Max,
C5594-14 Parametric
Parameter Name
Attribute value
Maker
Hamamatsu
Reach Compliance Code
unknown
Other features
BNC-F; SMA-M
Characteristic impedance
50 Ω
structure
COAXIAL
Gain
34 dB
Maximum input power (CW)
10 dBm
Maximum operating frequency
1500 MHz
Minimum operating frequency
0.5 MHz
Maximum operating temperature
50 °C
Minimum operating temperature
RF/Microwave Device Types
WIDE BAND HIGH POWER

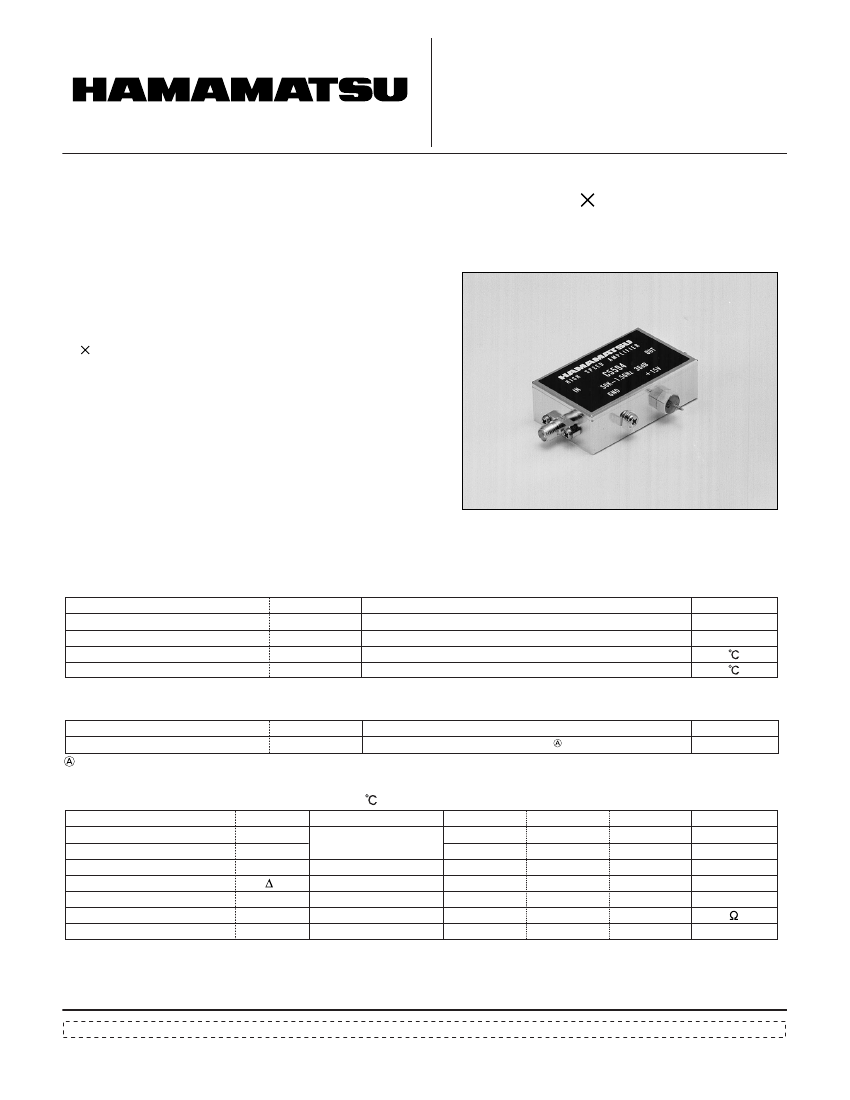

C5594-14 Preview
HIGH SPEED AMPLIFIER
FOR PHOTOMULTIPLIER TUBES
C5594 SERIES
Gain: 36 dB (Voltage Gain of 63)
Frequency Bandwidth: 50 k to 1.5 GHz
The C5594 is designed as the most suitable amplifier
unit for photomultiplier tubes and a non-inverting
type amplifier.
This unit has high gain of 36 dB (voltage amplification
of 63) and wide frequency bandwidth of 50 kHz to
1.5 GHz, which can accurately amplitude the PMT
pulse output.
Therefore it is well-matched to the application of
Time Correlated Single Photon Counting (TCPC) for
fluorescence life time measurement with MCP-PMT
and various time response measurements with
PMTs. It is possible to be operated at the applied
voltage range of +12 to +16 volts.
The input and output connectors can be chosen by
the combination of SMA and/or BNC.
TACCF0117
MAXIMUM RATINGS
Parameter
Supply Voltage
Input Signal Power
Operating Temperature
Storage Temperature
Symbol
Vcc
Pin
Ta
Tstg
Value
+17
+10
0 to +50
-40 to +60
Unit
V
dBm
RECOMMENDED OPERATING VOLTAGE RANGE
Parameter
Supply Voltage
Recommended Voltage: +15V
Symbol
Vcc
Value
+12 to +16
Unit
V
SPECIFICATIONS
(at Vcc = +15 V/Ta = +25 )
Parameter
Upper Cutoff Frequency
Lower Cutoff Frequency
Gain
Gain Flatness
Noise Figure
Input/Output Impedance
Current Consumption
Symbol
fc
(HIGH)
fc
(LOW)
G
G
NF
–
Icc
Condition
3 dB down point from
the gain at 0.1 GHz
f = 0.1 GHz
f = 200 k to 1 GHz
Min.
1.2
–
34
–
–
–
–
Typ.
1.5
50
36
±
1.0
5
50
95
Max.
–
100
–
–
–
–
–
Unit
GHz
kHz
dB
dB
dB
mA
Subject to local technical requirements and regulations, availability of products included in this promotional material may vary. Please consult with our sales office.
lnformation furnished by HAMAMATS U is believed to be reliabIe. However, no responsibility is assumed for possibIe inaccuracies or omissions. Specifications are
subject to change without notice. No patent rights are granted to any of the circuits described herein.
Hamamatsu Corporation: 360 Foothill Road, P. O. Box 6910, Bridgewater. N.J. 08807-0910, U.S.A., Telephone: (1)908-231-0960, Fax: (1)908-231-1218
Germany:
Hamamatsu Photonics Deutschland GmbH: Arzbergerstr. 10, D-82211 Herrsching am Ammersee, Germany, Telephone: (49)8152-375-0, Fax: (49)8152-2658
France:
Hamamatsu Photonics France S.A.R.L.: 8, Rue du Saule Trapu, Parc du Moulin de Massy, 91882 Massy Cedex, France, Telephone: (33)1 69 53 71 00, Fax: (33)1 69 53 71 10
United Kingdom:
Hamamatsu Photonics UK Limted: Lough Point, 2 Gladbeck Way, Windmill Hill, Enfield, Middlesex EN2 7JA, United Kingdom, Telephone: (44)181-367-3560, Fax: (44)181-367-6384
