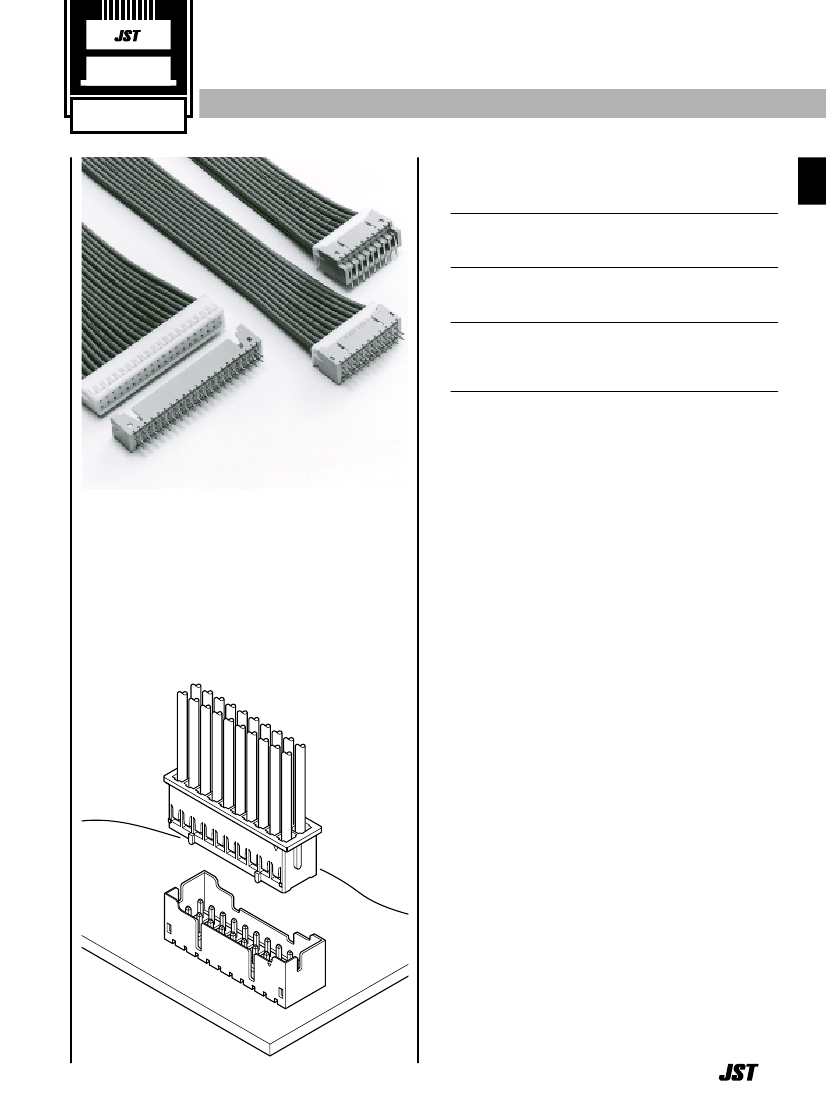

Crimp
XAD
CONNECTOR
Disconnectable Crimp style connectors
Features –––––––––––––––––––––––
• Solder crack prevention
The header wafer is manufactured using glass-filled PA66
nylon, as a prevention against solder crack.
2.5mm
(.098") pitch
• Low insertion force
The header pins are round and reflow-treated, to provide low
insertion forces.
• Fully shrouded header
The header is fully shrouded, having walls on all four sides to
prevent mis-insertion, pin damage during mating and any
intrusion of flux during soldering.
• Interchangeability
The contacts are the same as those used with the XA
connector.
Dual-row construction allows high density
mounting.
Specifications ––––––––––––––––––
• Current rating: 3.0A AC,DC (AWG#20)
• Voltage rating: 250V AC,DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10mΩ max.
After environmental testing/20mΩ max.
• Insulation resistance: 1,000MΩ min.
• Withstanding voltage: AC 1,000V/minute
• Applicable wire: AWG#28 to #22
• Applicable PC board thickness: 1.6mm (.063")
* Contact JST for details.
Standards –––––––––––––––––––––
0
1
2
Recognized E60389
Certified LR20812
R9851219
65
XAD
CONNECTOR
Contact –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
1.9(.075)
Model No.
SXA- 01T-P0.6
6.5(.256)
1.3 1.6
3.1(.122) (.051)(.063)
Applicable wire
mm
2
AWG#
24 to 20
28 to 22
Insulation O.D mm(in.)
1.5 to 1.9(.059 to .075)
1.2 to 1.9(.047 to .075)
Q’ty / reel
7,000
7,000
0.22 to 0.5
0.08 to 0.33
SXA-001T-P0.6
Material and Finish
Phosphor bronze, tin-plated
Housing –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
<Standard type>
B
A
8.0 (.315)
2.3(.091)
Circuits
10
14
18
20
9.5(.374)
Model No.
Standard type
XADP-10V-F
XADP-14V-F
XADP-18V-F
XADP-20V-F
XADP-26V-F
XADP-30V-F
XADP-34V-F
XADP-40V-F
Retainer mountable type
–
–
XADRP-18V-F
–
XADRP-26V-F
XADRP-30V-F
XADRP-34V-F
–
Material
Dimensions mm(in.)
A
B
10.0( .394) 15.0( .591)
15.0( .591) 20.0( .787)
20.0( .787) 25.0( .984)
22.5( .886) 27.5(1.083)
30.0(1.181) 35.0(1.378)
35.0(1.378) 40.0(1.575)
40.0(1.575) 45.0(1.772)
47.5(1.870) 52.5(2.067)
Q’ty / bag
2,000
1,000
1,000
1,000
1,000
500
500
500
26
30
34
40
<Retainer mountable type>
B
A
2.5
(.098)
8.0(.315)
8.0(.315)
Nyron 66, UL94V-0, natural (white)
Retainer –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Circuits
18
H JST14
10.5(.413)
Model No.
XADS-18V
XADS-26V
XADS-30V
XADS-34V
Material
Dimension A mm (in.)
20.0( .787)
30.0(1.181)
35.0(1.378)
40.0(1.575)
Q’ty/bag
1,000
1,000
1,000
1,000
26
30
34
Glass-filled nylon66, UL94V-0, natural (ivory)
2.5
(.098)
A
66
XAD
CONNECTOR
Shrouded header –––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Top entry type
(10 to 26 circuits)
B
A
2.5(.098)
8.9(.350)
Circuits
10
14
18
8.8(.346)
Model No.
B10B-XADSS-F
B14B-XADSS-F
B18B-XADSS-F
B20B-XADSS-F
B26B-XADSS-F
B30B-XADSS-F
B34B-XADSS-F
B40B-XADSS-F
Dimensions mm(in.)
A
10.0( .394)
15.0( .591)
20.0( .787)
22.5( .886)
30.0(1.181)
35.0(1.378)
40.0(1.575)
47.5(1.870)
B
15.0( .591)
20.0( .787)
25.0( .984)
27.5(1.083)
35.0(1.378)
40.4(1.591)
45.4(1.787)
52.9(2.083)
Q’ty / box
200
200
100
100
100
50
50
50
20
26
30
3.5
(.038)
34
40
0.6(.024) dia.
Material & Finish
(30 to 40 circuits)
B
A
2.5(.098)
8.9(.350)
Pin: Copper alloy, copper-undercoated, tin/lead plated
Wafer: Glass-filled nylon 66, UL94V-0, natural (ivory)
0.6(.024) dia.
PC board layout and Assembly layout –––––––––––––––––––––––––––––––––––––––
Top entry type
2.5±0.05(.098±.002)
3.5
(.038)
8.8(.346)
8.9(.350)
0.9
+ 0.1
0
(.035
+ .004
0
) dia.
2.5±0.05(.098±.002)
A±0.05(±.002)
2.5(.098)
Note:
1. Tolerances are non-Cumulative: ±0.05mm (±.002") for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method.
The dimensions above should serve as a guide line. Contact JST for details.
11.3(.445)
67
