HM2P08PDE210Z1 datasheet, PDF - EEWORLD Datasheet

HM2P08PDE210Z1: DescriptionBoard Connector, 124 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size290KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P08PDE210Z1 Overview

Board Connector, 124 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	124
UL Flammability Code	94V-0

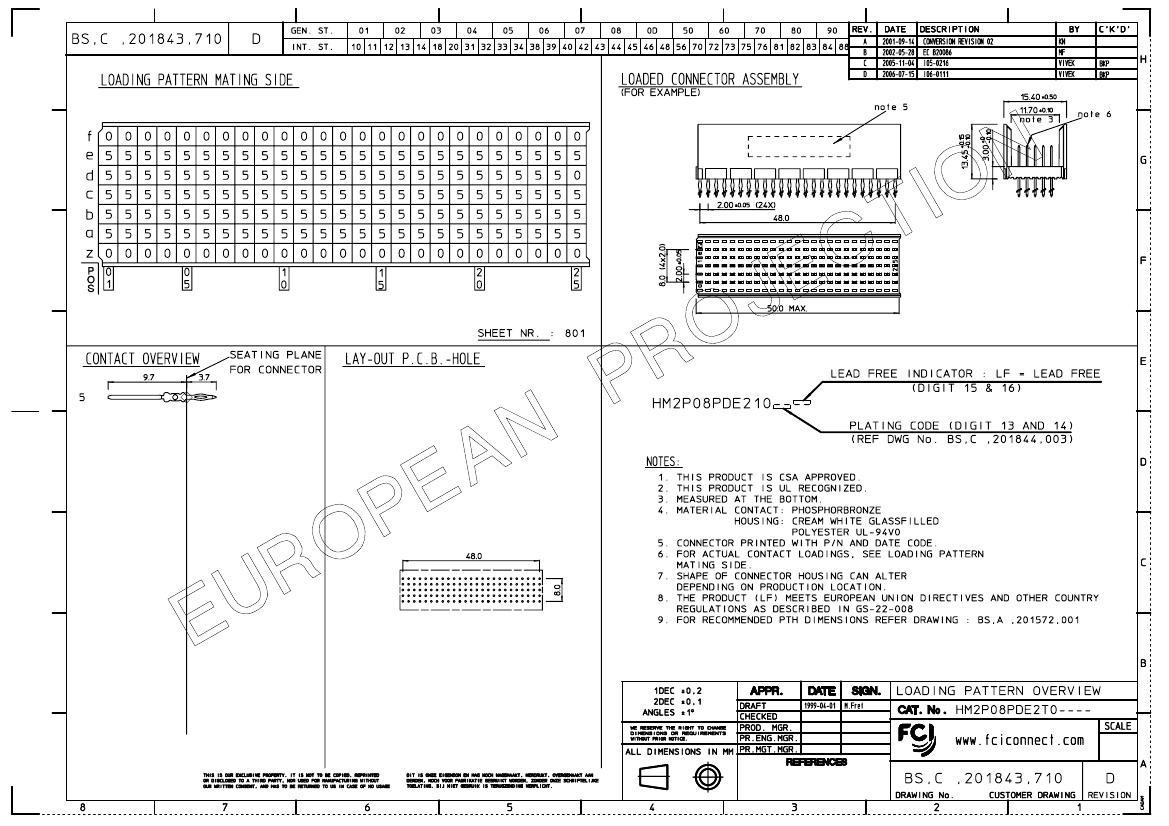

PDM: Rev:D

STATUS:

Released

Printed: Dec 02, 2007

.

	HM2P08PDE210Z1	HM2P08PDE210N9	HM2P08PDE210N9LF	HM2P08PDE210Z1LF
Description	Board Connector, 124 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 124 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 124 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 124 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD	TIN LEAD	MATTE TIN	MATTE TIN
Contact completed and terminated	TIN LEAD	TIN LEAD	MATTE TIN	MATTE TIN
Contact point gender	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e0	e0	e3	e3
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	HM2	HM2	HM2	HM2
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	5	5	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	124	124	124	124
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
