CMBZ5232B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> CMBZ5232B

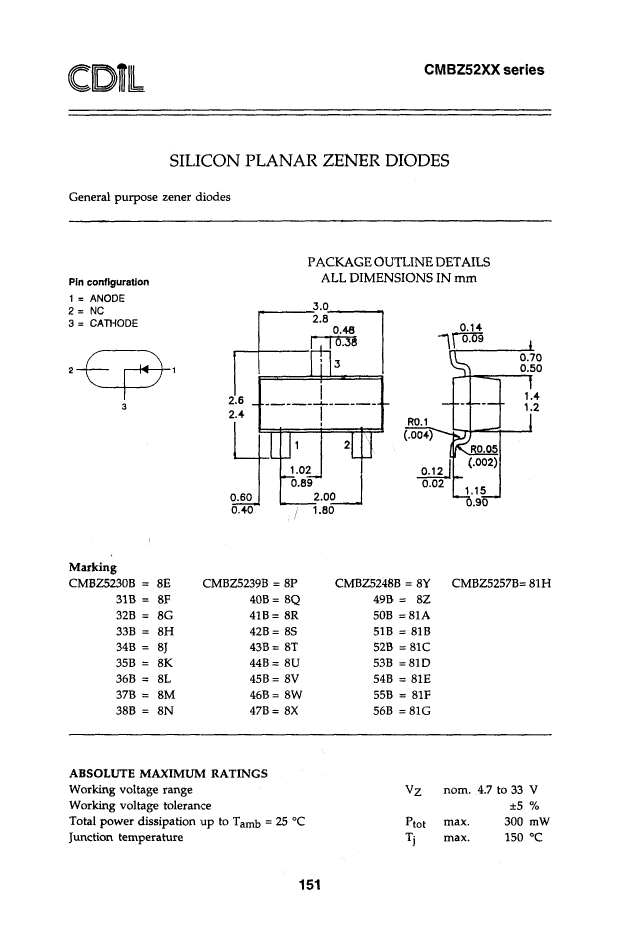

CMBZ5232B: DescriptionZener Diode, 5.6V V(Z), 5%, 0.225W, Silicon, Unidirectional,; CategoryDiscrete semiconductor diode; File Size22KB，1 Pages; ManufacturerCDIL[Continental Device India Pvt. Ltd.]; Environmental Compliance

Download Datasheet Parametric Compare View All

CMBZ5232B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CMBZ5232B	-	-	View	Buy Now

CMBZ5232B Overview

Zener Diode, 5.6V V(Z), 5%, 0.225W, Silicon, Unidirectional,

CMBZ5232B Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	CDIL[Continental Device India Pvt. Ltd.]
package instruction	R-PDSO-G3
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	11 Ω
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.225 W
Certification status	Not Qualified
Nominal reference voltage	5.6 V
surface mount	YES
technology	ZENER
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	5%
Working test current	20 mA

Preview

Download Datasheet

View All

CMBZ5232B Related Products

	CMBZ5232B	CMBZ5248B	CMBZ5237B	CMBZ5238B	CMBZ5246B	CMBZ5234B	CMBZ5239B	CMBZ5244B	CMBZ5249B
Description	Zener Diode, 5.6V V(Z), 5%, 0.225W, Silicon, Unidirectional,	Zener Diode, 18V V(Z), 5%, 0.225W, Silicon, Unidirectional,	Zener Diode, 8.2V V(Z), 5%, 0.225W, Silicon, Unidirectional,	Zener Diode, 8.7V V(Z), 5%, 0.225W, Silicon, Unidirectional,	Zener Diode, 16V V(Z), 5%, 0.225W, Silicon, Unidirectional,	Zener Diode, 6.2V V(Z), 5%, 0.225W, Silicon, Unidirectional,	Zener Diode, 9.1V V(Z), 5%, 0.225W, Silicon, Unidirectional,	Zener Diode, 14V V(Z), 5%, 0.225W, Silicon, Unidirectional,	Zener Diode, 19V V(Z), 5%, 0.225W, Silicon, Unidirectional,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	CDIL[Continental Device India Pvt. Ltd.]	CDIL[Continental Device India Pvt. Ltd.]	CDIL[Continental Device India Pvt. Ltd.]	CDIL[Continental Device India Pvt. Ltd.]	CDIL[Continental Device India Pvt. Ltd.]	CDIL[Continental Device India Pvt. Ltd.]	CDIL[Continental Device India Pvt. Ltd.]	CDIL[Continental Device India Pvt. Ltd.]	CDIL[Continental Device India Pvt. Ltd.]
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
Maximum dynamic impedance	11 Ω	21 Ω	8 Ω	8 Ω	17 Ω	7 Ω	10 Ω	15 Ω	23 Ω
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Number of components	1	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	0.225 W	0.225 W	0.225 W	0.225 W	0.225 W	0.225 W	0.225 W	0.225 W	0.225 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal reference voltage	5.6 V	18 V	8.2 V	8.7 V	16 V	6.2 V	9.1 V	14 V	19 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum voltage tolerance	5%	5%	5%	5%	5%	5%	5%	5%	5%
Working test current	20 mA	7 mA	20 mA	20 mA	7.8 mA	20 mA	20 mA	9 mA	6.6 mA
package instruction	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	-	R-PDSO-G3	-	R-PDSO-G3	R-PDSO-G3
