800-40-033-62-001100: DescriptionBoard Connector, 33 Contact(s), 1 Row(s), Male, Straight, Press Fit Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size195KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

800-40-033-62-001100 Overview

Board Connector, 33 Contact(s), 1 Row(s), Male, Straight, Press Fit Terminal, ROHS COMPLIANT

800-40-033-62-001100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
Objectid	2101808567
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
compound_id	55870990
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN (200) OVER NICKEL (150)
Contact completed and terminated	MATTE TIN (200) OVER NICKEL (150)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	800
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	33

Preview

Download Datasheet

View All

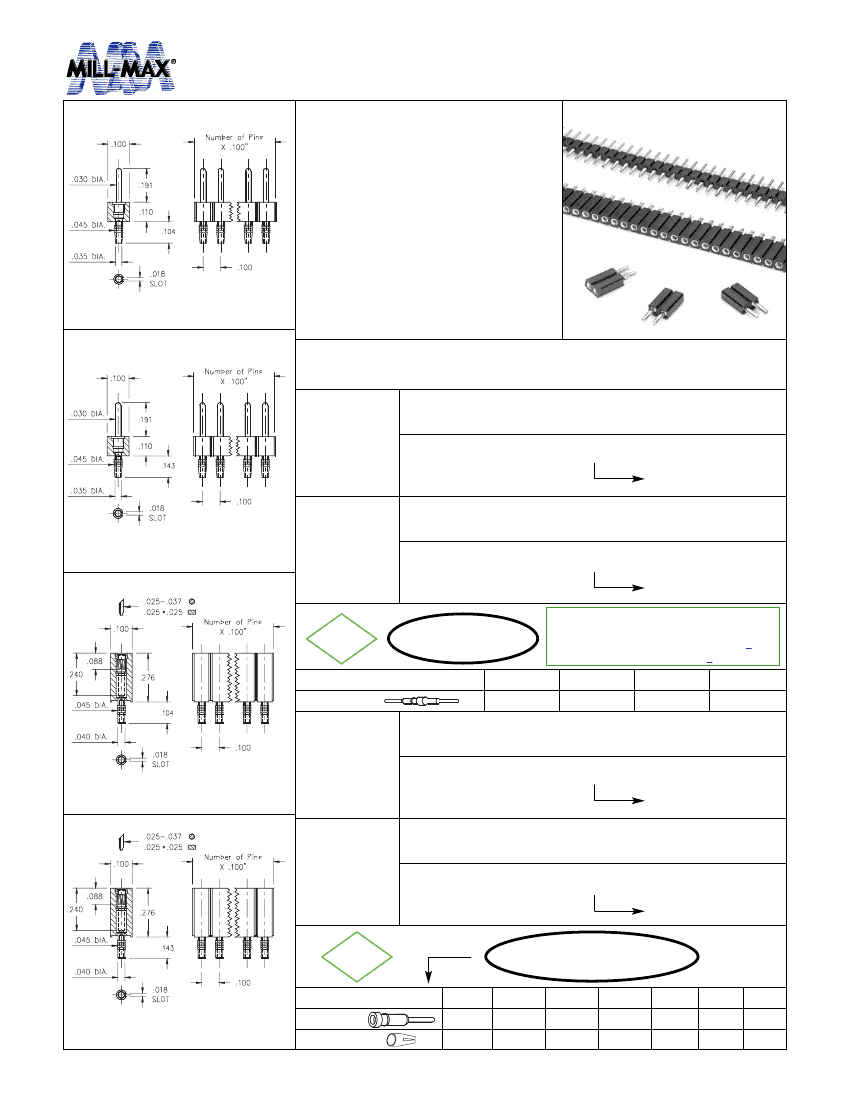

INTERCONNECTS

Solderless Press-Fit

Single Row

•

The unique compliant tail pins

conform to .040”

±.003

finished

hole without stressing inner layers.

•

Pin headers are offered in two tail

lengths for .060”-.100” (MM# 5601)

and .090”-.130” (MM# 5602) thick

panels. (See page 178 for details)

•

Sockets use Hi-Rel, six-finger

clips which accept .030” dia. pins

and also .025” square pins.

(MM# 4614 or 4615). (See page

147 for details)

Series 800, 801

Fig. 1

Ordering Information

Compliant Tail Pin Header

for .060 - .100” thick boards

Fig. 1

800-XX-0 _ _-61-001000

Specify # of pins

01-64

Compliant Tail Pin Header

for .090 - .130” thick boards

Fig. 2

800-XX-0 _ _-62-001000

Specify # of pins

XX= Plating Code

See Below

01-64

For RoHS compliance, select plating code.

For the gold option (XX=10) also change

part number from 800-XX-0XX-6X-001000

to 800-10-0XX-6X-001100

90

200μ” Sn/Pb

40

200μ” Sn

SPECIFY PLATING CODE XX=

10

10μ” Au

Pin Plating

Compliant Tail Socket

for .060 - .100” thick boards

Fig. 3

801-XX-0 _ _-61-001000

Specify # of pins

01-50

Compliant Tail Socket

for .090 - .130” thick boards

Fig. 4

801-XX-0 _ _-62-001000

Specify # of pins

XX= Plating Code

See Below

01-50

SPECIFY PLATING CODE XX=

13

10µ” Au

30µ” Au

91

10µ” Au

93

30µ” Au

99

200µ”Sn/Pb

41

10µ” Au

43

44

Sleeve (Pin)

200µ” Sn/Pb

200µ” Sn/Pb 200µ”Sn/Pb

200µ”Sn

200µ”Sn 200µ”Sn

30µ” Au 200µ”Sn

Fig. 4

Contact (Clip)
