EPA199-10 datasheet, PDF - EEWORLD Datasheet

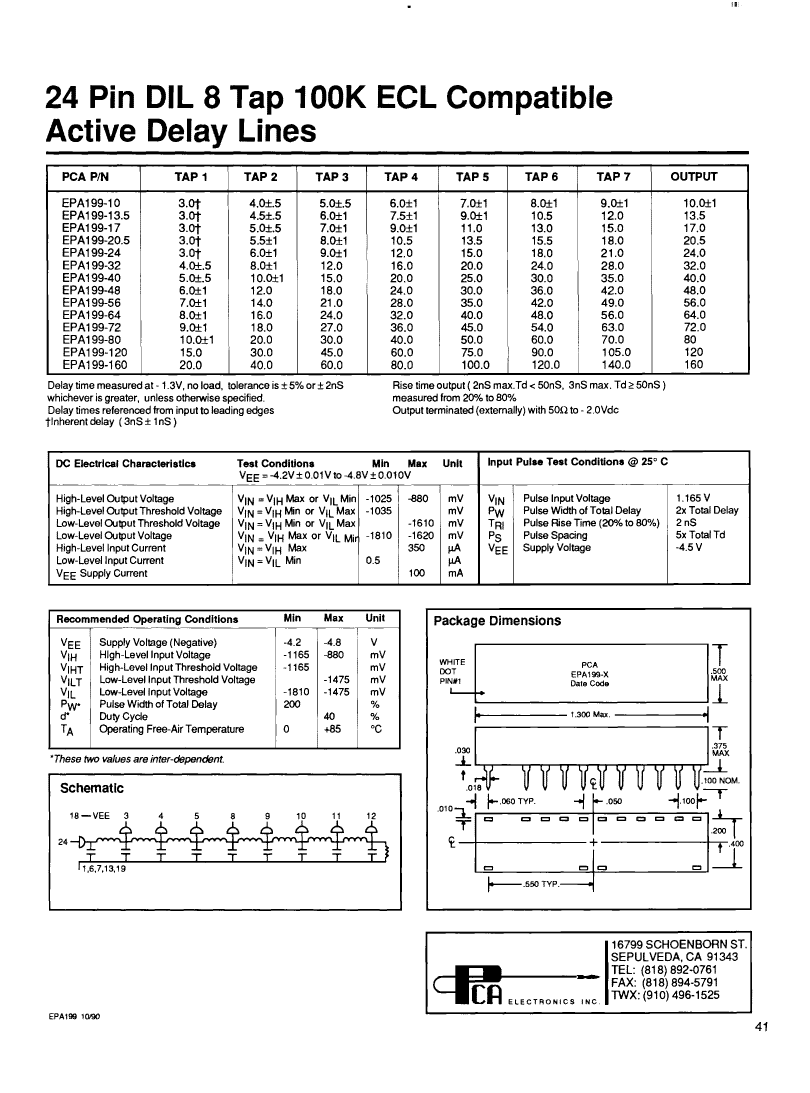

EPA199-10: DescriptionActive Delay Line, 1-Func, 8-Tap, True Output, ECL, DIP-24/15; Categorylogic logic; File Size55KB，1 Pages; ManufacturerPCA Electronics Inc.; Websitehttp://www.pca.com/

Download Datasheet Parametric View All

EPA199-10 Overview

Active Delay Line, 1-Func, 8-Tap, True Output, ECL, DIP-24/15

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	PCA Electronics Inc.
Objectid	1401447087
Parts packaging code	DIP
package instruction	DIP-24/15
Contacts	24
Reach Compliance Code	compliant
compound_id	5202055
Other features	INPUT TO 1ST TAP DELAY = 3+-1NS; TAP TO TAP DELAY TOL. [NS] VARIES; MAX RISE TIME CAPTURED
series	100K
Input frequency maximum value (fmax)	20 MHz
JESD-30 code	R-XDIP-T15
JESD-609 code	e0
Logic integrated circuit type	ACTIVE DELAY LINE
Humidity sensitivity level	3
Number of functions	1
Number of taps/steps	8
Number of terminals	15
Maximum operating temperature	85 °C
Minimum operating temperature
Output characteristics	OPEN-EMITTER
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.4
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	-4.5 V
Maximum supply current (ICC)	100 mA
programmable delay line	NO
Prop。Delay @ Nom-Sup	13 ns
Certification status	Not Qualified
Maximum seat height	9.525 mm
surface mount	NO
technology	ECL
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Total delay nominal (td)	10 ns
width	10.16 mm
