AME10-12DCJZ-ST Parametric
Parameter Name
Attribute value
Is it lead-free?
Lead free
Is it Rohs certified?
conform to
Maker
Aimtec
package instruction
,
Reach Compliance Code
unknown
Other features
ALSO AVAILABLE WITH 120 TO 370 V DC INPUT AND -12 V OUTPUT
Click on Series name for product info on aimtec.com
Series AME10-CJZ
10 Watt | AC-DC / DC-DC Converter
FEATURES:
•
•
•
•
I/O Isolation 3000VAC
Operating Temp: -25
°
C to +70
°
C
Input: 85-264VAC, 47-63Hz, or 120-370VDC
Over current, Over Voltage Protection
•
•
•
•
Continuous Short circuit protection
Energy Star compliant
Compact package
Efficiency up to 84%

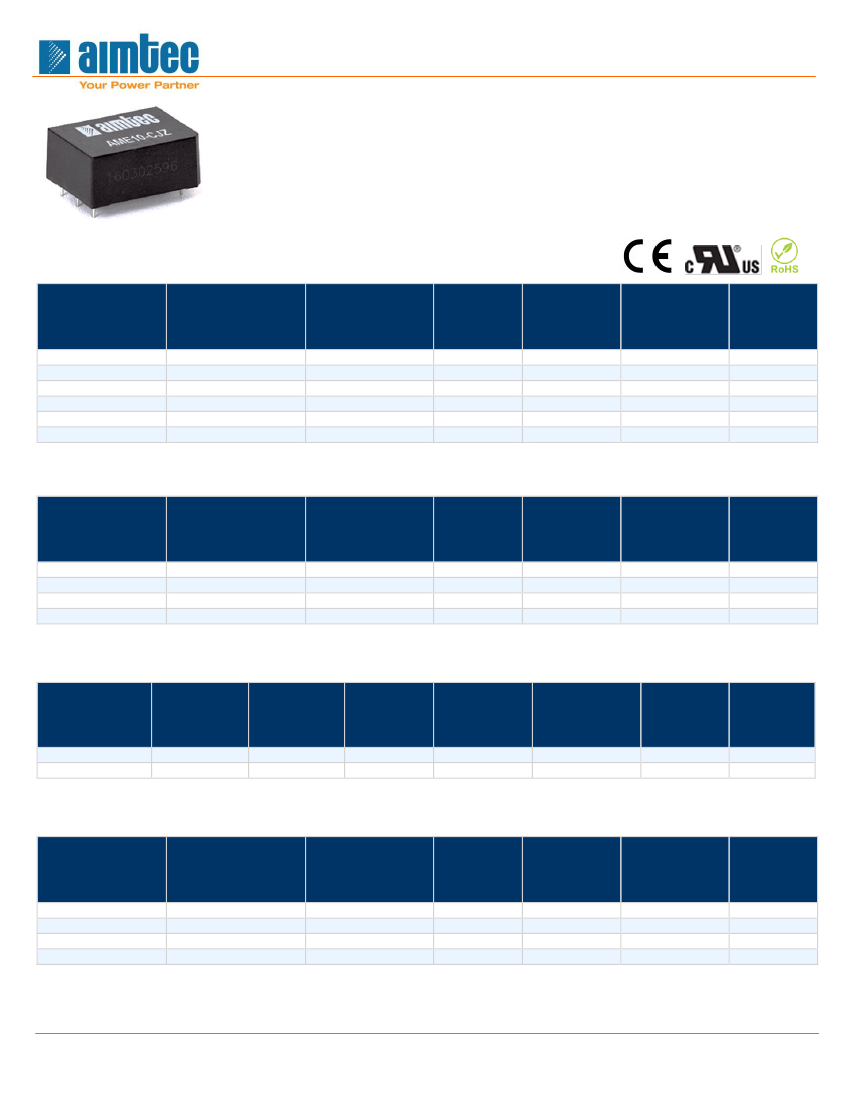

Models
Single output
Model
AME10-3.3SCJZ
AME10-5SCJZ
AME10-9SCJZ
AME10-12SCJZ
AME10-15SCJZ
AME10-24SCJZ
Input Voltage
(VAC/Hz)
85-264/47-63
85-264/47-63
85-264/47-63
85-264/47-63
85-264/47-63
85-264/47-63
Input Voltage
(VDC)
120-370
120-370
120-370
120-370
120-370
120-370
Output
Voltage
(V)
3.3
5
9
12
15
24
Output
Current max
(A)
2
2
1.1
0.9
0.7
0.45
Maximum
capacitive
Load
(µF)
26400
9440
3600
2400
1170
370
Efficiency
230VAC
(%)
70
76
78
80
81
82
Models
Dual output
Model
AME10-5DCJZ
AME10-12DCJZ
AME10-15DCJZ
AME10-24DCJZ
Input Voltage
(VAC/Hz)
85-264/47-63
85-264/47-63
85-264/47-63
85-264/47-63
Input Voltage
(VDC)
120-370
120-370
120-370
120-370
Output
Voltage
(V)
±5
±12
±15
±24
Output
Current max
(A)
±1
±0.45
±0.35
±0.2
Maximum
capacitive
Load
(µF)
±8800
±1970
±1970
±660
Efficiency
230VAC
(%)
76
80
81
84
Models
Triple output
Model
AME10-512TCJZ
AME10-515TCJZ
Input
Voltage
(VAC/Hz)
85-264/47-63
85-264/47-63
Input
Voltage
(VDC)
120-370
120-370
Output
Voltage
(V)
5
5
Auxiliary
Output
Voltage
(V)
±12
±15
Output
Current max
(A)
1/±0.2
0.9/±0.2
Maximum
capacitive
Load
(µF)
3200/±260
2160/±80
Efficiency
230VAC
(%)
75
75
Models
Asymmetric Separated Dual output
Model
AME10-505DCJZ
AME10-512DCJZ
AME10-515DCJZ
AME10-524DCJZ
Input Voltage
(VAC/Hz)
85-264/47-63
85-264/47-63
85-264/47-63
85-264/47-63
Input Voltage
(VDC)
120-370
120-370
120-370
120-370
Output
Voltage
(V)
5/5
5/12
5/15
5/24
Output
Current max
(A)
1.8/0.2
1.5/0.2
1.4/0.2
1/0.2
Maximum
capacitive
Load
(µF)
8000/540
4400/260
4400/170
4000/170
Efficiency
230VAC
(%)
75
79
79
81
www.aimtec.com
F 052e R8. D
Tel: +1 514 620 2722
1 of 5
Toll free: + 1 888 9 AIMTEC (924 6832)
North America only
REV: 02/20/A
Series AME10-CJZ
10 Watt | AC-DC / DC-DC Converter
Input Specifications
Parameters
Current (full load)
Inrush current <2ms (cold start)
Leakage current
External fuse
Conditions
115 VAC
230 VAC
115 VAC
230 VAC
230VAC/50Hz
Recommended slow blow type
Typical
Maximum
260
160
Units
mA
mA
A
A
mA
A
10
20
0.3
2
Output Specifications
Parameters
Voltage accuracy
Line regulation
Load regulation (single output)
Load Regulation (dual output)
Load Regulation (triple &
asymmetric separated output)
Minimum load
Ripple & Noise *
Hold-up time
115VAC, 20MHz bandwidth
230VAC, 20MHz bandwidth
Full load, main output
Full load, auxiliary output
10-100% load
10-100% Balanced load
10-100% Balanced load, main output
10-100% Balanced load, auxiliary output
Single output
Others
Conditions
Typical
±2
±0.5
±1.5
±1
±2
±3
±5
0
10
50
15
80
Maximum
Units
%
%
%
%
%
150
%
%
mV p-p
ms
ms
Isolation Specifications
Parameters
Tested I/O voltage
Isolation voltage between Main and Auxiliary
output
Isolation Resistance
Conditions
60 sec
60 sec
Typical
Rated
3000
500
Units
VAC
VDC
MΩ
>1000
General Specifications
Parameters
Conditions
Typical
Maximum
Units
Switching frequency
100% load
65
KHz
Protection class
Class I
Over current protection
≥110
% of Iout
Over voltage protection
Zener diode clamp
Short circuit protection
Continuous, Auto recovery
o
C
Operating temperature
See derating curve
-25 to +70
o
C
Storage temperature
-25 to +105
o
Maximum Case temperature
100
C
Temperature coefficient
±0.02
% /
o
C
Cooling
Free air convection
Humidity
Non condensing
95
% RH
Case material
Plastic (flammability to UL 94V-0)
Weight
PCB mountable model:
80
g
Dimensions (
L x W x H)
PCB mountable model:
2.165 x 1.772 x 0.827 inches (55.00 x 45.00 x 21.00mm)
MTBF
> 300,000 hrs (MIL-HDBK -217F, t=+25
o
C)/Full Load
NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at
rated output load unless otherwise specified.
www.aimtec.com
F 052e R8. D
Tel: +1 514 620 2722
2 of 5
Toll free: + 1 888 9 AIMTEC (924 6832)
North America only
REV: 02/20/A
Series AME10-CJZ
10 Watt | AC-DC / DC-DC Converter
Safety Specifications
Parameters
Agency approvals
cULus (except triple output models and AME10-1224DCJZ), CE
Information technology Equipment
IEC/EN/UL 60950-1
EMI - Conducted and radiated emission
EN55022, class B
Electrostatic Discharge Immunity
IEC 61000-4-2 Level 3
RF, Electromagnetic Field Immunity
IEC 61000-4-3 Level 3
Electrical Fast Transient/Burst Immunity
IEC 61000-4-4 Level 3
Surge Immunity
IEC 61000-4-5 Level 3
RF, Conducted Disturbance Immunity
IEC 61000-4-6 Level 3
Power frequency Magnetic Field Immunity
IEC 61000-4-8 Level 3
Voltage dips, Short Interruptions Immunity
IEC 61000-4-11 Class 2
Standards

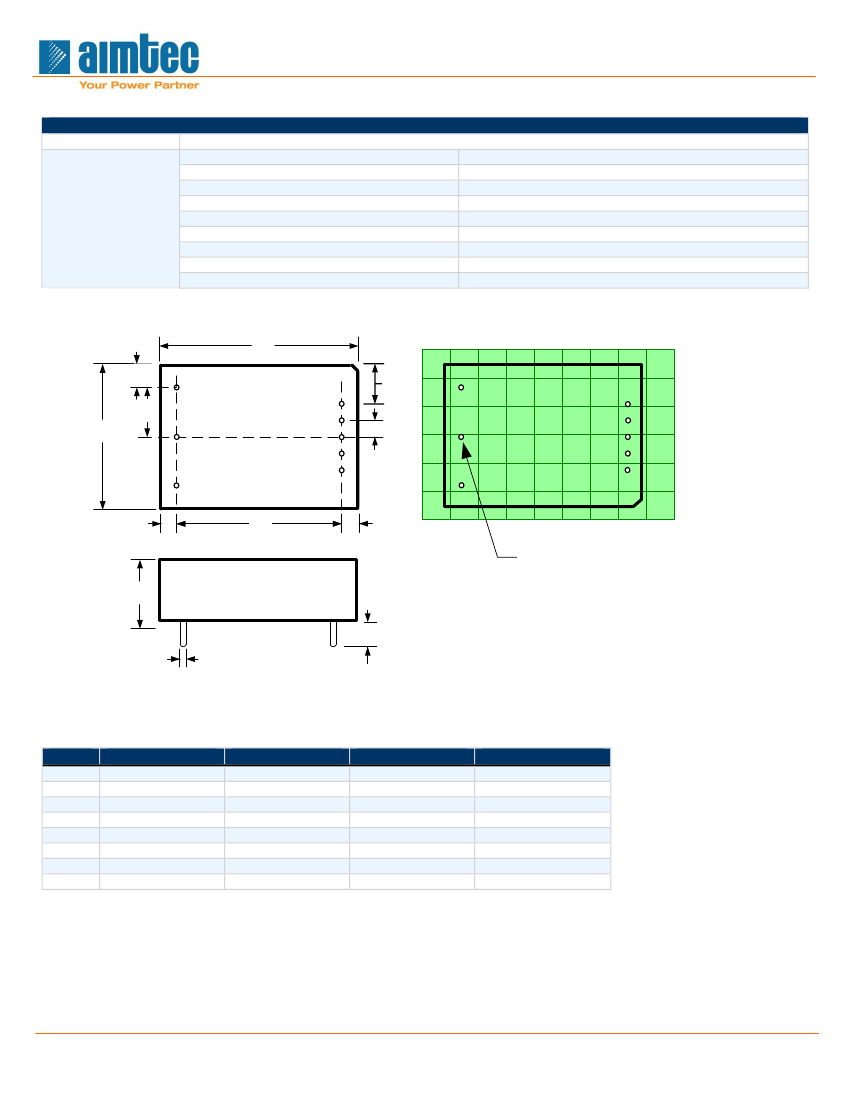

Dimensions
55.00
(2.17)
5.00
(0.20)
3
12.50
(0.49)
1
2
5.00
(0.20)
Bottom
View
8
7
6
5
4
45.00
(1.77)
2
Top View
4
5
6
7
8
17.50
(0.69)
1
4.00
(0.16)
3
47.00
(1.85)
4.00
(0.16)
DIV: 10.00 (0.40)
Ø 1.50 (Ø 0.06)
21.00
(0.83)
Dimensions mm (inch)
Case Tolerance ±0.50 (±0.02)
Pin Diameter 1.0 ± 0.10 (0.04 ± 0.004)
Pin Out Specifications
Pin
1
2
3
4
5
6
7
8
Single
Ground
AC Input (N)
AC Input (L)
-V Output
No pin
No pin
No pin
+V Output
Dual
Ground
AC Input (N)
AC Input (L)
-V Output
No pin
Common
No pin
+V Output
6.00
(0.24)
1.00
(0.04)
Triple
Ground
AC Input (N)
AC Input (L)
-V Output 1
+V Output 1
-V Output 2
Common
+V Output 2
Asymmetric Dual
Ground
AC Input (N)
AC Input (L)
-V Output 1
+V Output 1
No pin
-V Output 2
+V Output 2
www.aimtec.com
F 052e R8. D
Tel: +1 514 620 2722
3 of 5
Toll free: + 1 888 9 AIMTEC (924 6832)
North America only
REV: 02/20/A
Series AME10-CJZ
10 Watt | AC-DC / DC-DC Converter

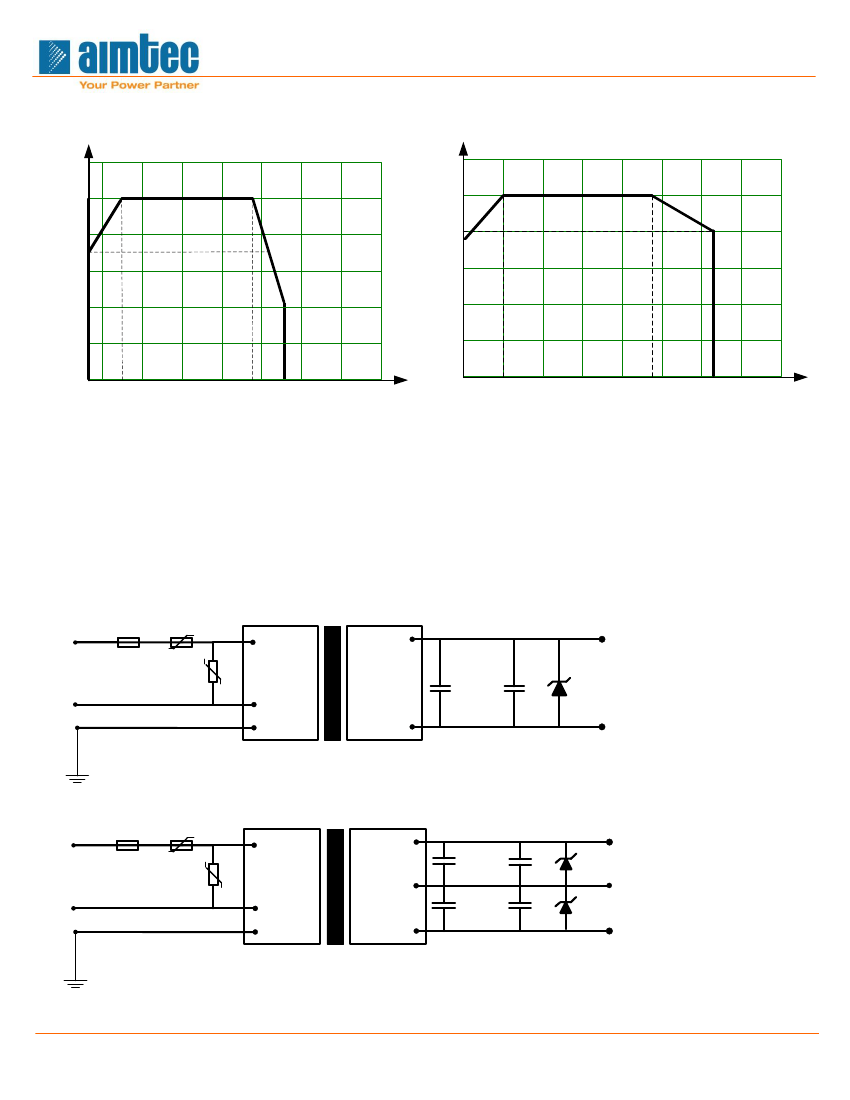

Derating
Free Air Convection
Free Air Convection at 25°C
Output power (%)
100
100
Output Power (%)
80
70
Safe Operating Area
Input 100-240VAC or
120-340VDC
80
75
60
40
20
0
85
100
(100) (120)
60
40
20
0
- 25
Safe Operating Area
-20
-10
55
70
0
20
40
60
80
100
Ambient Temperature
º C
240
(320)
Input Voltage VAC (VDC)
264
(350)

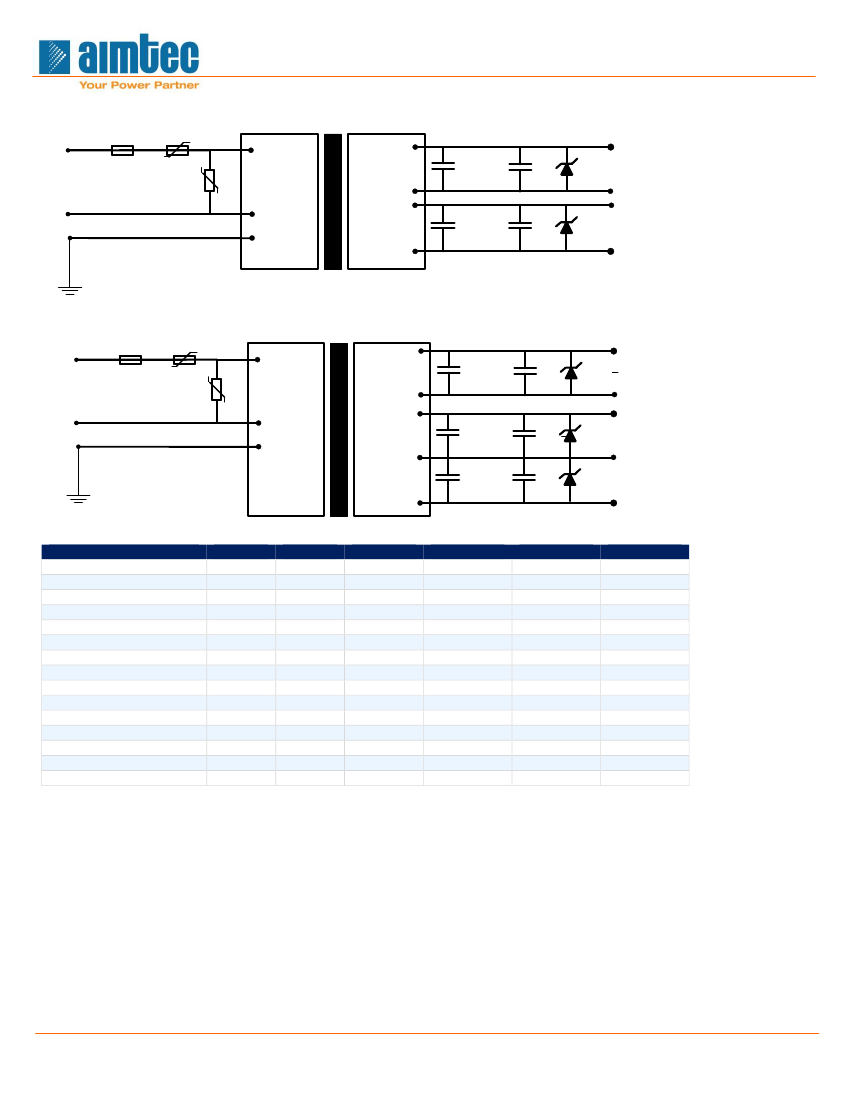

Typical application circuits
FUSE
2A/300V
AC L
MOV
S14K350
AC N
Single Output
NTC
AC L
+ Vout
TVS
+ Vout
AC
AC N
Earth/GND
DC
+
C1
C2
1µF/50V
- Vout
- Vout
FUSE
2A/300V
AC L
Dual Output
NTC
AC L
MOV
S14K350
+ Vout
Com
C1
1µF/50V
C3
1µF/50V
C2
+
TVS 1
+ Vout
AC
AC N
Earth/GND
DC
AC N
C4
+
Com
TVS 2
- Vout
- Vout
www.aimtec.com
F 052e R8. D
Tel: +1 514 620 2722
4 of 5
Toll free: + 1 888 9 AIMTEC (924 6832)
North America only
REV: 02/20/A
Series AME10-CJZ
10 Watt | AC-DC / DC-DC Converter
FUSE
2A/300V
AC L
MOV
S14K350
AC N
NTC
AC L
Asymmetric
Dual Output
+
Vout 1
AC
AC N
Earth/GND
-
DC
+
Vout 2
-
C3
1µF/50V
C1
1µF/50V
C2
+
TVS 1
- Vout 1
+ Vout 2
TVS 2
- Vout 2
+ Vout 1
C4
+
FUSE
2A/300V
NTC
AC L
MOV
S14K350
Triple Output
+
Vout 1
C1
1µF/50V
AC L
C2
+
TVS1
+
Vout 1
-
-
AC N
AC
Earth/GND
+ Vout 2
DC
Com
AC N
C5
1µF/50V
C3
1µF/50V
C6
+
TVS2
+ Vout 2
C4
+
Com
TVS3
- Vout 2
- Vout 2
Model
Single 3.3 Vout
Single 5 Vout
Single 9 Vout
Single 12 & 15 Vout
Single 24 Vout
Dual ±5 Vout
Dual ±12 Vout
Dual ±15 Vout
Dual ±24 Vout
Triple 5/±12 Vout
Triple 5/±15 Vout
Dual 5/5 Vout
Dual 5/12 Vout
Dual 5/15 Vout
Dual 5/24 Vout
C2
470 µF
330 µF
120 µF
120 µF
68 µF
220 µF
120 µF
47 µF
33 µF
220 µF
220 µF
220 µF
220 µF
220 µF
220 µF
C4
-
-
-
-
-
220 µF
120 µF
47 µF
33 µF
68 µF
47 µF
68 µF
68 µF
47 µF
47 µF
C6
-
-
-
-
-
-
-
-
-
68 µF
47 µF
-
-
-
-
TVS1
7V
7V
12V
20V
30V
7V
20V
20V
30V
7V
7V
7V
7V
7V
7V
TVS2
-
-
-
-
-
7V
20V
20V
30V
20V
20V
7V
20V
20V
30V
TVS3
-
-
-
-
-
-
-
-
-
20V
20V
-
-
-
-
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all internal components
and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
6.
This
product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate
specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at www.aimtec.com.
