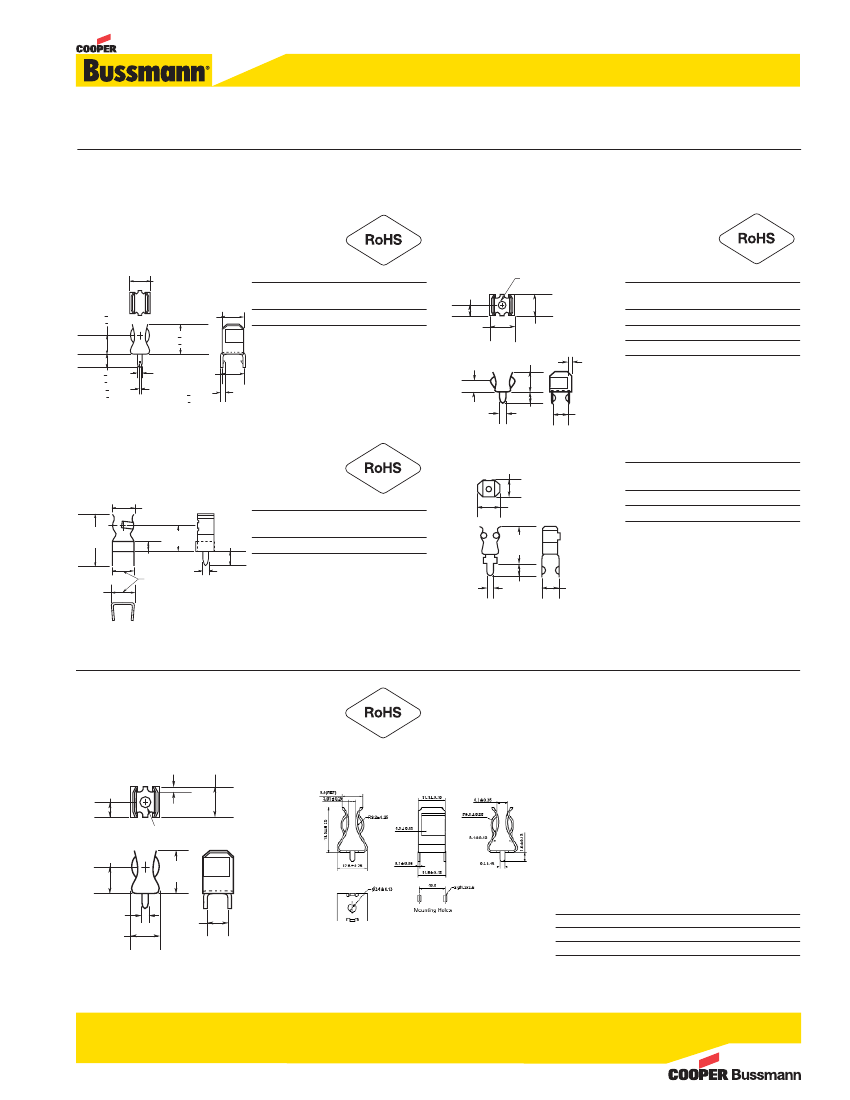

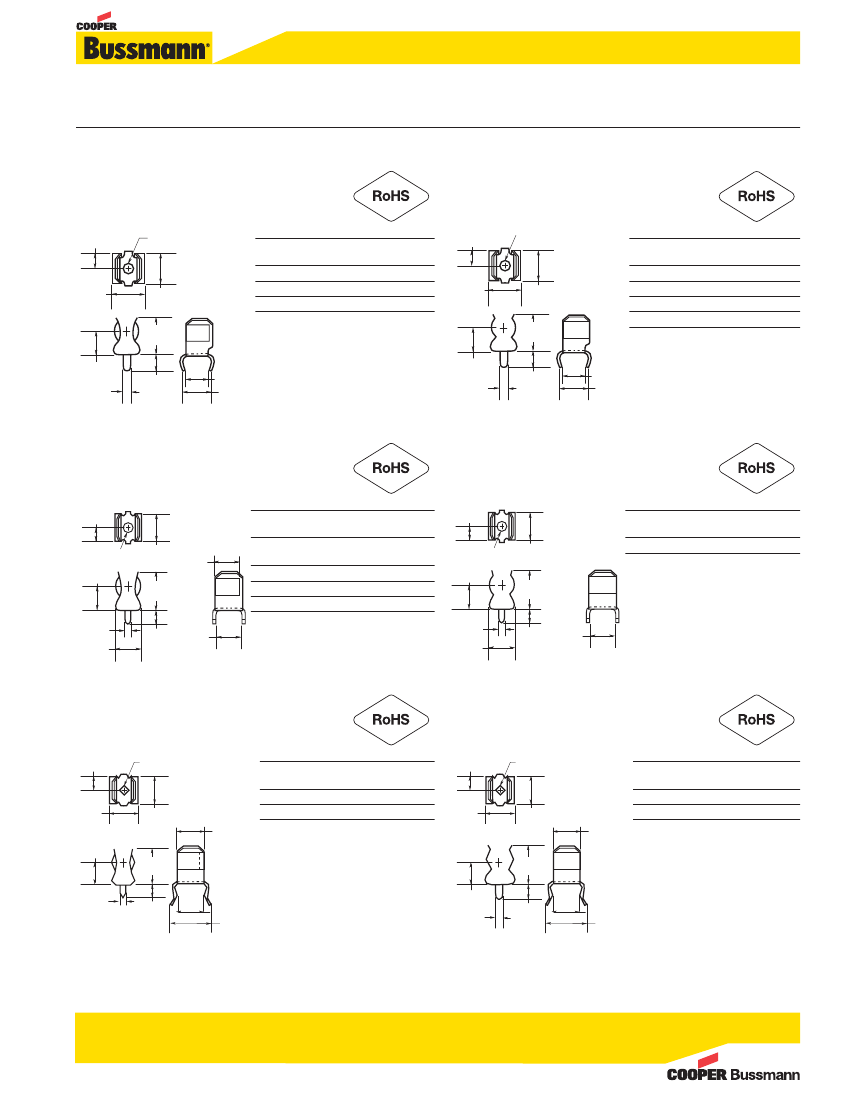

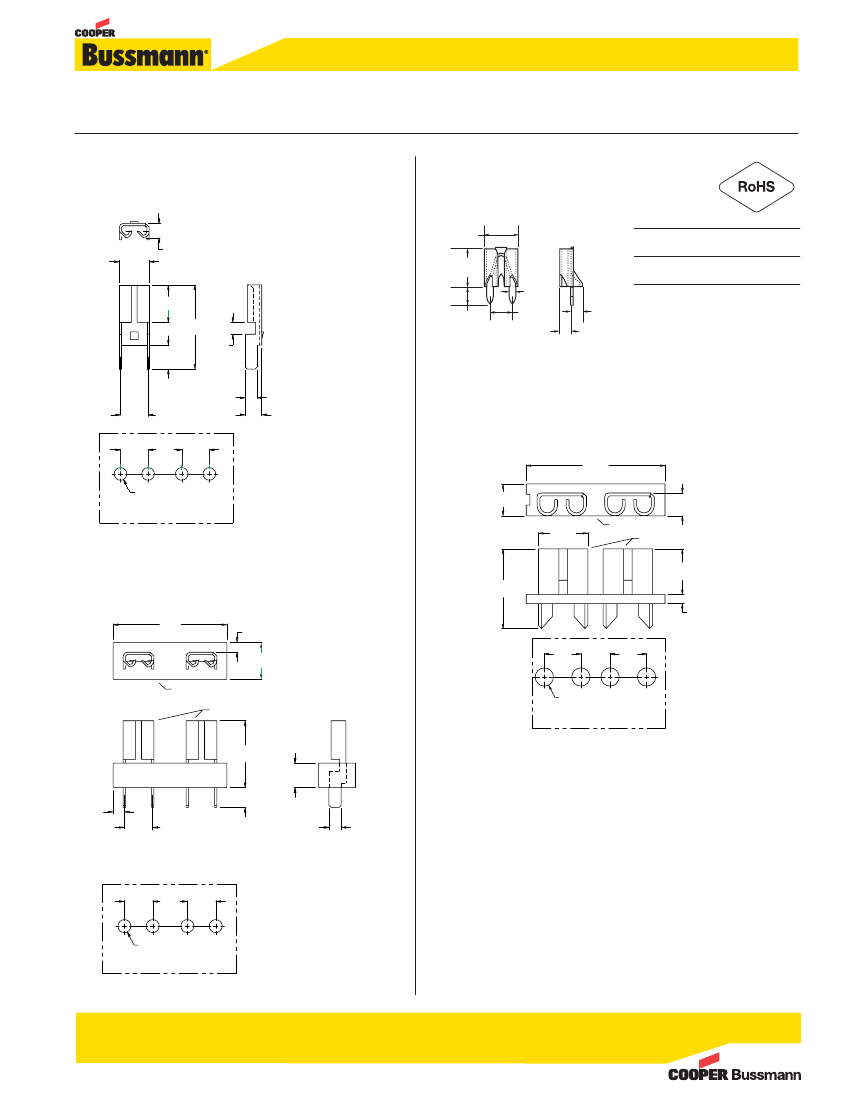

PCB Fuse Clips for ATC/ATM Blade, 5mm,
1
/
4
” &
13
/
32
” Diameter Fuses
1AXXXX Series
For
1
/
4
” Diameter Fuses
1A1119 Series***
With End Stops and Angled In leads
Dimensional Data
.187"
(4.8mm)
1A1120 Series***
Without End Stops and Angled In Leads
Dimensional Data
.187"
.132"
(3.4mm)
(4.8mm)
.132"
(3.4mm)
Catalog
Number
1A1119-04
1A1119-05
1A1119-10
Clip
Mat.*
BeCu**
BeCu**
Cart. Brass
Finish
Bright Tin
Silver
Bright Tin
.320"
(8.13mm)
Catalog
Number
1A1120-02
1A1120-05
1A1120-06
1A1120-09
Clip
Mat.*
Cart. Brass
BeCu**
BeCu**
Cart. Brass
Finish
Bright Dip
Silver
Bright Tin
Bright Tin
.320"
(8.13mm)
.312"
(7.9mm)
.312"
(7.9mm)
.420"
(10.7mm)
.410"
(10.4mm)
.250"
(6.35mm)
.290"
.155"
(3.9mm)
(7.4mm)
.250"
(6.35mm)
.290"
.155"
(3.9mm)
(7.4mm)
.080"
(2.03mm)
.360"
(9.14mm)
.080"
(2.03mm)
.360"
(9.14mm)
1A1907 Series***
With End Stops & Straight Leads
Dimensional Data
.155"
(3.94mm)
1A3398 Series***
Without End Stops & Straight Leads
Dimensional Data
.155"
Catalog
Number
.280"
(7.1mm)
Clip
Mat.*
Cart. Brass
BeCu**
BeCu**
Cart. Brass
(3.94mm)
Finish
None Bright
Dipped
Bright Tin
Silver
Bright Tin
.060"
(1.5mm)
Catalog
Number
.280"
(7.1mm)
Clip
Mat.*
Cart. Brass
Finish
Bright Tin
.102" Dia.
(2.6mm)
1A1907-02
.245"
(6.2mm)
.102" Dia.
(2.6mm)
1A3398-07
.255"
(6.5mm)
1A1907-03
1A1907-05
1A1907-06
.255"
(6.5mm)
.410"
(10.4mm)
.410"
(10.4mm)
.060"
(1.5mm)
.140"
.320"
(8.13mm)
(3.6mm) (7.1mm)
.280"
.140"
.320"
(8.13mm)
(3.6mm) (7.1mm)
.280"
1A4534 Series***
With End Stops & Angled Out Leads
Dimensional Data
.155"
(3.94mm)
1A4533 Series***
Without End Stops & Angled Out Leads
Dimensional Data
.155"
.102"
(2.6mm)
.102"
(2.6mm)
Catalog
Number
1A4534-01
1A4534-06
.245"
(6.2mm)
Clip
Mat.*
BeCu**
Cart. Brass
(3.94mm)
Finish
Bright Tin
Bright Tin
.320"
(8.13mm)
Catalog
Number
1A4533-01
1A4533-06
.245"
(6.2mm)
Clip
Mat.*
BeCu**
Cart. Brass
Finish
Bright Tin
Bright Tin
.320"
(8.13mm)
.280"
(7.11mm)
.280"
(7.11mm)
.255"
(6.5mm)
.410"
(10.4mm)
.410"
(10.4mm)
.060"
(1.5mm)
.255"
.150"
(3.81mm)
.226"
(5.74mm)
(6.5mm)
.150"
(3.81mm)
.226"
(5.79mm)
.321"
(8.15mm)
.060"
(1.5mm)
.321"
(8.20mm)
*Spg. Br. - Spring Bronze; BeCu - Beryllium Copper; Cart. Brass - Cartridge Brass
**Beryllium copper recommended for currents higher than 15 amps.
***For RoHS compliant version add “-R” option code suffix to part number.
0811
SB-BU11753
Page 1 of 4
Data Sheet 2131
PCB Fuse Clips for ATC/ATM Blade, 5mm,
1
/
4
” &
13
/
32
” Diameter Fuses
1AXXXX Series
For 5mm Diameter Fuses
1A5601 Series (0 to 7 amps)
Dimensional Data
1A3399 and 1A5018 Series***
With Straight Leads
Dimensional Data
.250"
(6.35mm)
(8.73mm + 0.38mm)
.344" + .015"
.246"
(6.3mm)
Catalog
Number
1A5601
Clip
Mat.*
Cart. Brass
.115"
(2.9mm)
.062"
(1.6mm)
Finish
Bright Tin
Catalog
Number
1A3399-10
1A3399-01
1A3399-04
Clip
Mat.*
Spg. Br.
BeCu**
BeCu**
Finish
Bright Tin
Silver
Bright Tin
(8.73mm + 0.38mm)
.344" + .015"
.254"
(6.5mm)
.237"
(6.0mm)
.125"
(3.58mm + 0.38mm)
(0.56mm + 0.05mm)
.225"
(6.5mm)
.141" + .015"
(3.2mm)
.060"
(1.5mm)
.030"
(1.6mm)
.266"
(6.75mm)
.022" + .002"
(.81mm + .05mm)
.032" + .002"
.060"
(1.5mm)
.125"
(3.2mm)
.188"
(4.8mm)
1A5602 Series (0 to 7 Amps)
Dimensional Data
.180"
(4.57mm)
High Profile
Catalog
Number
1A5018-10
1A5018-7
Clip
Mat.*
Spg. Br.
Spg. Br.
Finish
Bright Tin
Silver
.219"
(5.57mm)
.230"
.250"
.140"
(3.56mm)
.500"
(12.70mm)
Catalog
Number
1A5602
Clip
Mat.
Cart. Brass
(5.84mm)
Finish
Bright Tin
(6.35mm)
.440"
(11.2mm)
.093"
(2.36mm)
.047"
.216"
(5.48mm)
LEGS TO FIT
IN .052" (1.3mm) DIA.
HOLES ON CENTER
(1.19mm)
.047"
(1.2mm)
.140"
(3.7mm)
.180"
(4.6mm)
Specifications
5mm PCB Mount Fuseclips
Current Rating: 15A
Voltage Rating: 500Vac
PCB Terminals: Solder Lug
*Spg. Br. - Spring Bronze; BeCu - Beryllium Copper; Cart. Brass - Cartridge Brass.
**Beryllium copper recommended for currents higher than 15 amps.
For
13
/
32
” Diameter Fuses
1A3400 Series***
With End Stops & Straight Leads
Dimensional Data
0.050" 0.437"
(1.27mm) (11.1mm)
0.218"
(5.54mm)
0.142" Dia.
(3.61mm)
0.470"
(11.94mm)
0.710"
(18.03mm)
Specifications
:
Catalog
Number
1A3400-09
1A3400-10
1A3400-12
Clip
Material
Spring Bronze
Beryllium Copper
Spring Brass
Finish
Bright Tin
Silver
Bright Tin
Amp
Rating
20A Max.
30A Max.
15A Max.
0.080"
(2.03mm)
0.380"
(9.65mm)
0.470"
(11.94mm)
1A3400-12
1A3400-09 & 1A3400-10
***For RoHS compliant version add “-R” option code suffix to part number.
0811
SB-BU11753
Page 2 of 4
Data Sheet 2131
PCB Fuse Clips for ATC/ATM Blade, 5mm,
1
/
4
” &
13
/
32
” Diameter Fuses
1AXXXX Series
ATM Fuses
1A5778 Series
Dimensional Data
ATC Fuses (0 to 20 Amps)
1A5600 Series
Dimensional Data
.295"
1.90
.075
3.96
.156
(7.49mm)
Catalog
Number
1A5600
.053"
(1.35mm)
Clip
Mat.*
Cart.
Brass
Finish
Satin
Finish Tin
.330"
(8.38mm)
4.98
.196
.150"
11.18
.440
1.57
.062
.200"
(5.08mm)
.090"
±
.010"
(2.29mm)
(3.81mm)
.090"
(2.29mm)
3.18
.125
1.57
.062
3.66
.144
2.18
.086
1A5780 Series
Dimensional Data
3.66
.144
4.47
.176
3.66
.144
19.30
.760
1.65Å}.05
.065Å}.002
(TYP-4)
DIA. HOLE
4.45
.175
3.18
.125
BASE
6.88
.271
FUSECLIPS
MOUNTING LAYOUT FOR 2 CLIPS
MATERIAL: BRASS, NICKEL PLATED, .30 THICK
.012
6.35
.250
11.10
.437
1.27
.050
1A5779 Series
14.68
.578
1.24
.049
4.75
.187
5.08
.200
4.06
.160
5.08
.200
BASE
FUSECLIPS
2.54Å}.05
.100Å}.002
(TYP-4)
DIA. HOLE
MOUNTING LAYOUT
8.64
.340
SPECIFICATIONS
3.18
.125
2.54
.100
1.45
.057
3.66
.144
1.57
.062
FUSECLIPS . . . . . . . .
BASE MATERIAL
.....
BRASS, NICKEL PLATED
GLASS FILLED NYLON,
UL RATED 94V-0
15 AMPS
500V AC
CURRENT RATING . . . . .
VOLTAGE RATING . . . . .
TEMPERATURE RATING . . -50flC TO 145flC -58flF 292flF
*Spg. Br. - Spring Bronze; BeCu - Beryllium Copper; Cart. Brass - Cartridge Brass
3.66
.144
4.47
.176
3.66
.144
SPECIFICATIONS
FUSECLIPS . . . . . . . .
BASE MATERIAL
.....
BRASS, NICKEL PLATED
GLASS FILLED NYLON,
UL RATED 94V-0
15 AMPS
500V AC
TO
145flC
292flF
***For RoHS compliant version add “-R” option code suffix to part number.
1.65Å}.05
.065Å}.002
(TYP-4)
DIA. HOLE
CURRENT RATING . . . . .
VOLTAGE RATING . . . . .
MOUNTING LAYOUT
-50flC
TEMPERATURE RATING . .
-58flF
0811
SB-BU11753
Page 3 of 4
Data Sheet 2131
PCB Fuse Clips for ATC/ATM Blade, 5mm,
1
/
4
” &
13
/
32
” Diameter Fuses
1AXXXX Series
Fuse Clip Catalog Numbers
Footprint
Dimensional Data
A
B
C
B
Dimensions
A
Catalog
Number
1A5778-
1A5779-
1A5780-
1A3398-
1A1907-
1A1119-
1A1120-
1A3399-
1A3400-
1A4533-
1A4534-
1A5018-
1A5600-
1A5601-
1A5602-
/
8
”
(22.2mm)
—
7
ATC
3
1
ATM
—
0.464”
(11.79)
0.464”
(11.79)
—
—
—
—
—
—
—
—
—
—
—
—
B
Tabs
0.144”
(3.66)
0.144”
(3.66)
0.200”
(5.08)
0.295”-0.305”
(7.49-7.75)
0.295”-0.305”
(7.49-7.75)
0.295”-0.305”
(7.49-7.75)
0.200”
(5.08)
0.405”
(10.29)
0.300”
(7.62)
0.300”
(7.62)
0.180”
(4.6)
0.200”
(5.08)
0.266”
(6.76)
0.220”
(5.588)
C
(4 holes)
0.065”±0.002”
(1.65±0.05)
0.065”±.002”
(1.65±.05)
0.100”±0.002”
(2.54±0.05)
0.067”-.070”
(1.70-1.78)
0.093”±0.002”
(2.36±0.05)
0.093”±0.002”
(2.36±0.05)
0.067”-.070”
(1.70-1.78)
0.091”-.095”
(2.31-2.41)
0.067”-.070”
(1.70-1.78)
0.067”-.070”
(1.70-1.78)
0.053”-.002”
(1.35-0.05)
0.052”±0.003”
(1.32±0.077)
0.067”±0.003”
(1.70±0.074)
Board
Thickness
0.062”
(1.57)
0.062”
(1.57)
0.062”
(1.57)
0.093”
(2.36)
0.062”to 0.125”
(1.57to3.18)
0.062”to 0.125”
(1.57 to 3.18)
093”
(2.36)
0.125”
(3.18)
0.062”
(1.57)
0.062”
(1.57)
0.093”
(2.36)
0.125”max.
(3.18)
0.062”
(1.57)
0.125”max.
(3.175)
1”
(25.4mm)
—
—
—
1.125”
(28.58)
1.125”
(28.58)
1.125”
(28.58)
—
—
1.125”
(28.58)
1.125”
(28.58)
—
—
—
—
1 /
4
”
(31.8mm)
—
1
1 /
8
”
1 /
2
”
(34.93mm) (38.10mm) 20mm
—
—
—
—
—
—
—
—
—
1.50”
(38.10)
—
—
—
—
—
—
—
—
—
—
—
—
1.625”—
(41.28)
—
—
—
—
—
—
—
—
—
—
—
0.875”
(22.23)
—
—
—
0.560
(14.22)
—
—
—
—
—
—
—
1.00”
(25.40)
1.00”
(25.40)
1.00”
(25.40)
—
—
1.00”
(25.40)
1.00”
(25.40)
—
—
—
—
—
—
1.375”
(34.920)
1.375”
(34.92)
1.375”
(34.920)
—
—
1.375”
(34.920)
1.375”
(34.920)
—
—
—
—
—
—
—
—
0.820”±0.015” —
(20.80±0.38)
—
—
0.820”±0.015” —
(20.80±0.38)
—
—
*Spg. Br. - Spring Bronze; BeCu - Beryllium Copper; Cart. Brass - Cartridge Brass
**Beryllium copper recommended for currents higher than 15 amps.
The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by definition uncon-
trolled. This bulletin is intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Cooper Bussmann
reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to
change or update, without notice, any technical information contained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
© 2011 Cooper Bussmann
www.cooperbussmann.com
0811
SB-BU11753
Page 4 of 4
